100% Brand New and High Quality.
Shape: Same as the picture show
1. Mode: Toggle Switch
2. Grade: Industrial Grade
3. Tyle: ON-OFF
4. Foot Type: T-Type (6.3mmx0.8)
5. Power: 15A 250VAC / 20A 125VAC
6. Ploes£ºDPST
7. Dielectric strength: 1000 V RMS (min)
8. Insulation resistance: 100 M¦Ø(min)
9. Basal material: Poly propylene materials
10. Mechanical life: More than 20.000 cycles
11. Environment temperature: - 25 degrees ~ 80 degrees
12. Vibration: 10 to 55Hz, 1.5 mm Double Amplitude
13. Humiditiy£º¡Ü85%Rh
14. Withstand Voltage: ¡Ý1500V 50/60Hz,Last for 1min
15. Mounting Method: Bushing Mount
16. Dimensions£º ¦Õ12mm + 0.2 Diameter
Package included:
1Pcs

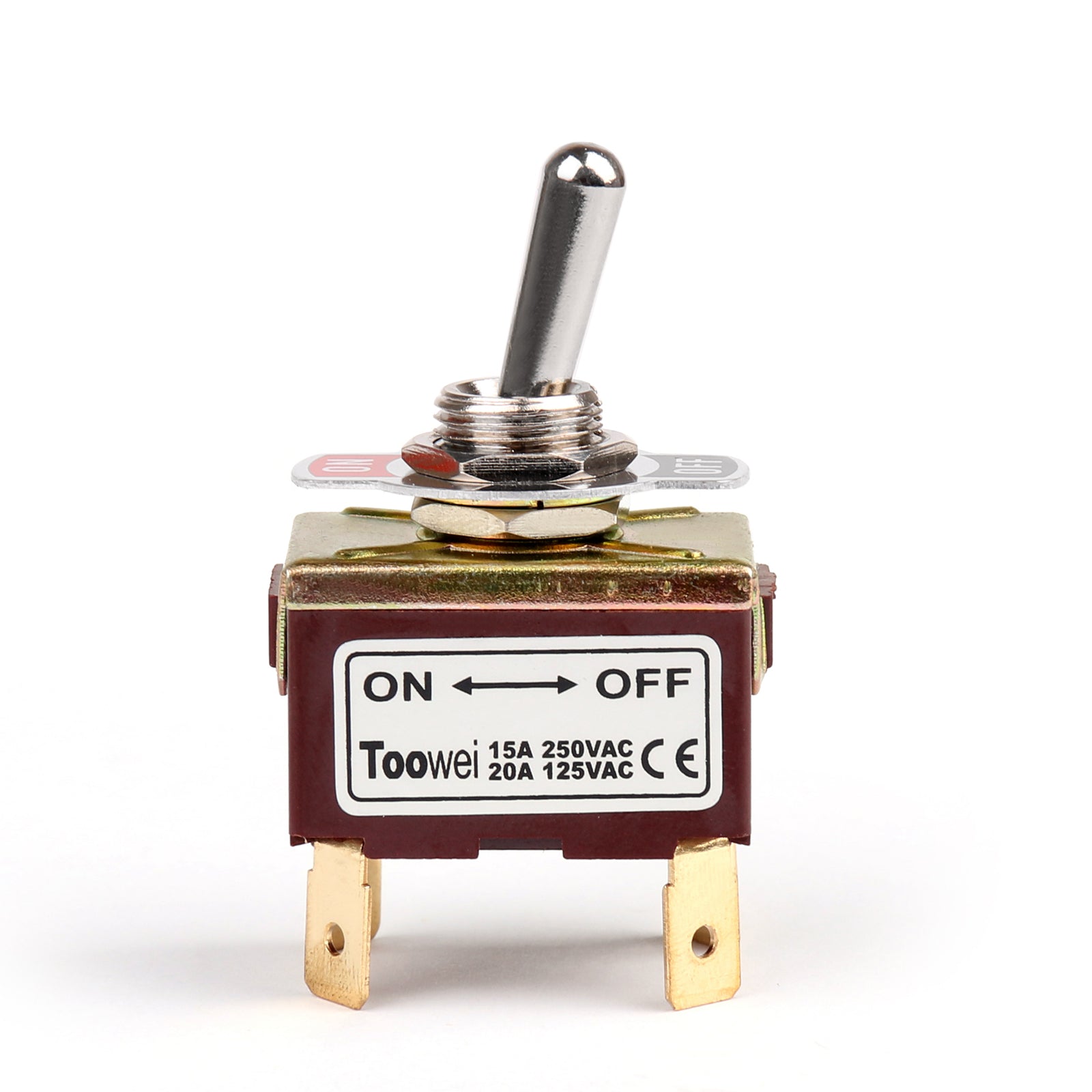

1Pcs 2 Terminal 4Pin ON-OFF 15A 250V Toggle Switch Boot DPST Industrial Grade
