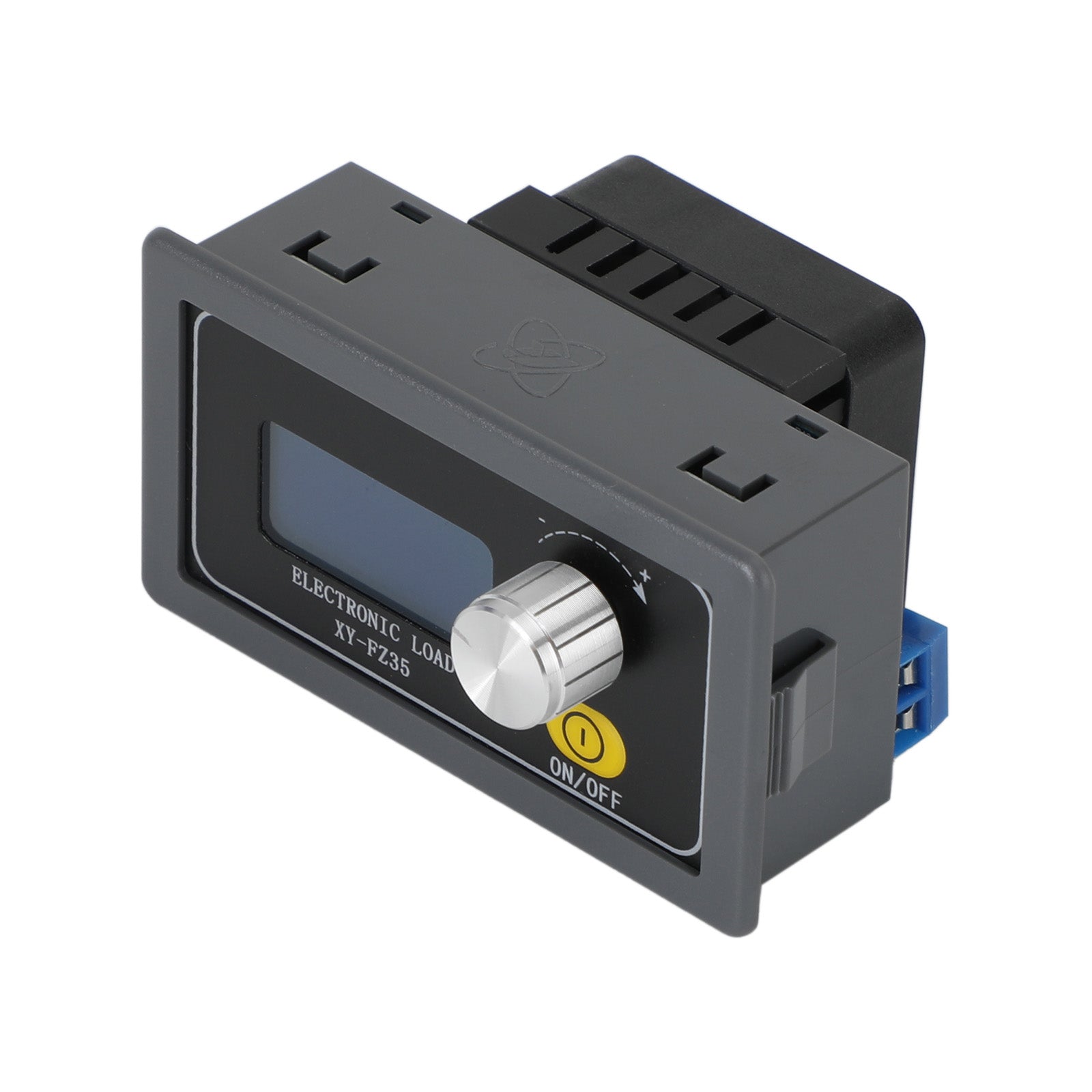

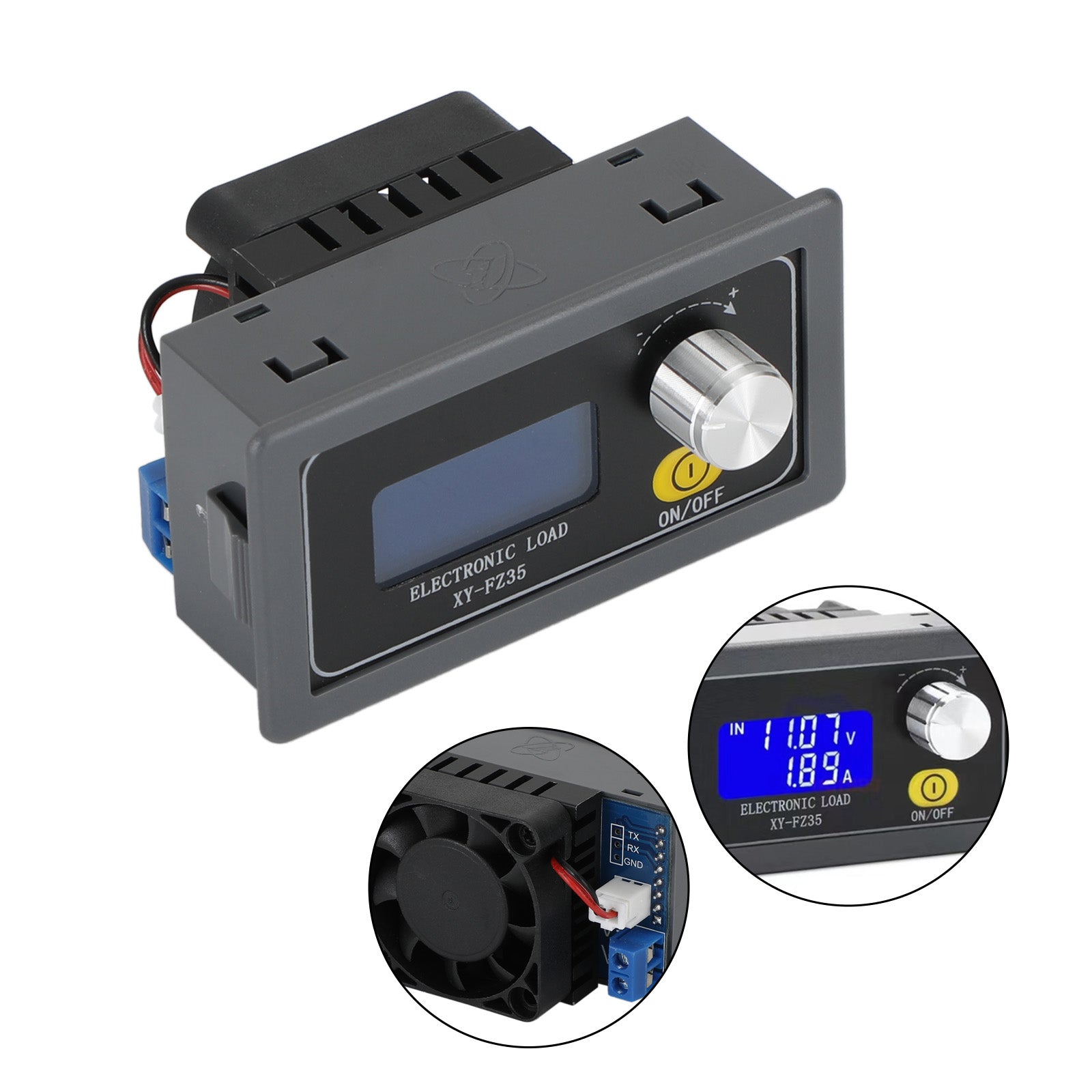

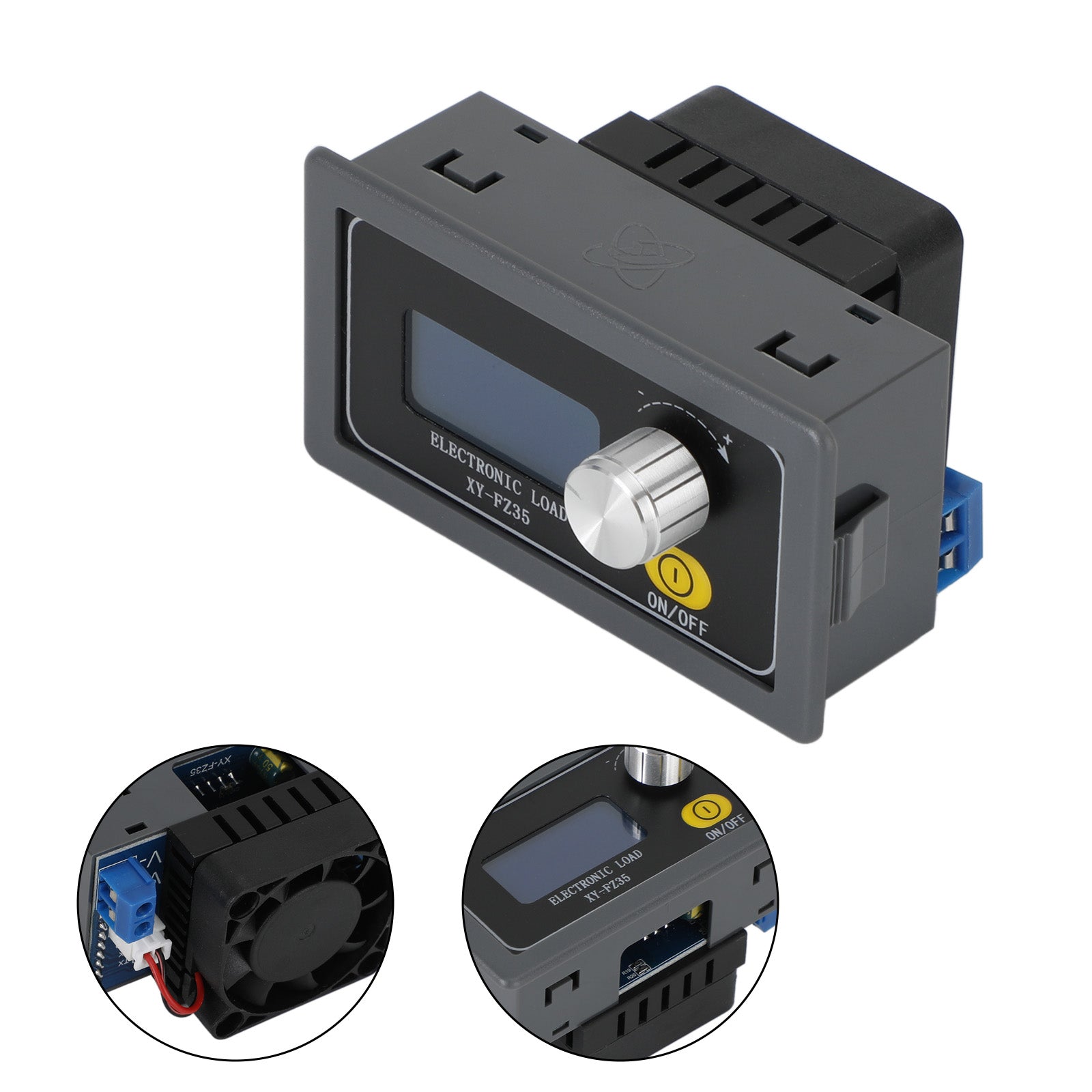

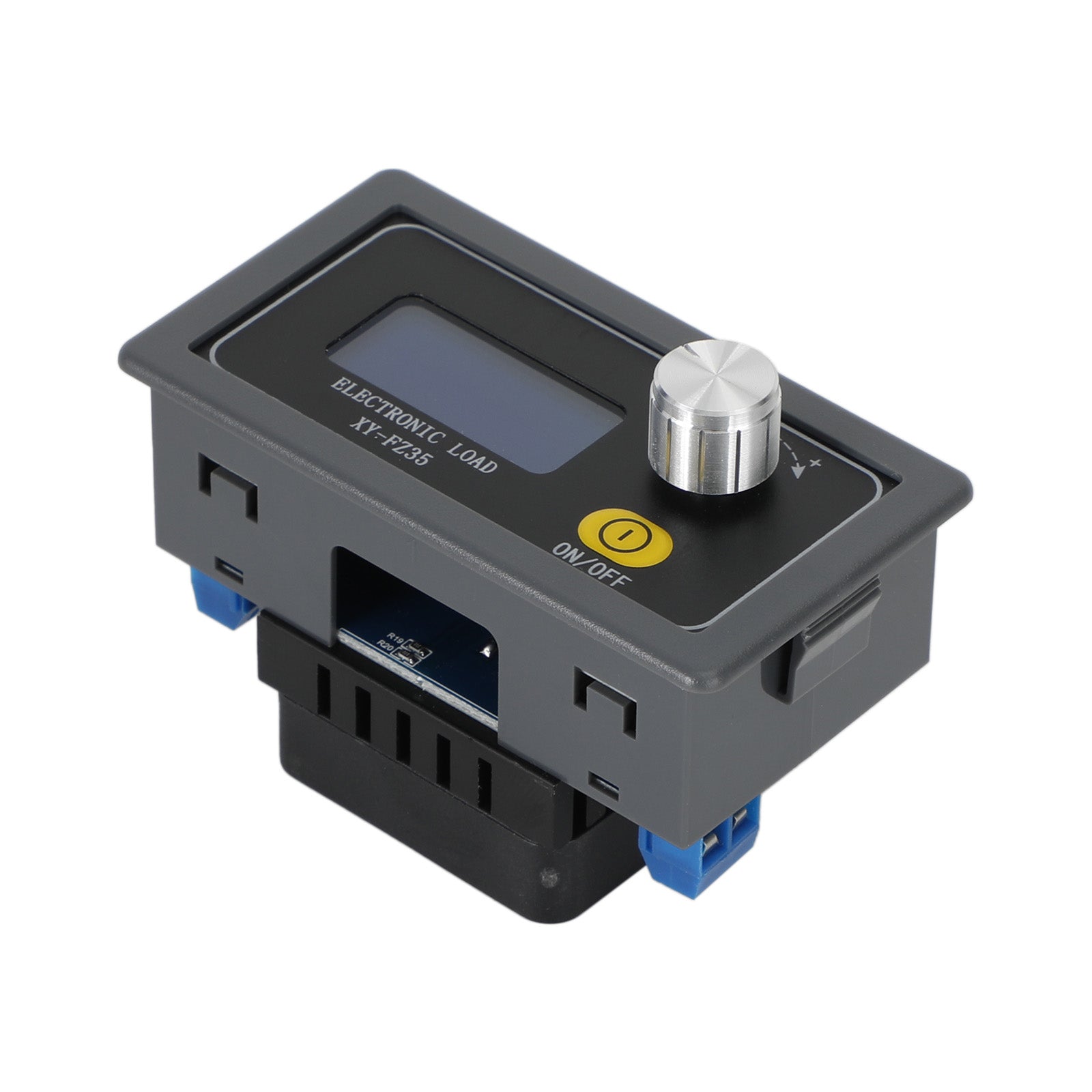

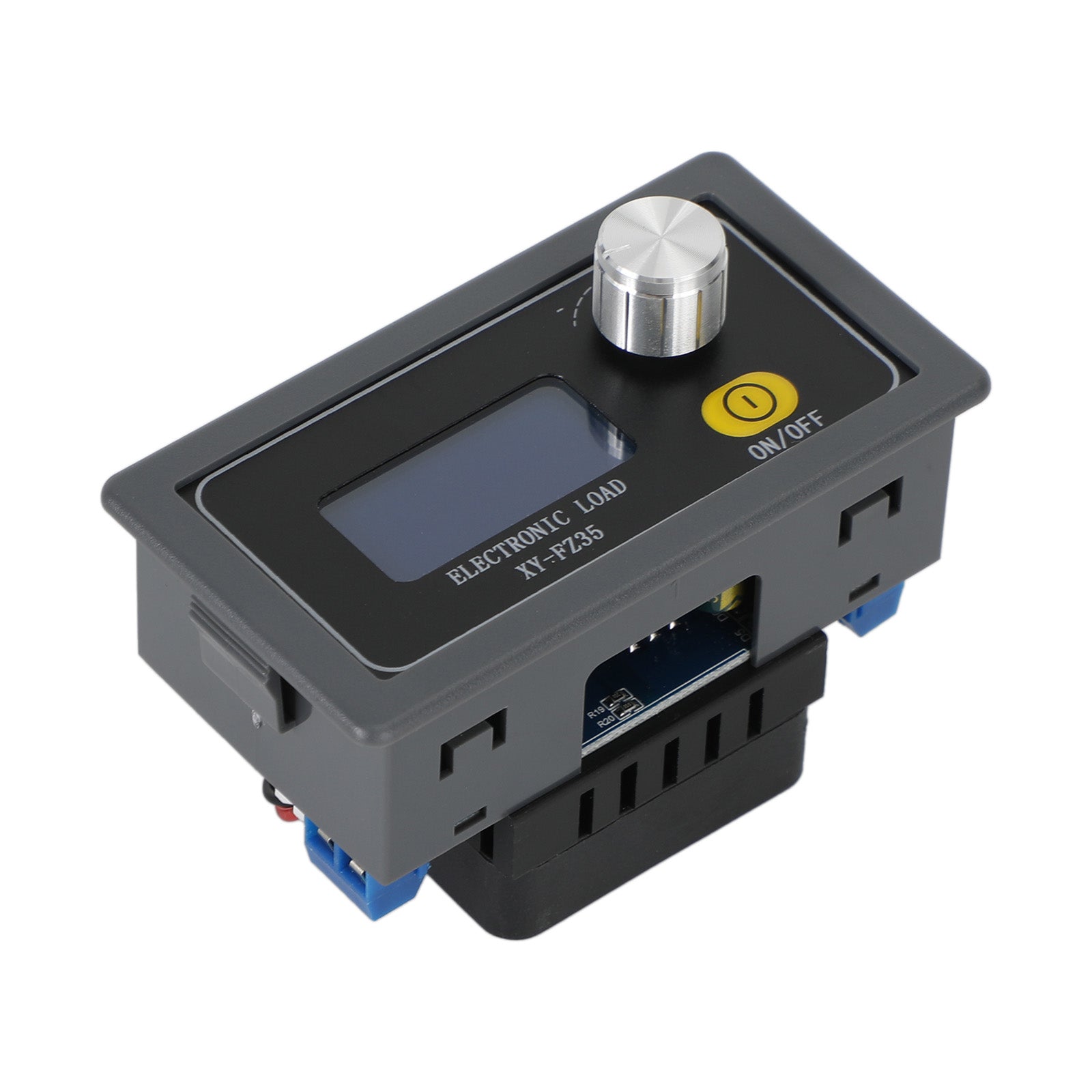

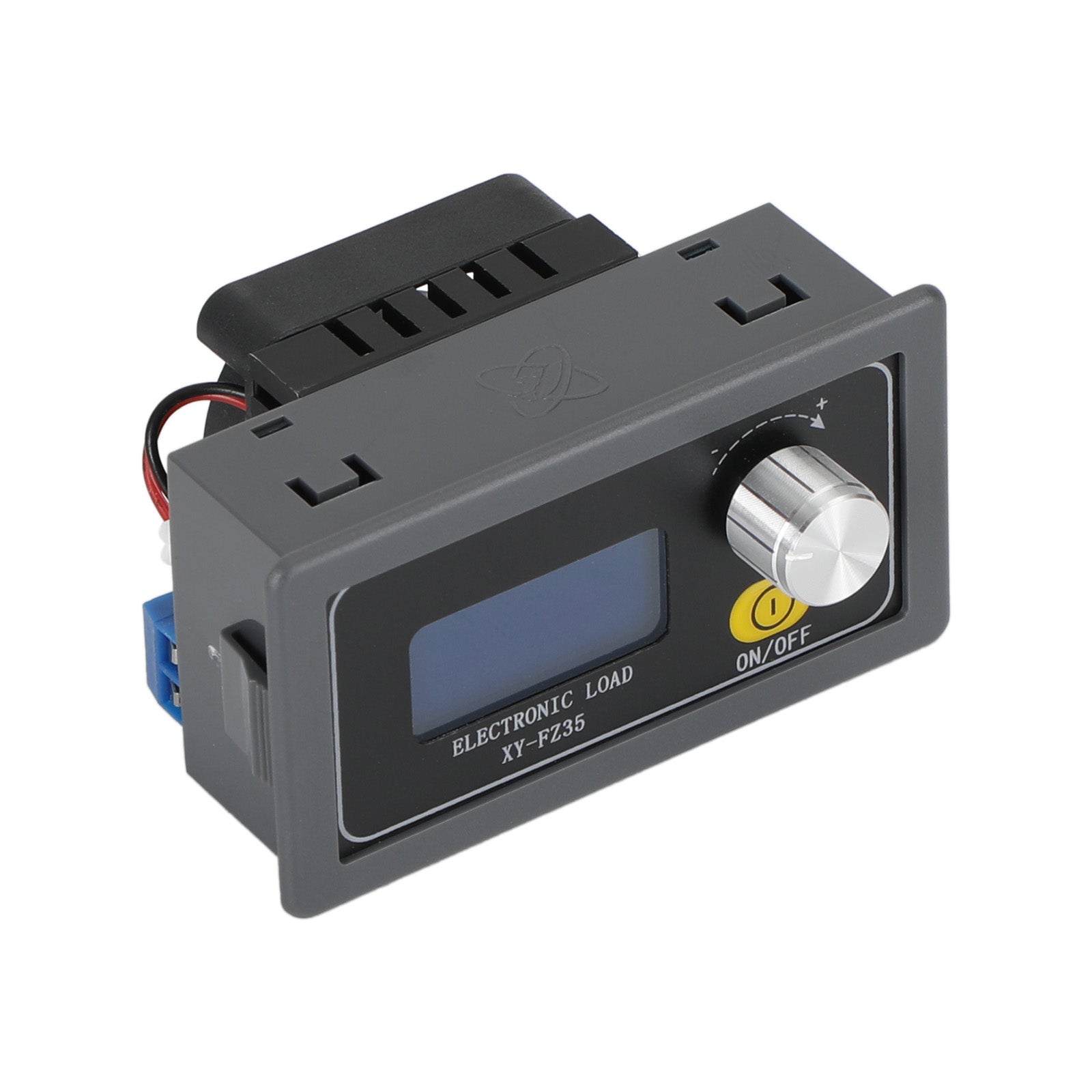

FZ35 Constant Current Electronic Load Module Battery Discharge Capacity Tester
Feature:

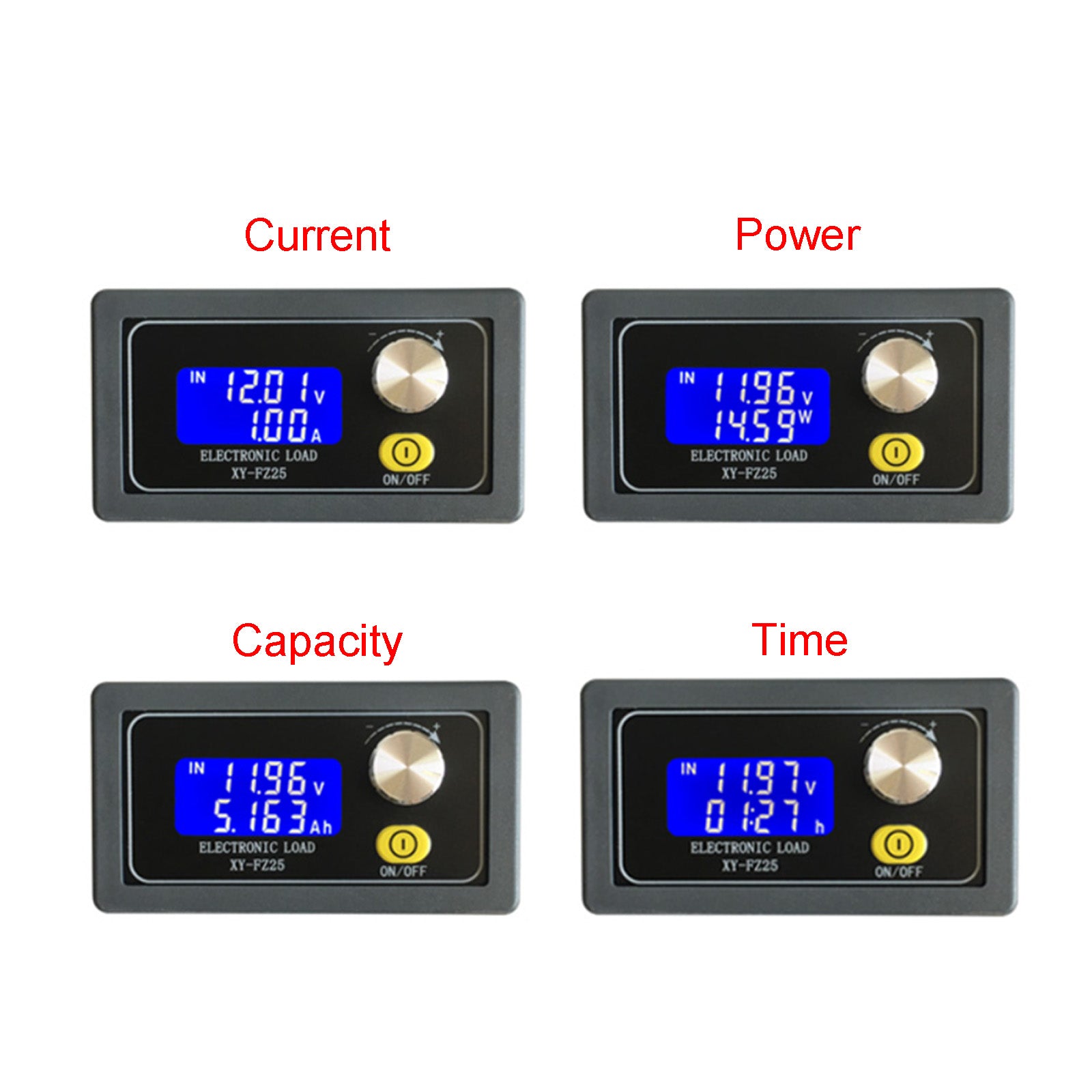

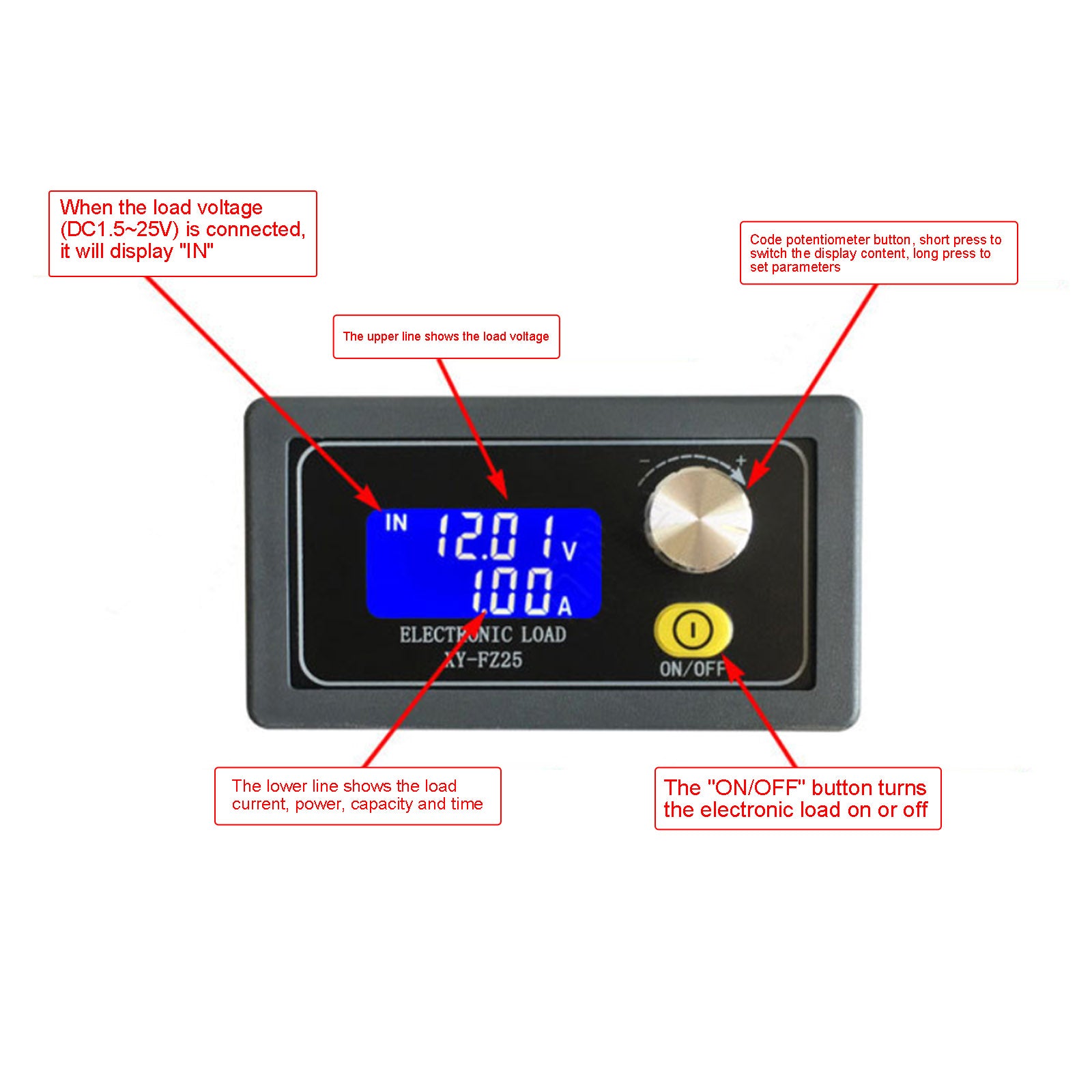

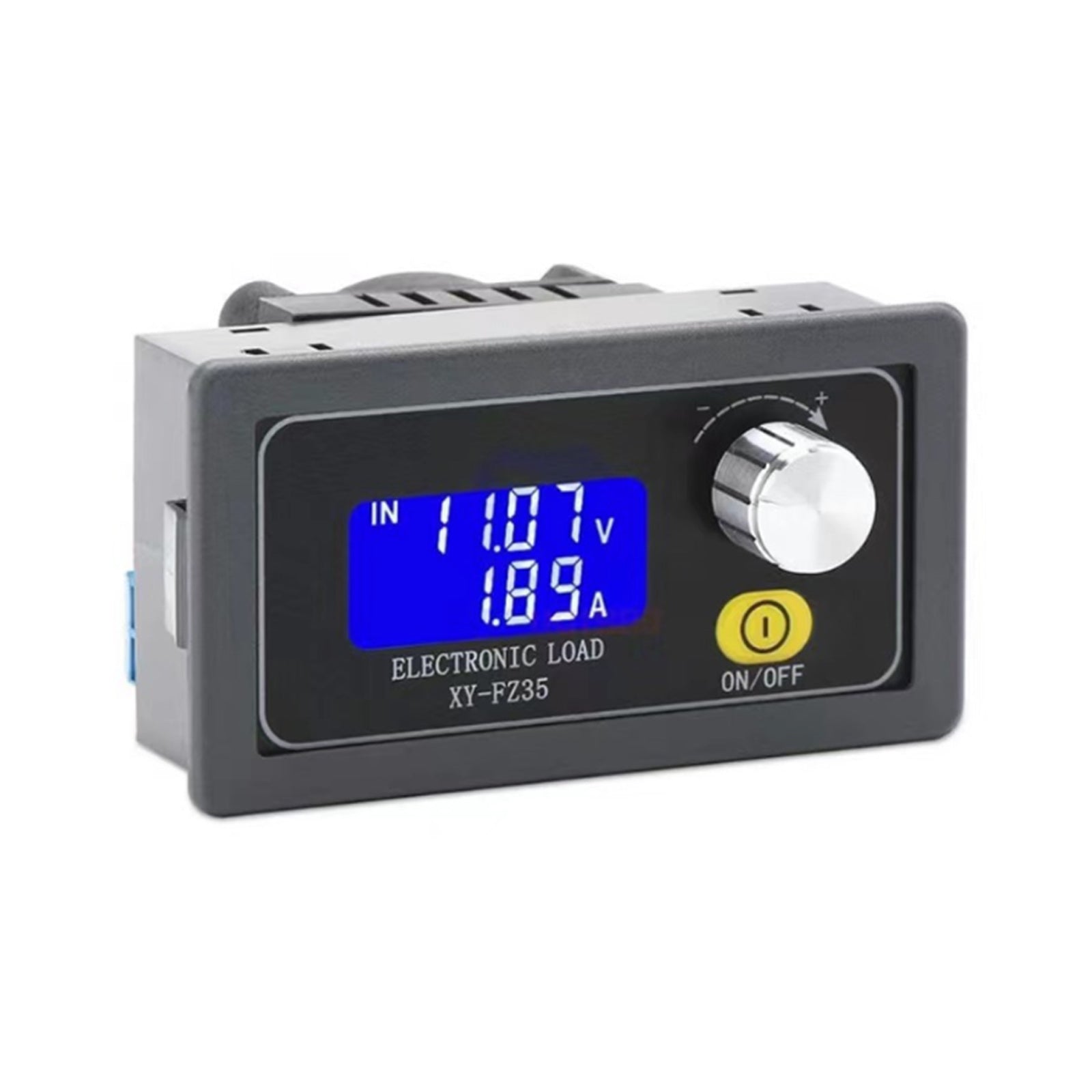

1: The current a voltage V power W capacity ah and discharge time can be displayed.
2: Have a sound protection mechanism.
3: Automatic statistics of discharge capacity and discharge time.
4: Set maximum discharge Capacity (OAH) and maximum discharge time (OHP); (Realization of unattended aging experiments).

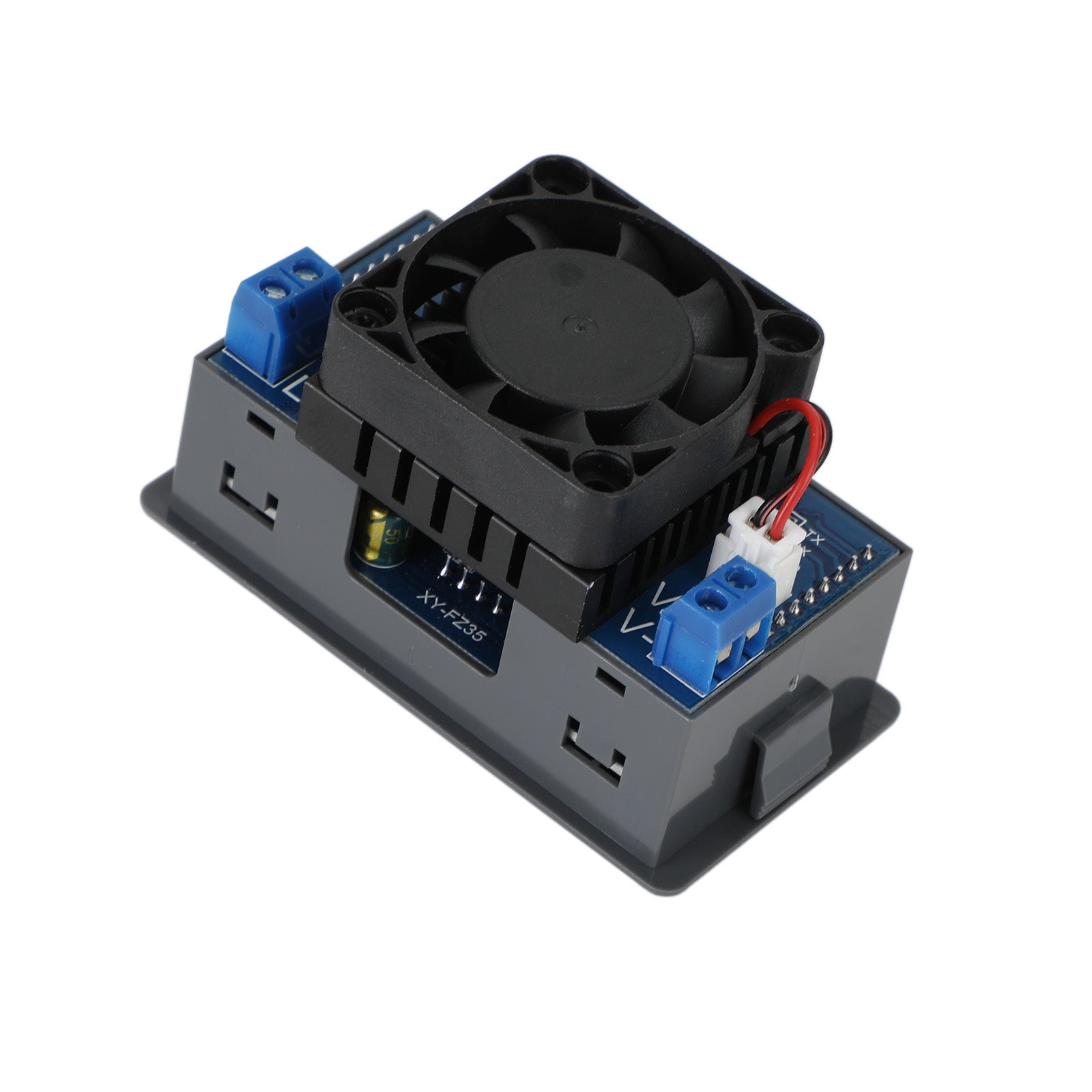

5: Intelligent temperature-controlled fan, when the power is greater than 10W or the temperature is greater than 40 ℃ fan start automatically.

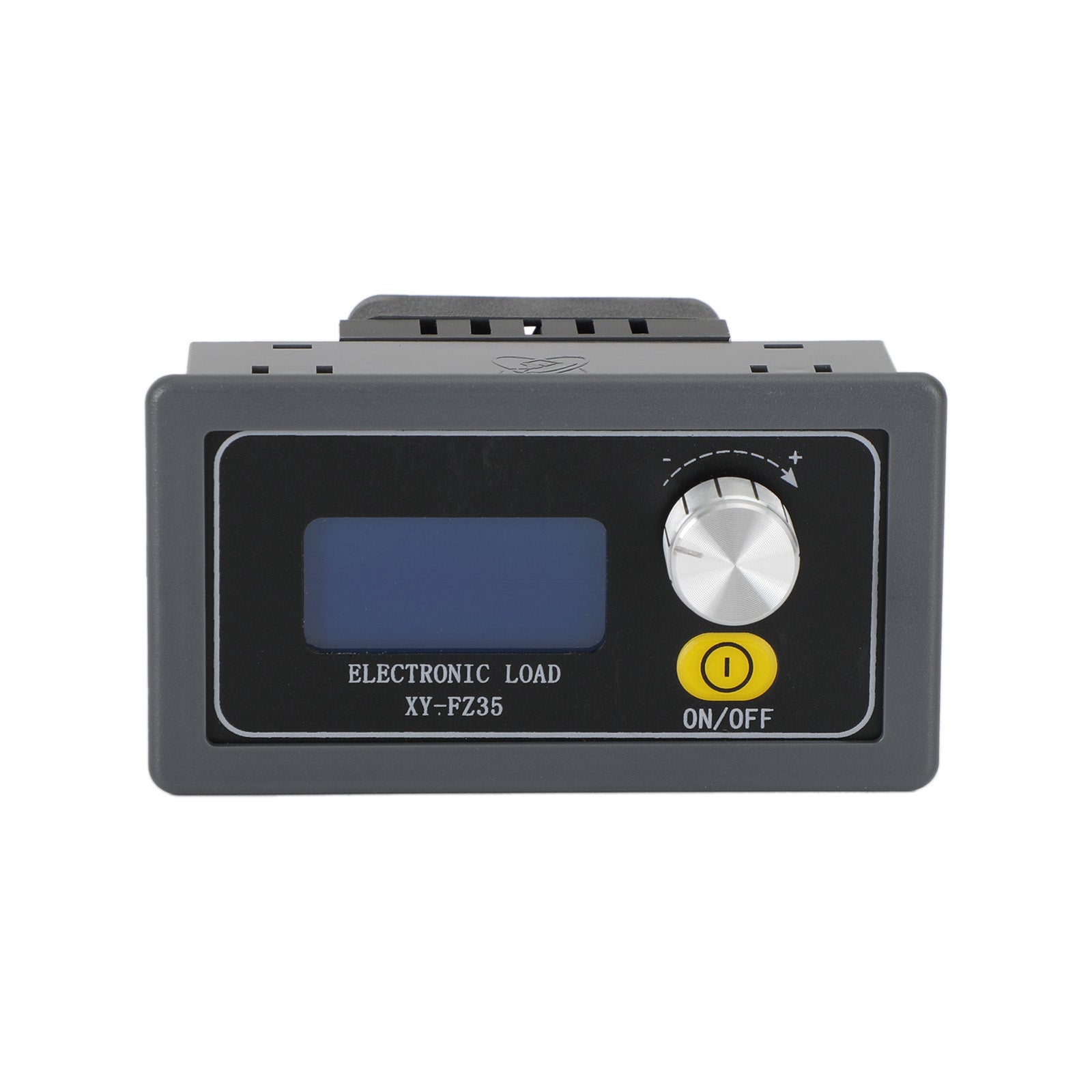

6: The use of rotary coding potentiometer, can accurately adjust the current, accurate to 0.01A, the current can be locked to prevent misoperation.
7: Data group function: You can choose whether to add up the capacity value and running time of the previous stage.

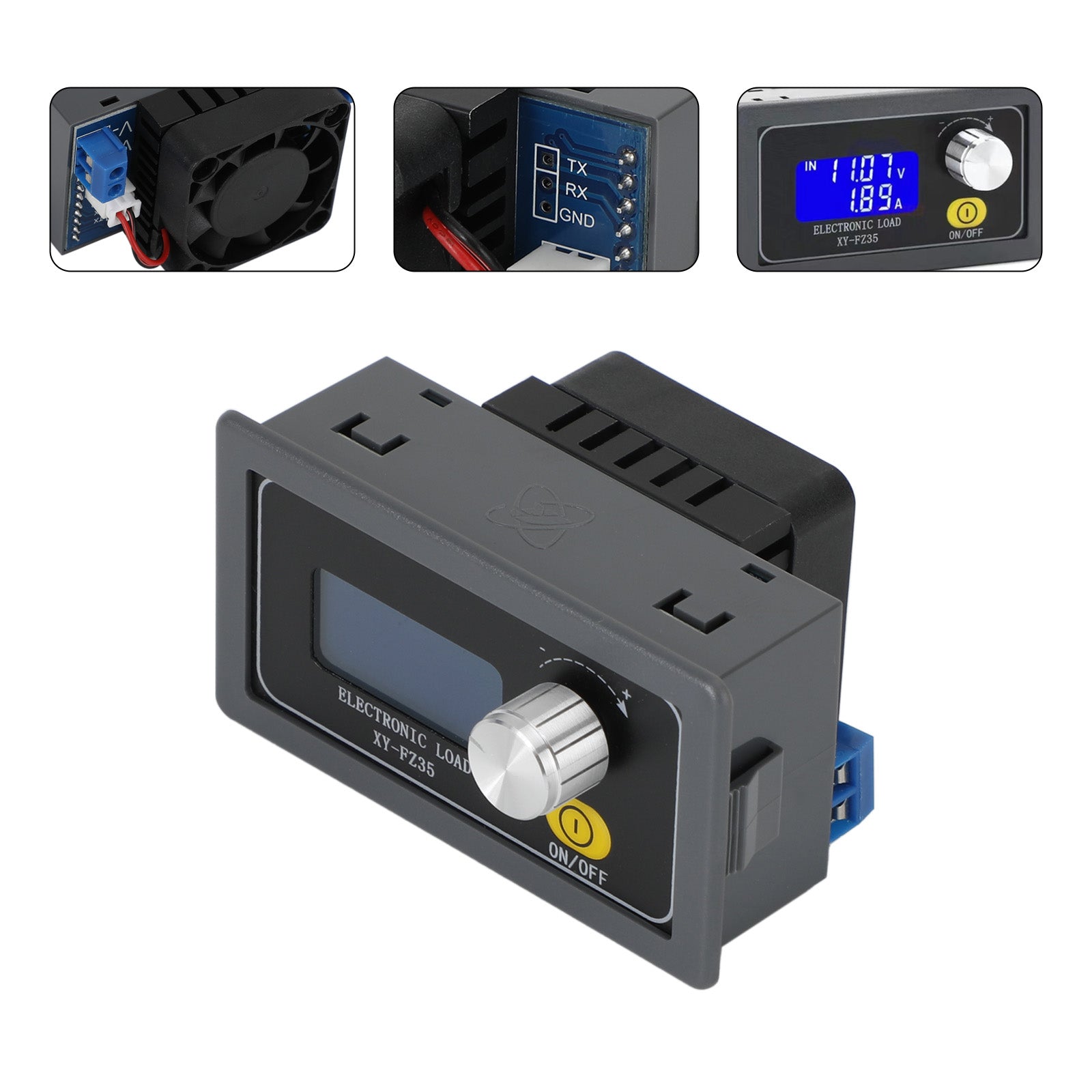

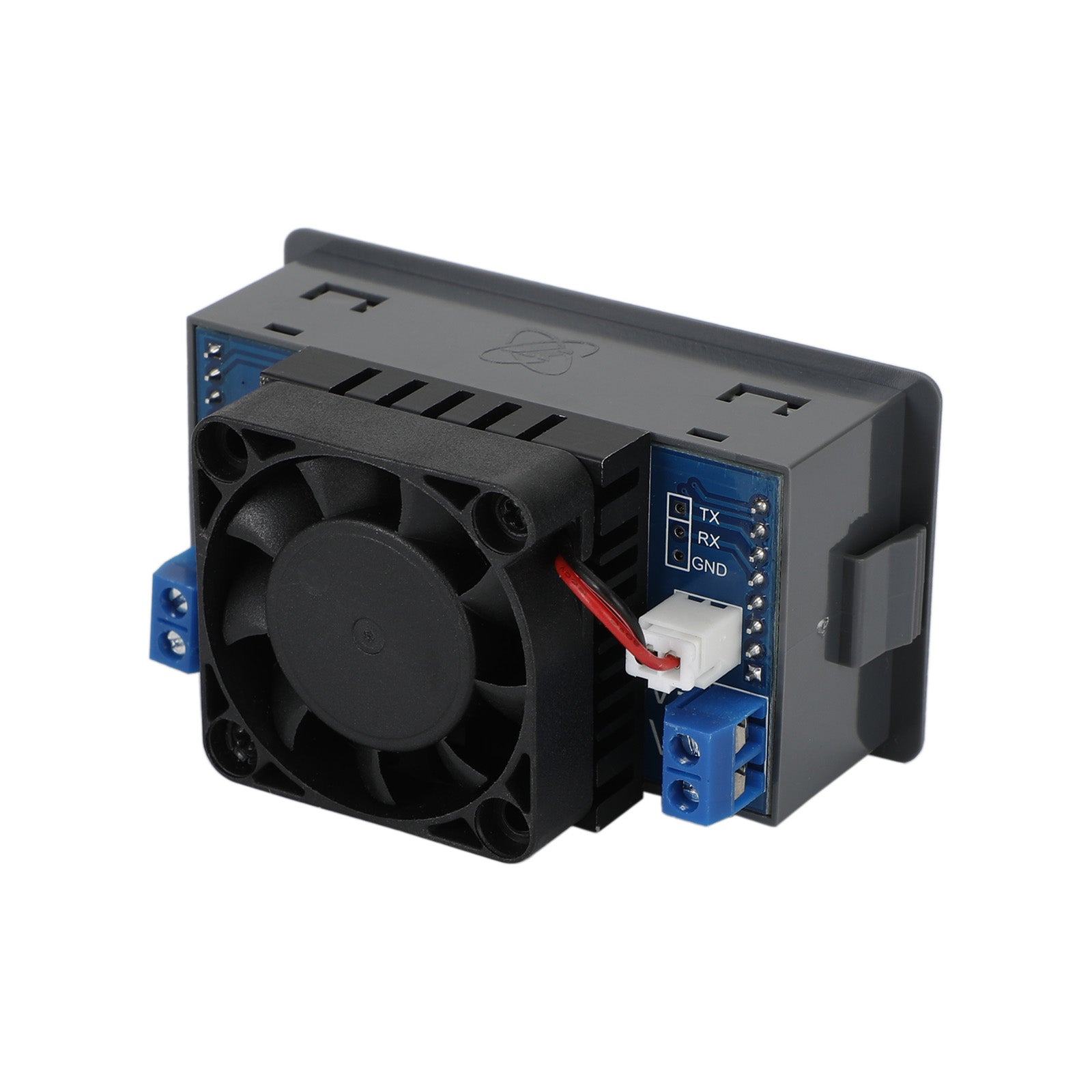

8: Has a powerful serial communication function.
Specifics:
Condition: 100% Brand New
Item model number: FZ35

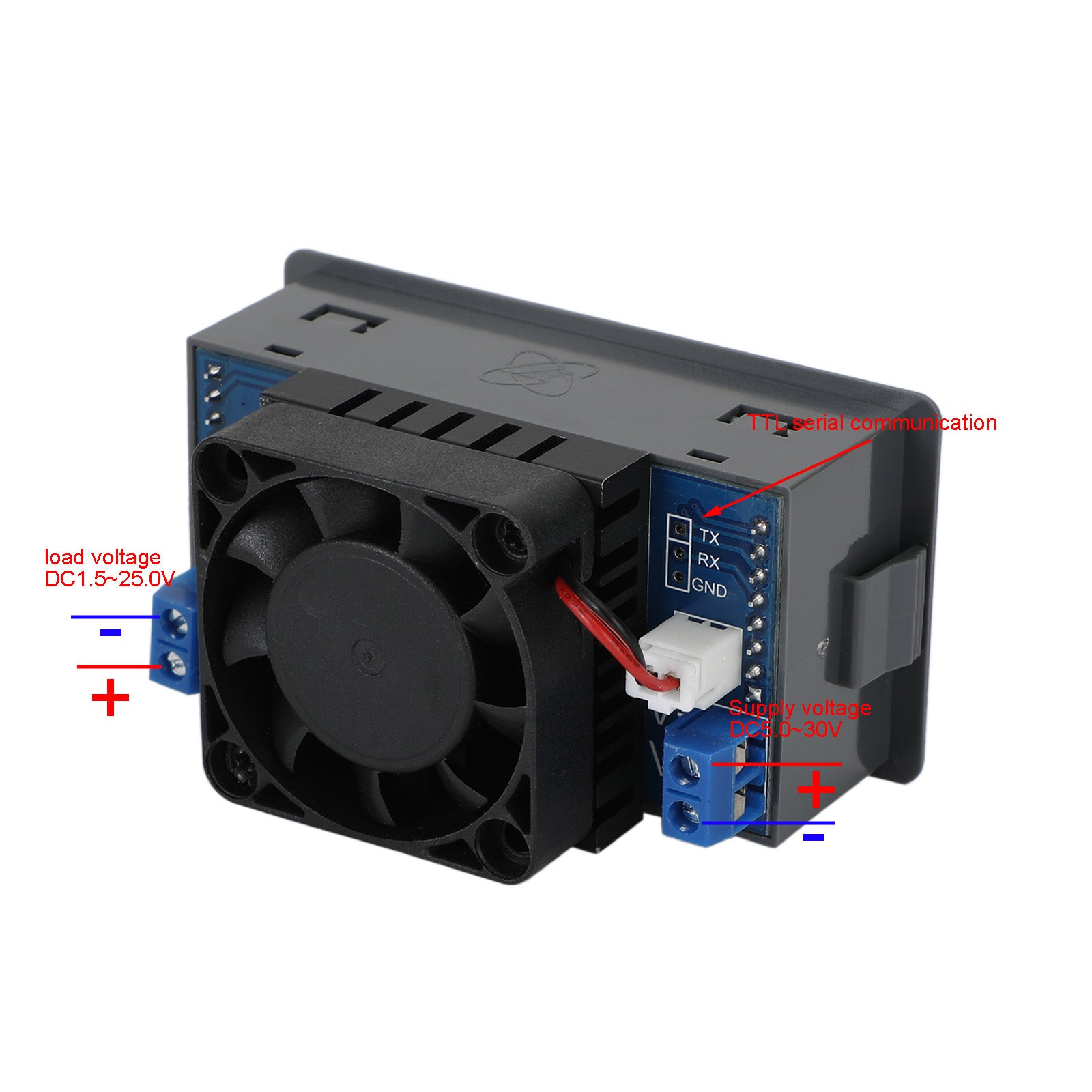

Rated power supply voltage: DC5.0-30.0V (with anti-reverse connection protection, reverse connection will not burn out)
Rated load voltage: DC1.5-25.0V (with anti-reverse connection protection, reverse connection will not burn out)
Rated load current: 0.00-5.00A
Constant current accuracy: ±(1%+3 words)
Discharge power: 35W
Voltage accuracy: ±(0.5%+3 characters)

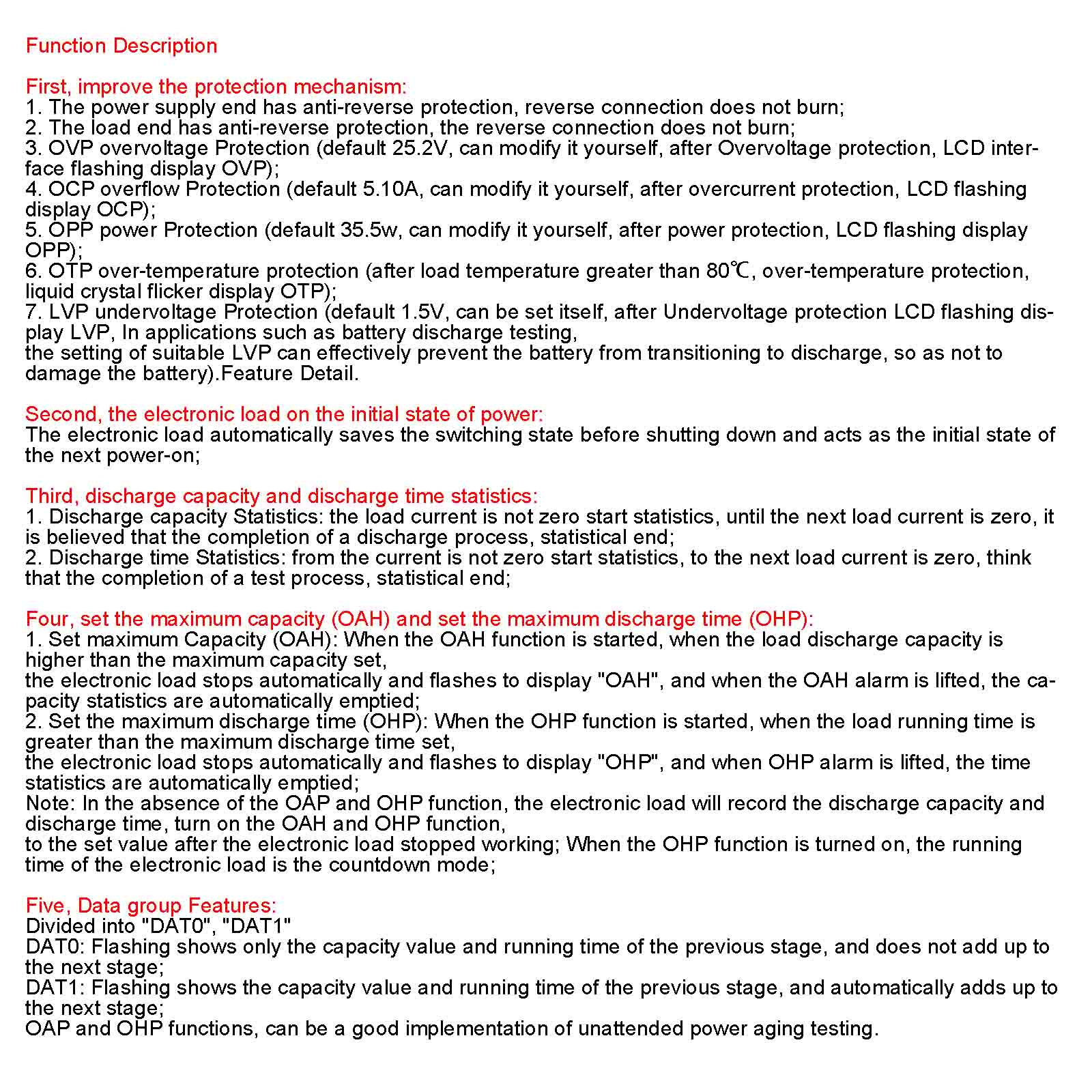

Overvoltage protection (OVP): Default 25.2V (can be set by yourself)
Overcurrent Protection (OCP): Default 5.10A (can be set by yourself)
Over power protection (OPP): Default 35.5W (can be set by yourself)
Under-voltage protection (LVP): Default 1.5V (can be set by yourself)
Over temperature protection (OTP): The default is about 80°C (cannot be set)
Weight: 87g

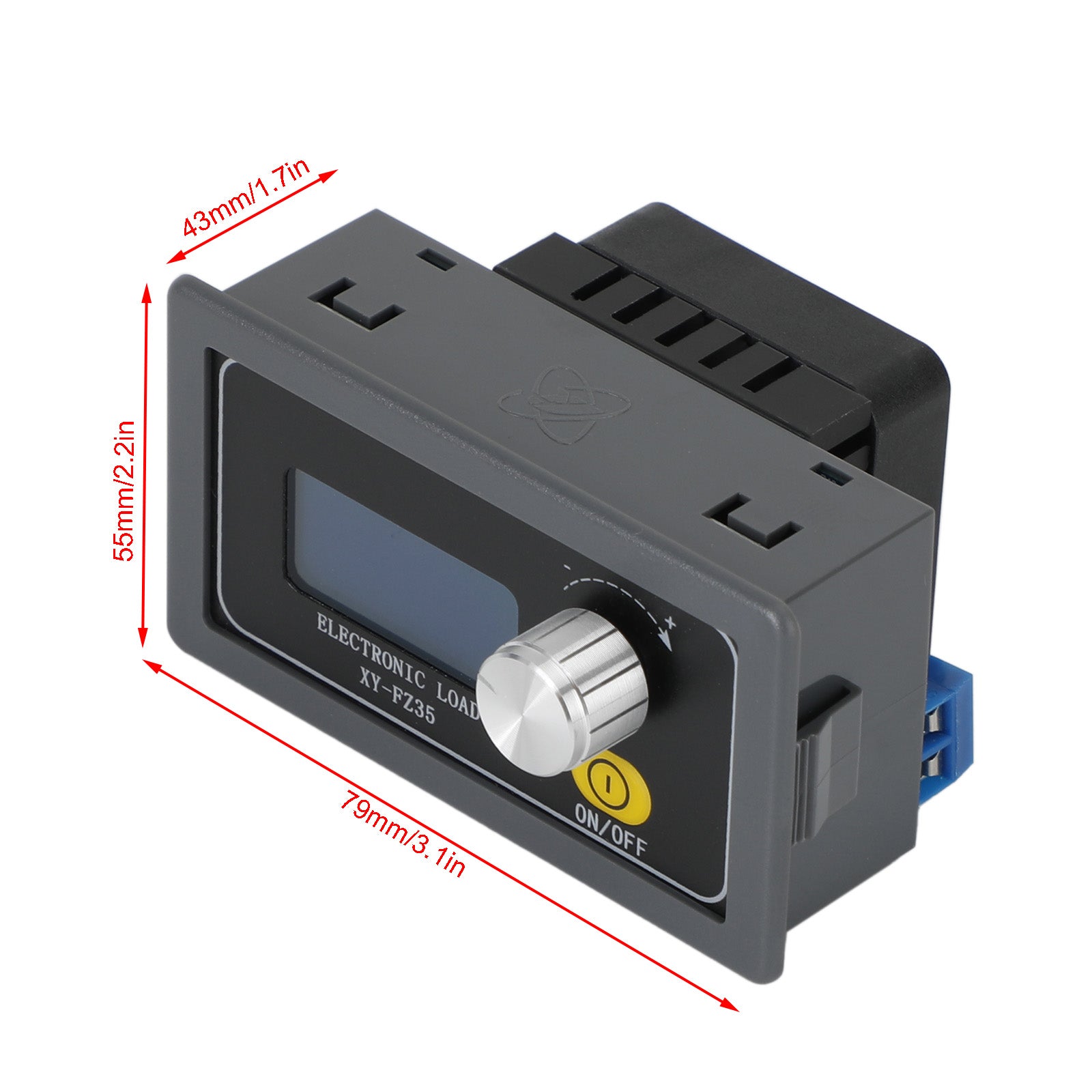

Product size: 79*43*55mm/3.1*1.7*2.2in

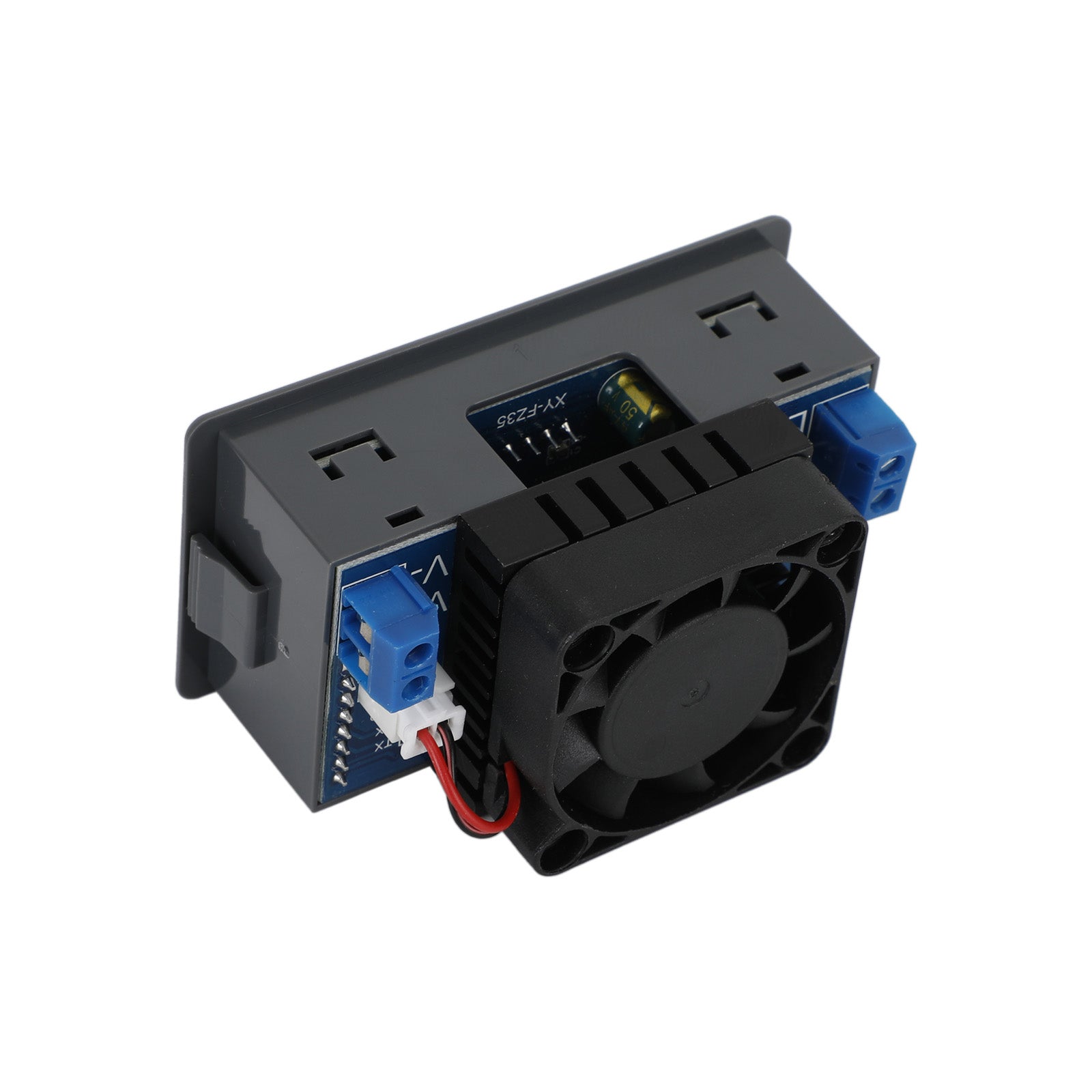

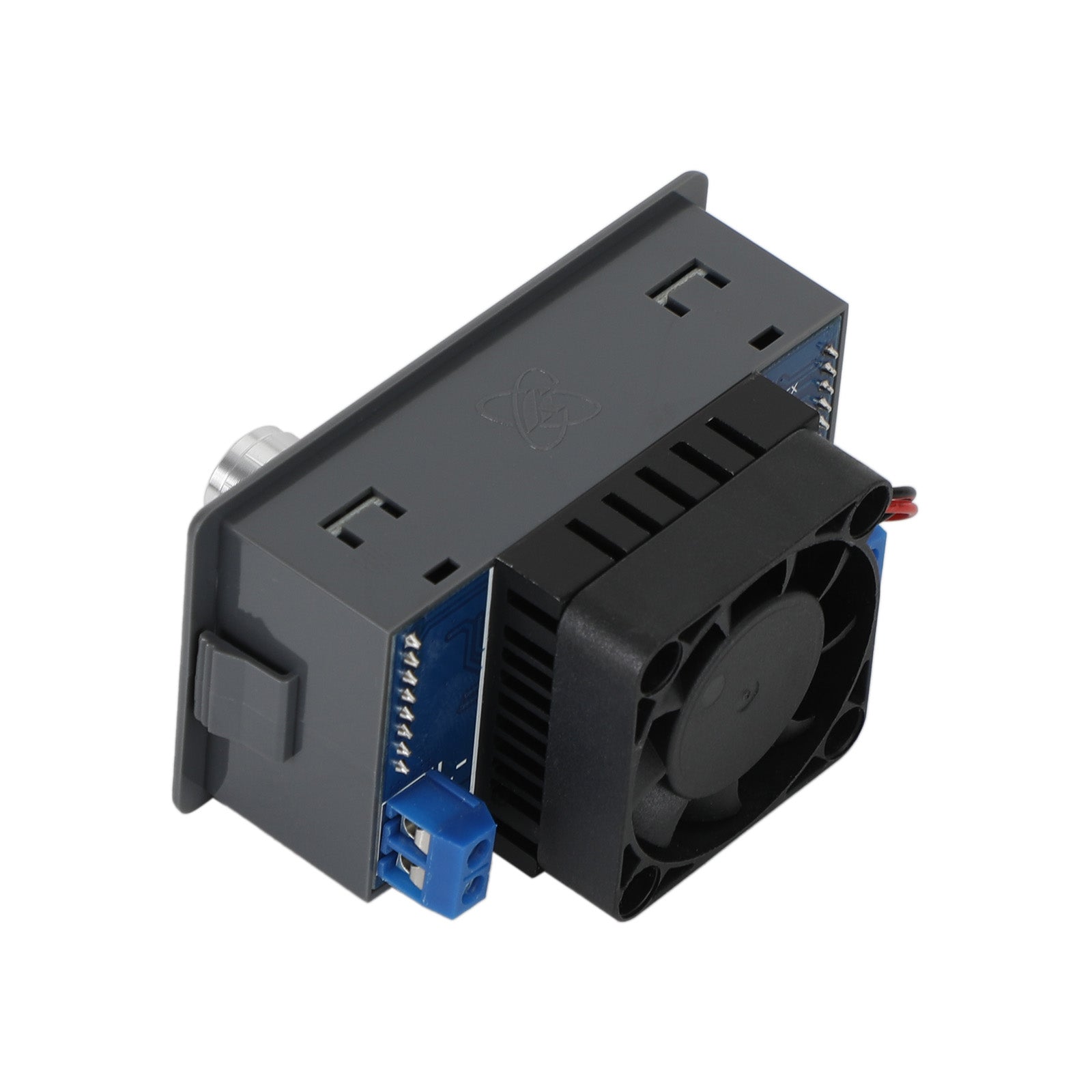

Fan speed: hydraulic bearing intelligent temperature control fan, speed 8000±10%RPM
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Package Included:
1 X Battery Discharge Capacity Tester
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
