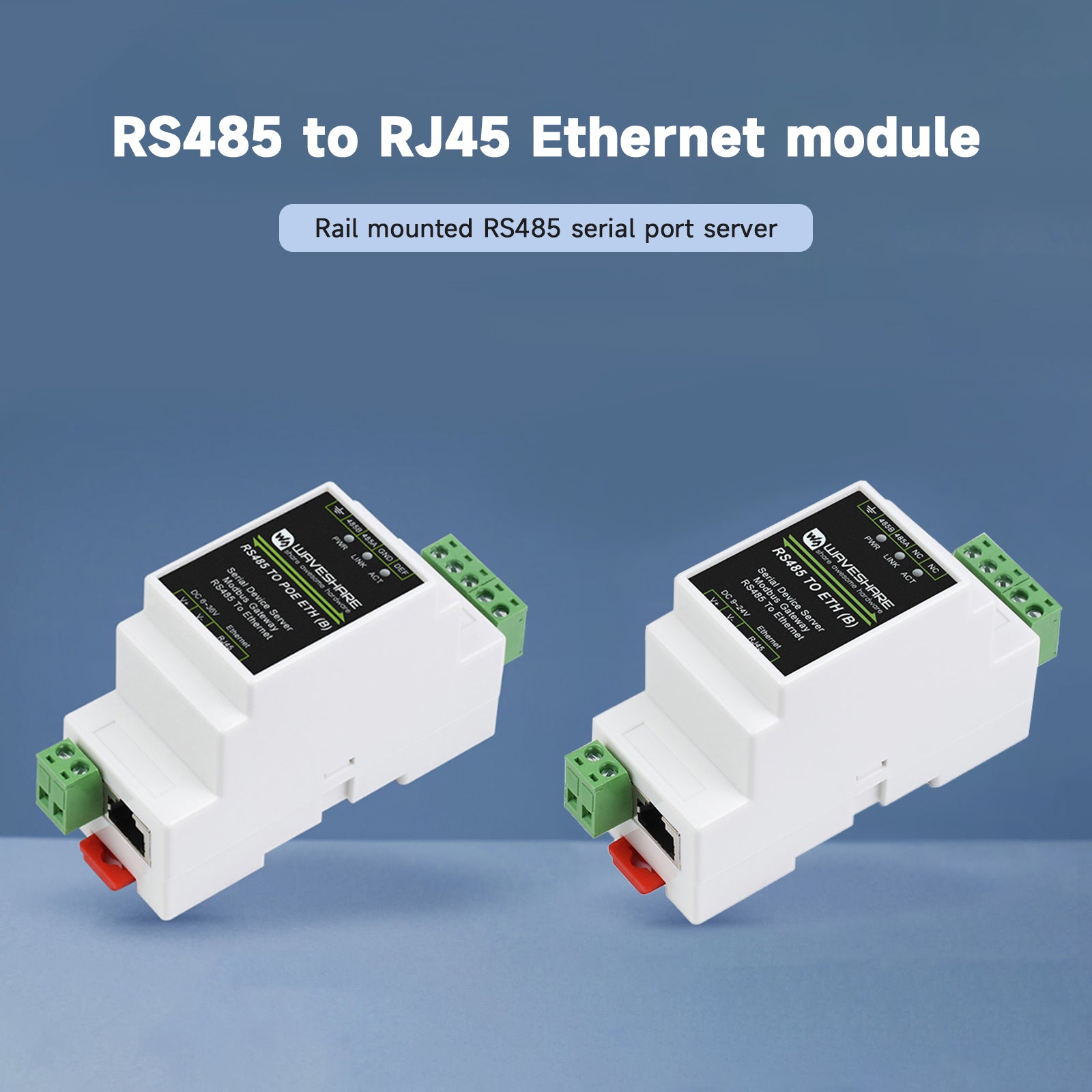

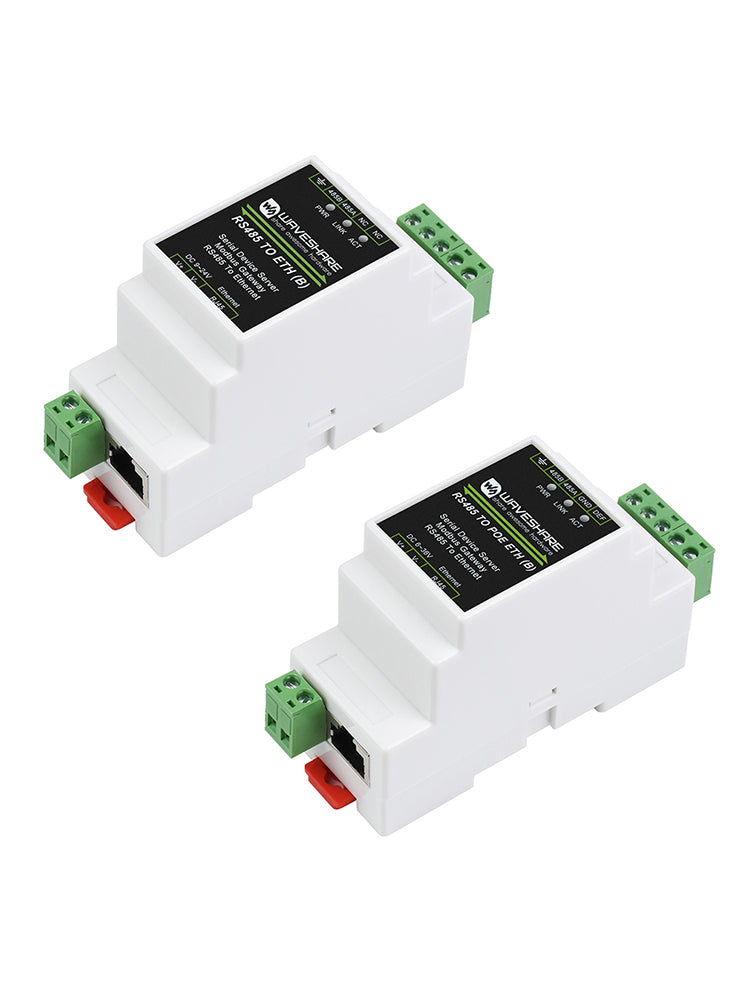

Industrial Grade RS485 to RJ45 Ethernet Module Multi-Host to Serial Port Server Supports Modbus Gateway
Description:

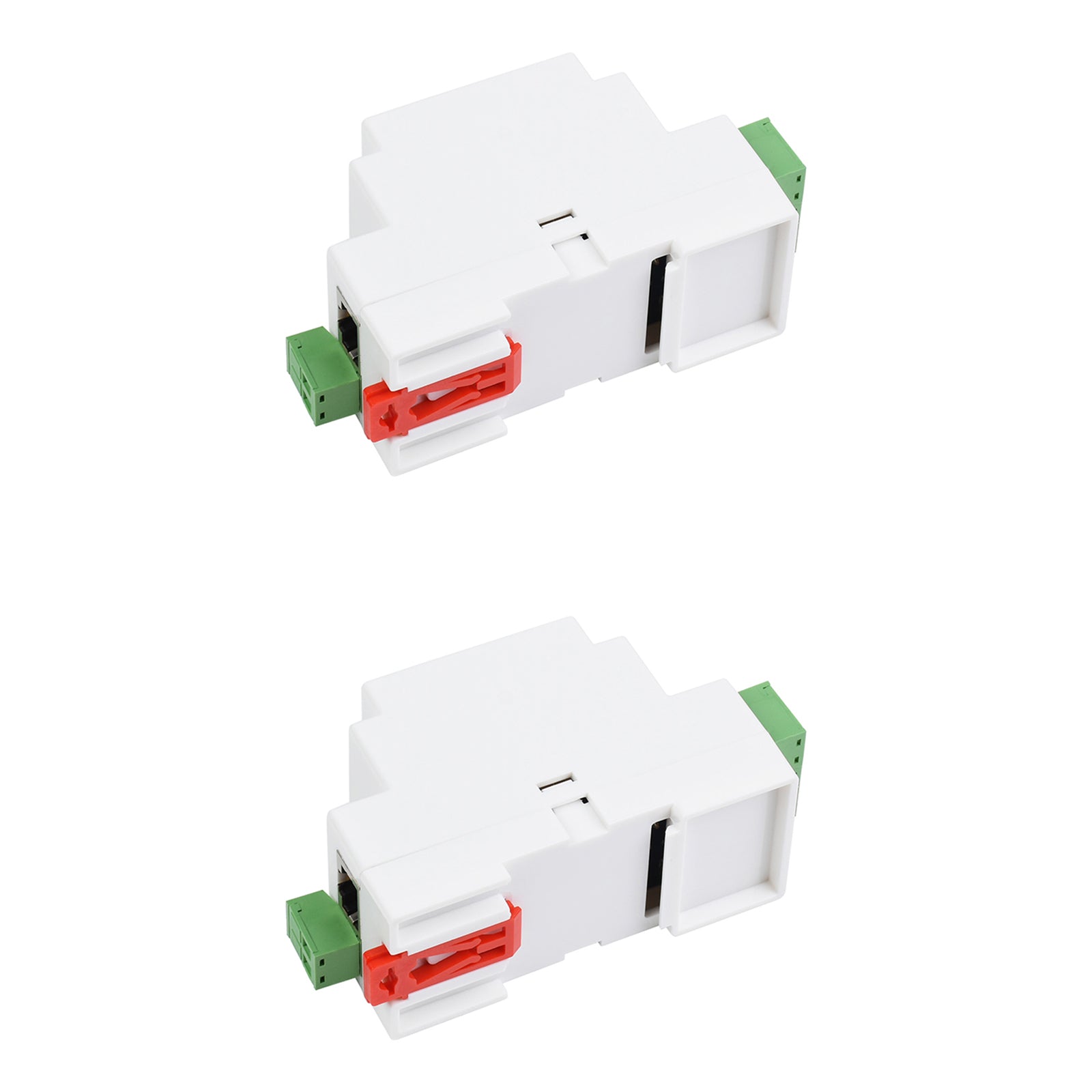

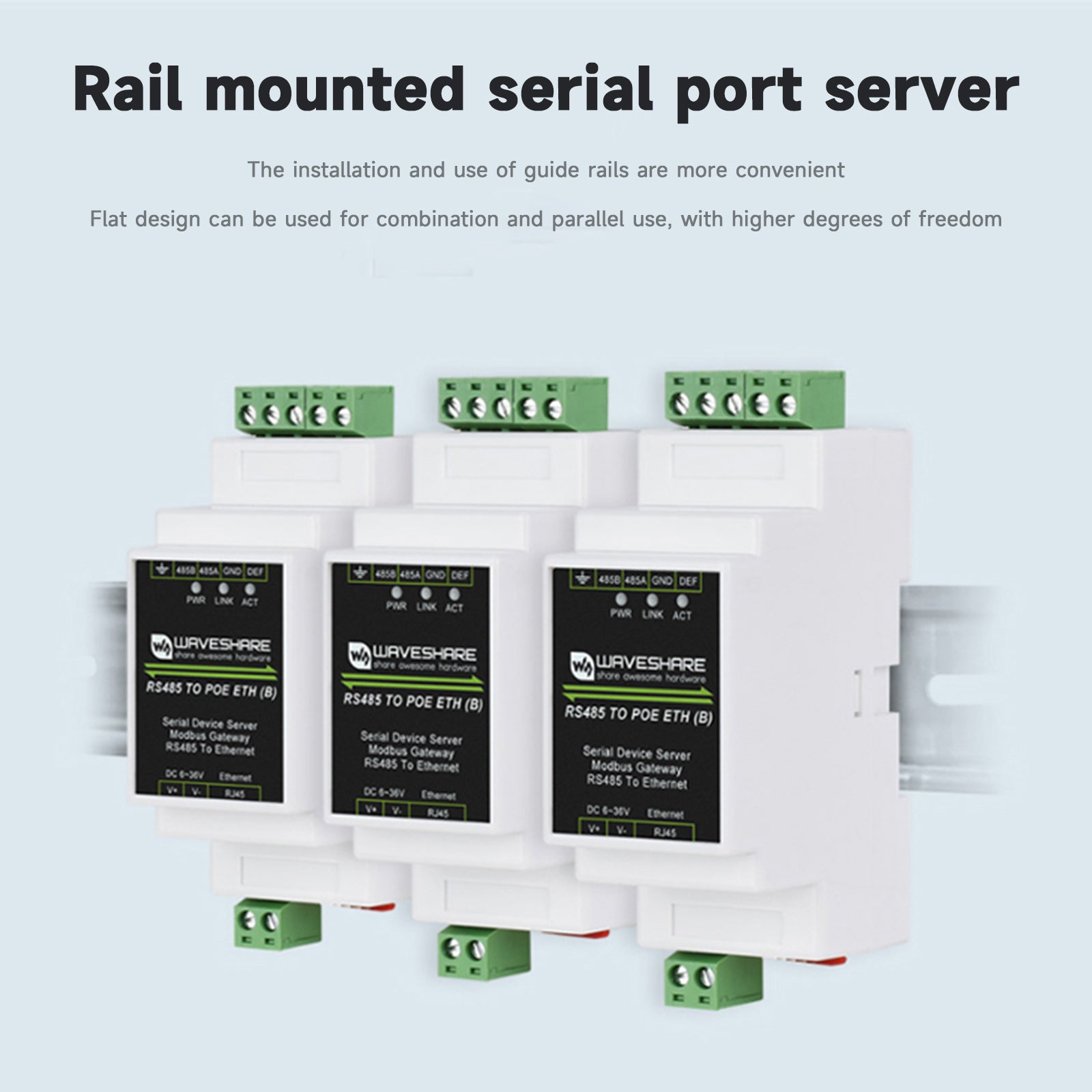

An RS485 device data collector/IoT gateway specially designed for industrial environment applications, with multiple functions such as serial port server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. It has RS485 and Ethernet interfaces, the Ethernet interface has optional PoE function, uses terminal block power access, DIN-rail housing design, small size, easy installation, high cost performance, suitable for data acquisition, IoT gateway, security IoT and smart instrument monitoring and other fields.
Specifications:
Product type: Serial port server, Modbus gateway, MQTT gateway

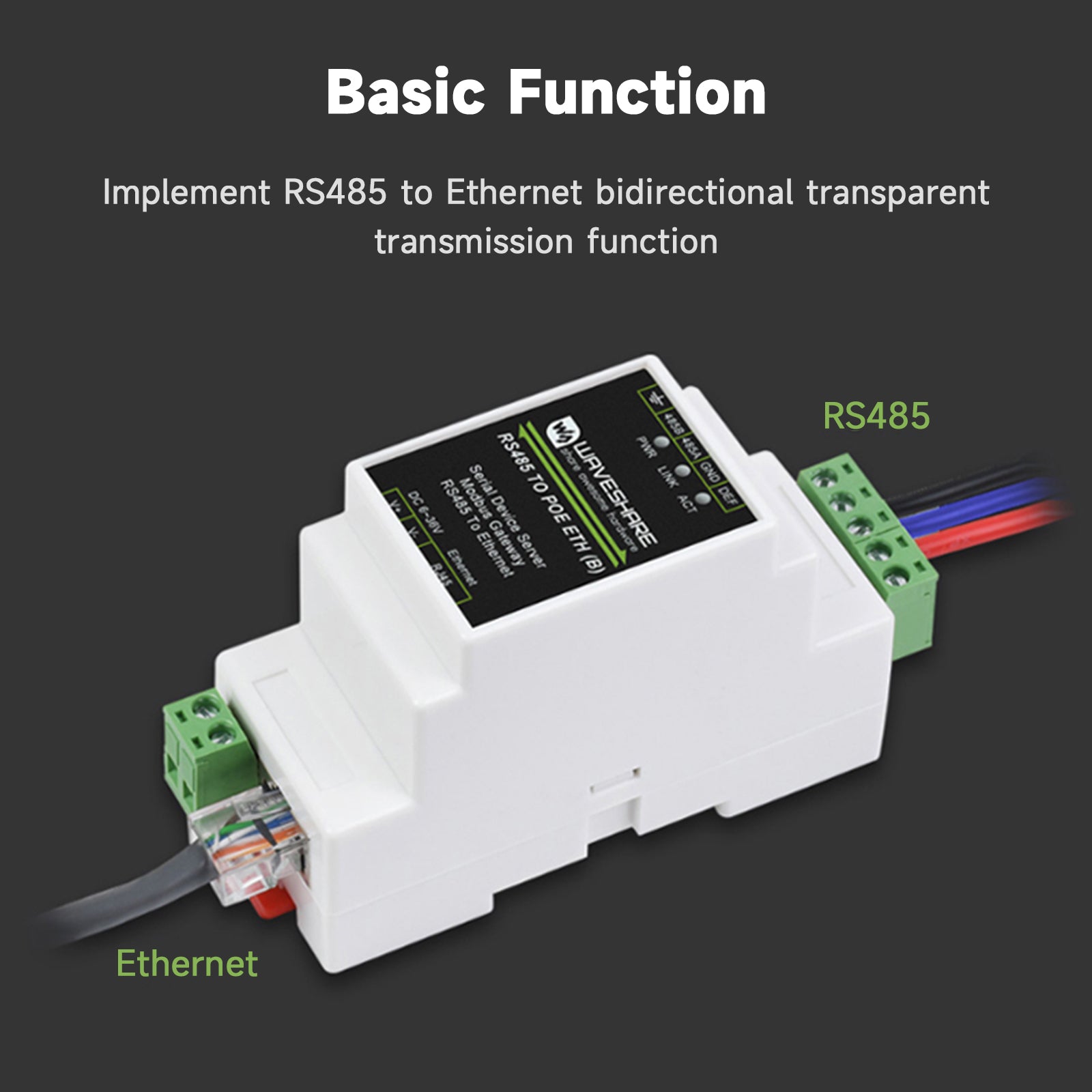

Basic function: Realize RS485 to Ethernet bidirectional transparent transmission function

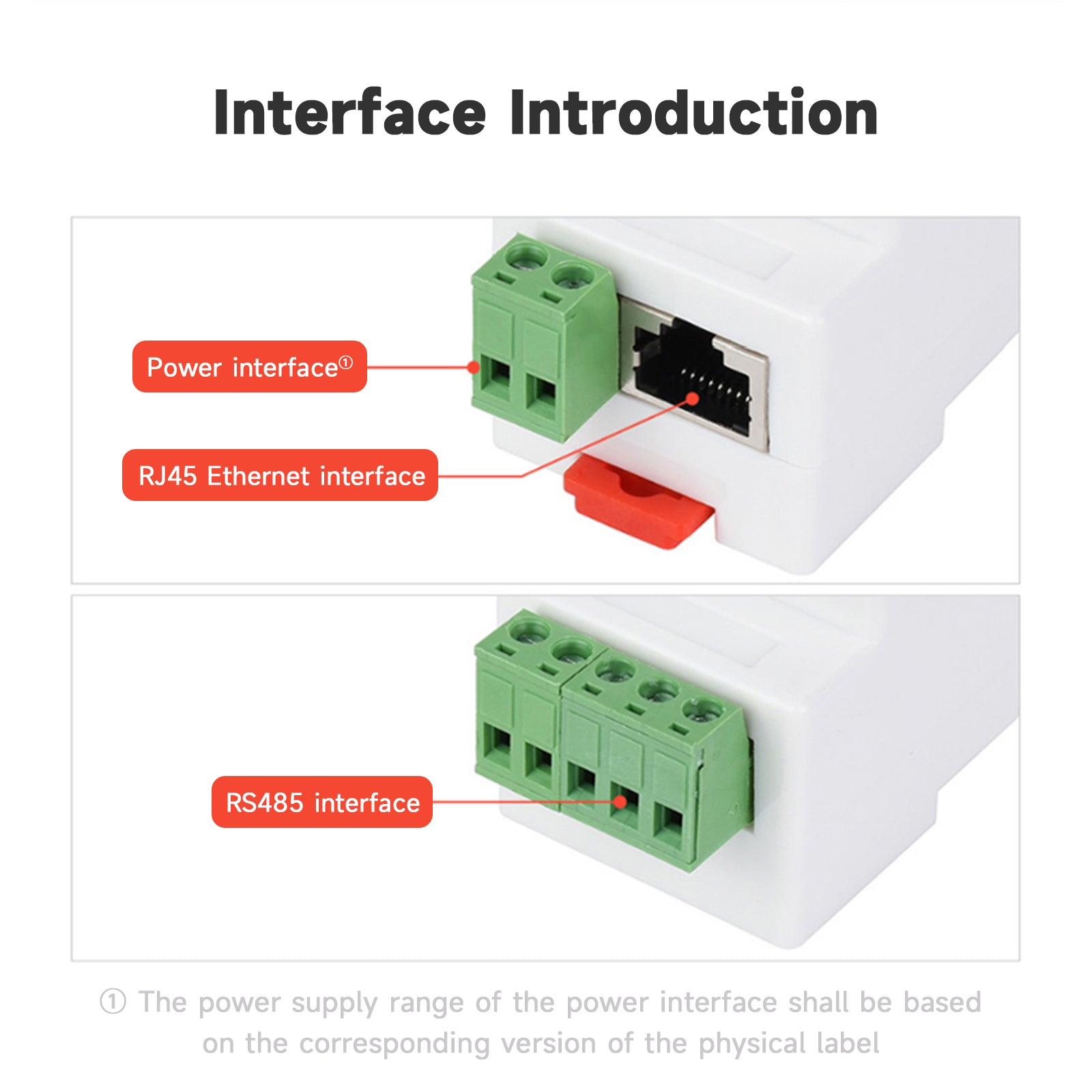

Communication interface: RS485 x1. Network port x1
Communication interface:
Ethernet: 10/100M adaptive RJ45 interface, 2KV level surge protection
Serial port parameters:
Baud rate: 300~115200 bps
Parity bit: None, odd parity, even parity, mark, space
Data bit: 5~9 bits
Flow control: No flow control
Software:
Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration method: PC configuration, WEB browser, device management function library
Communication method: TCP/IP direct communication, virtual serial port method
Working mode: TCP server, TCP client (TCP server also coexists), UDP, UDP multicast
Others:
Operating temperature: -40℃-85℃
Humidity range: 5%~95% relative humidity

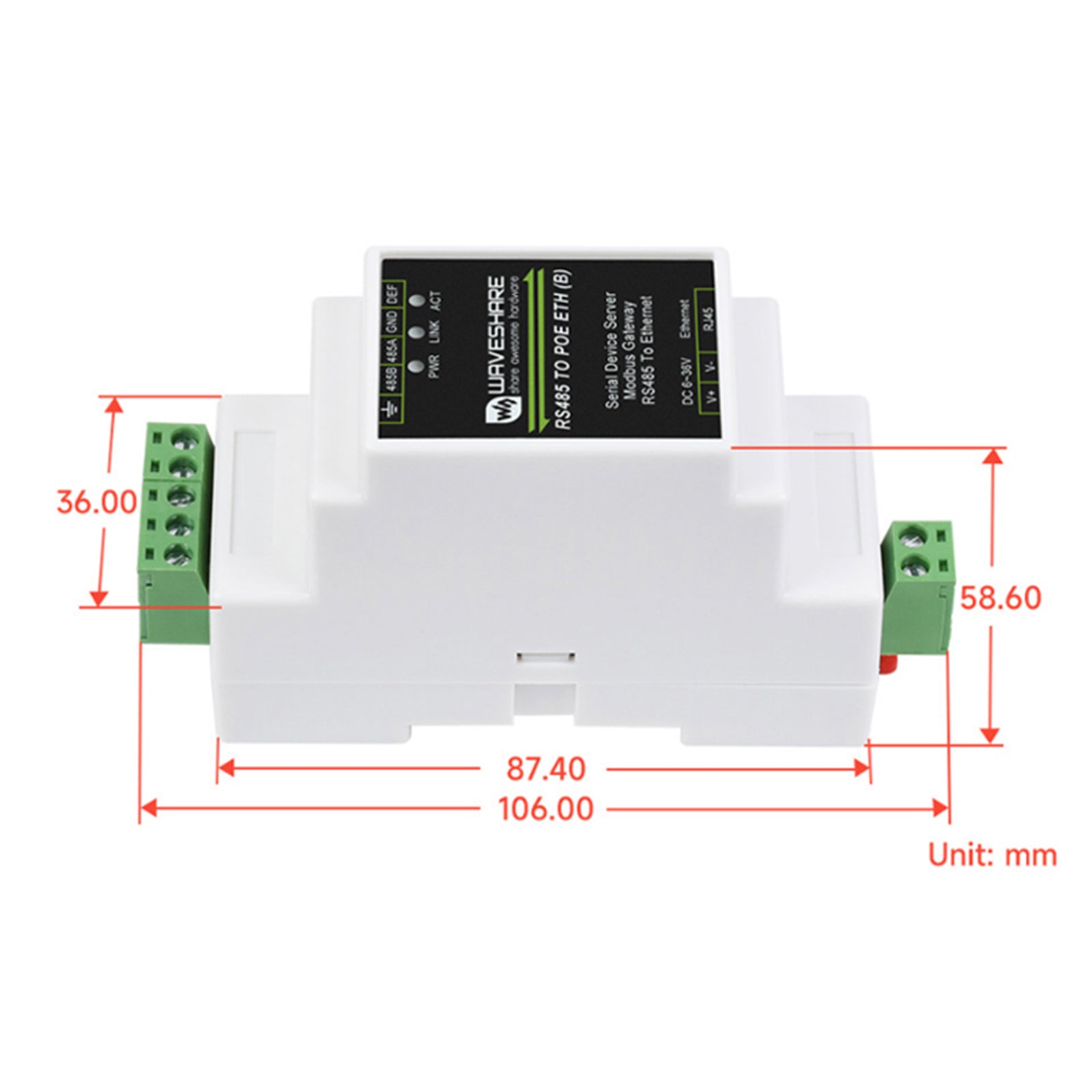

Product size: LxWxH: 87 x36x 59 mm

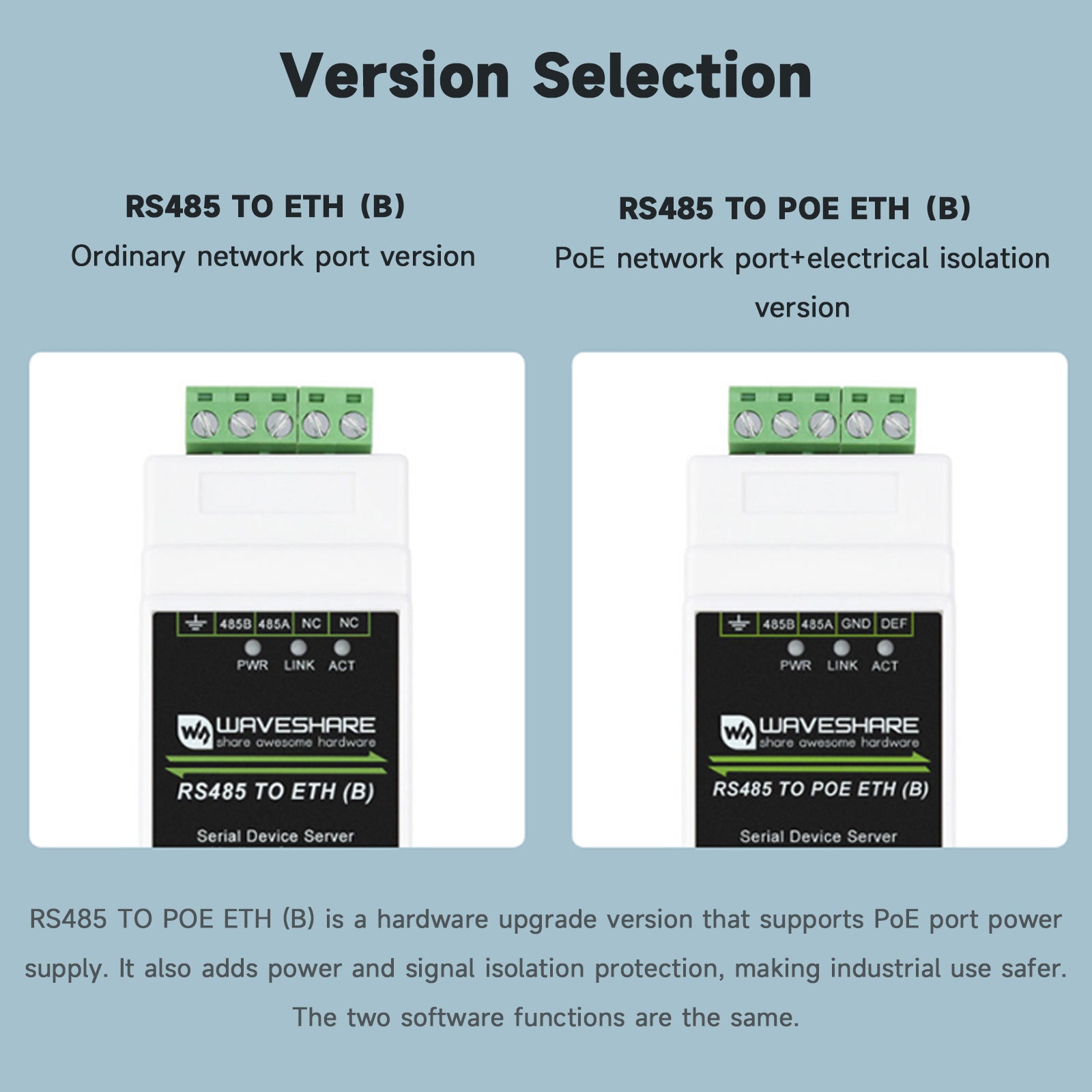

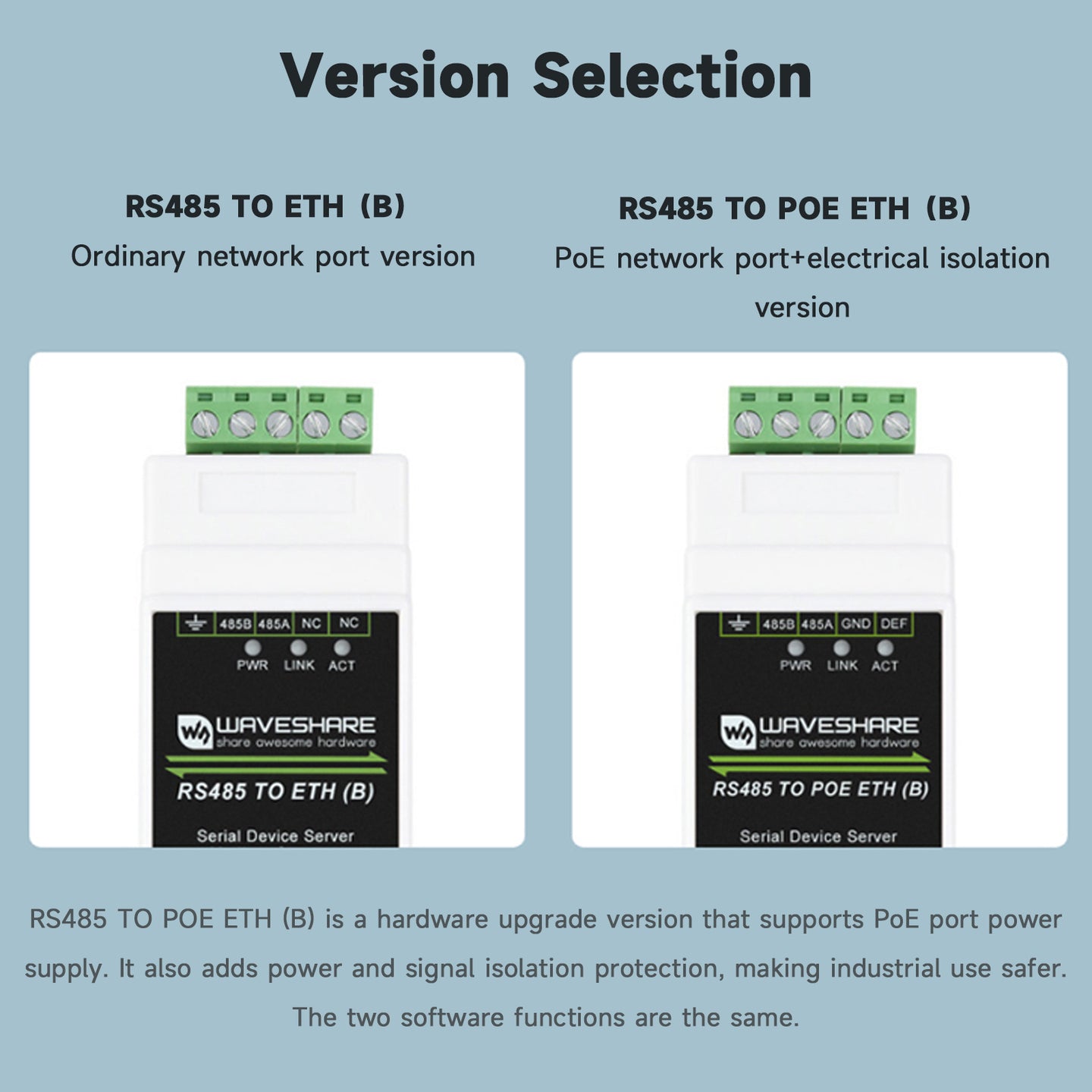

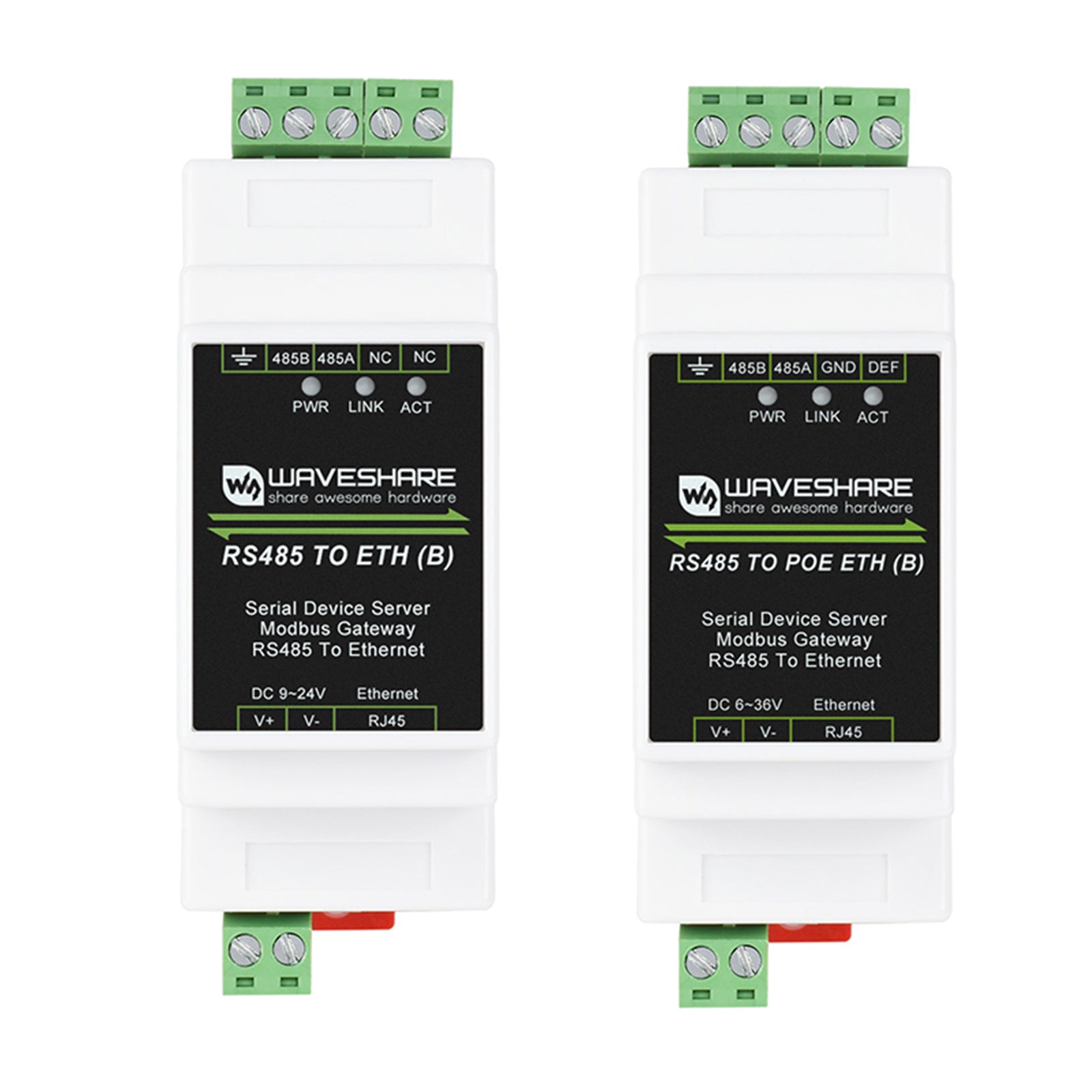

Ordinary network port module Specifications:

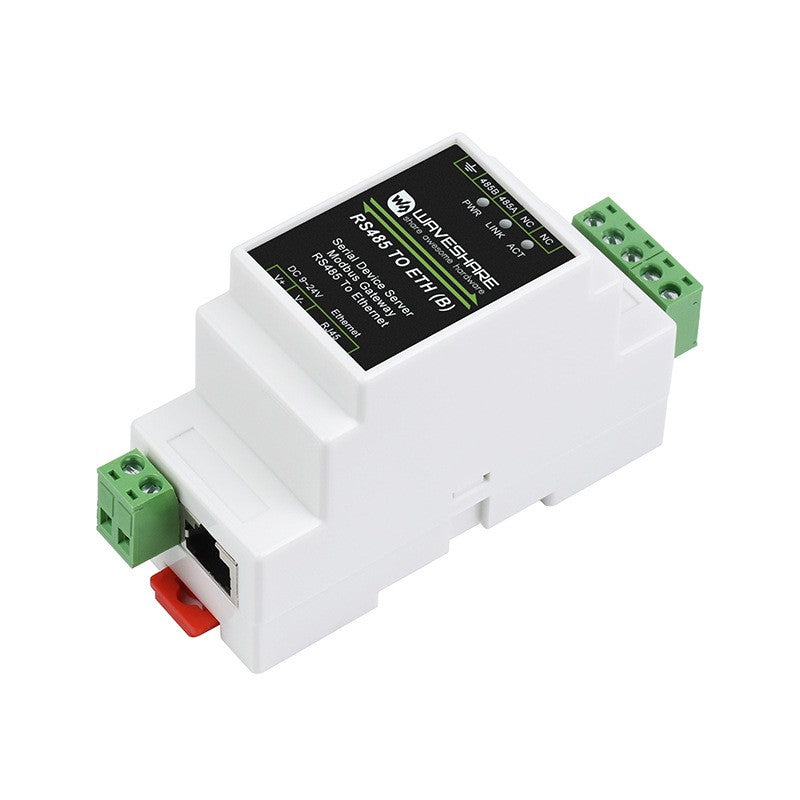

Model: RS485 TO ETH (B) Ordinary network port version
Power supply method: Terminal block DC 9~24V
Isolation protection: Without isolation
Ethernet: Ordinary network port
Serial port: RS485

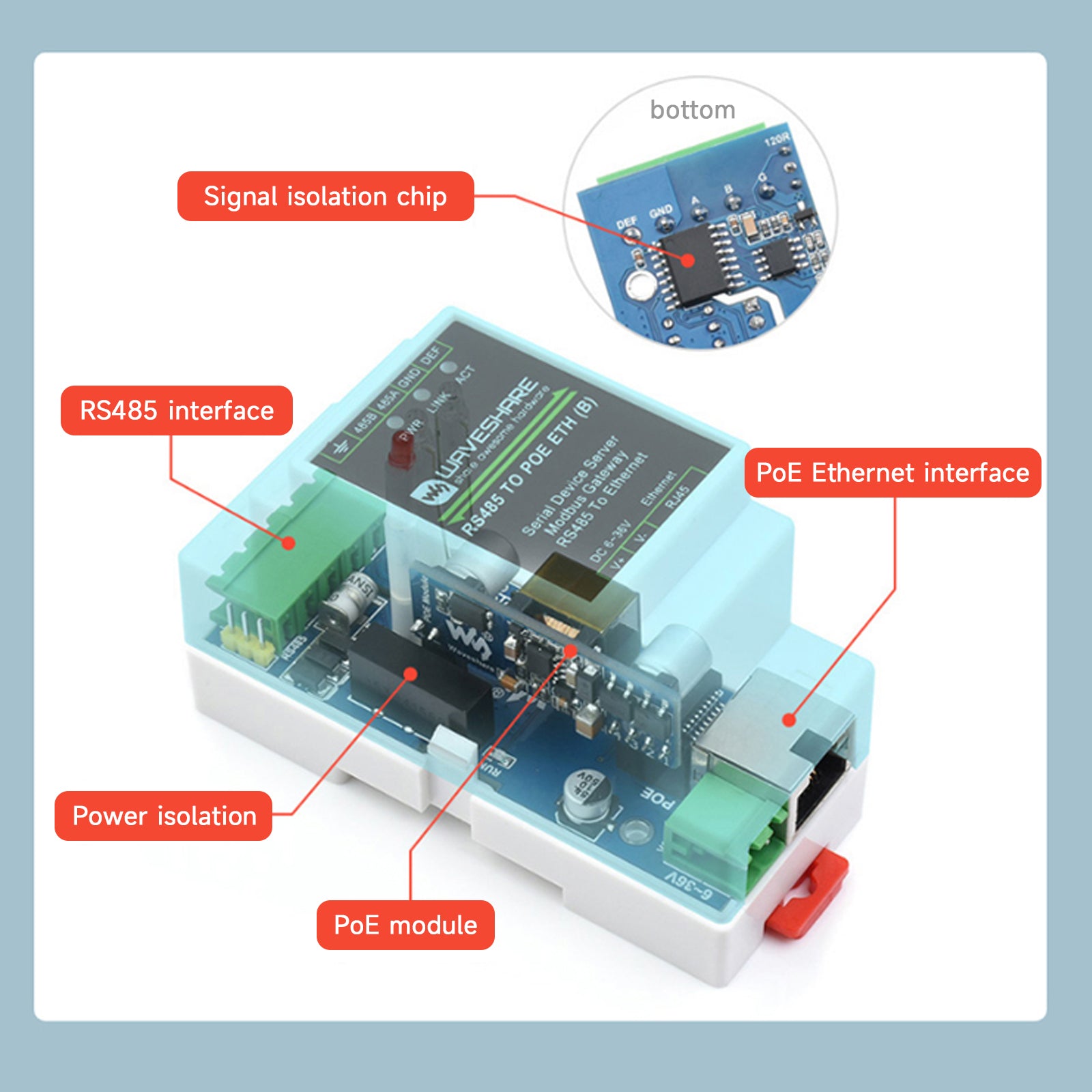

PoE network port module Specifications:
Model: RS485 TO POE ETH(B) PoE network port + electrical isolation version
Power supply method: Terminal block DC 6~36V or PoE network port
Isolation protection: Power isolation, signal isolation protection
Ethernet: PoE network port, support IEEE 802.3af standard
Serial port: Isolated RS485

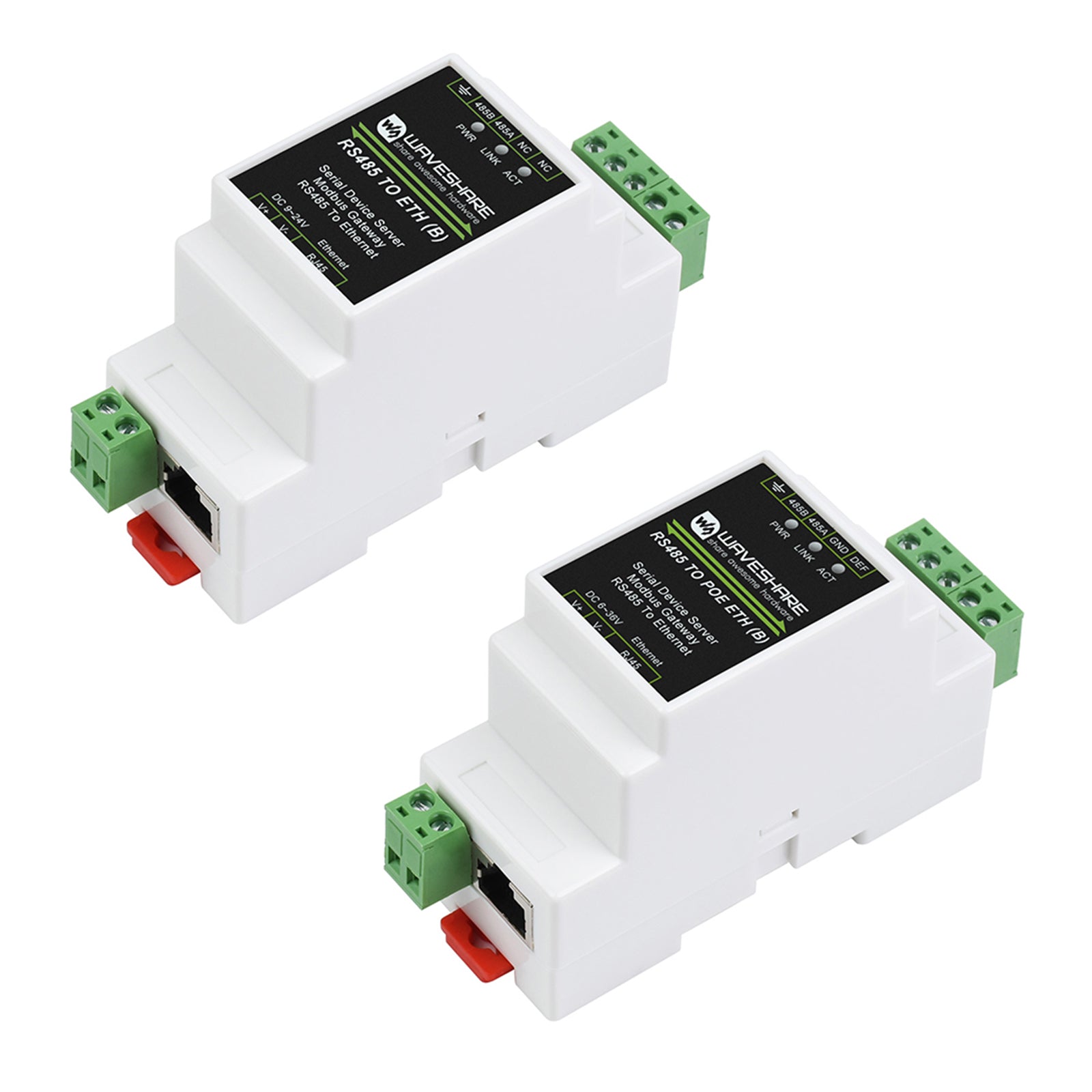

Package Include:
Option1:
1x Ordinary network port module
Option2:
1x PoE network port module
