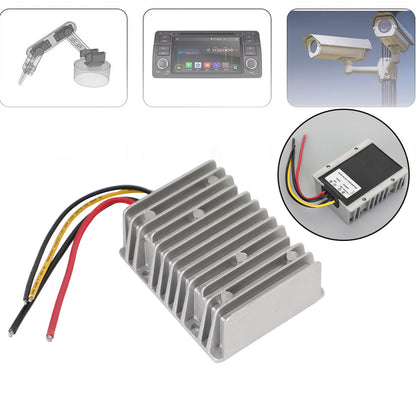

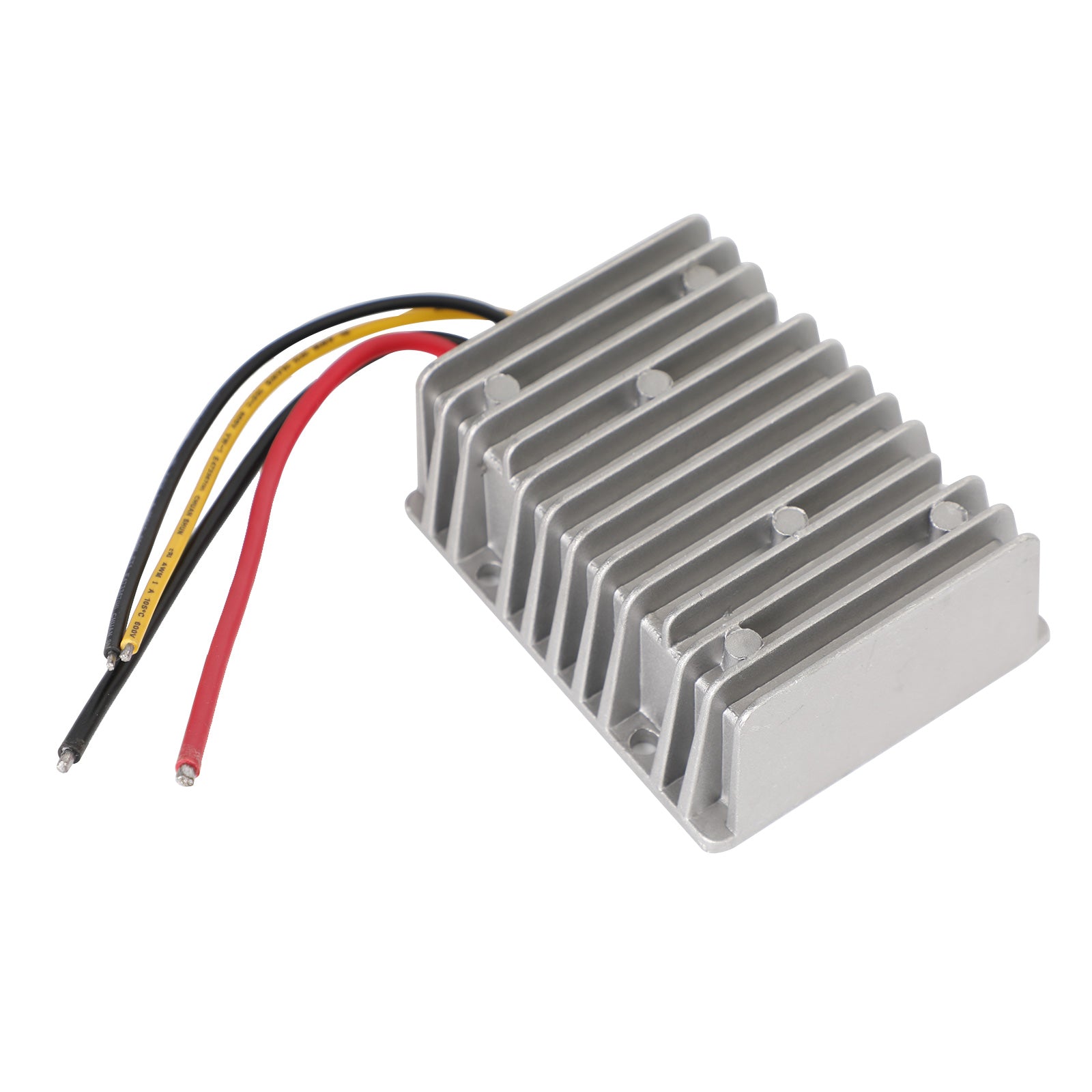

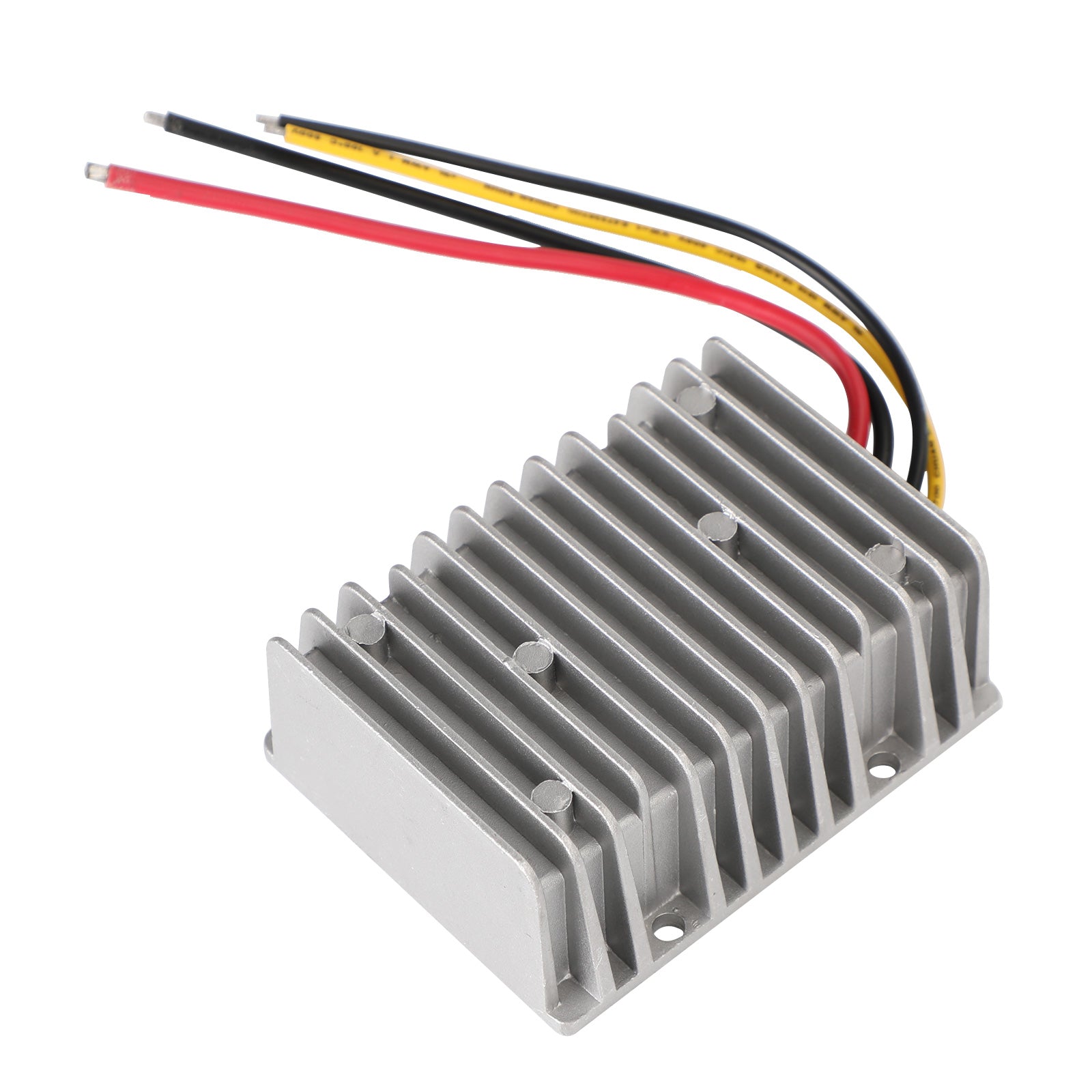

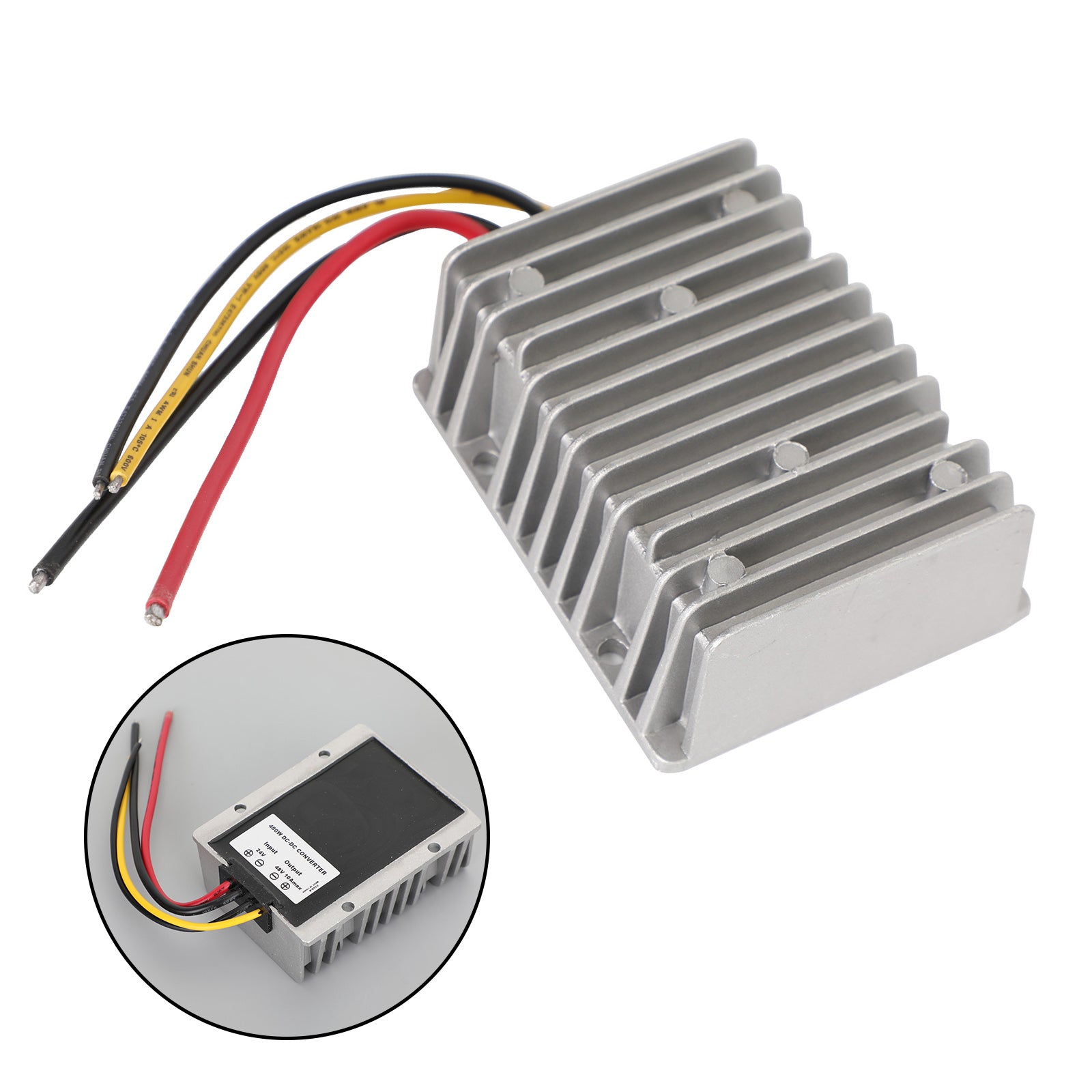

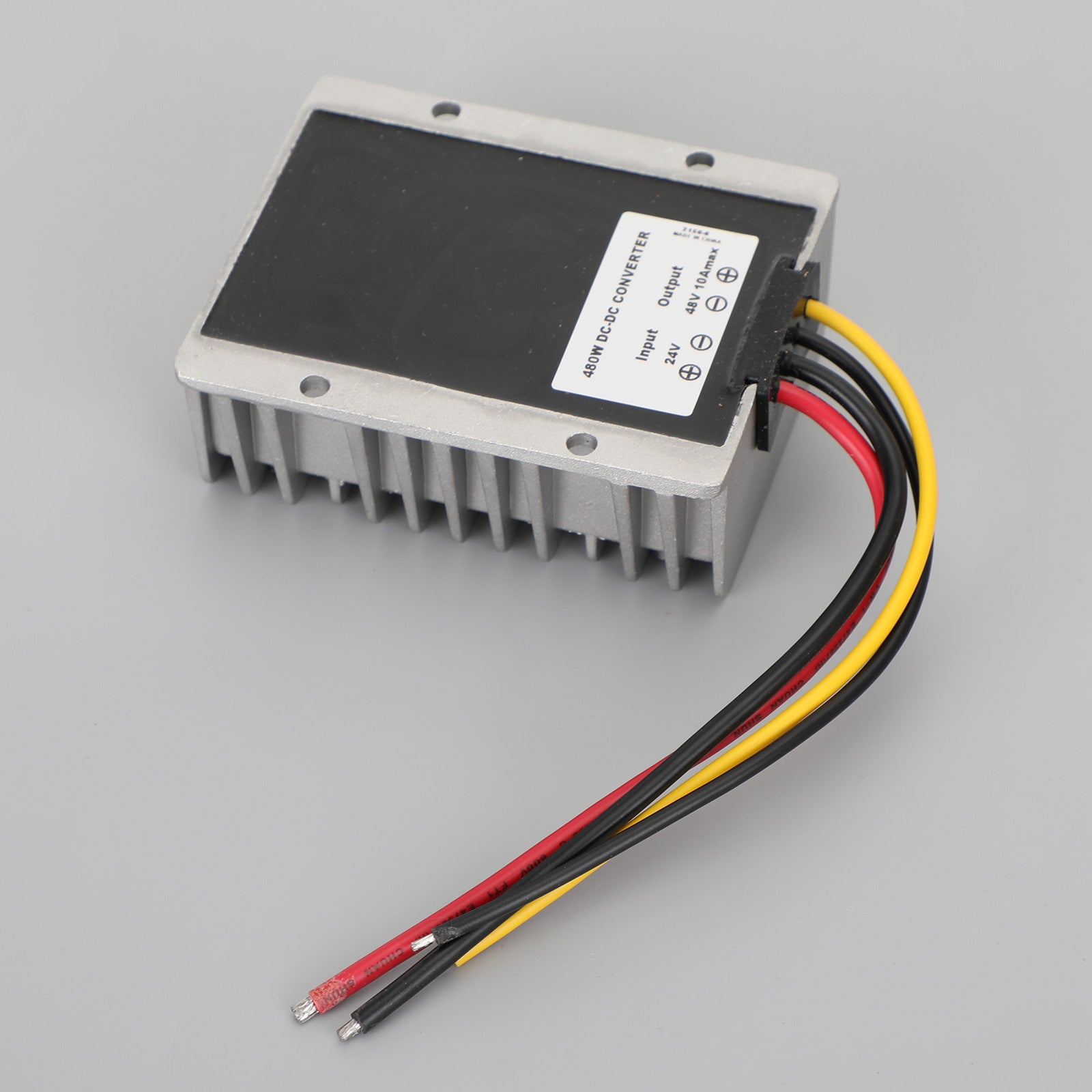

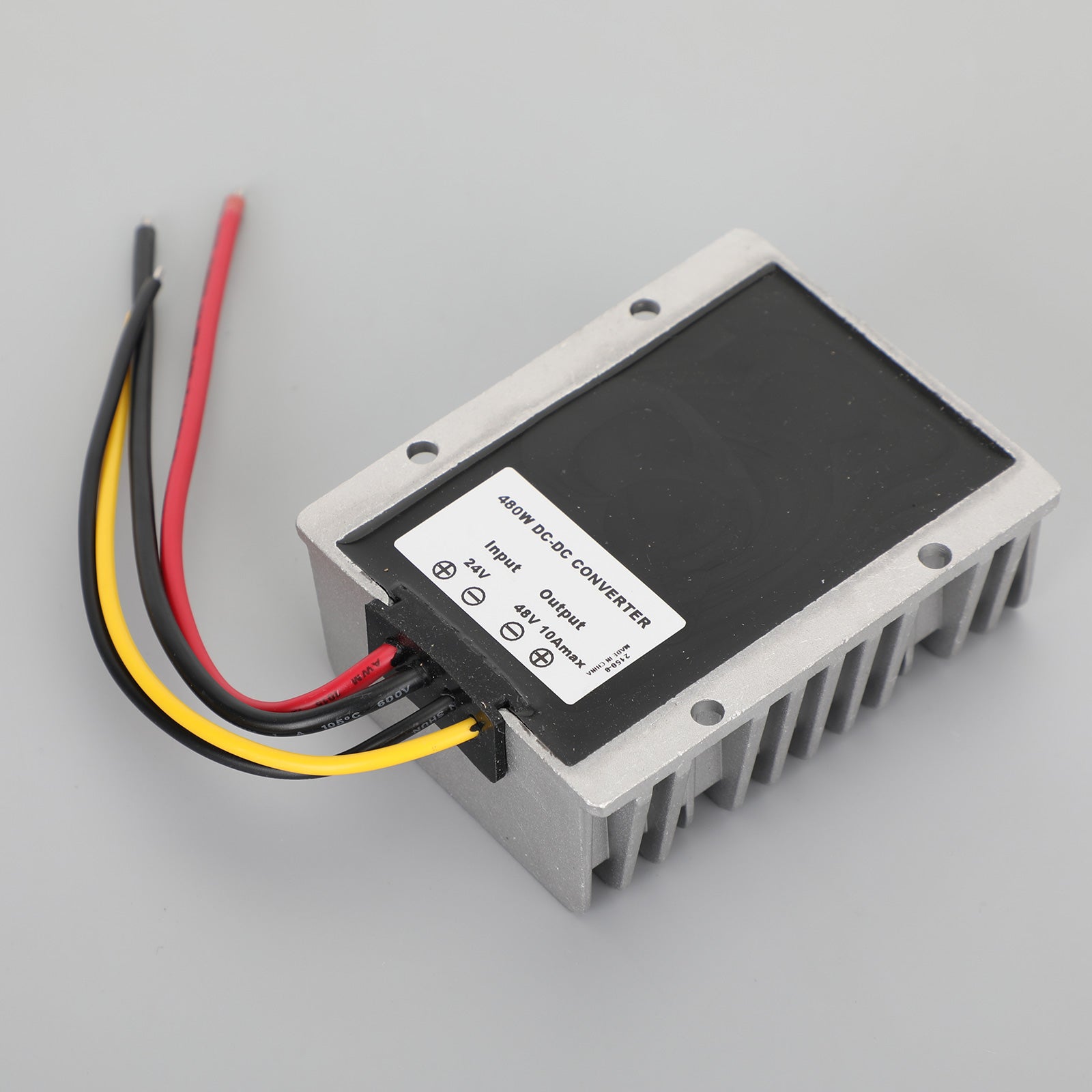

10A 480W Waterproof DC/DC Converter Power Supply Regulator 24V Step Up To 48V
10A 480W Waterproof DC/DC Converter Power Supply Regulator 24V Step Up To 48V
Couldn't load pickup availability
Feature:
1: High quality thermal silica potting, waterproof, dust-proof, shockproof effect.
2: Aluminum Outer Case material, long term stable and reliable.
3: Easy to install, anti-aging, good heat dissipation.

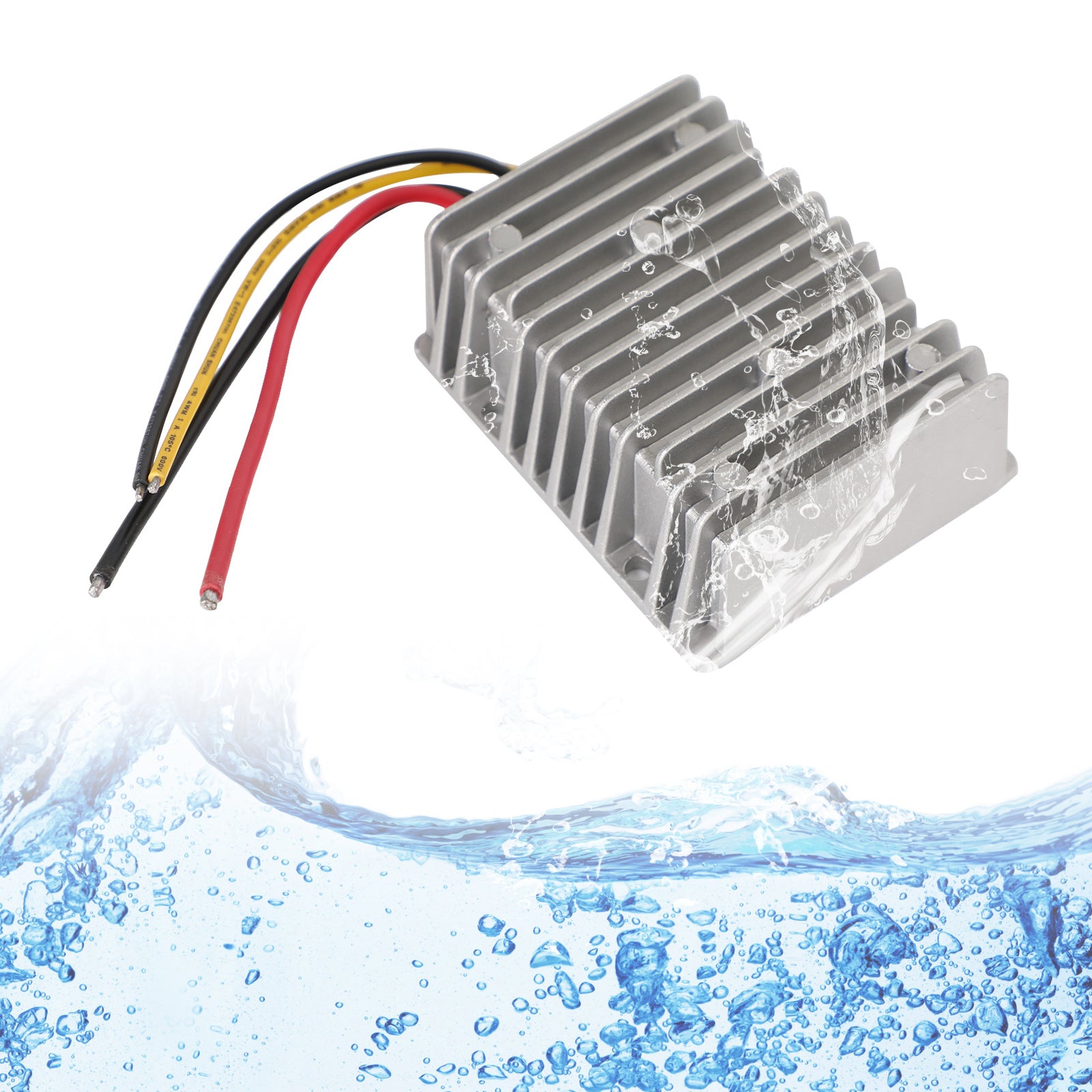

4: IP68 waterproof and shockproof design, suitable for different outdoor harsh environment.
5: With over-current, over-voltage, over-temperature and short circuit protection, reliable multi-protection design to enhance your using safety.

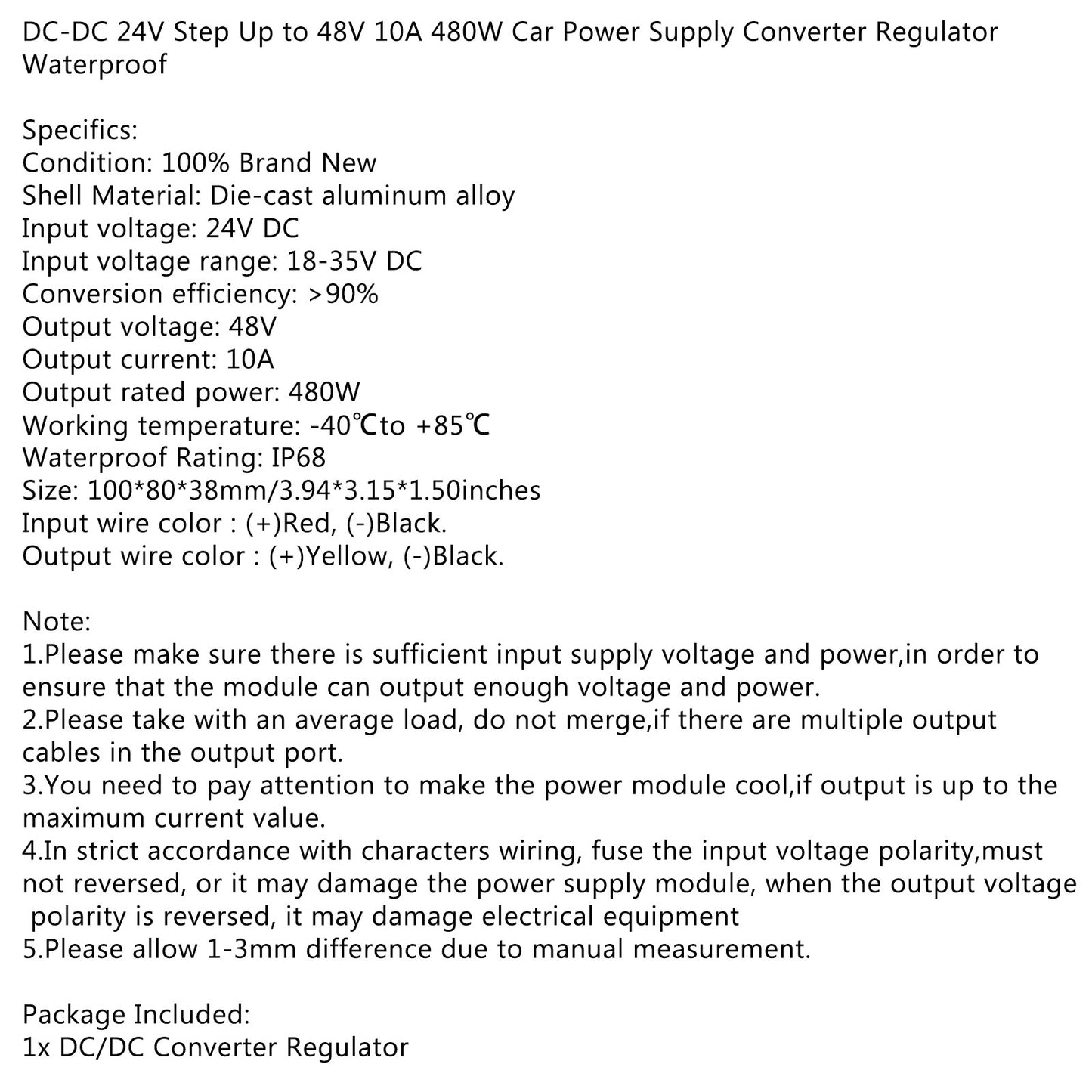

Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input voltage: 24V DC
Input voltage range: 18-35V DC
Conversion efficiency: >90%
Output voltage: 48V
Output current: 10A
Output rated power: 480W
Working temperature: -40¡æto +85¡æ
Waterproof Rating: IP68

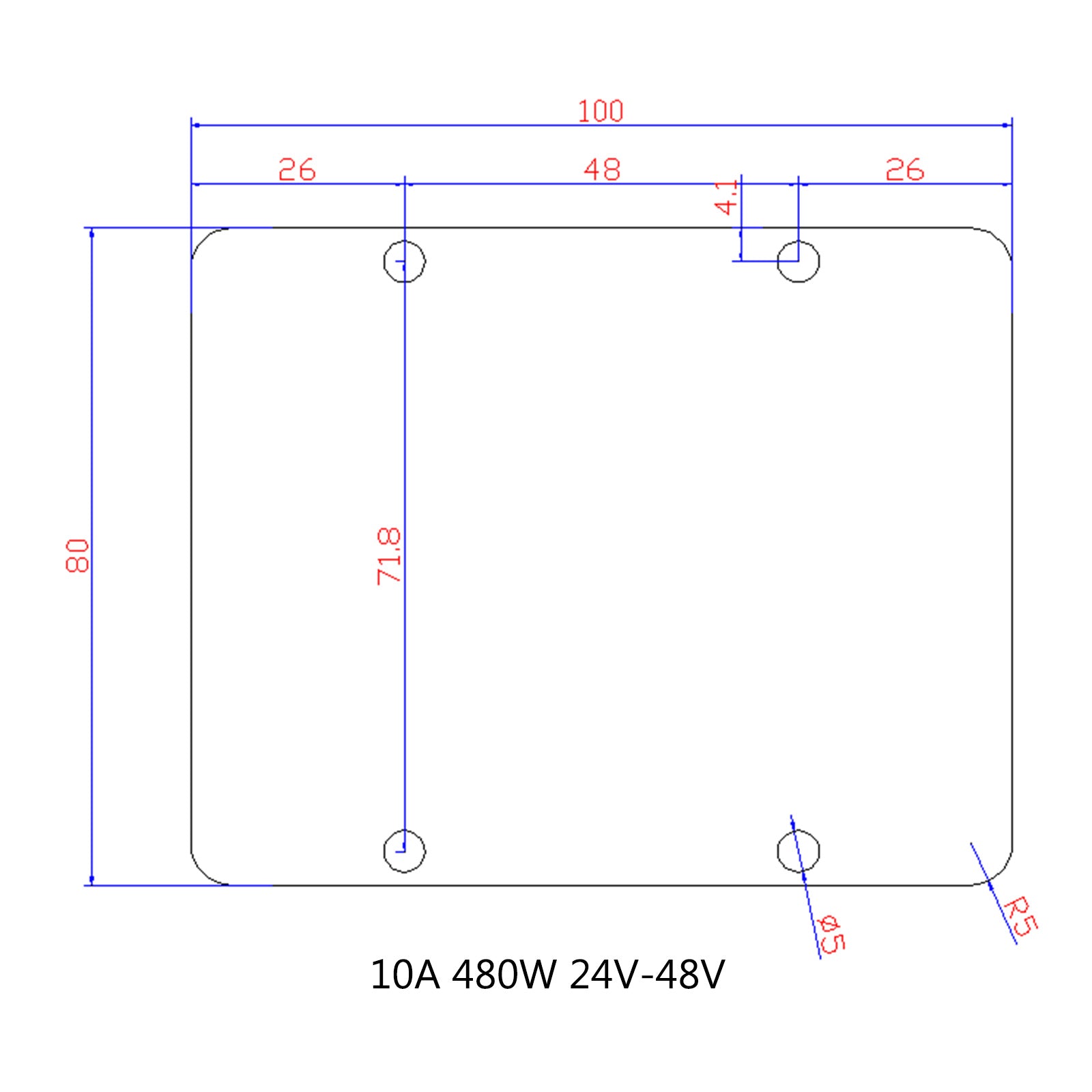

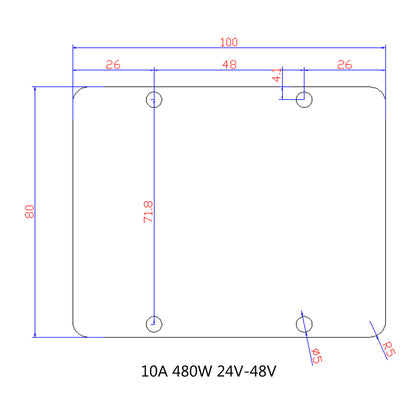

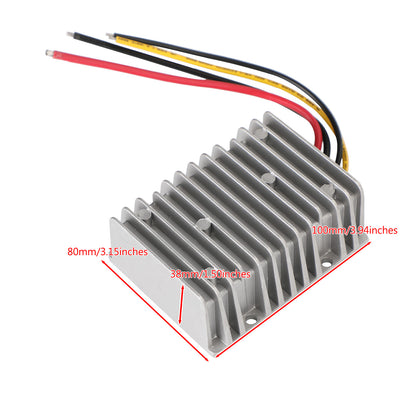

Size: 100*80*38mm/3.94*3.15*1.50inches

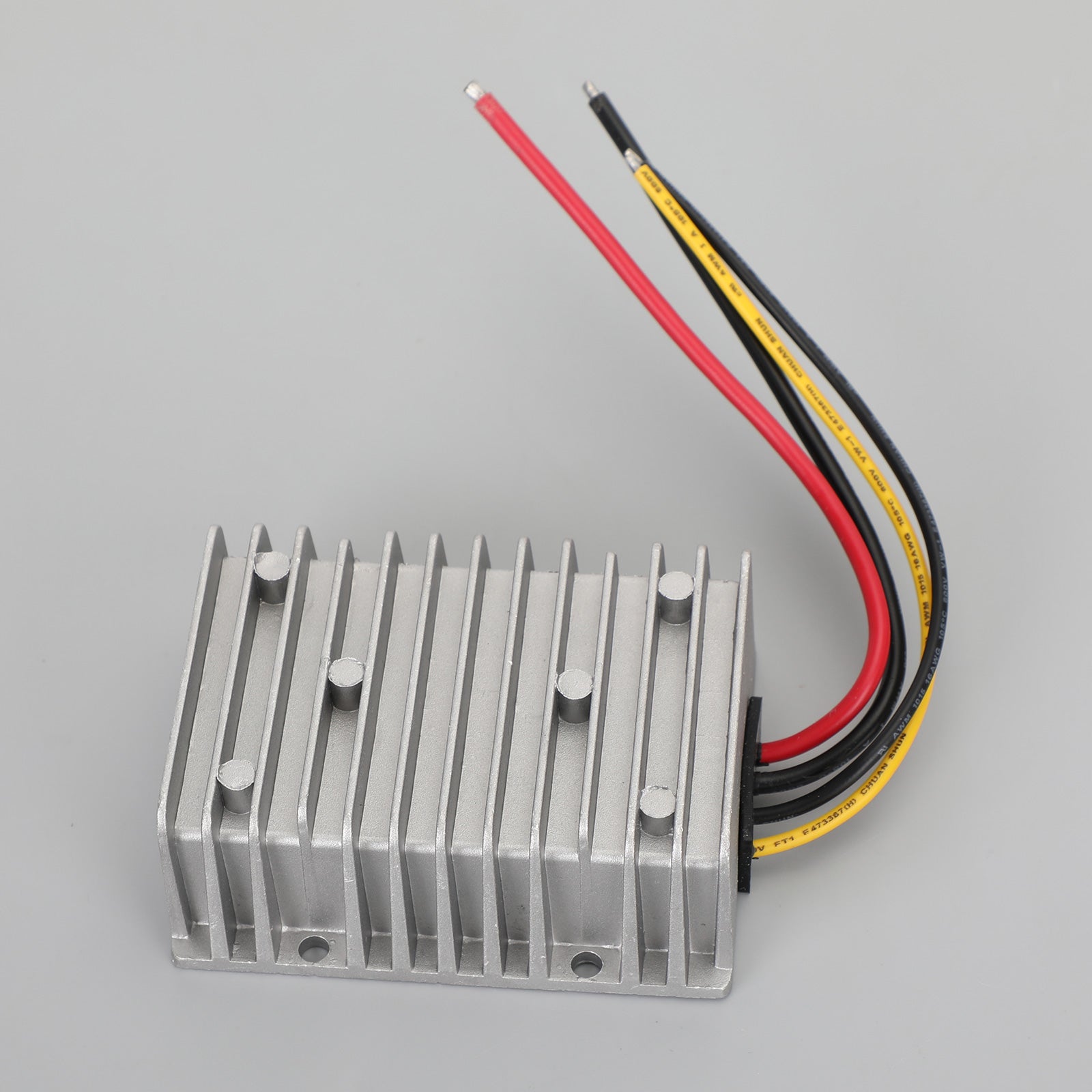

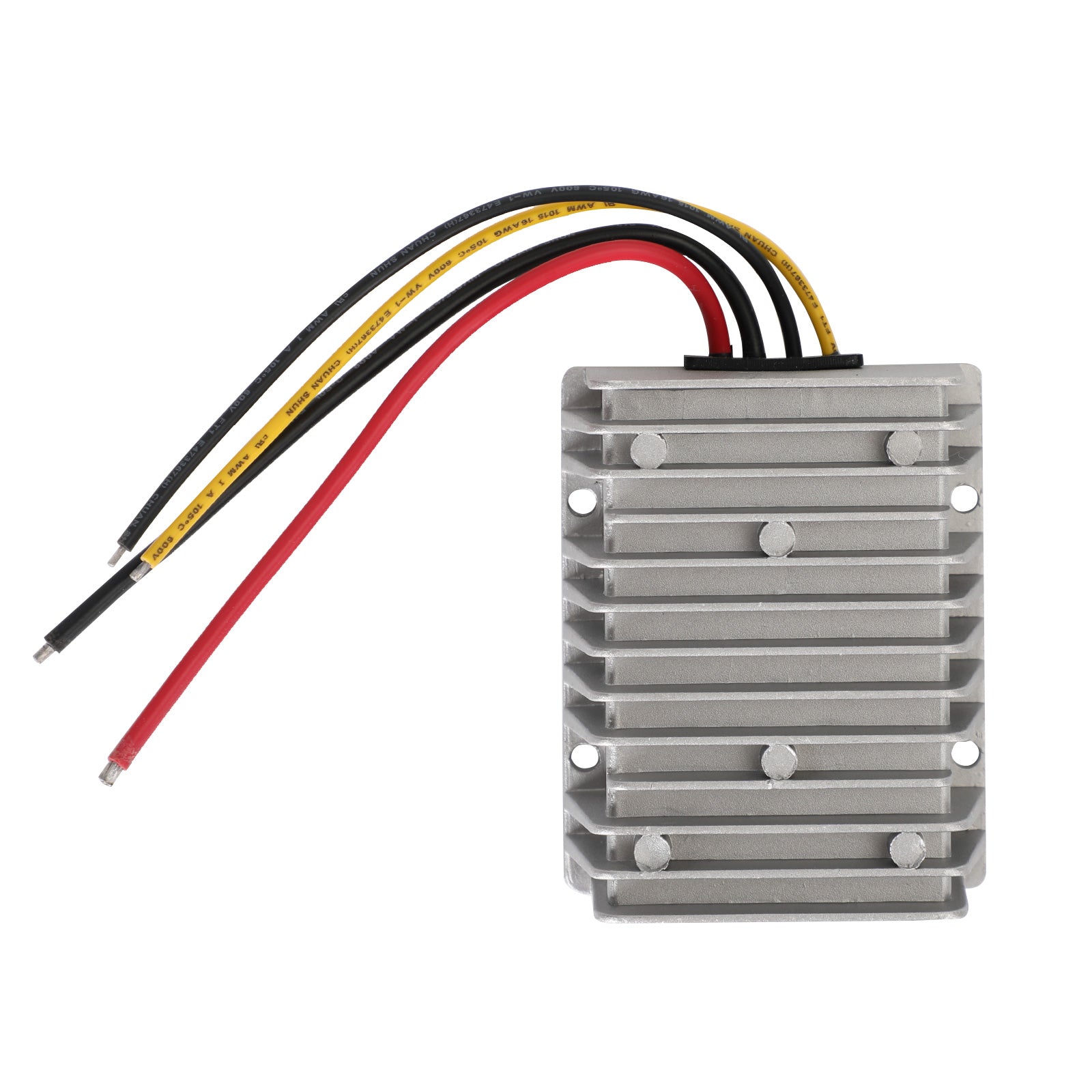

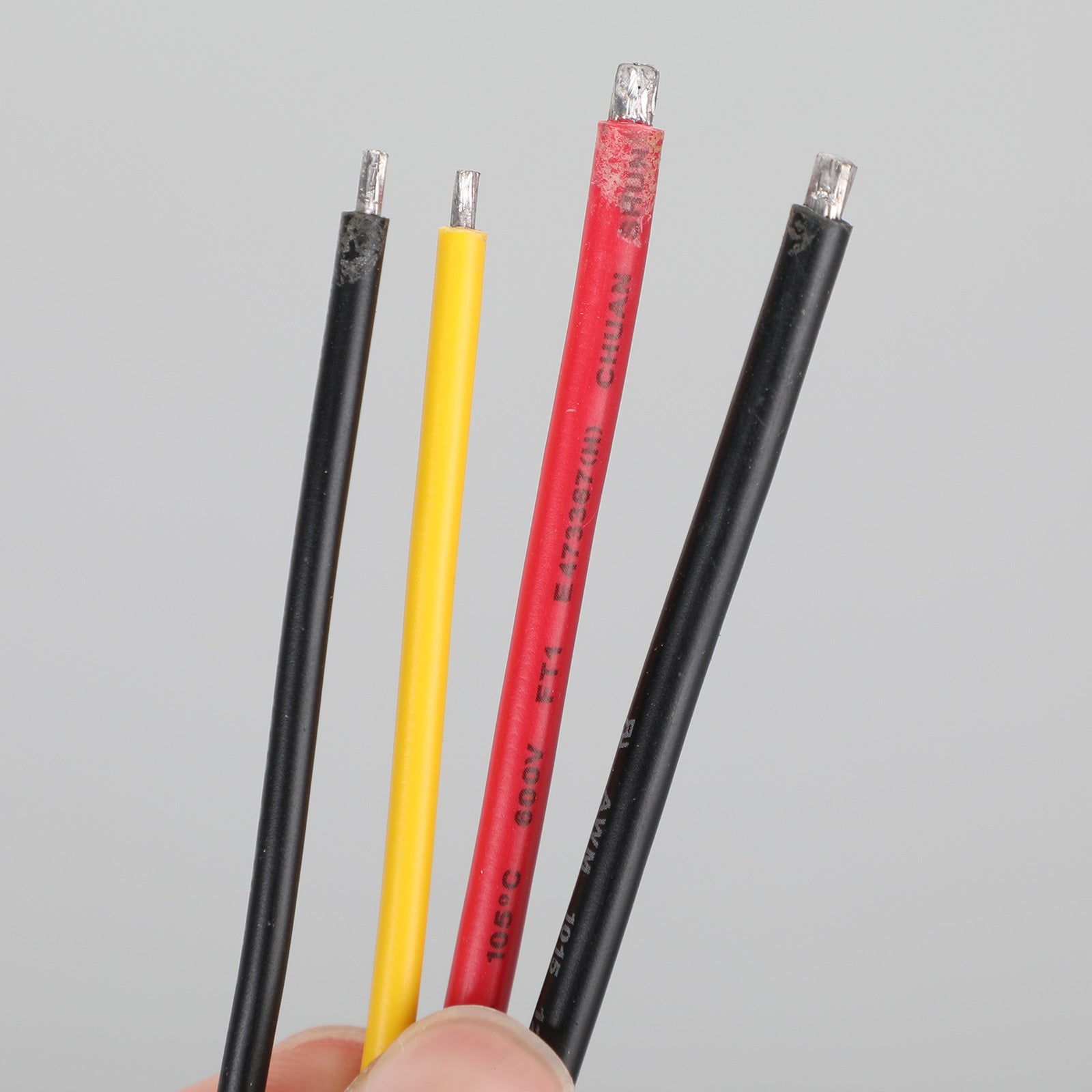

Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
5.Please allow 1-3mm difference due to manual measurement.
Package Included:
1x DC/DC Converter Regulator
Shipping:
Free Shipping
Delivery Time: 2-6 working days
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
