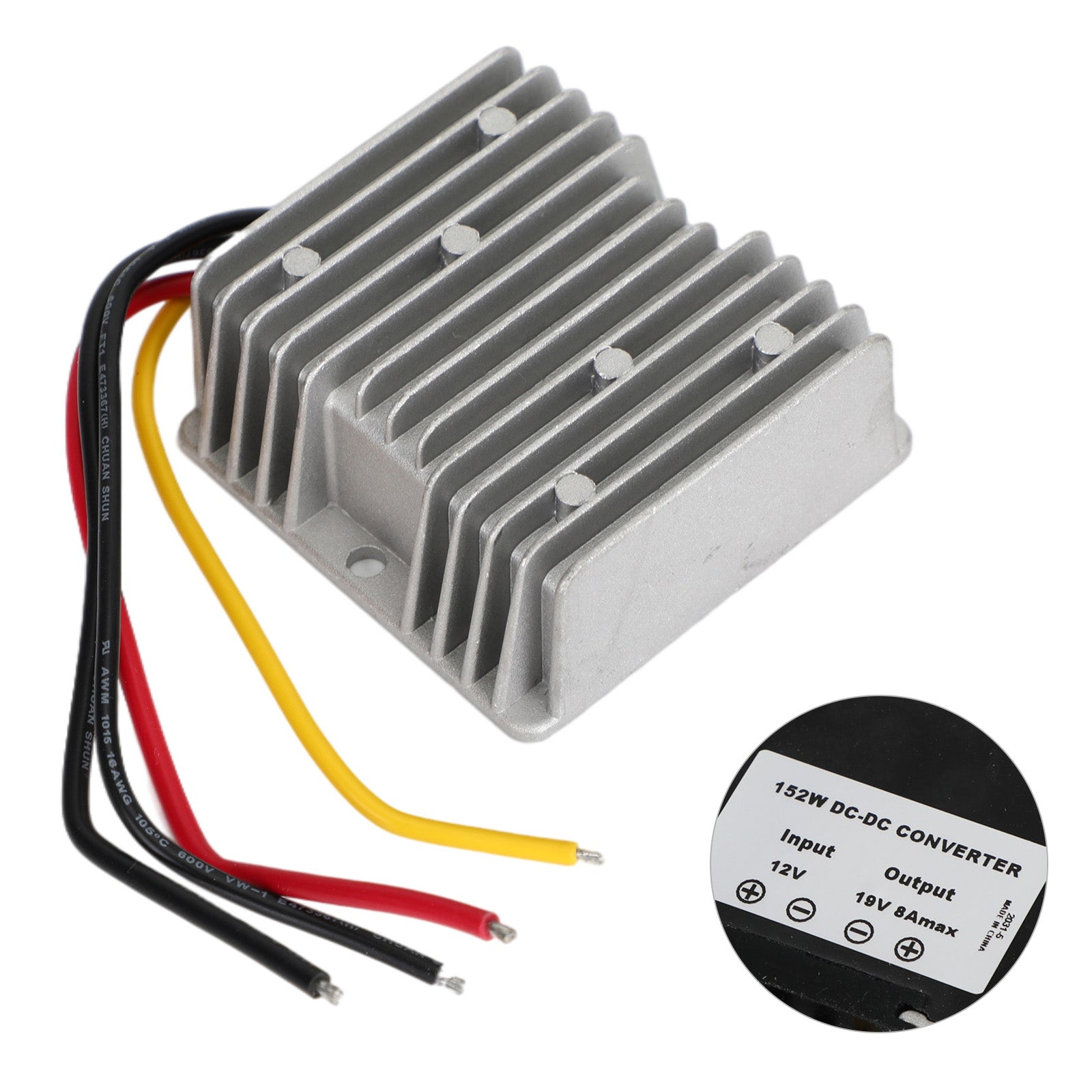

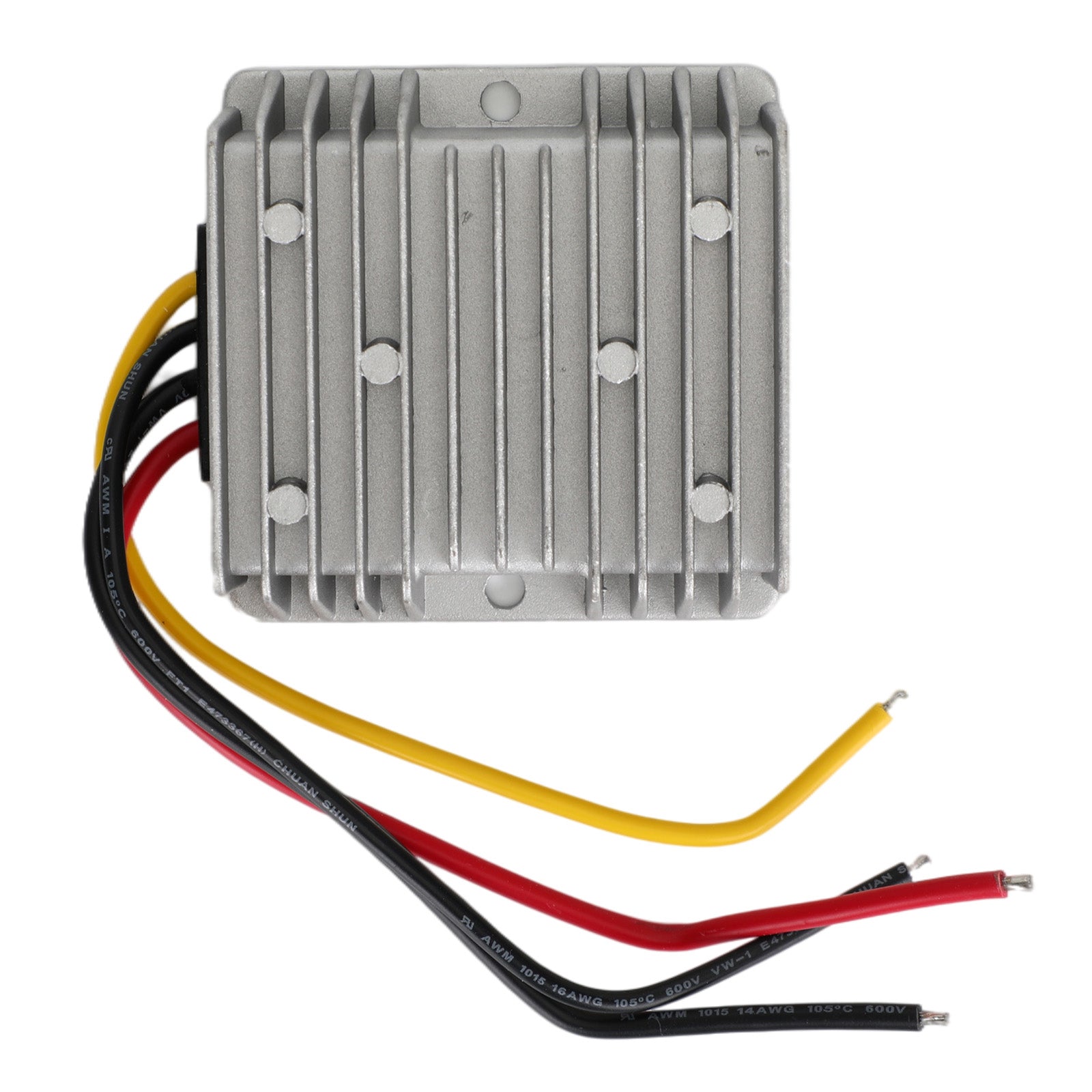

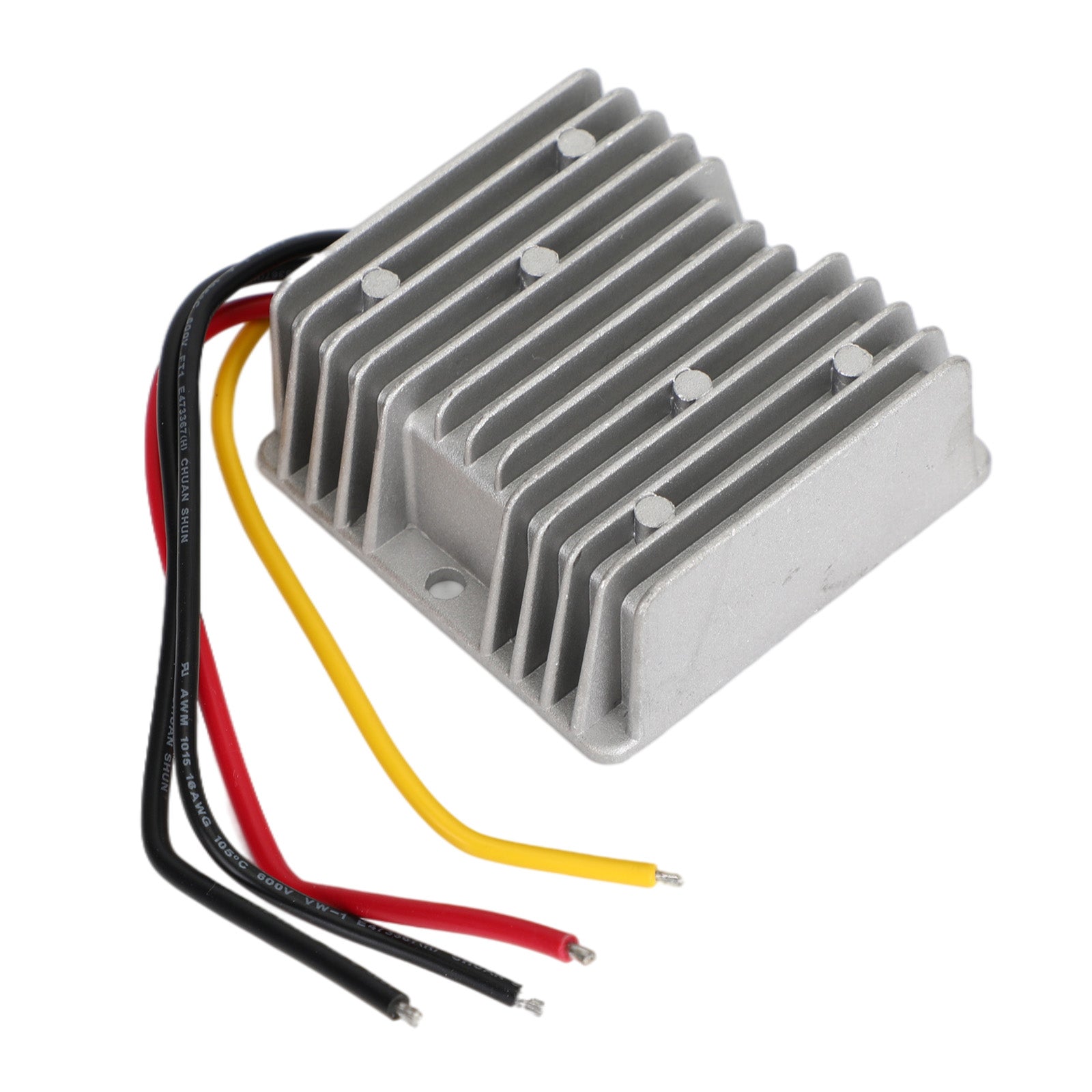

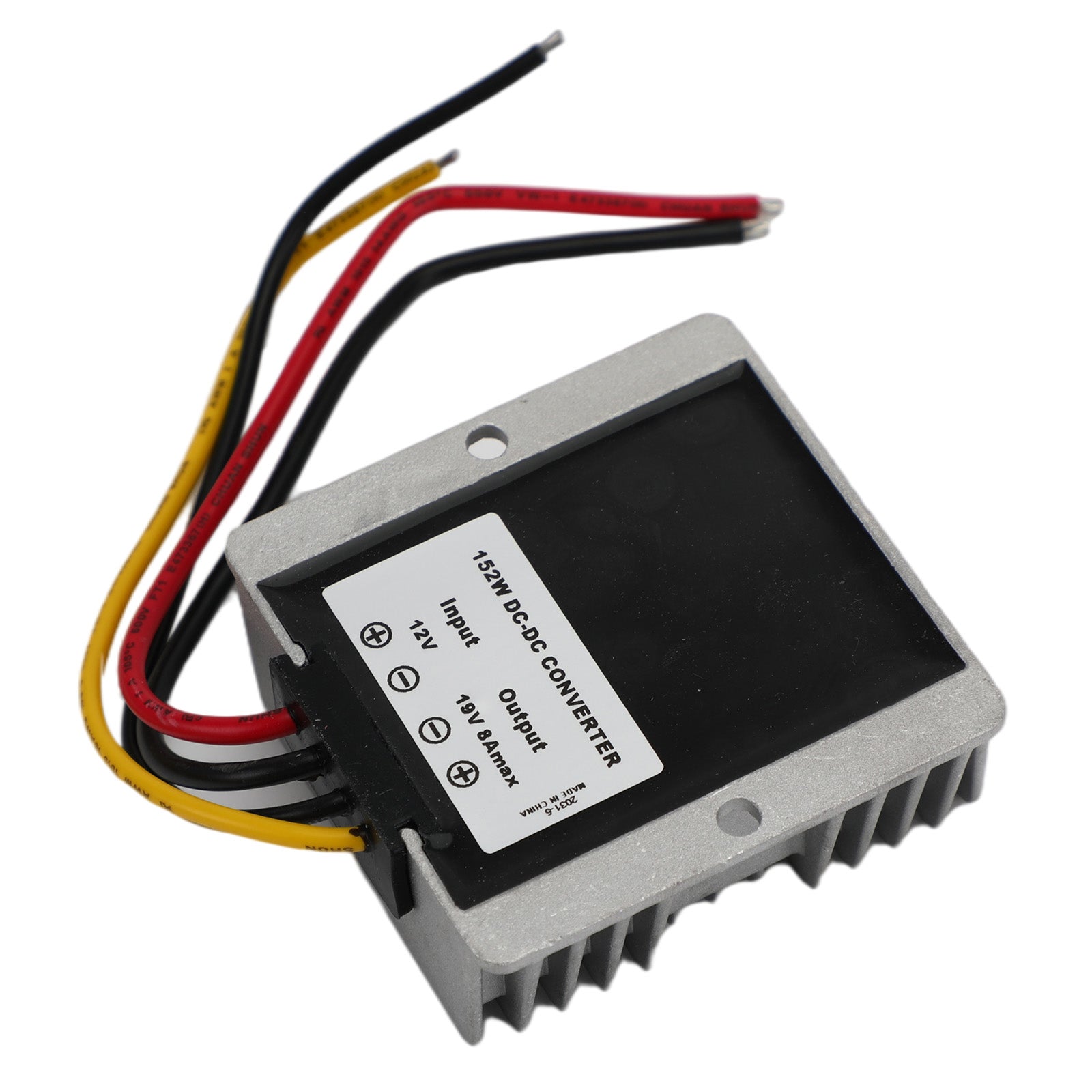

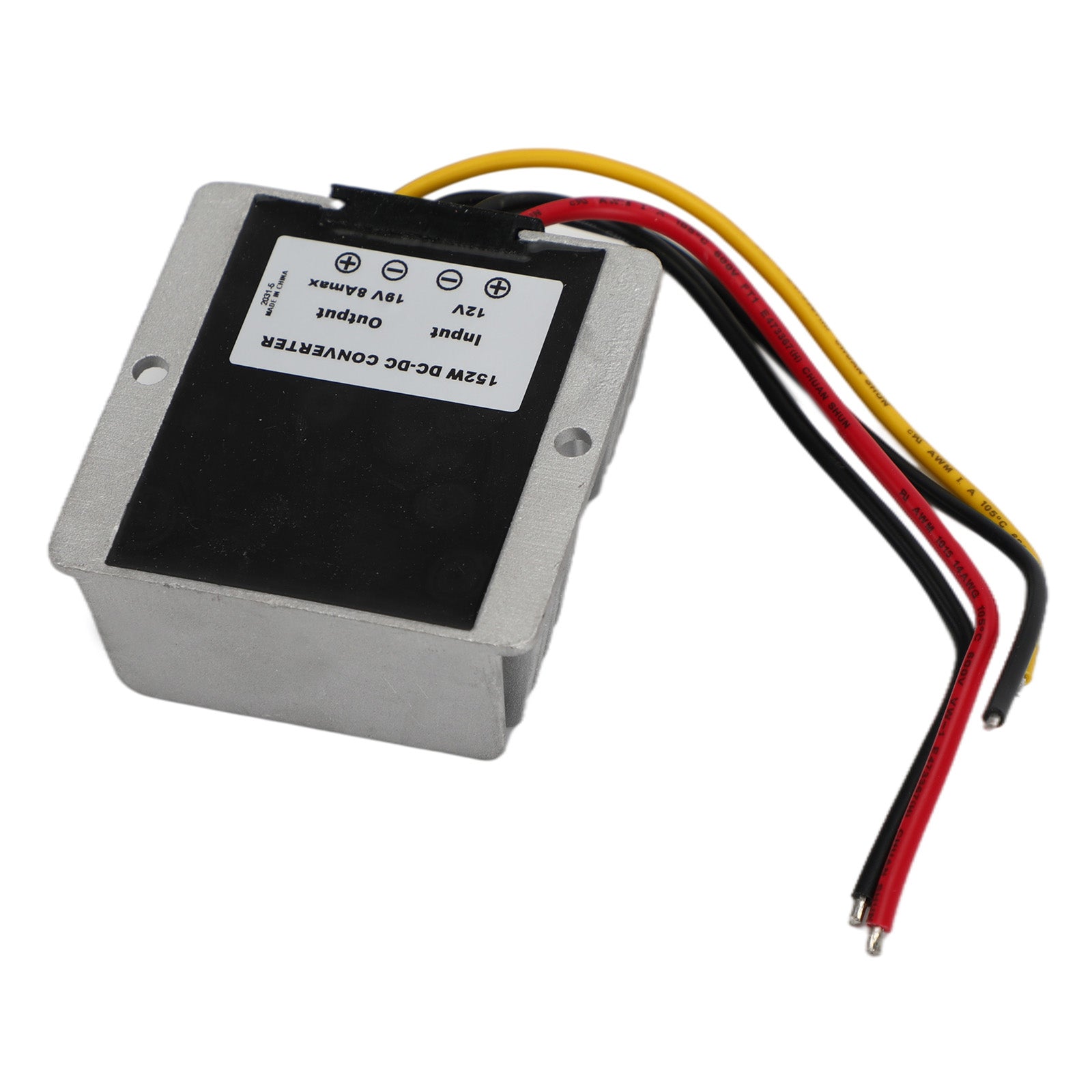

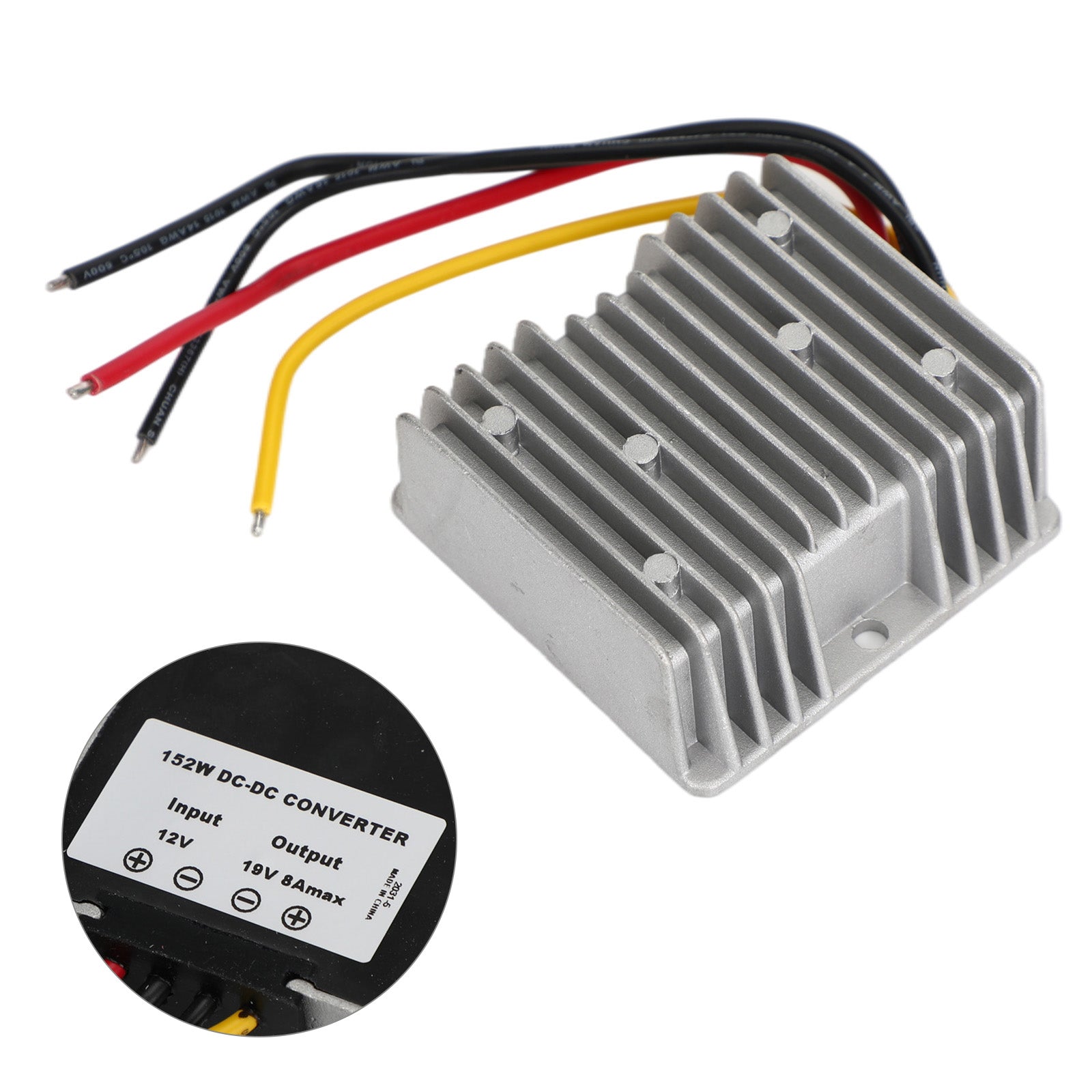

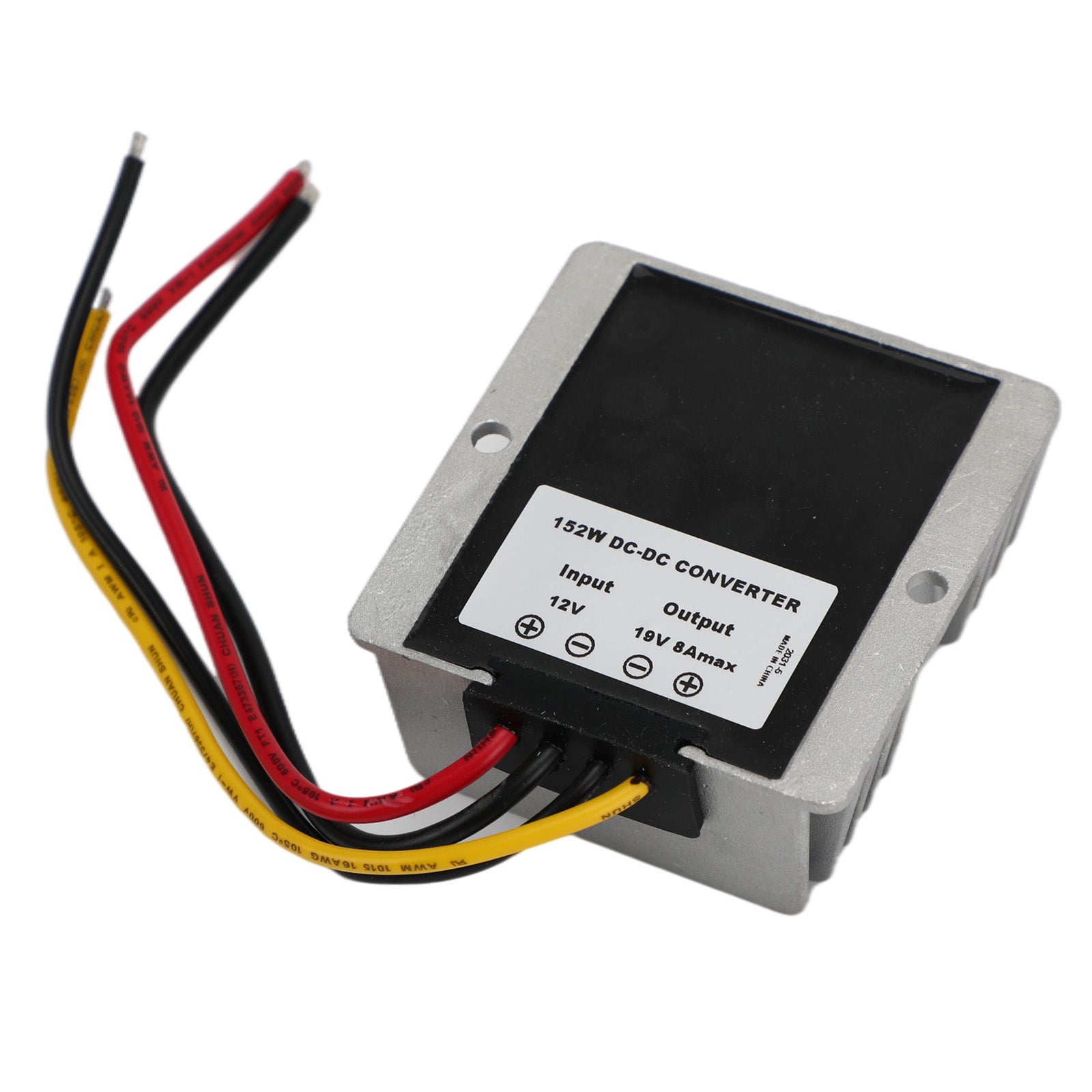

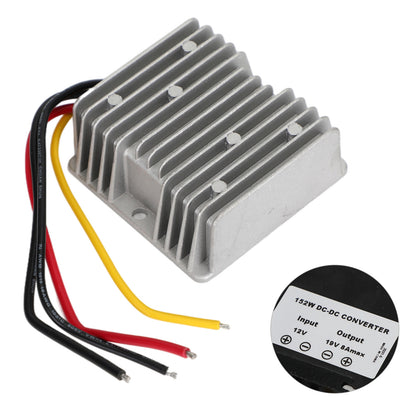

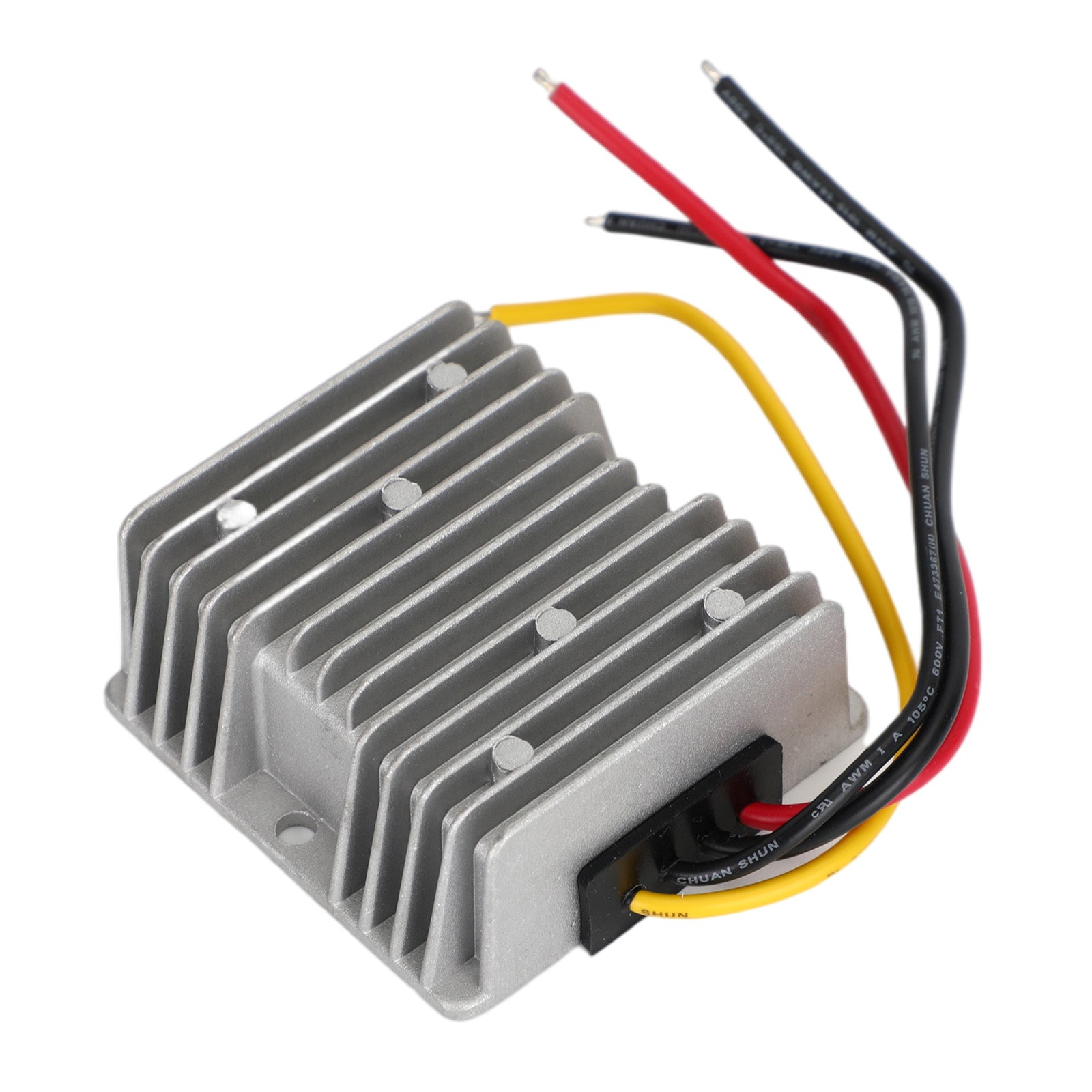

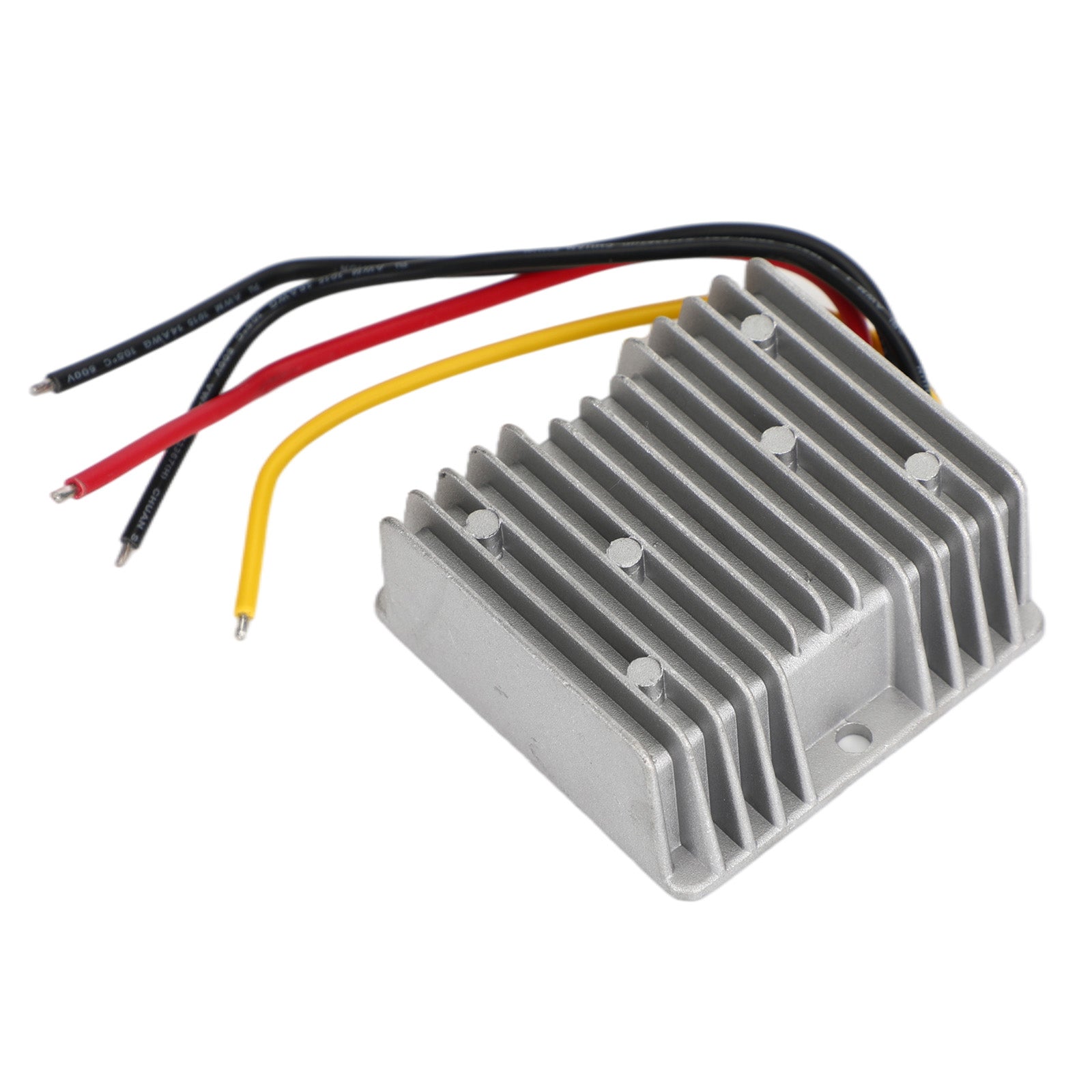

12V to 19V 8A 152W DC-DC Step Up Power Converter
Feature:
1:IP68 waterproof and shockproof design, suitable for different outdoor harsh environment.
2:Aluminum Outer Case material, long term stable and reliable.
3:With overvoltage,overcurrent overheating protection
4:High quality thermal silica potting, waterproof, dust-proof, shockproof effect
5:Easy to install.

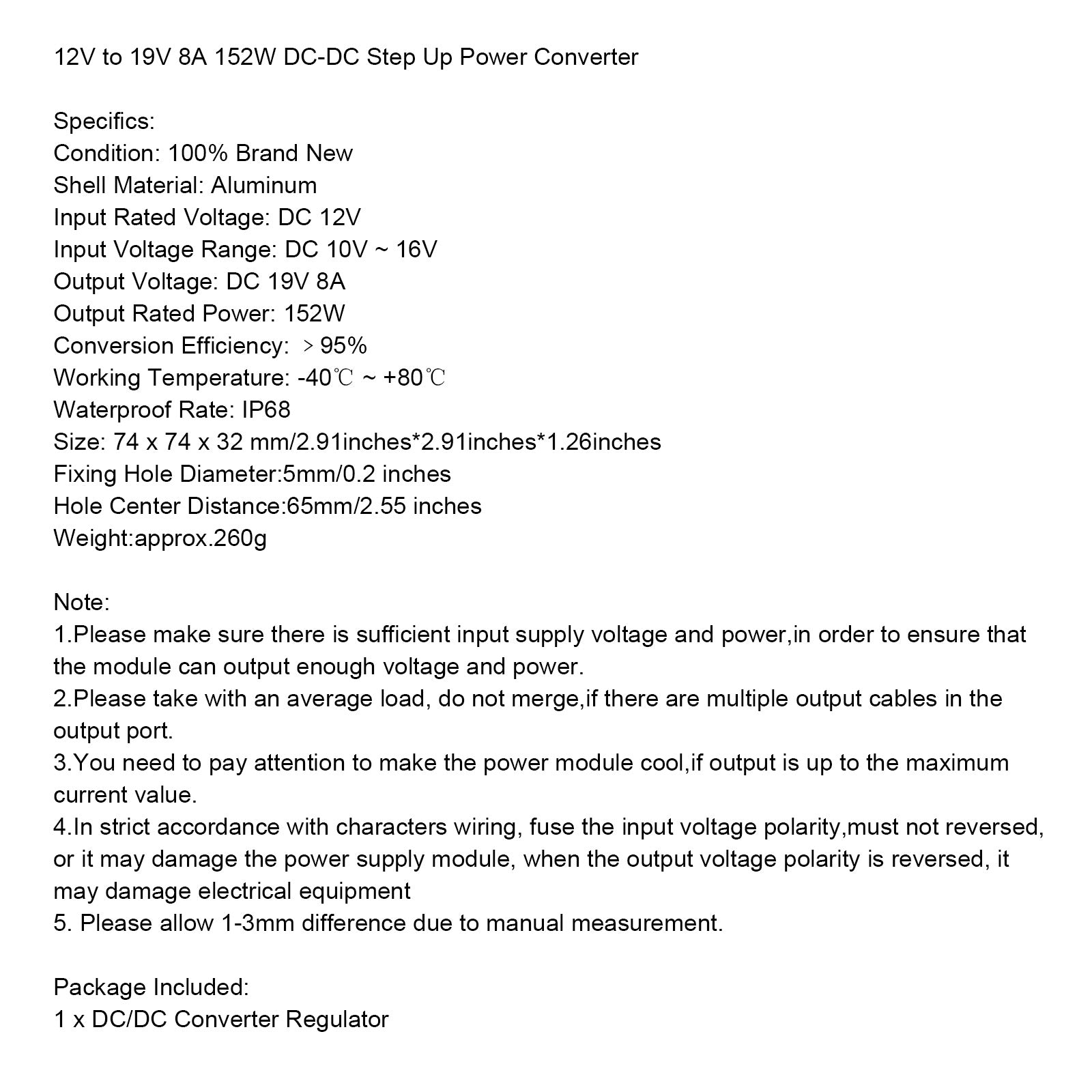

Specifics:
Condition: 100% Brand New
Shell Material: Aluminum
Input Rated Voltage: DC 12V
Input Voltage Range: DC 10V ~ 16V
Output Voltage: DC 19V 8A
Output Rated Power: 152W
Conversion Efficiency: ©ƒ95%
Working Temperature: -40¡æ ~ +80¡æ
Waterproof Rate: IP68

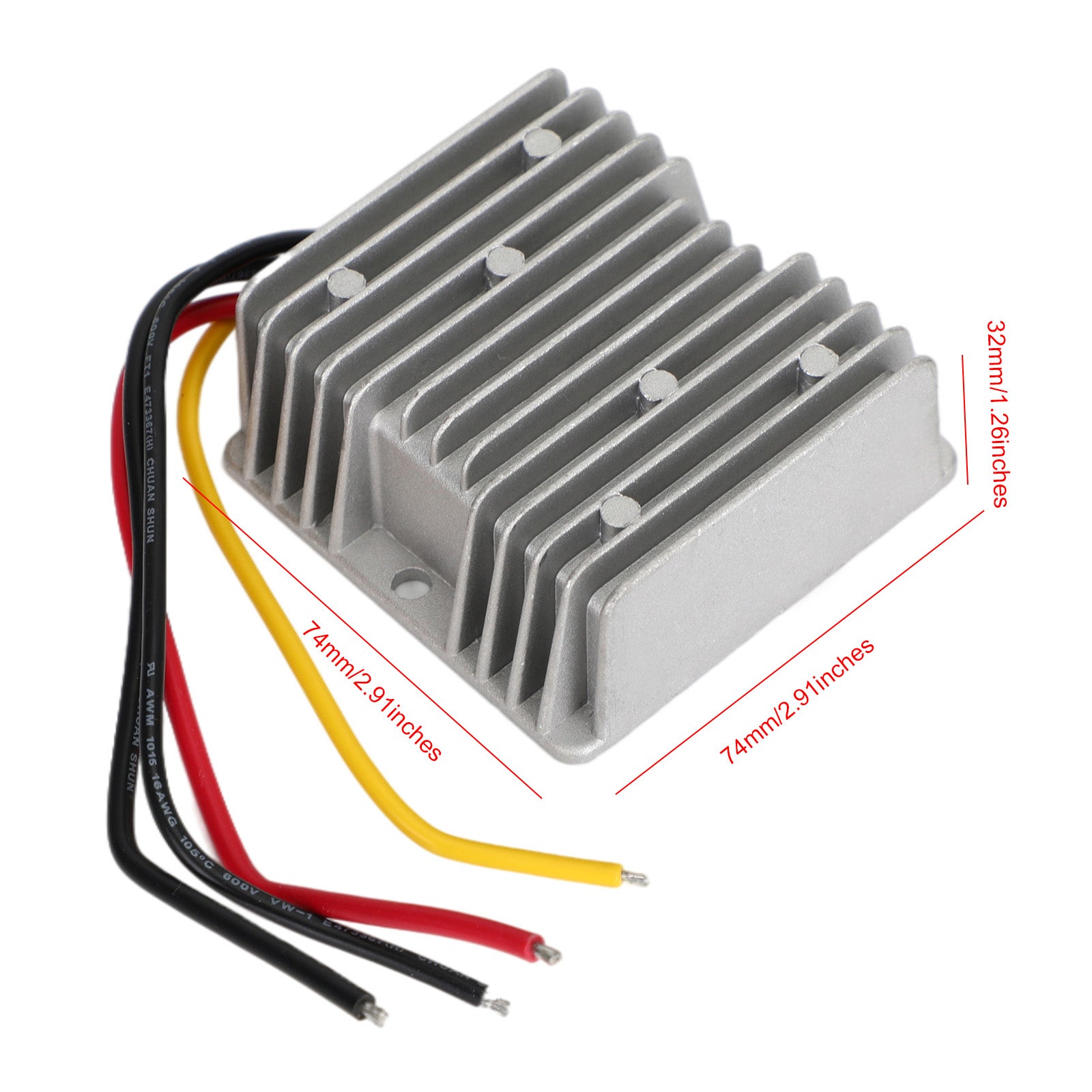

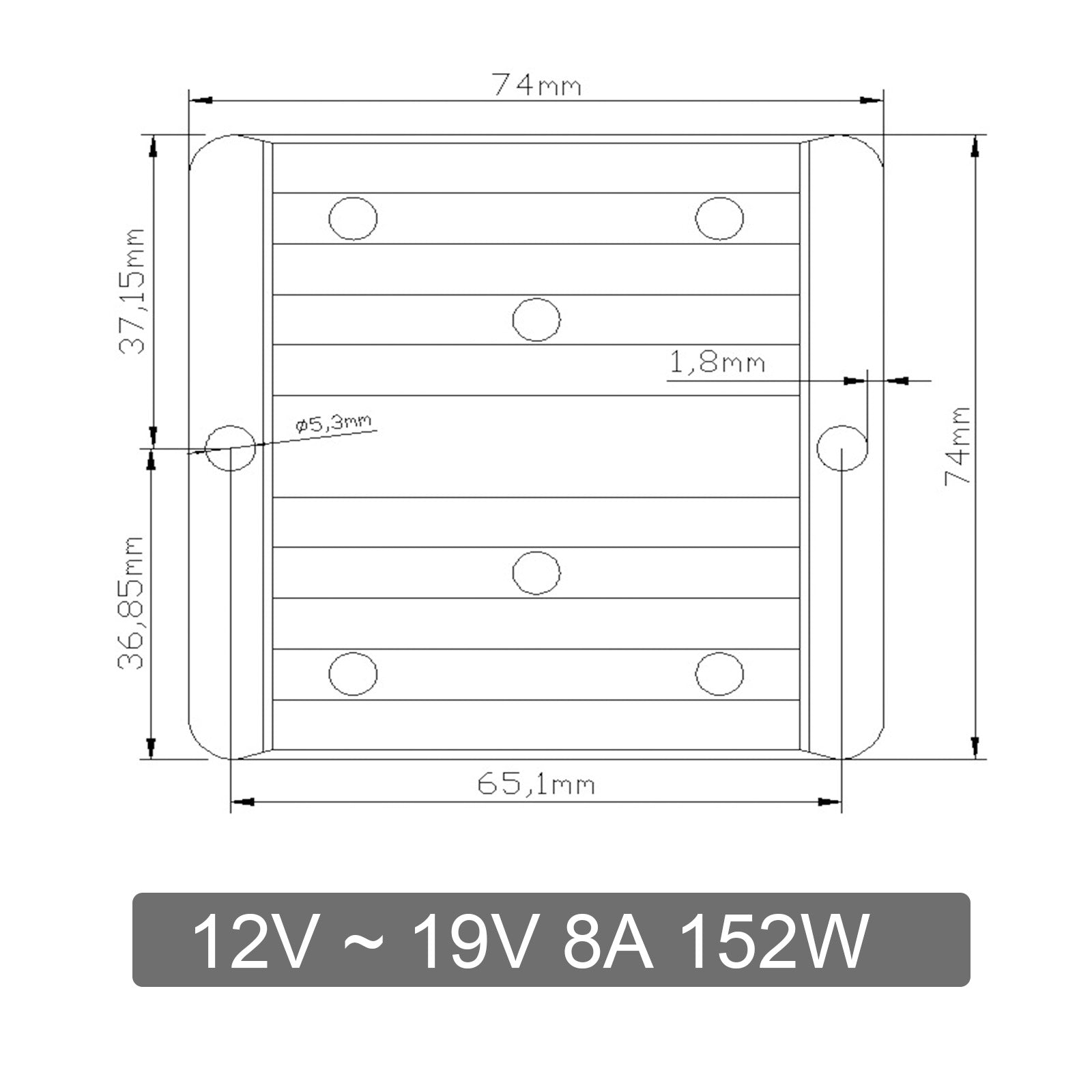

Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Fixing Hole Diameter:5mm/0.2 inches
Hole Center Distance:65mm/2.55 inches
Weight:approx.260g
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.

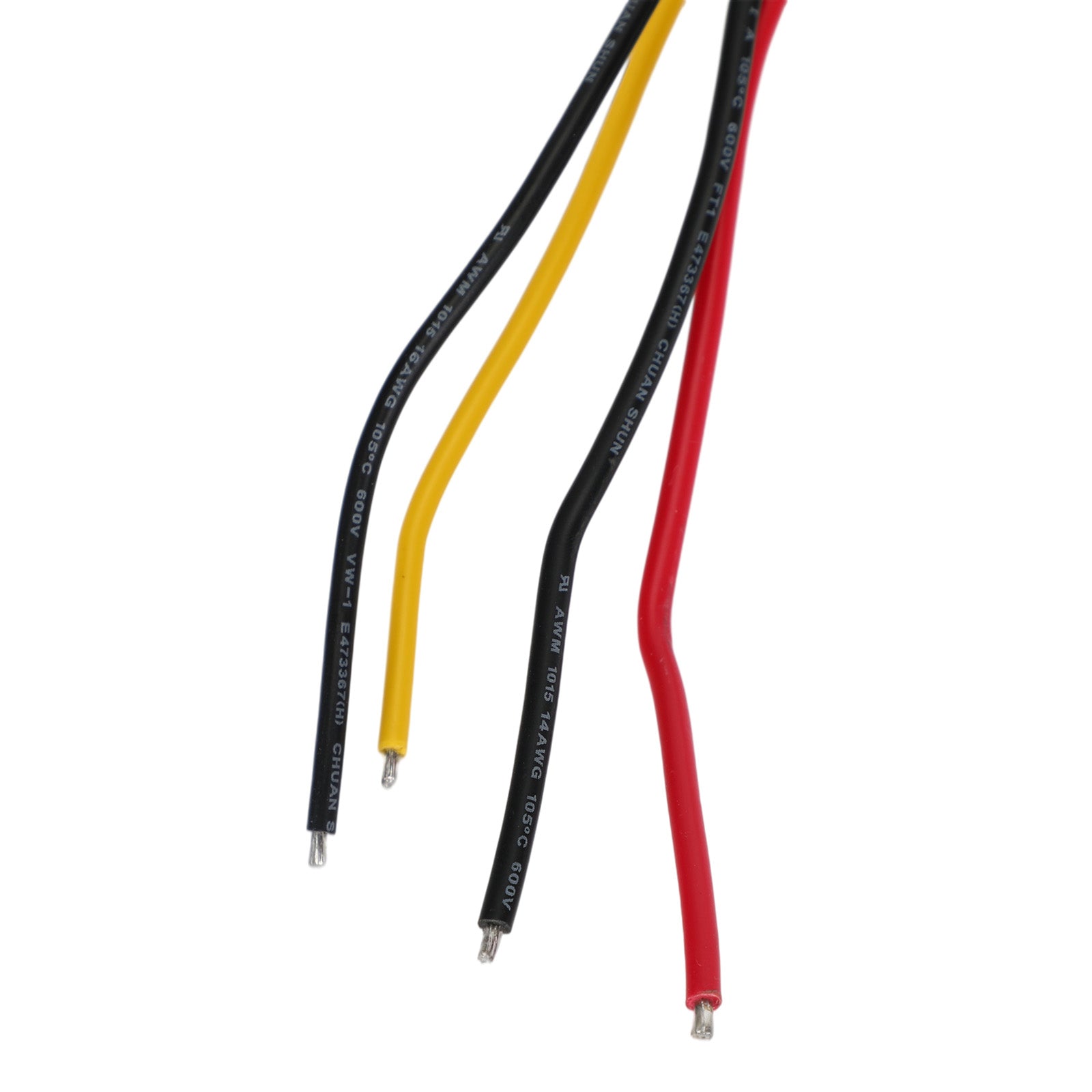

2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
5.Please allow 1-3mm difference due to manual measurement.
Package Included:
1 x DC/DC Converter Regulator
