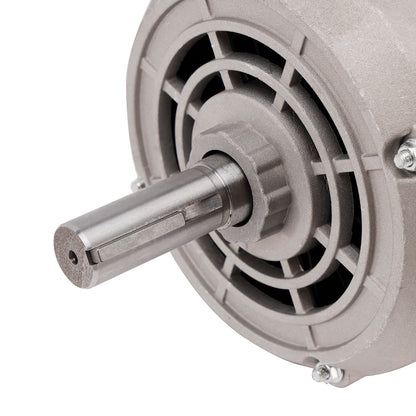

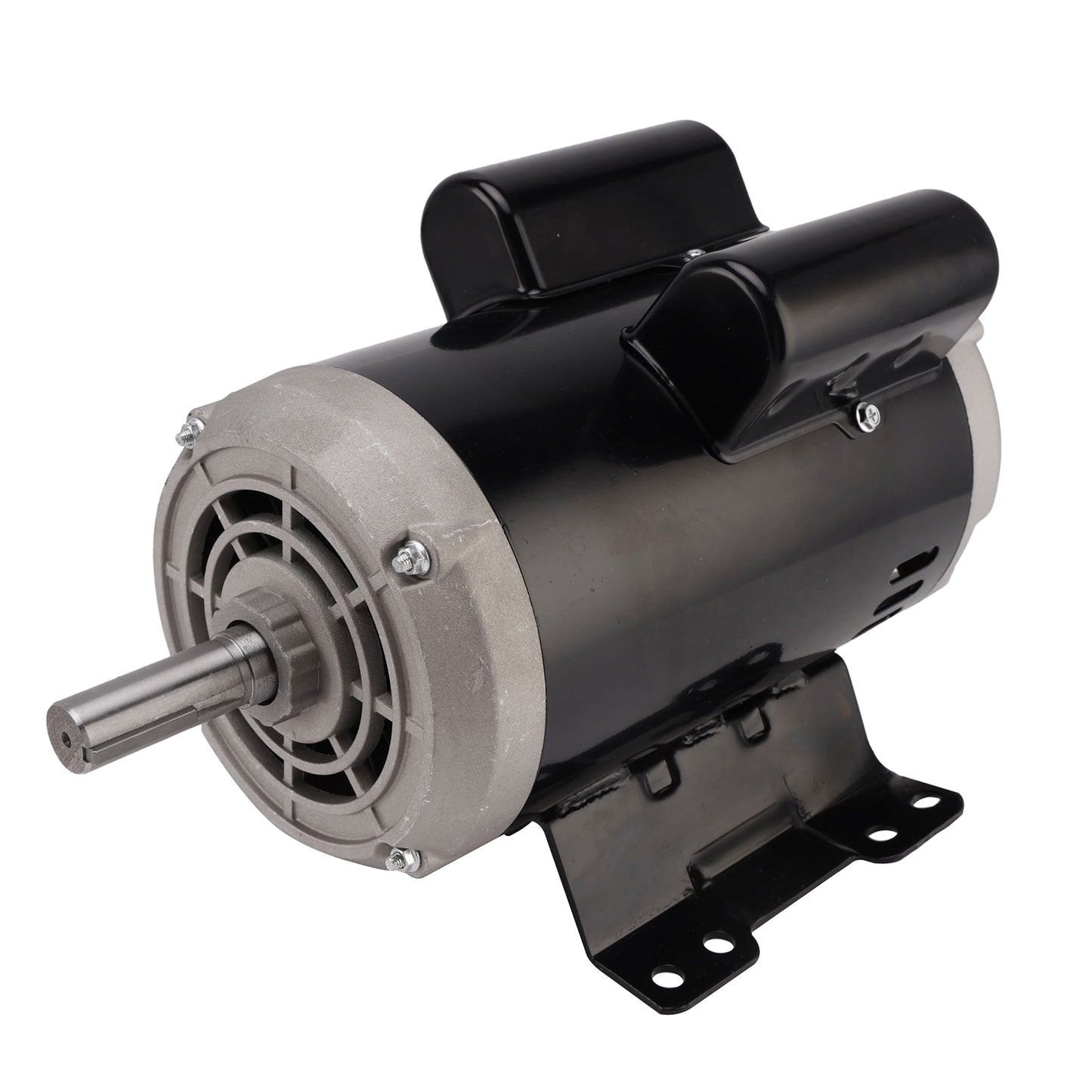

23378805 54421193 5HP Air Compressor Motor For Ingersoll Rand 230V 3450 Rpm
Feature: 1: Made of high quality material, durable and practical to use. 2: High Performance,Long Working Life. 3: Easy installation and removal. 4: Professional install will be highly recommend,Installation instruction not included. 5: Before purchasing, please carefully check the OEM part number and illustrations to make sure it is compatible with your model.
Specifics: Condition: 100% Brand New Type: Air Compressor Motor Quantity: 1pc Fitment Type: Direct Replacement Replacement Part Number: 56283138，23378805，23220064，54421193 Power: 5 HP FLA: 24.9 SFA: 27.3 RPM: 3450 Frame: 184T Shaft Size: 7/8" x 2 1/4" with Keyway Shaft height: 4.5" (Measured to Shaft Center) Base: Flat Rigid Mounting Base Voltage: 208-230V 60hz, 24.9 AMPS Phase: Single Phase Service Factor: 1.15 Insulation Class B Ball Bearings Open Drip Proof Enclosure Manual Overload Protection
Note: Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation. When the motor is received, 1. Turn the shaft by hand to see if the motor shaft can rotate normally. 2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal. 3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.
Package Included: 1 XAir Compressor Motor
Shipping: Free Shipping Item location: Los Angeles, California warehouse Delivery Time: 3-7 working days
Warranty: 1. Condition: 100% Brand New 2. Warranty Period: 1 Years 3. 24-Hour Support: Provide you with timely after-sale support
