3 Phase Sequence Rotation Tester Indicator Detector Meter LED Buzzer Tool Kit
Feature: 1: 2 functions in one unit: Open phase indication & Phase rotation indication 2: Fast and accurate measurement ,Indicate direction of rotation 3: Portable and compact design, easy to carry 4: Check the presence of open phase and identify 3 phase sequence condition 5: Ensures the object being tested is not damaged from incorrect wiring 6: With simultaneous indications via LEDs and audible buzzer sound 7: Indicate phase orientation (clockwise or counter-clockwise) and whether each of three phases is live
Specifics: Condition: 100% Brand New Operation Voltage : 60V ~ 600V AC, three phase Limit Support Voltage : 2000 V/min Operating Frequency Range : 20 Hz ~ 400 Hz Limit Time for Continuous Use: 60 minutes maximum at 200V AC 4 minutes maximum at 600V AC Test Leads: Double insulation Length of test leads: approx. 1 meter long (3.3 feet) Protection Level: 2000 V (impulse voltage 4000 V) Operating Temperature: -10 ~ 60 °„C (14 ~ 140 °„F) dimension: approx. 85 x 64 x 23 mm (3.2 x 2.5 x 0.9 inch) weight: approx. 200g
Note: 1.Please allow 1-3mm difference due to manual measurement. 2.Need some professional knowledge to use it

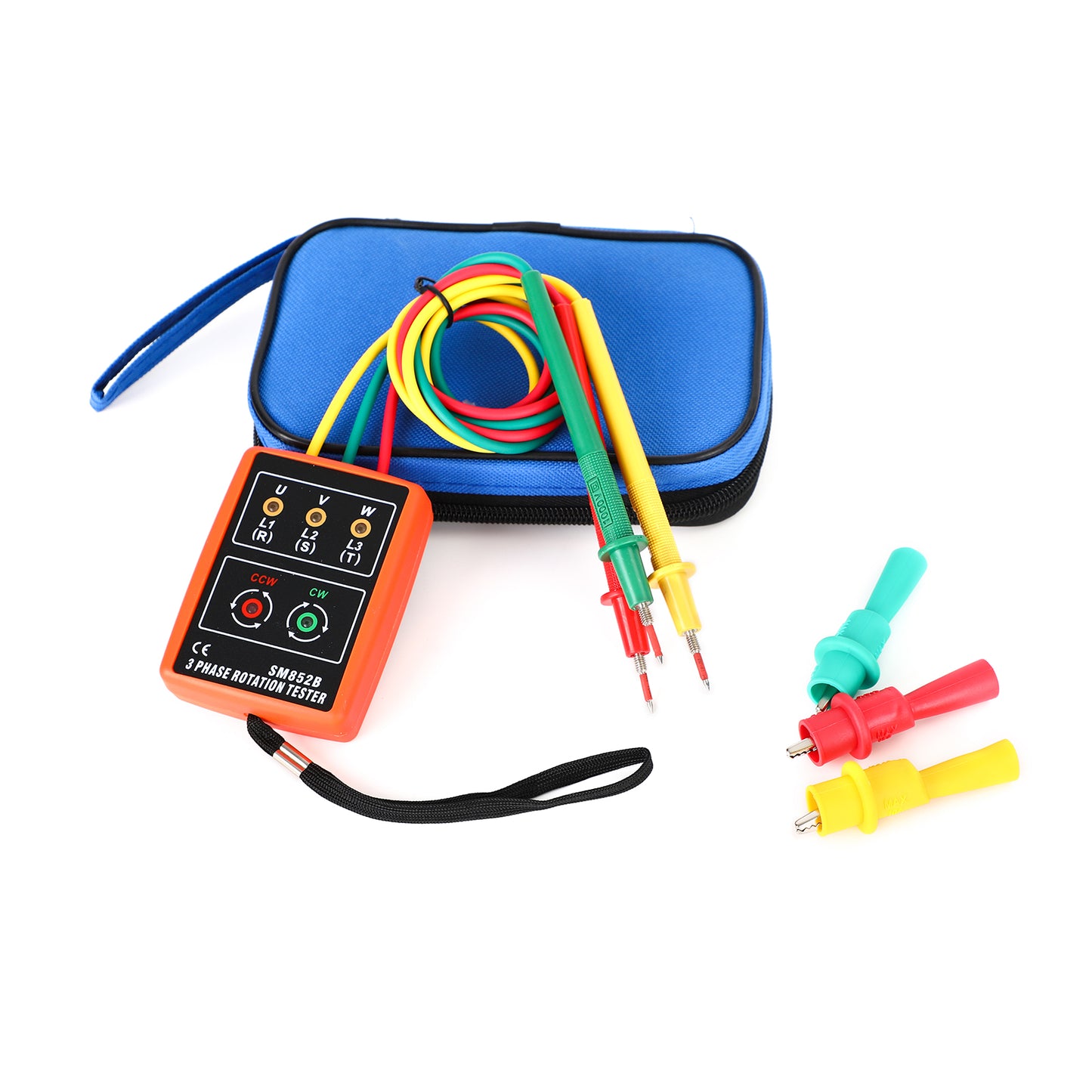

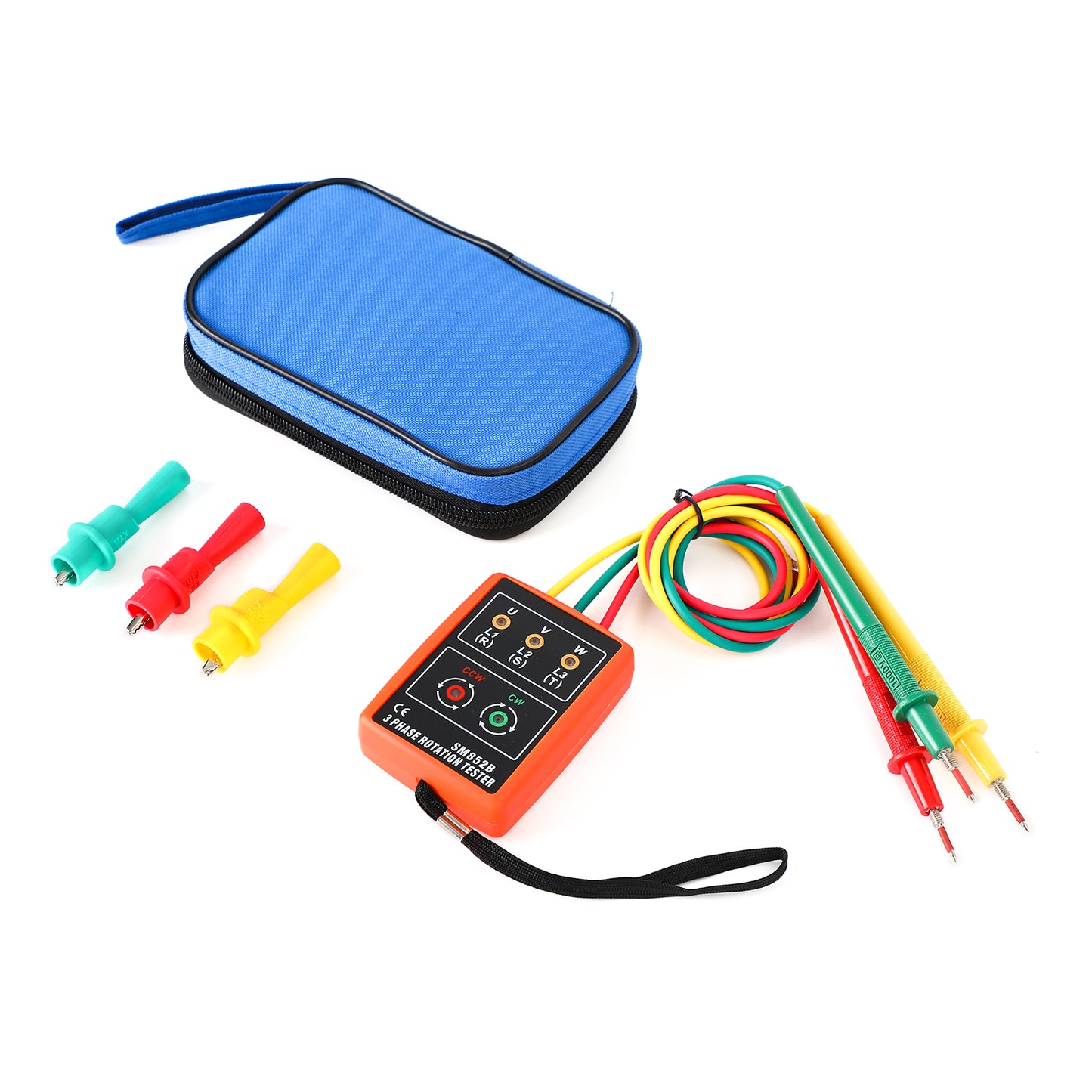

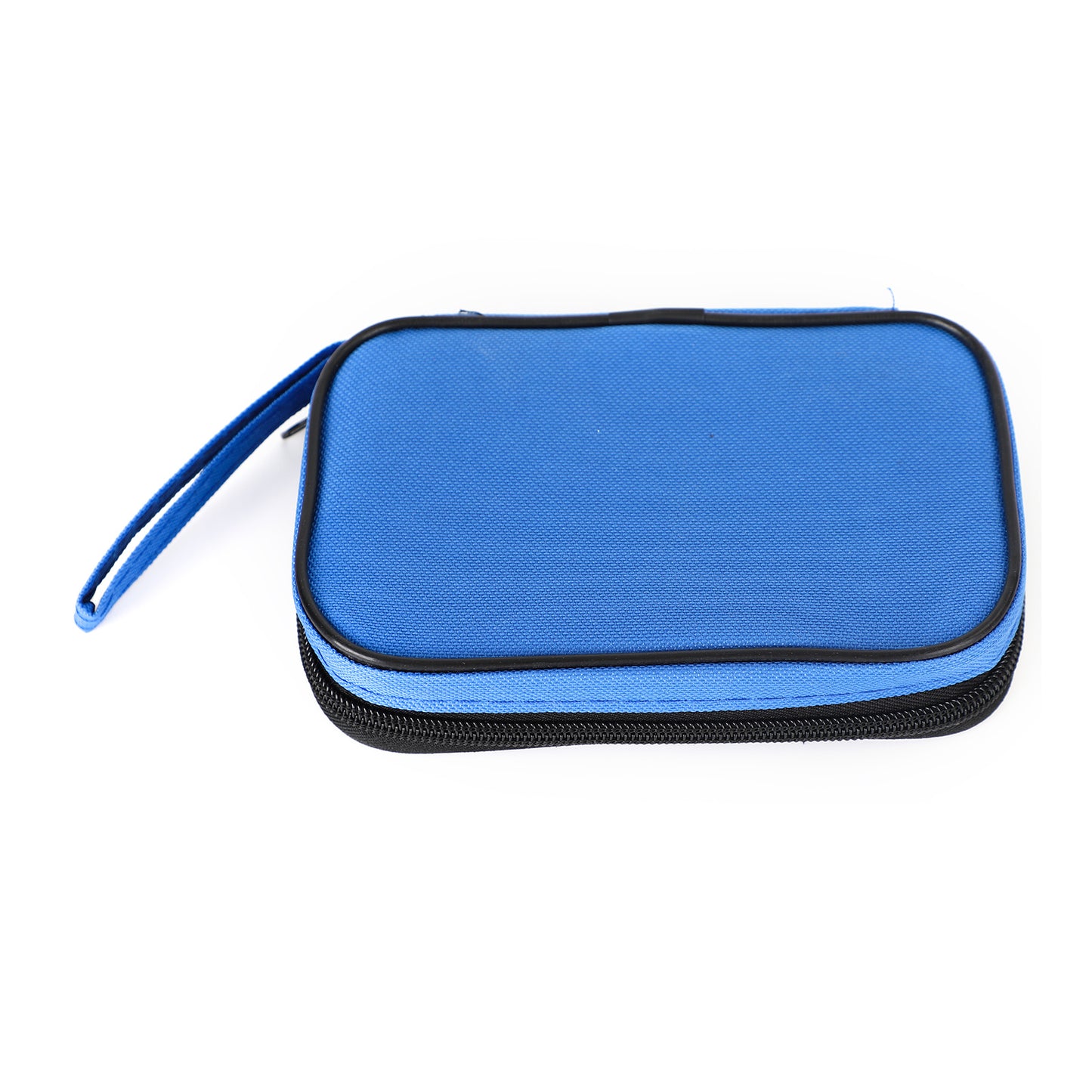

Package Included: 1* Phase Indicator 3* Alligator clips 1* Zippered blue carrying case 1* User Manual
