4x Toowei 3 Terminal 3Pin (ON)-OFF-(ON) Toggle Switch Reset SP3T Grade

100% Brand New and High Quality.

Shape: Same as the picture show

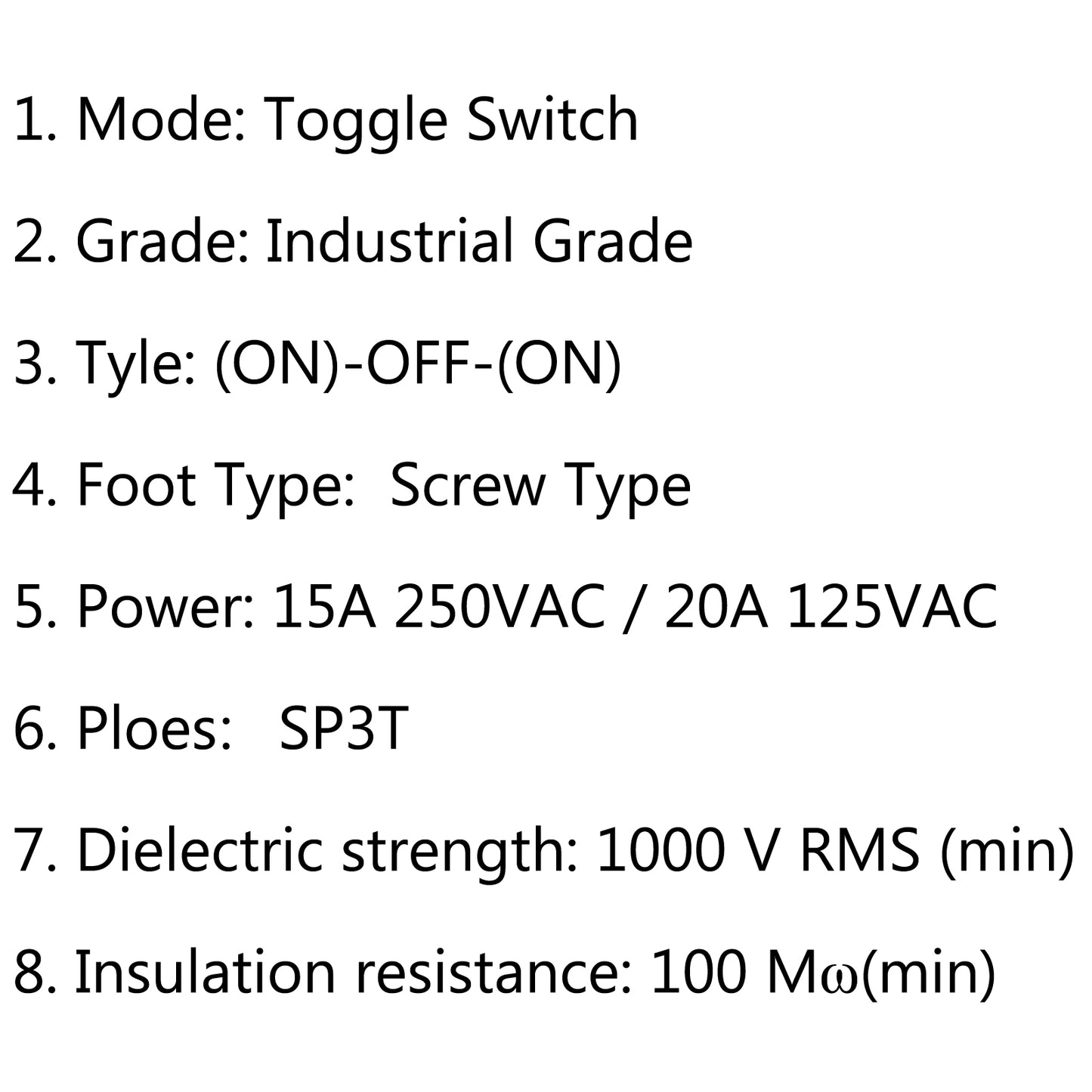

1. Mode: Toggle Switch

2. Grade: Industrial Grade

3. Tyle: (ON)-OFF-(ON)

4. Foot Type: Screw Type

5. Power: 15A 250VAC / 20A 125VAC

6. Ploes：SP3T

7. Dielectric strength: 1000 V RMS (min)

8. Insulation resistance: 100 Mω(min)

9. Basal material: Poly propylene materials

10. Mechanical life: More than 20.000 cycles

11. Environment temperature: - 25 degrees ~ 80 degrees

12. Vibration: 10 to 55Hz, 1.5 mm Double Amplitude

13. Humiditiy：≤85%Rh

14. Withstand Voltage: ≥1500V 50/60Hz,Last for 1min

15. Mounting Method: Bushing Mount

16. Dimensions： φ12mm + 0.2 Diameter



Package included:

4Pcs
