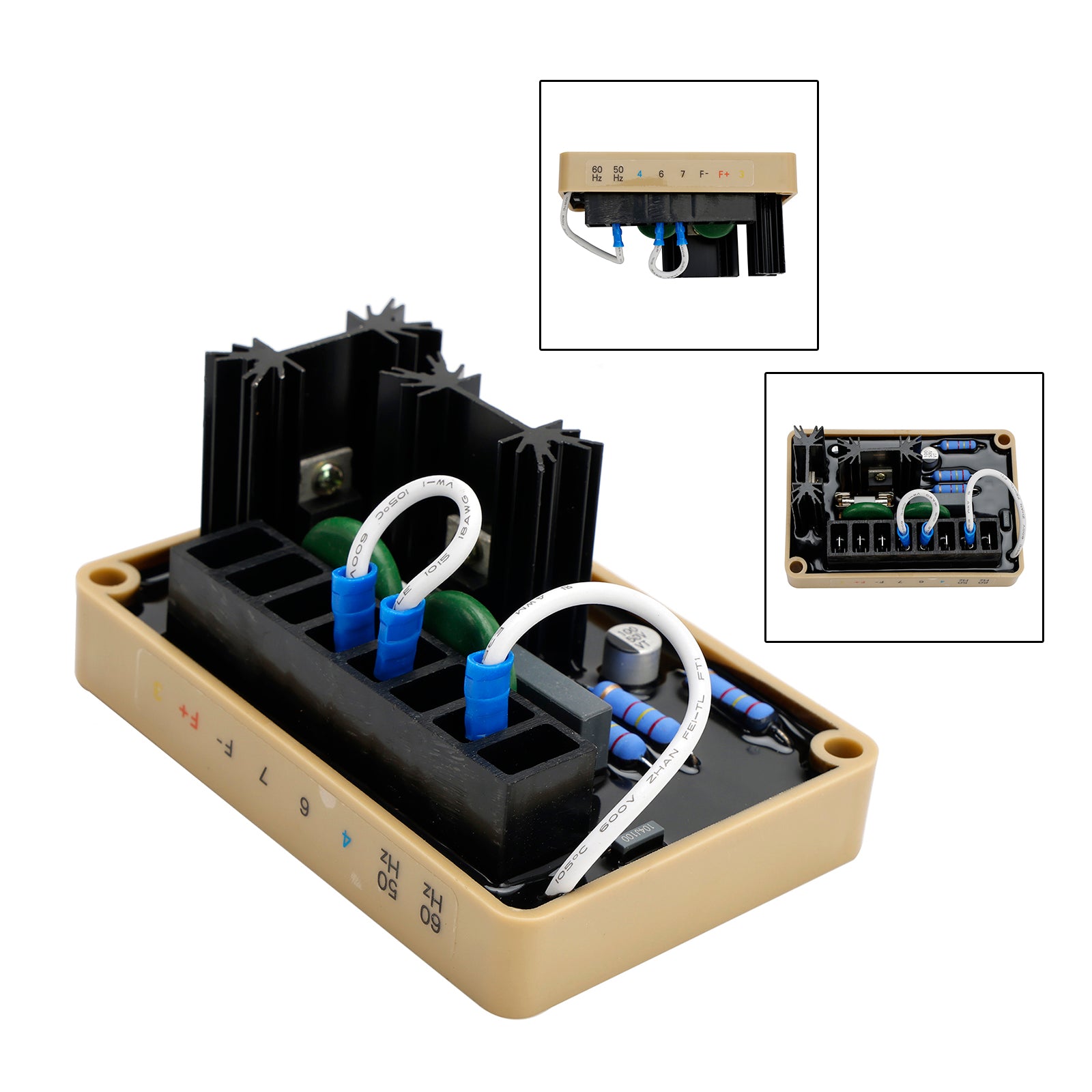

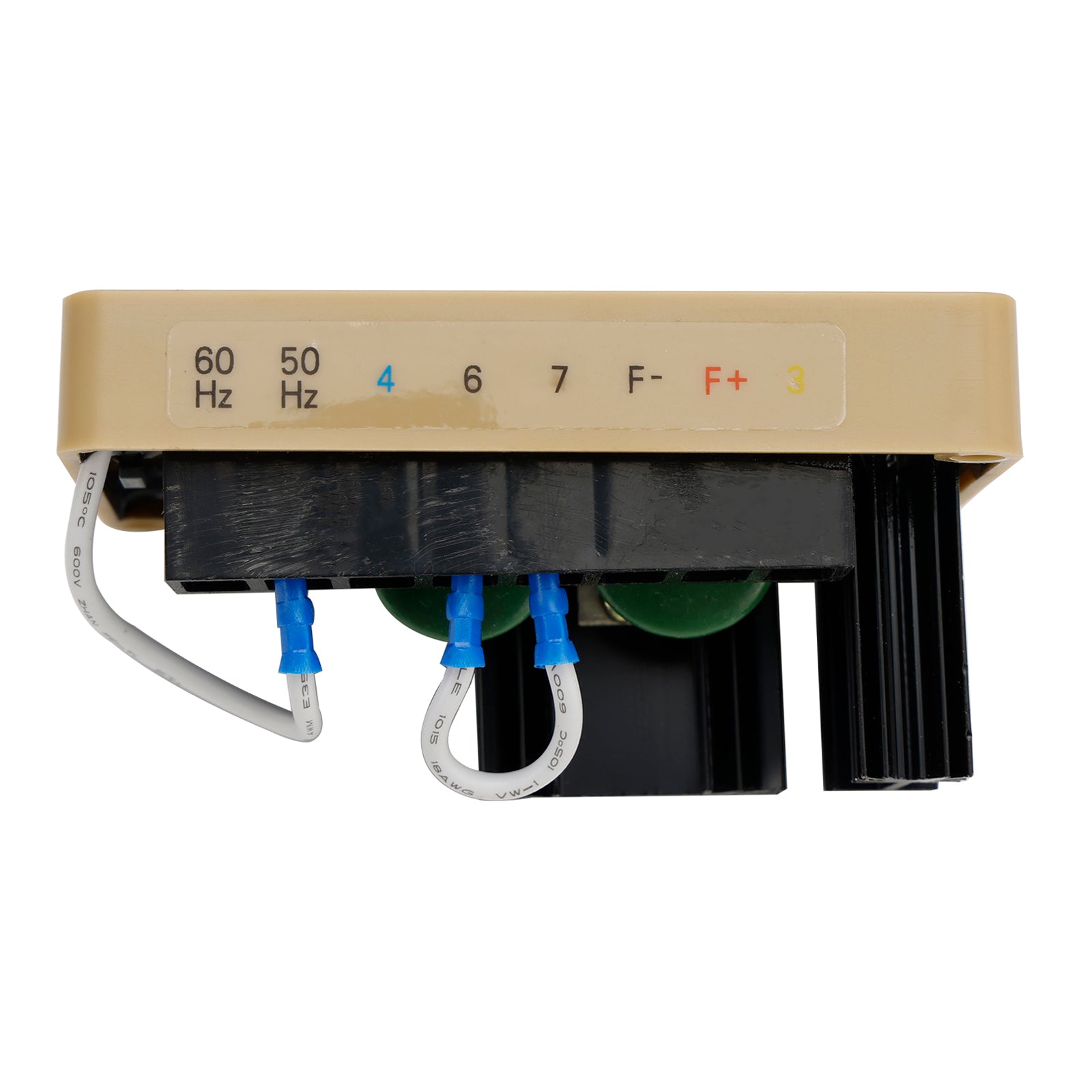

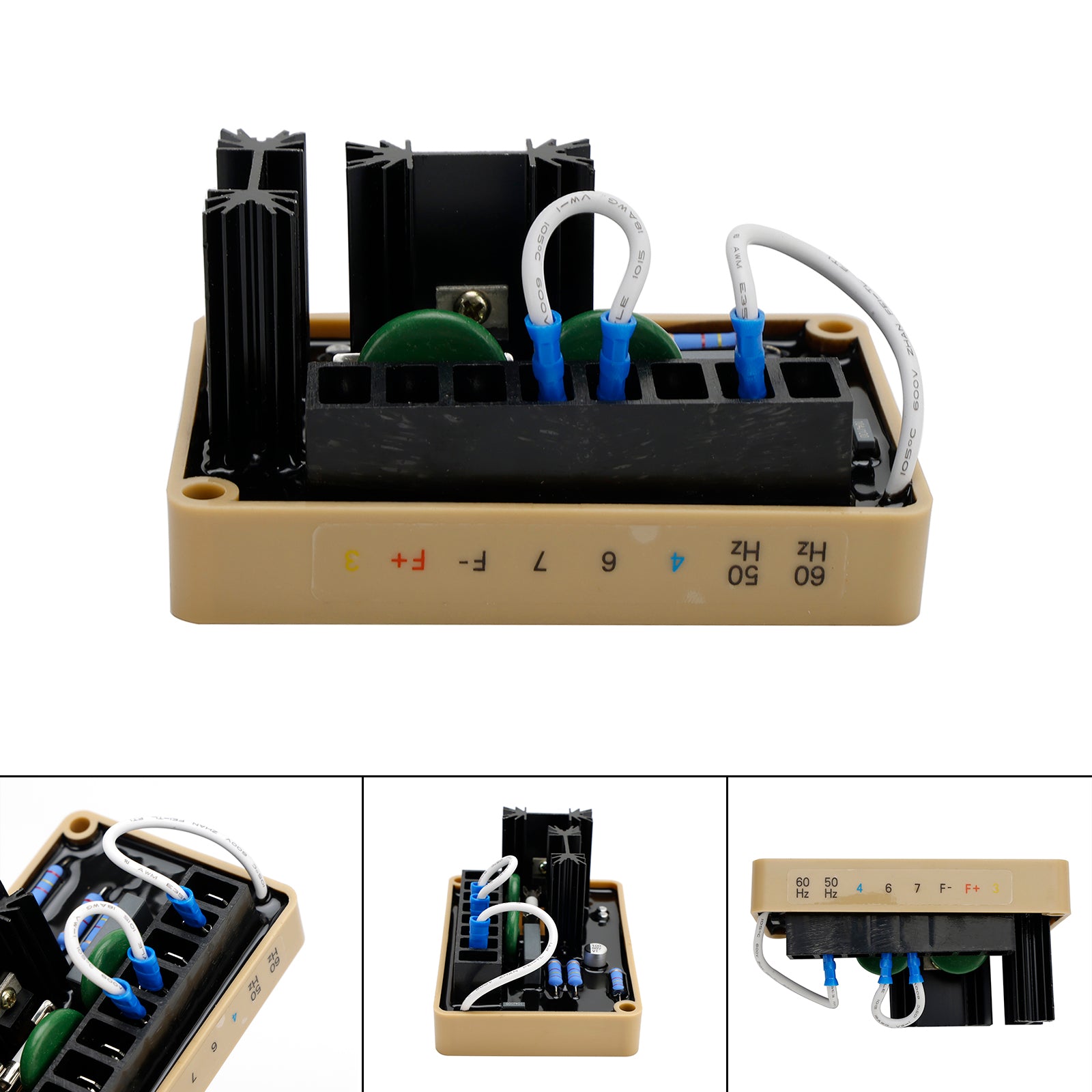

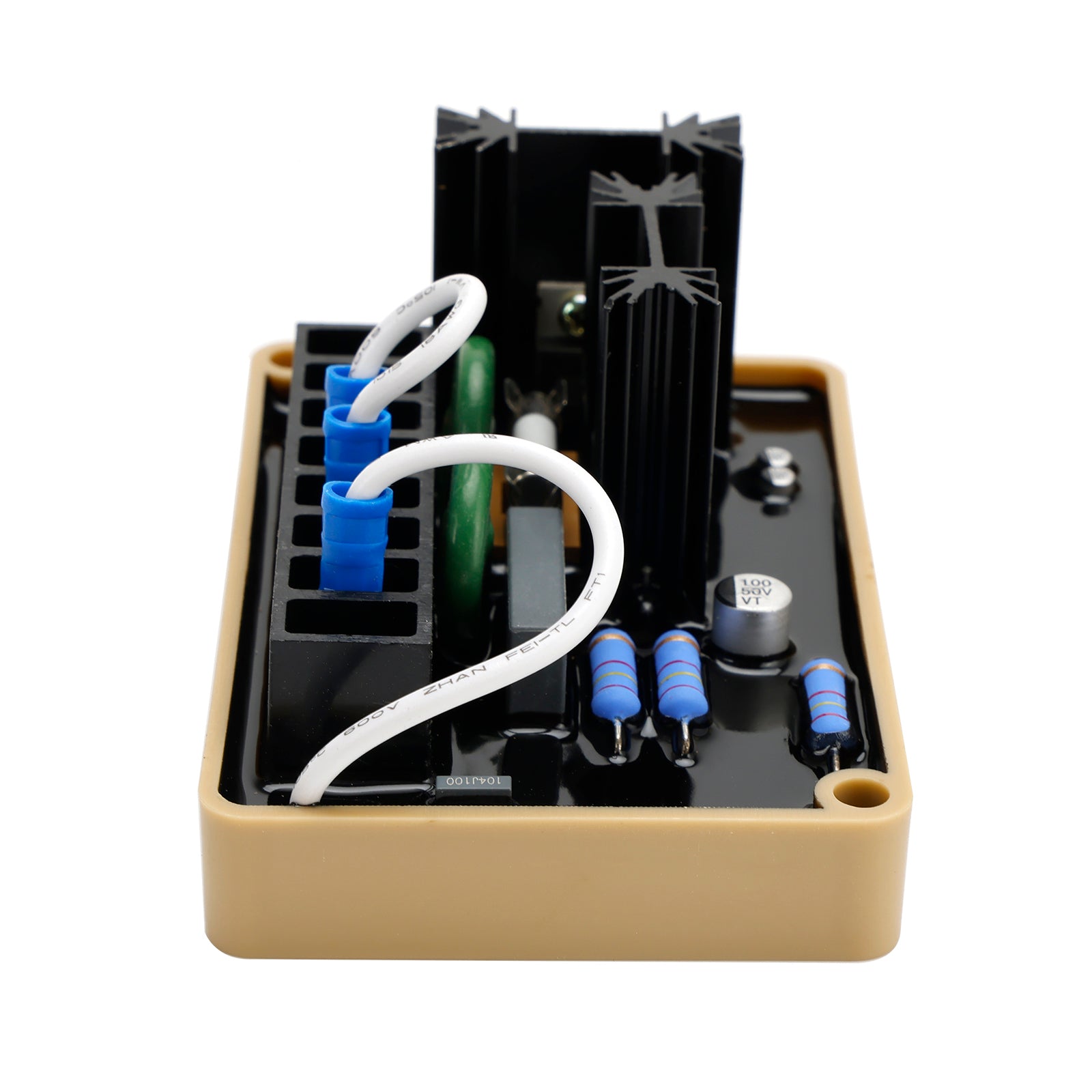

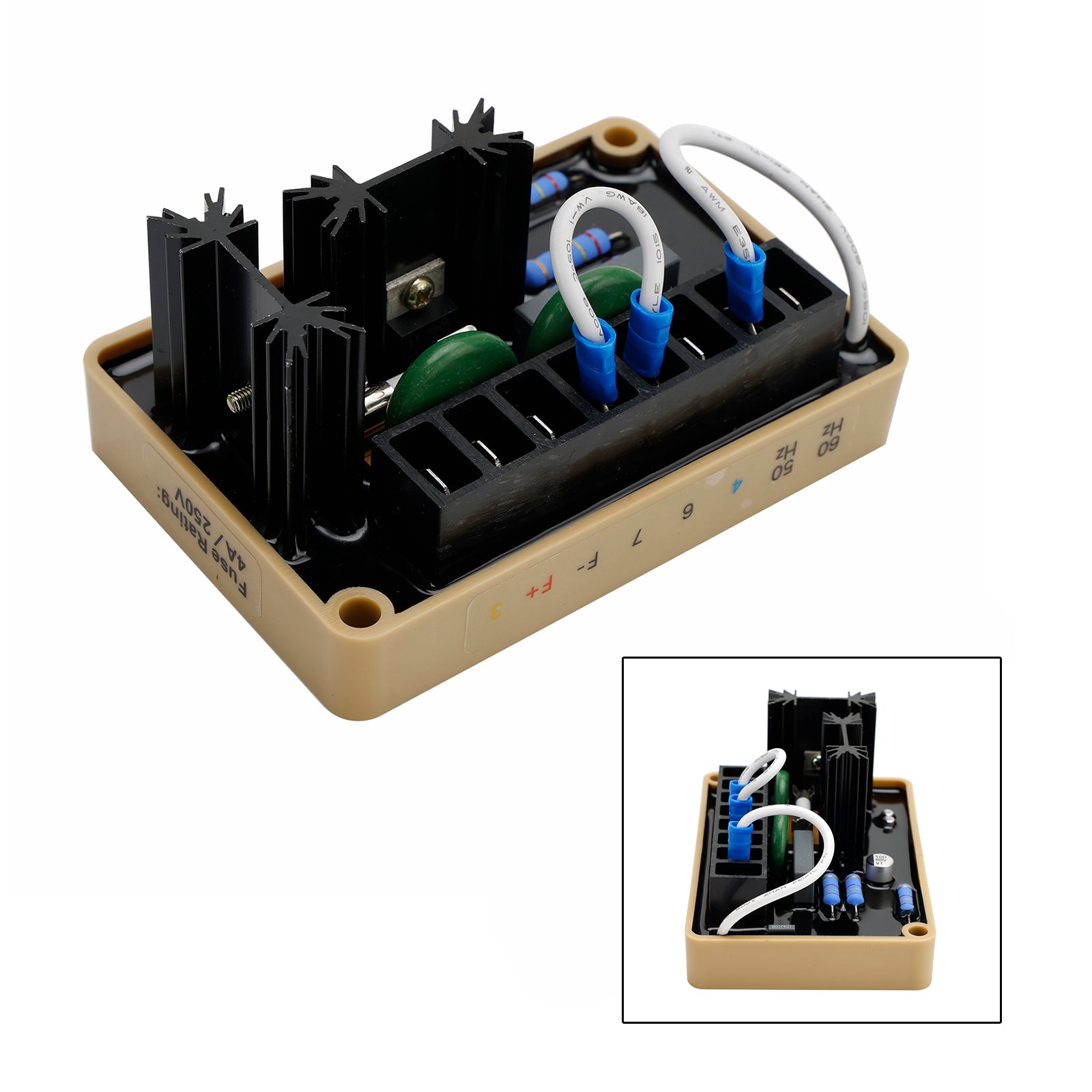

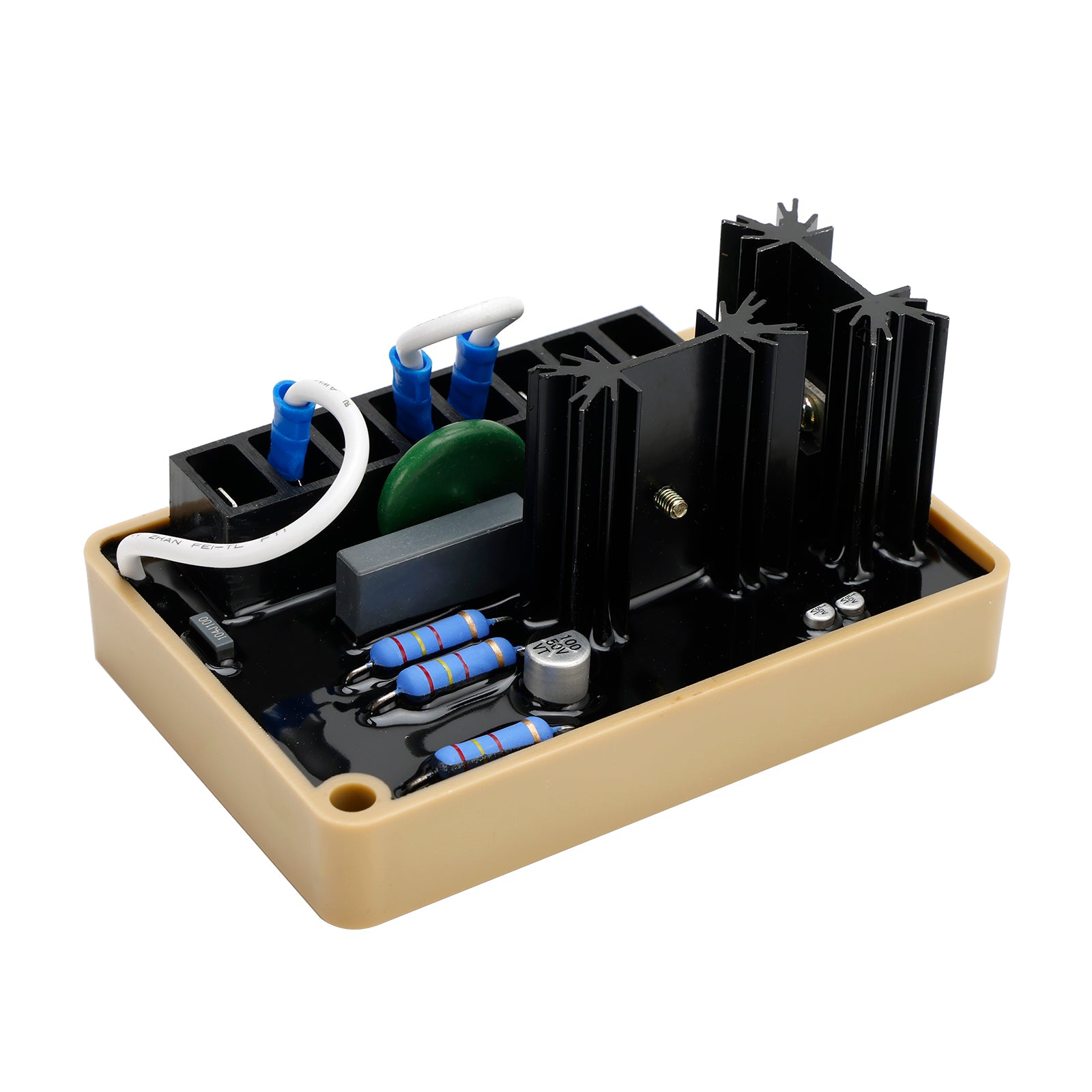

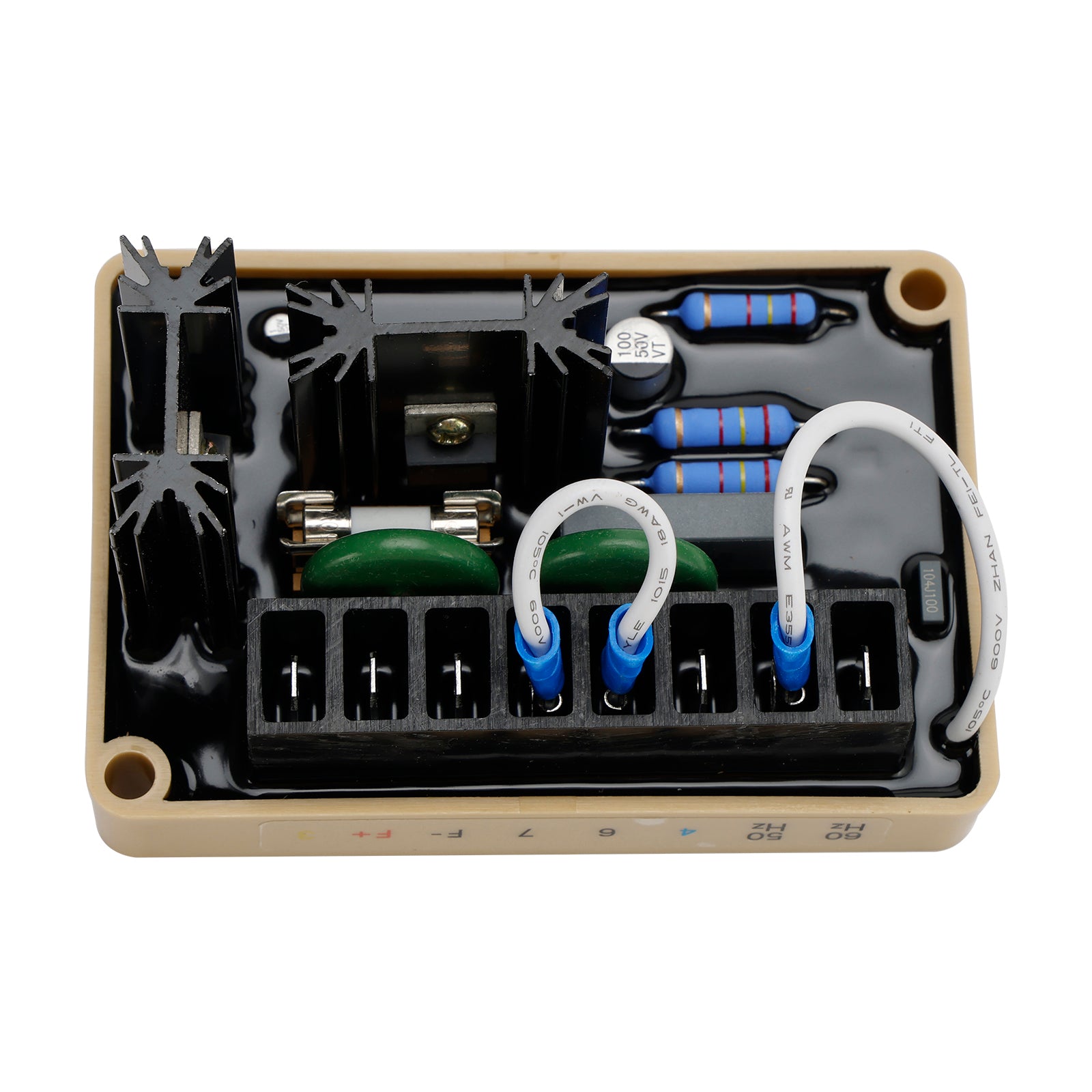

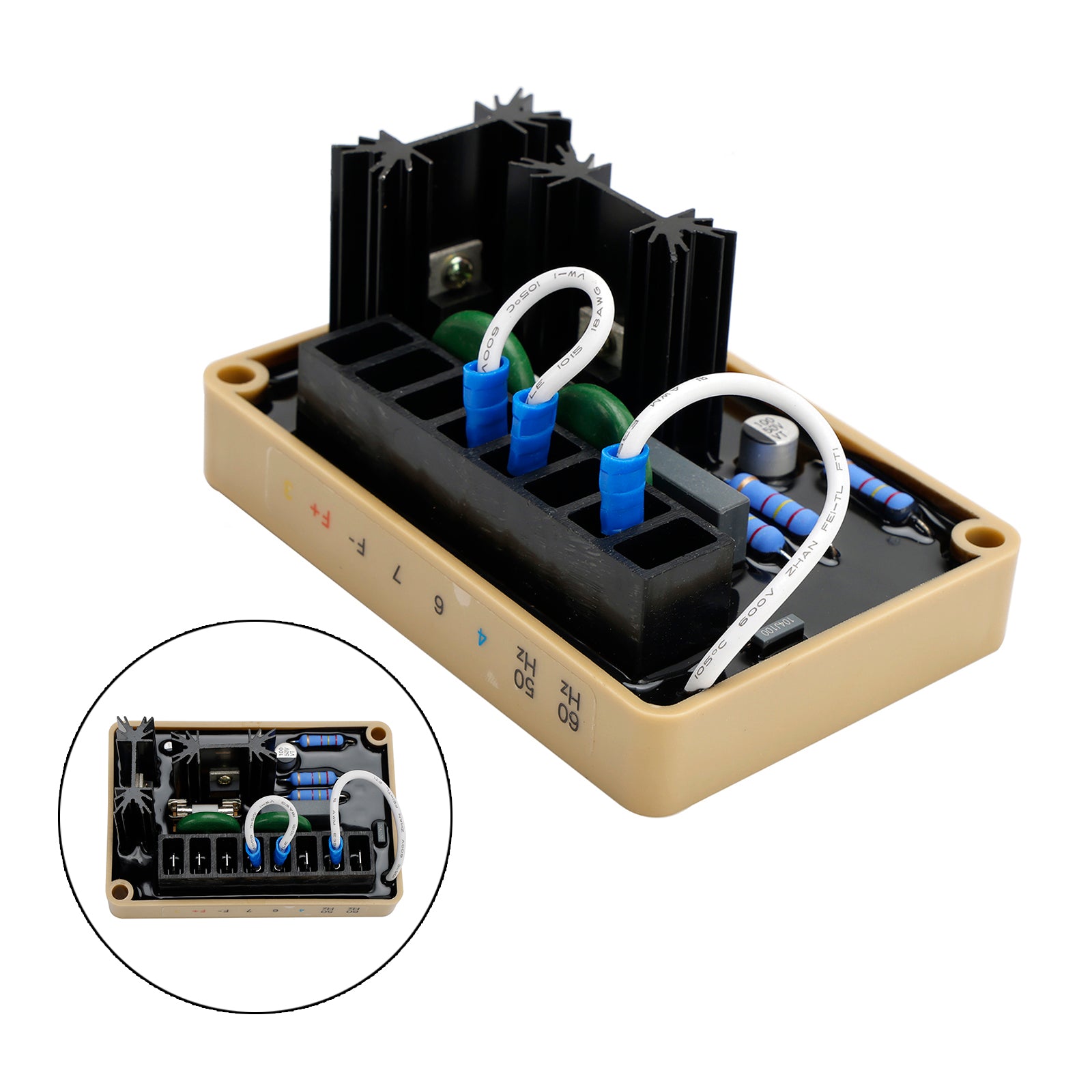

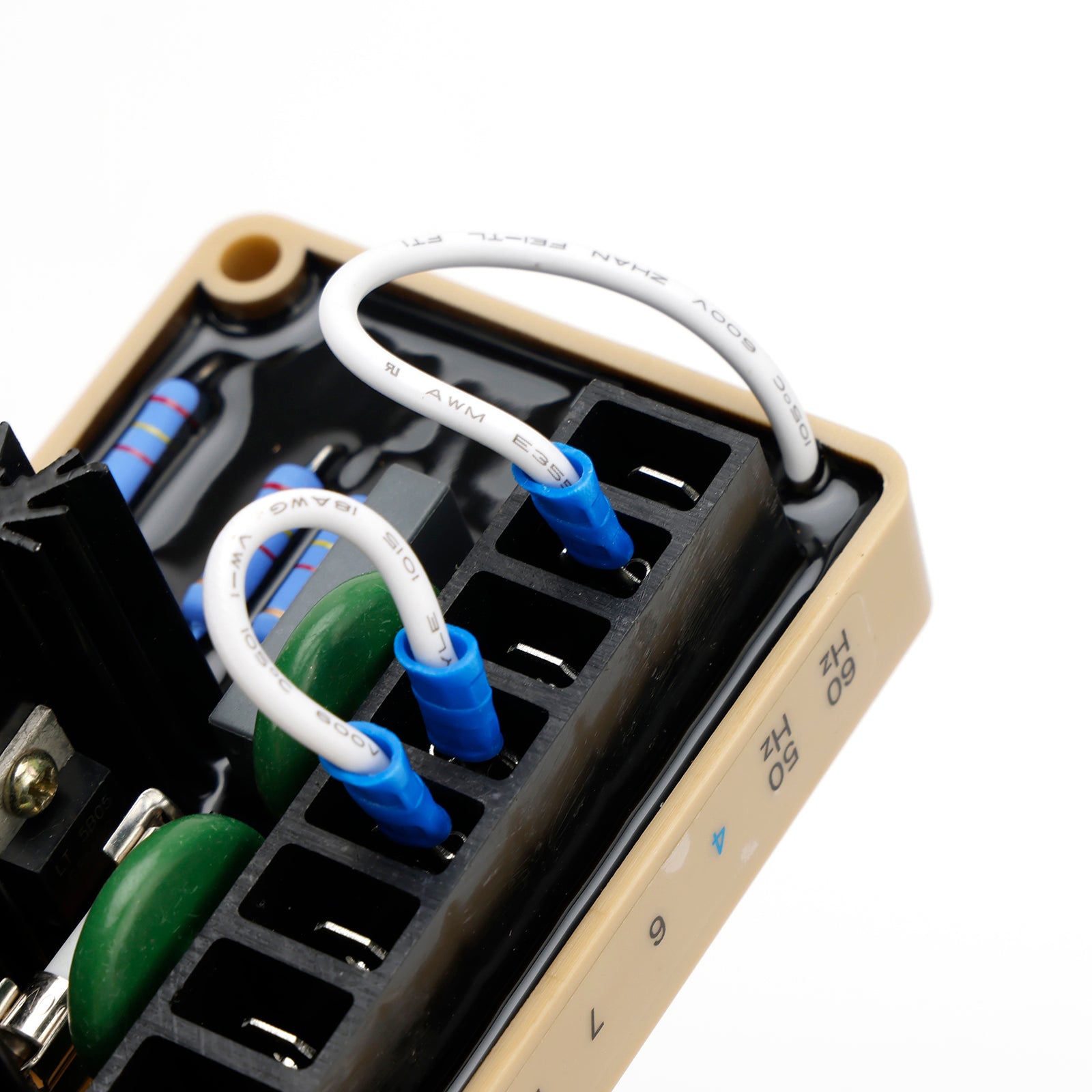

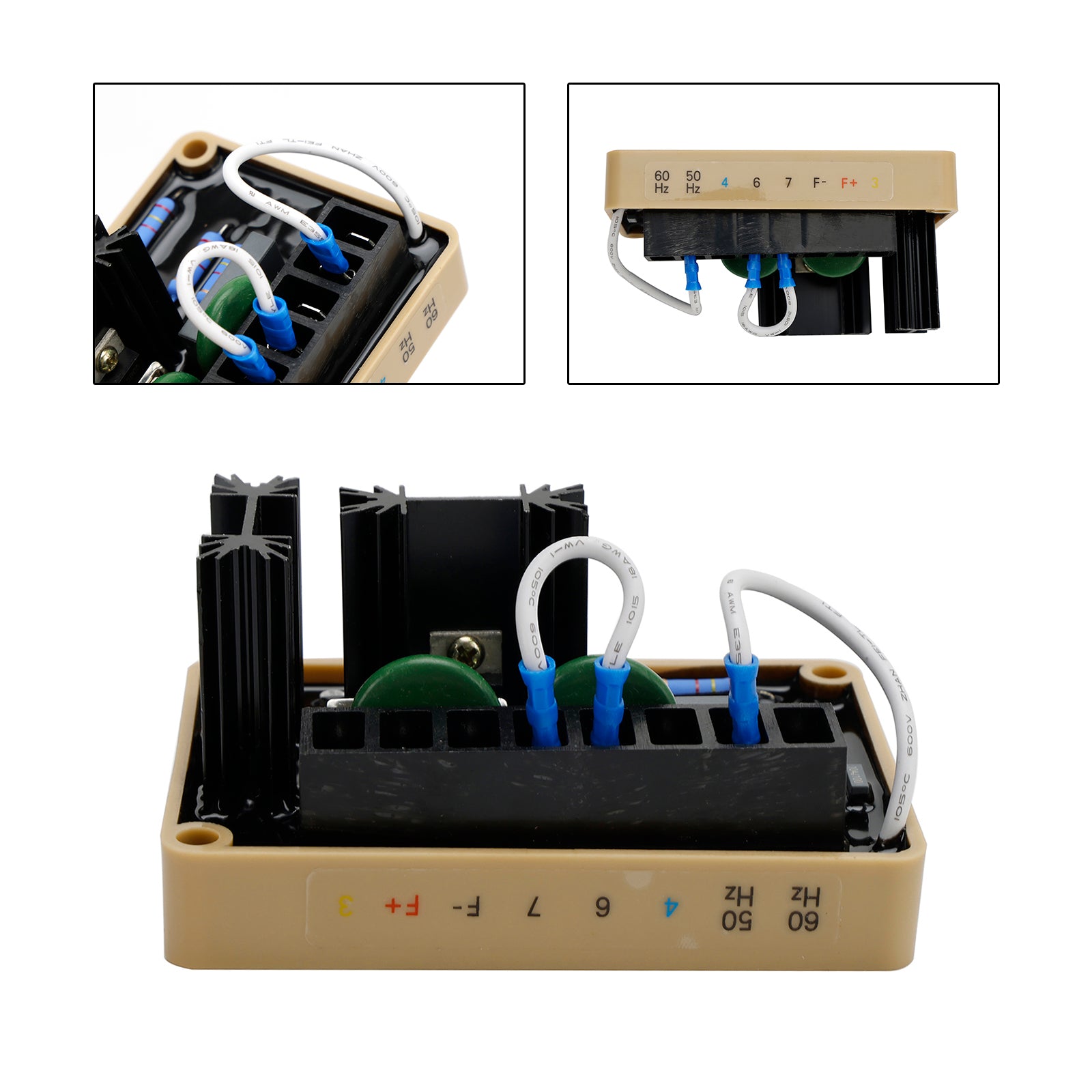

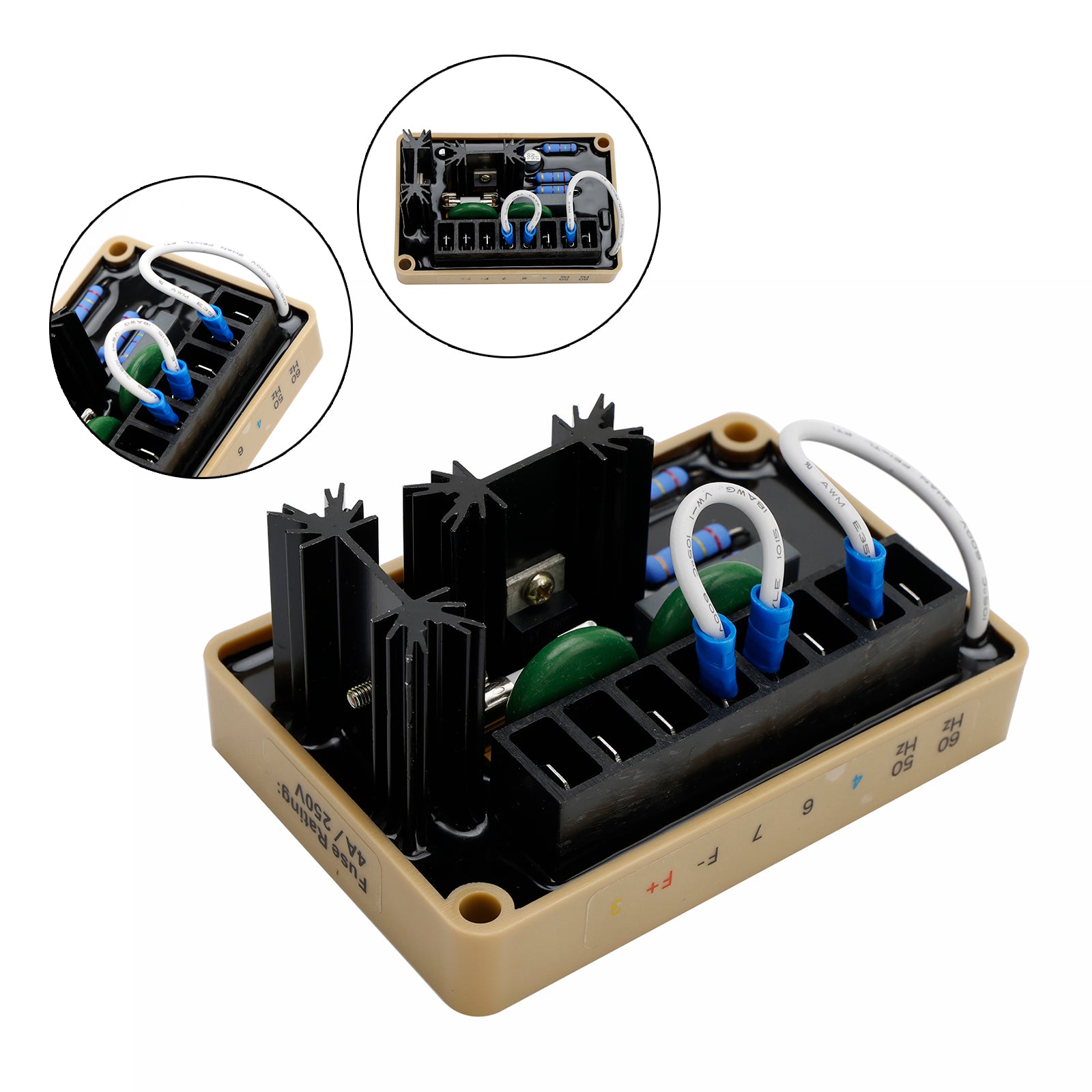

The SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field.

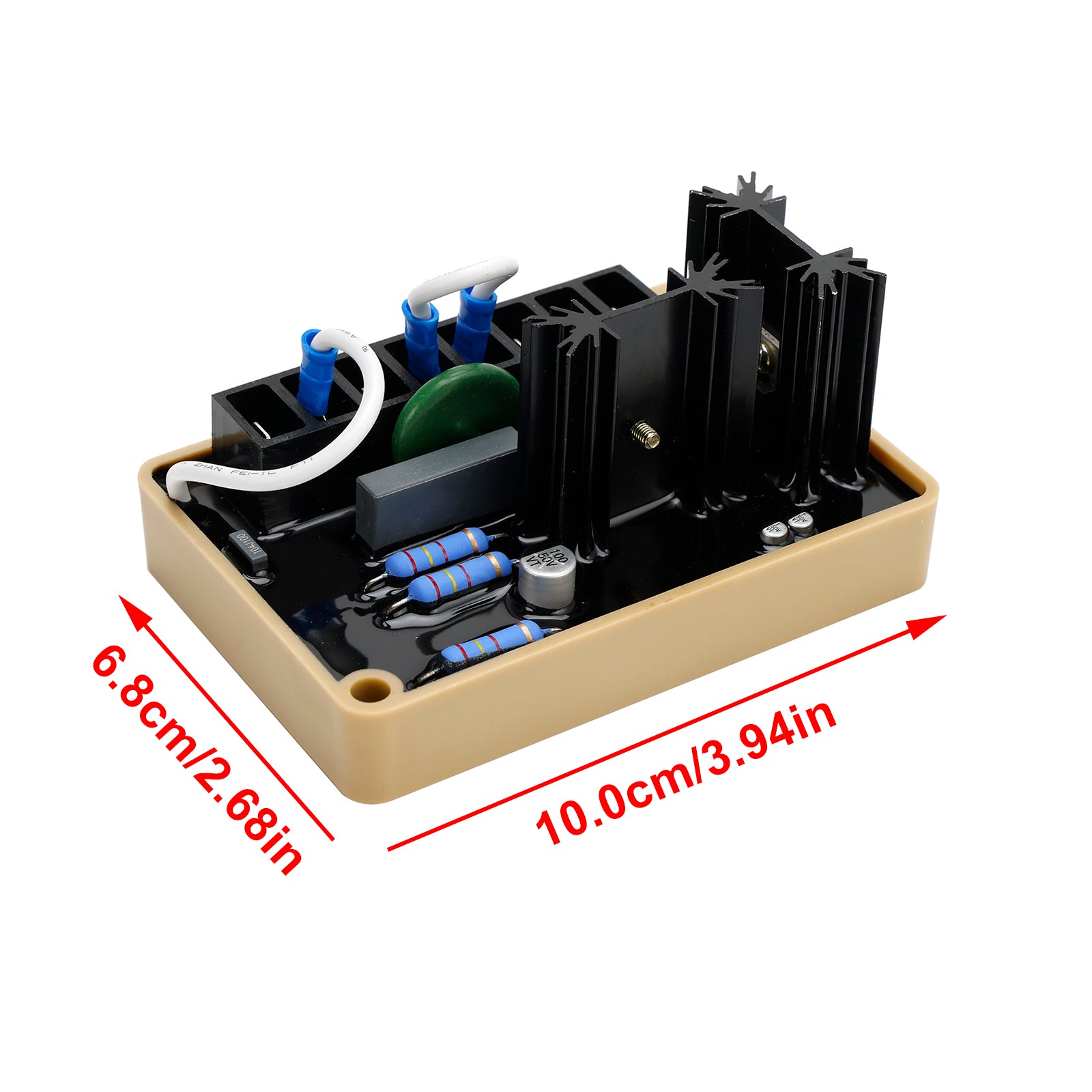

Specifics: Condition: 100% Brand New Sensing&Power Input: 190-240 Vac Burden: 500 VA Output Power-Continuous: 73 Vdc at 3.5 Adc(255w) Outout Power-Forcing(240 Vac Inout Power): 105Vdc at 5Vdc (525w) Regulation: 1.0% Remote Voltage Adjustment Range: ±10% with 2000 ohm rheostat ±5% with 1000 ohm rheostat Frequency Compensation: Adjustable Roll off Frequency: 54-61 Hz for 60Hz 45-51 Hz for 50Hz Weight: 6.5 oz Operating Temperature: -40�to +60�br>Storage Temperature: -65�to +85�br>Power Dissipation: 8 watts maximum Size: 3.94"×2.66"×2.2" (Length×Width×Height) Voltage Buildup: Internal provisions forautomatic voltage build up from generator residual voltage as low as 10 Vac. EMI Suppression: Internal Electromaghetic Interference Filter(EMI Filter)
Note: 1.Please allow 1-3mm difference due to manual measurement. 2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

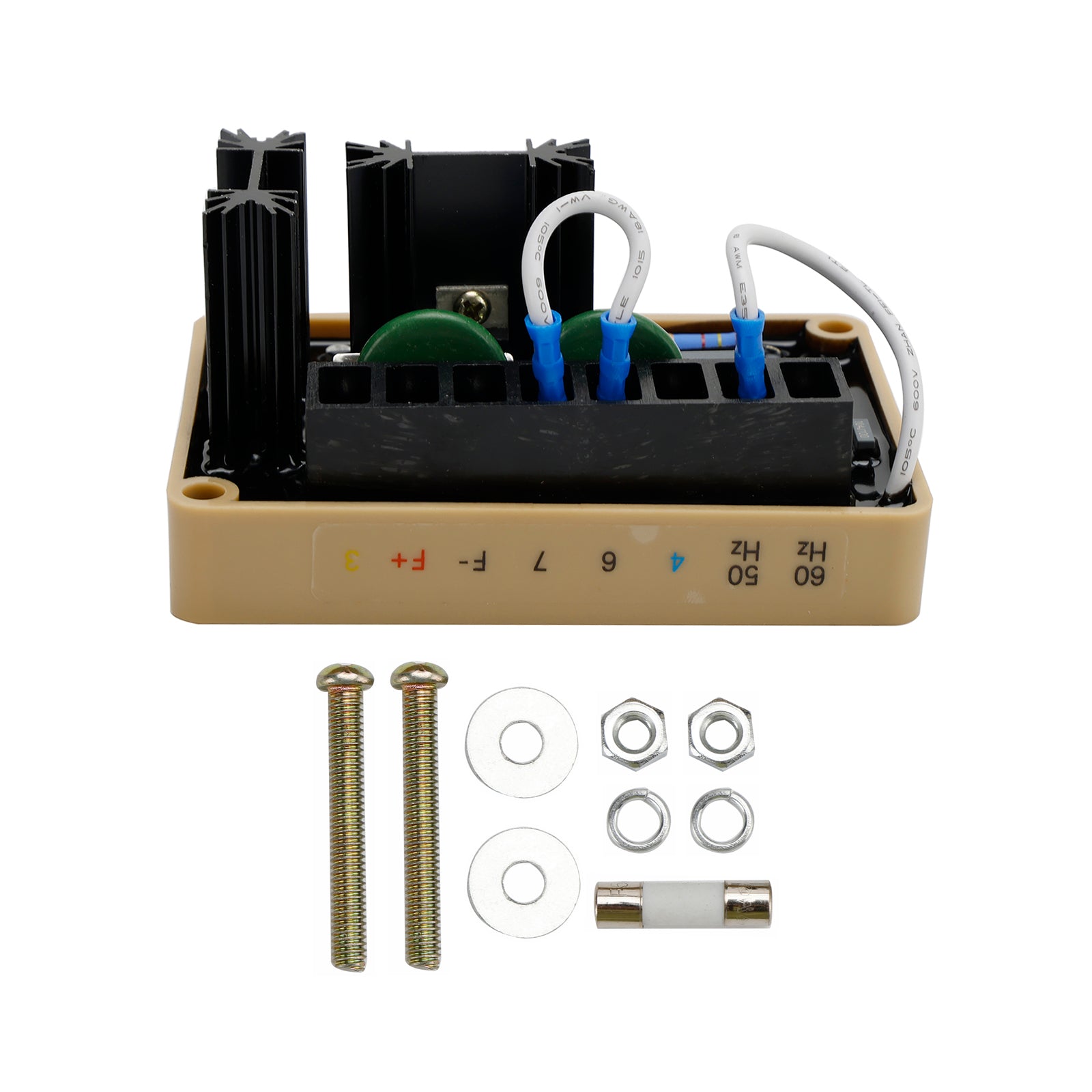

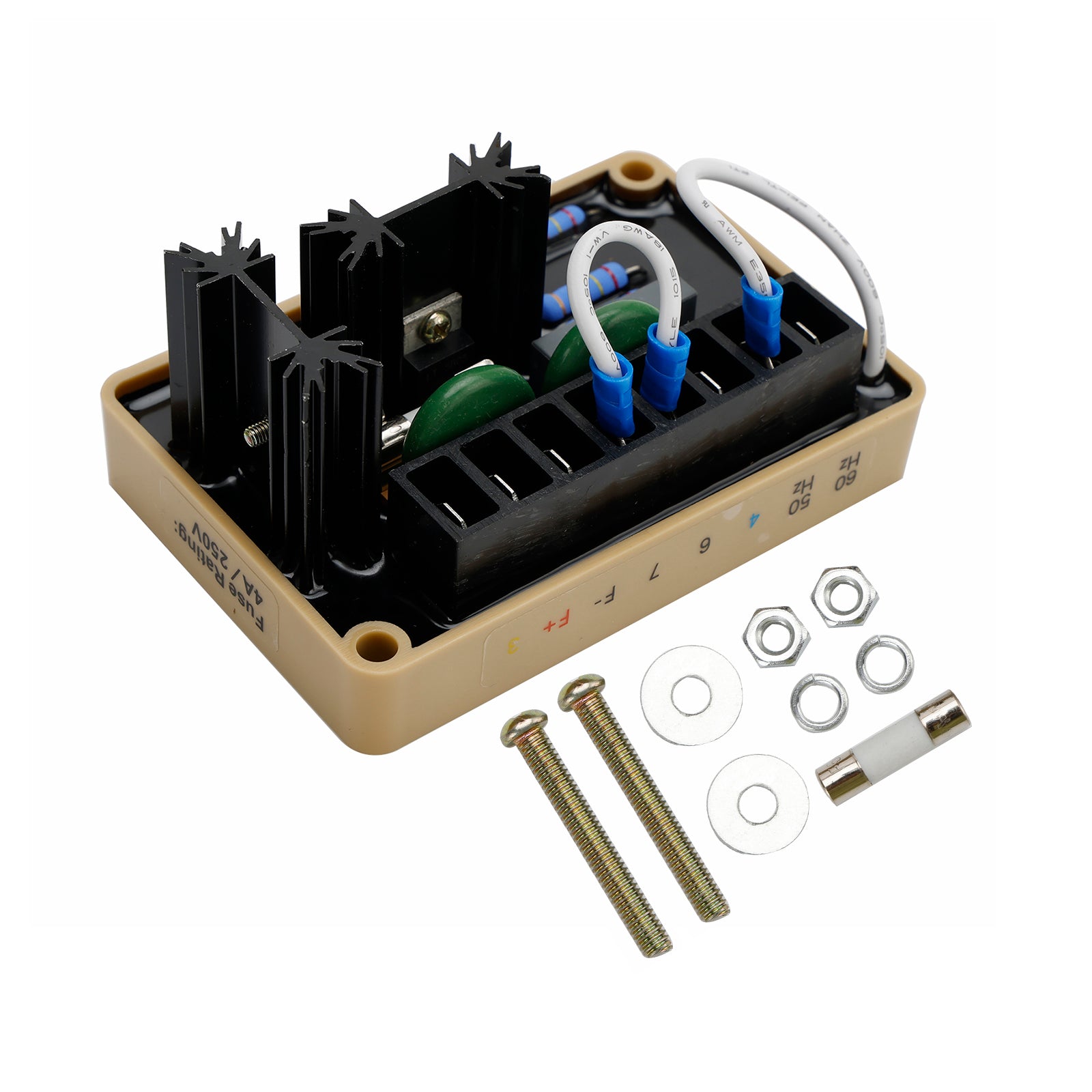

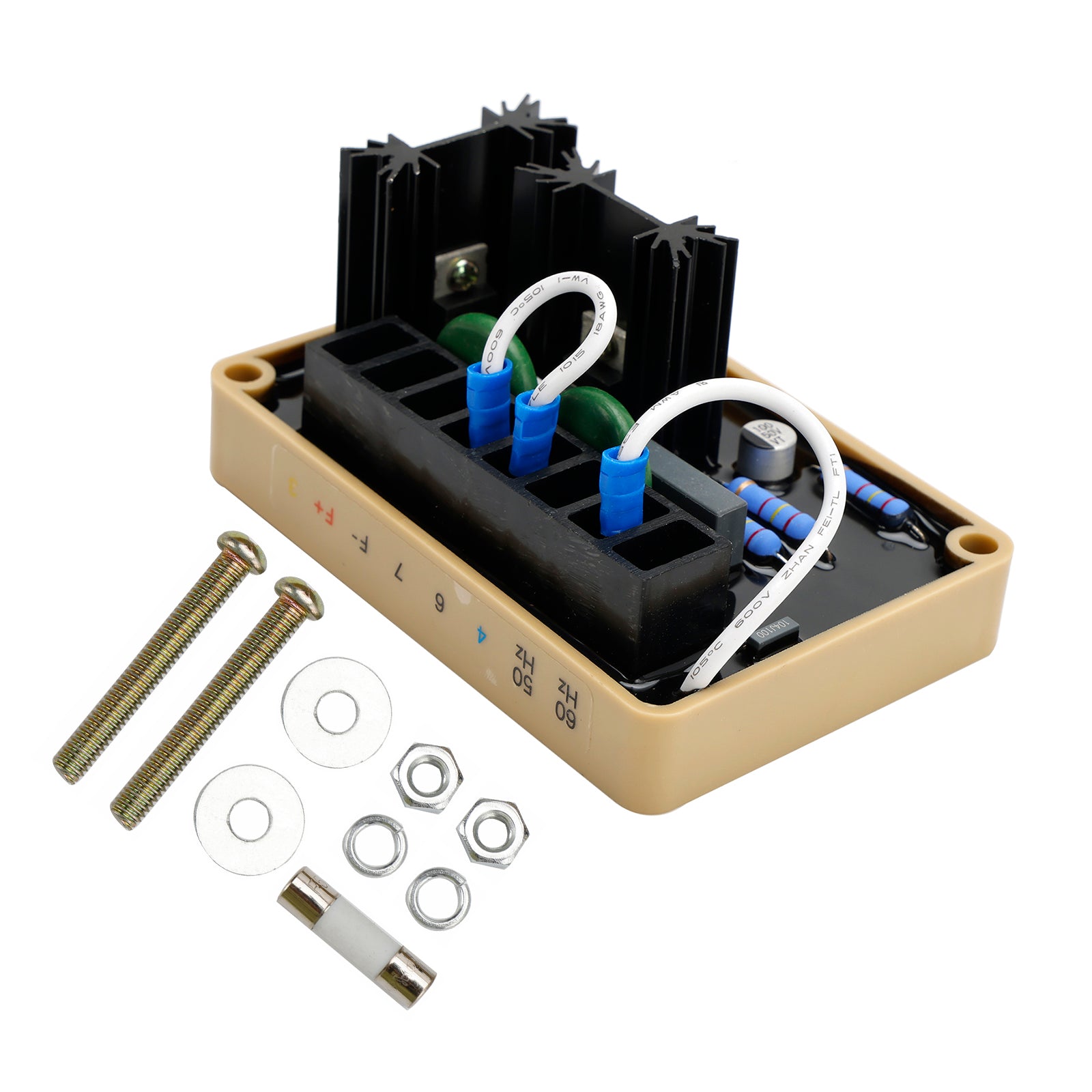

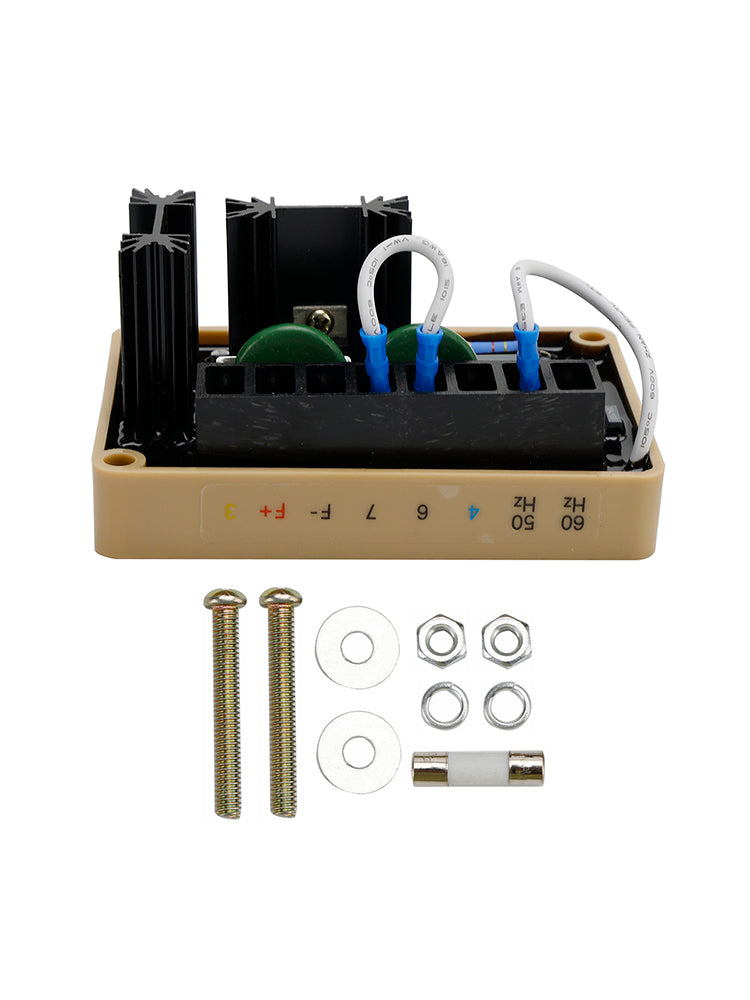

Package Included: 1 X Product Instructions 1 X AVR SE350 Automatic Voltage Regulator
Warranty: Returns: Customers have the right to apply for a return within 60 days after the receipt of the product 24-Hour Expert Online: Solve your installation and product problems
