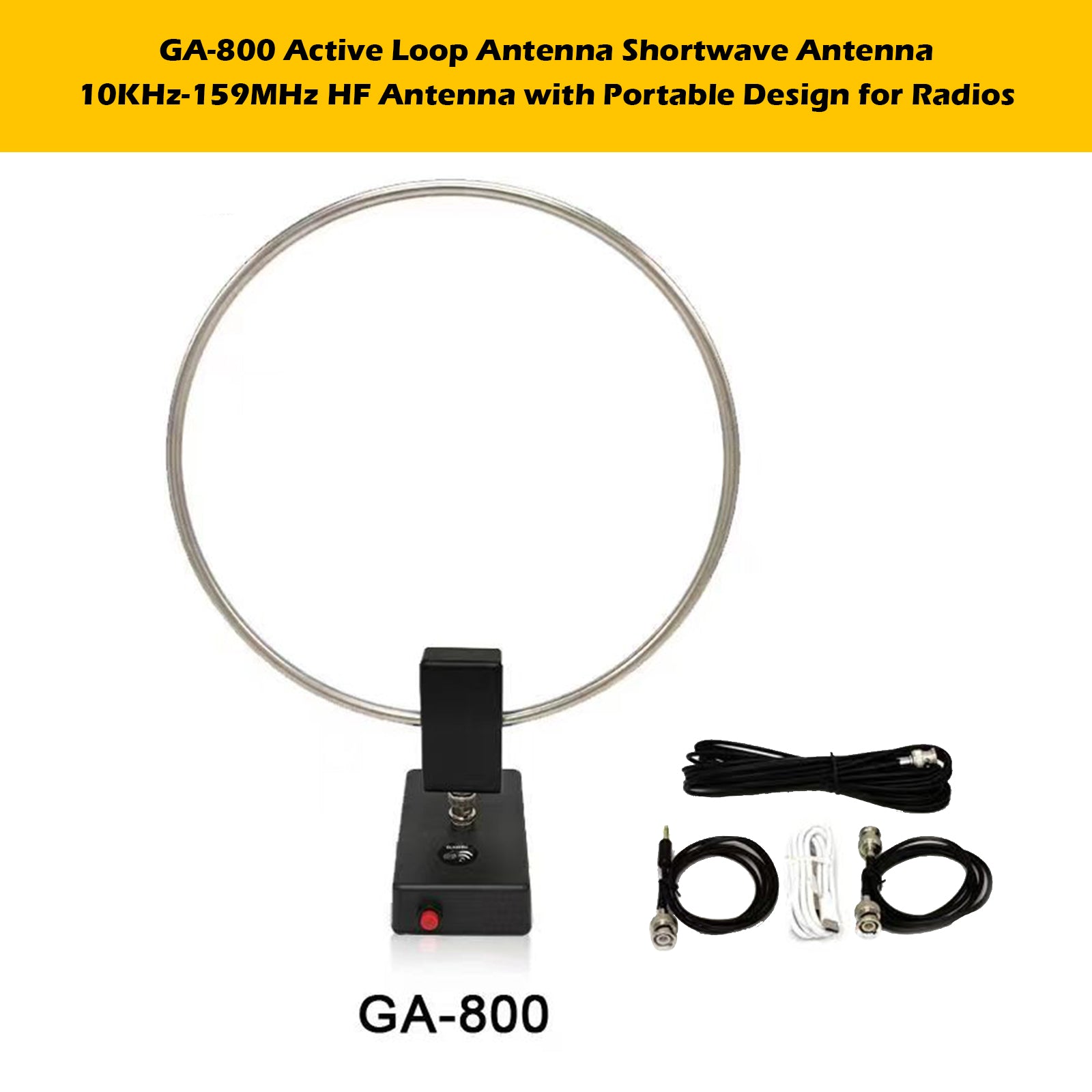

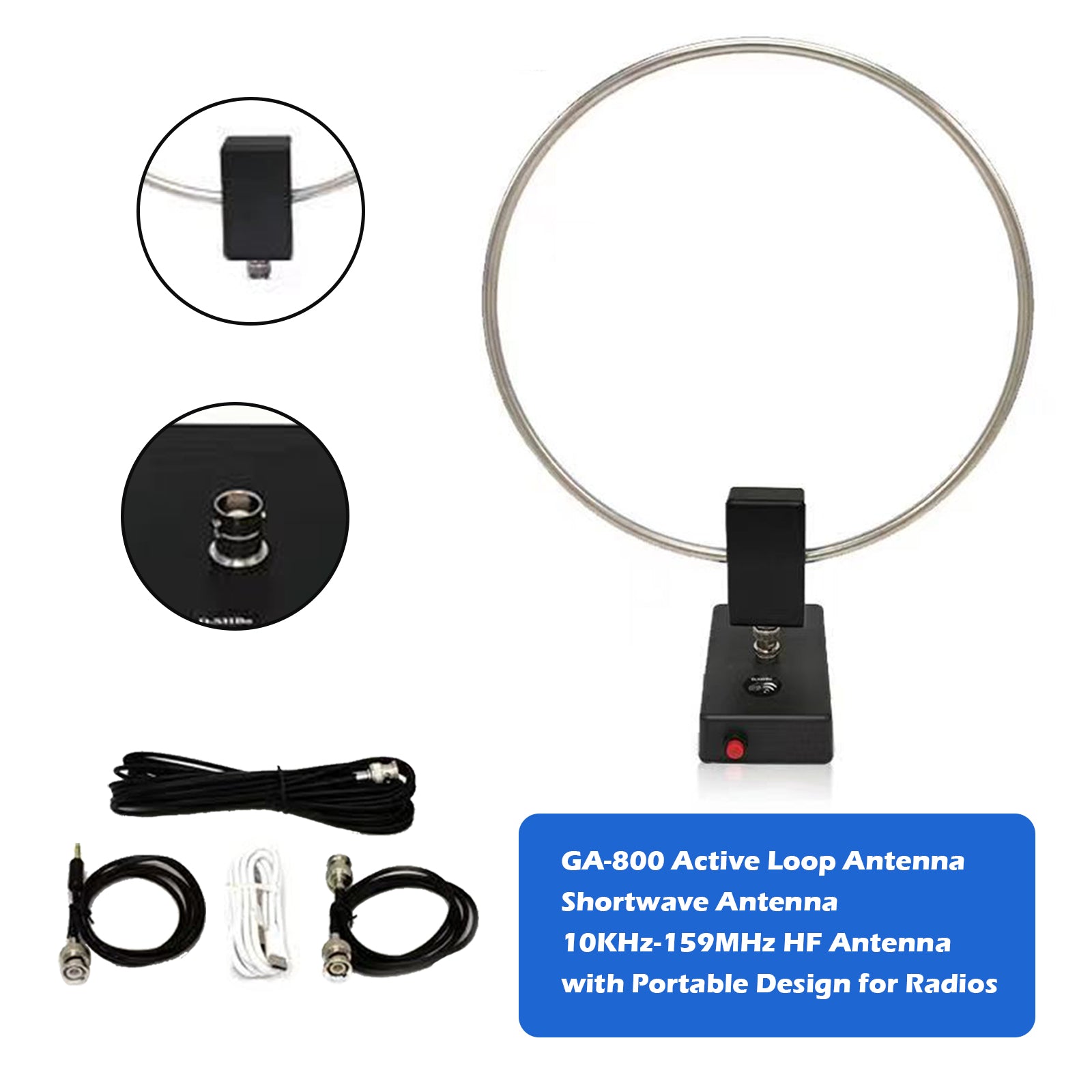

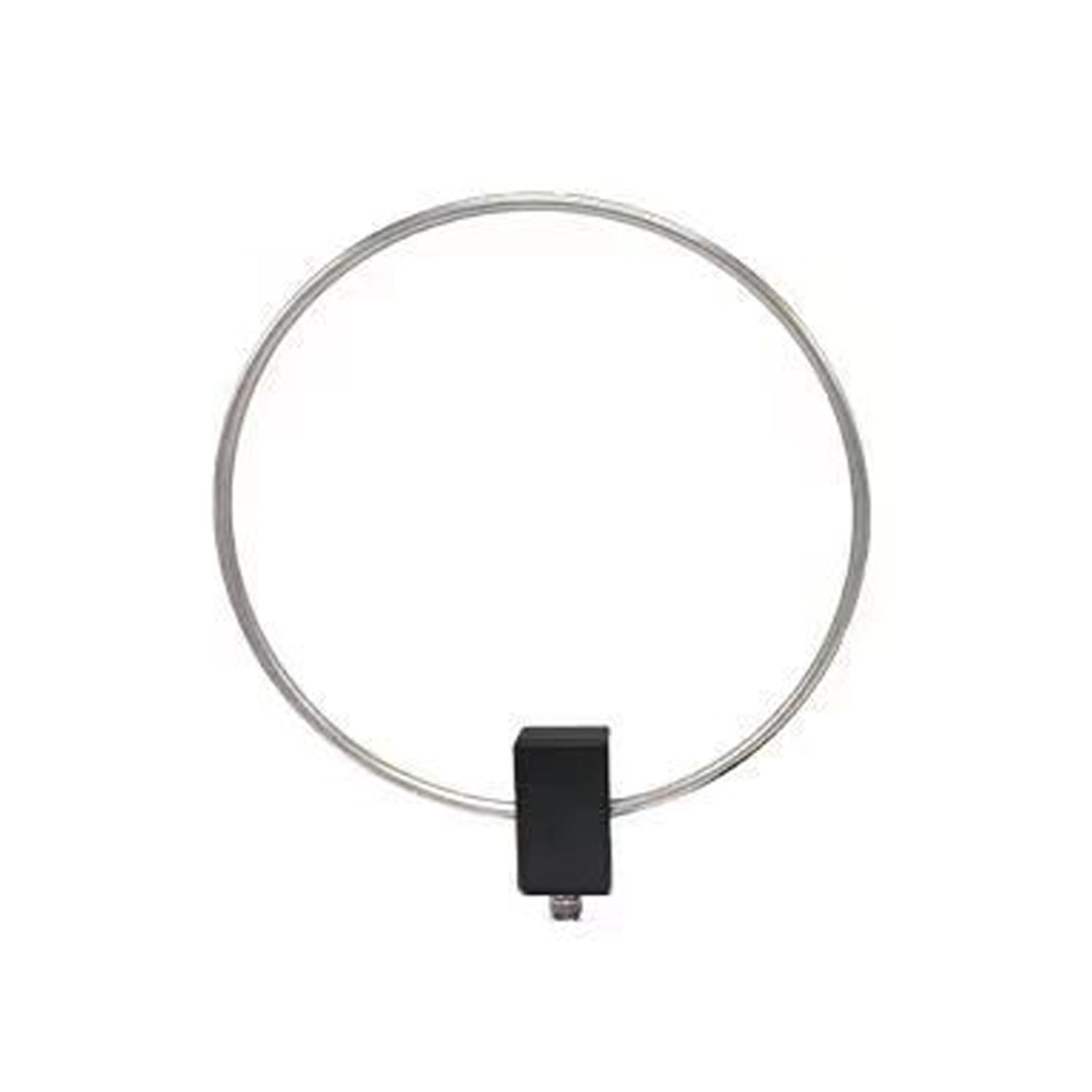

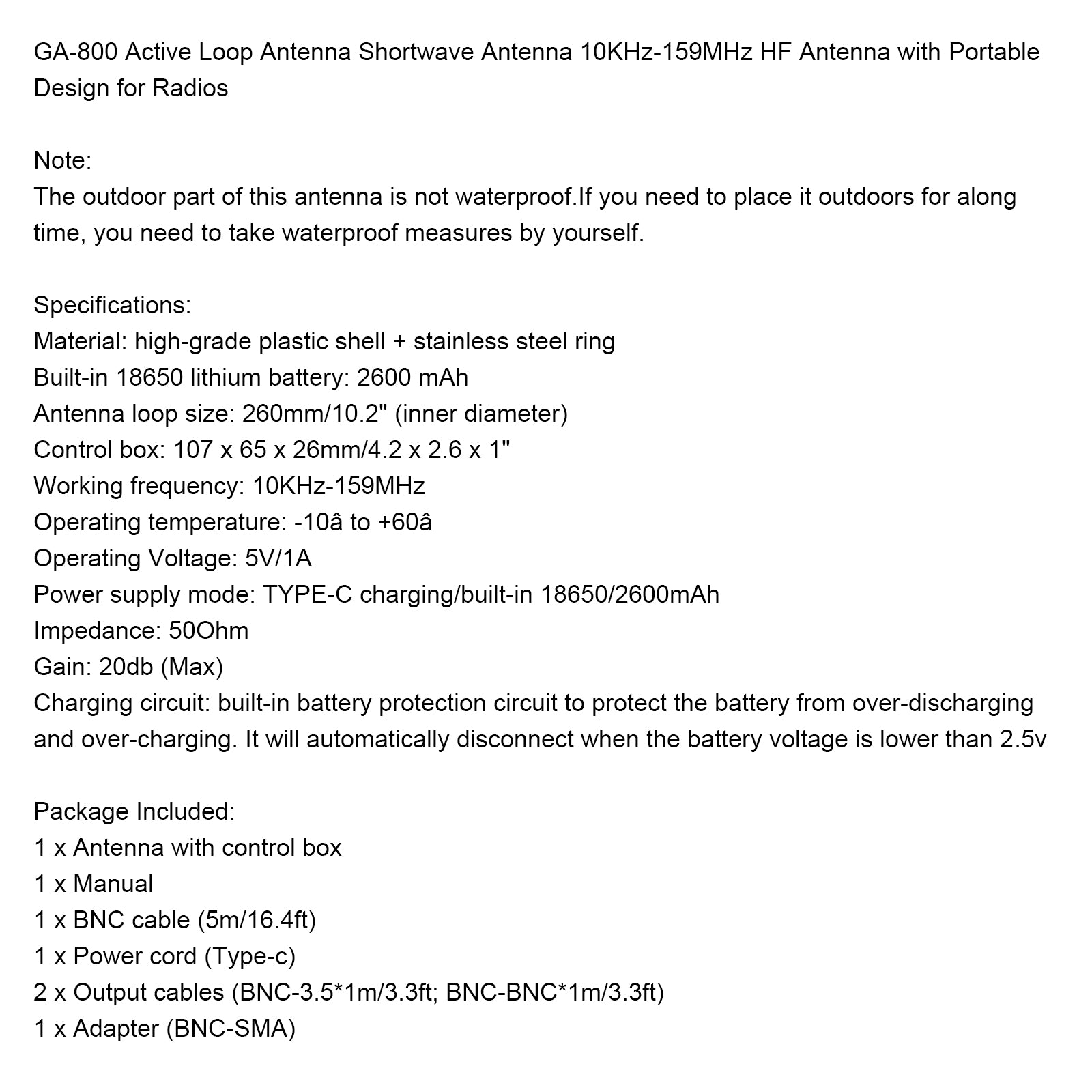

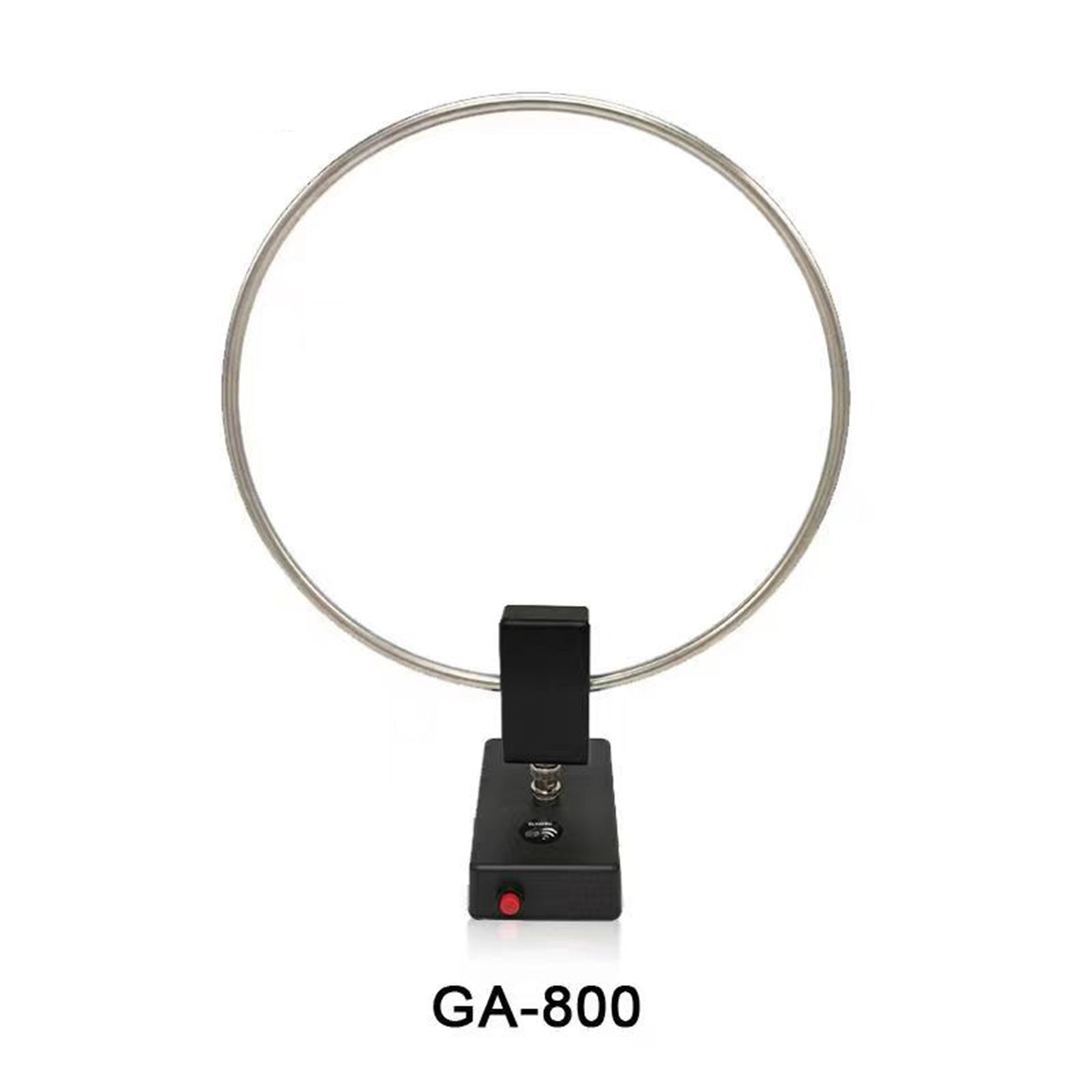

GA-800 Active Loop Antenna Shortwave Antenna 10KHz-159MHz HF Antenna with Portable Design for Radios

Note:

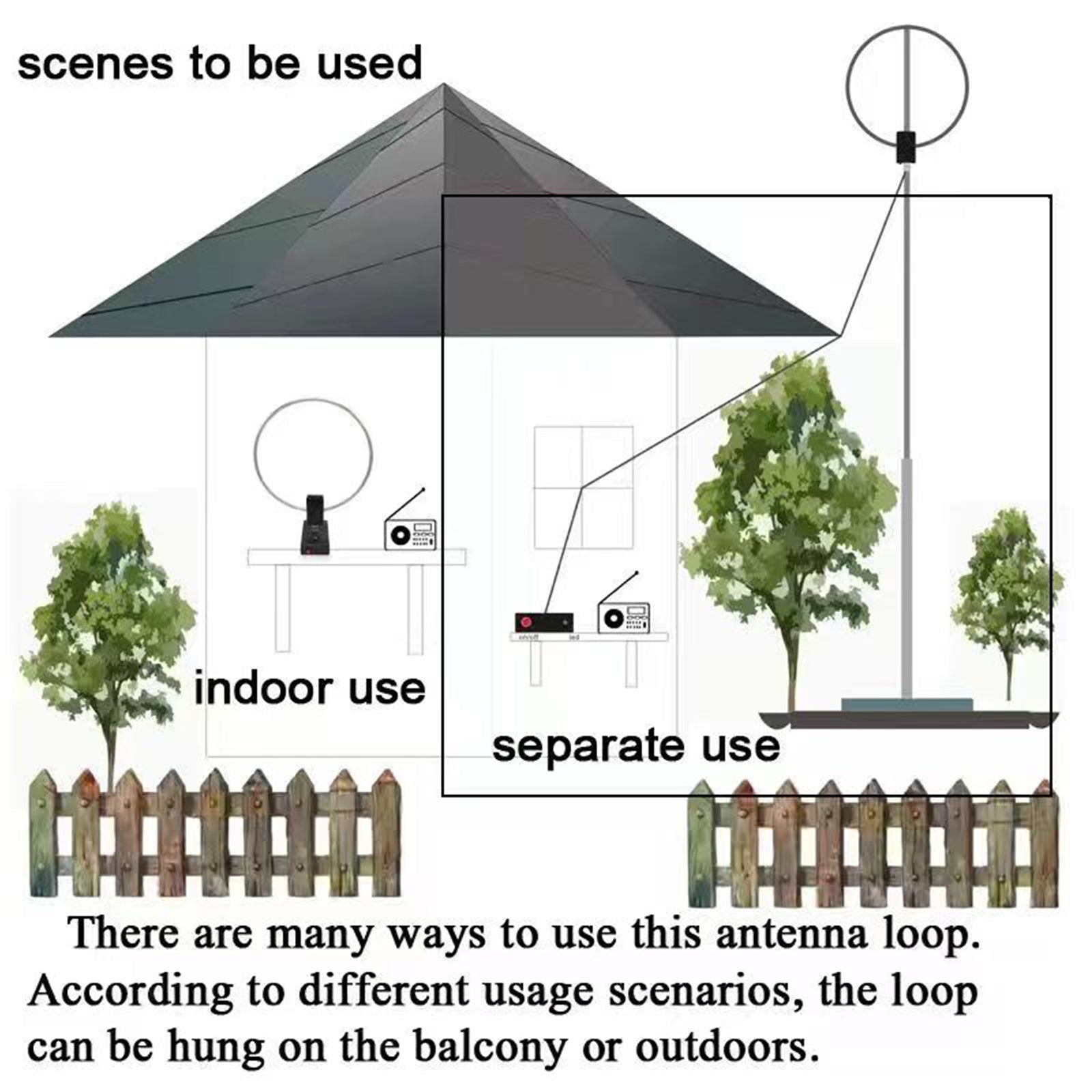

The outdoor part of this antenna is not waterproof.If you need to place it outdoors for along time, you need to take waterproof measures by yourself.

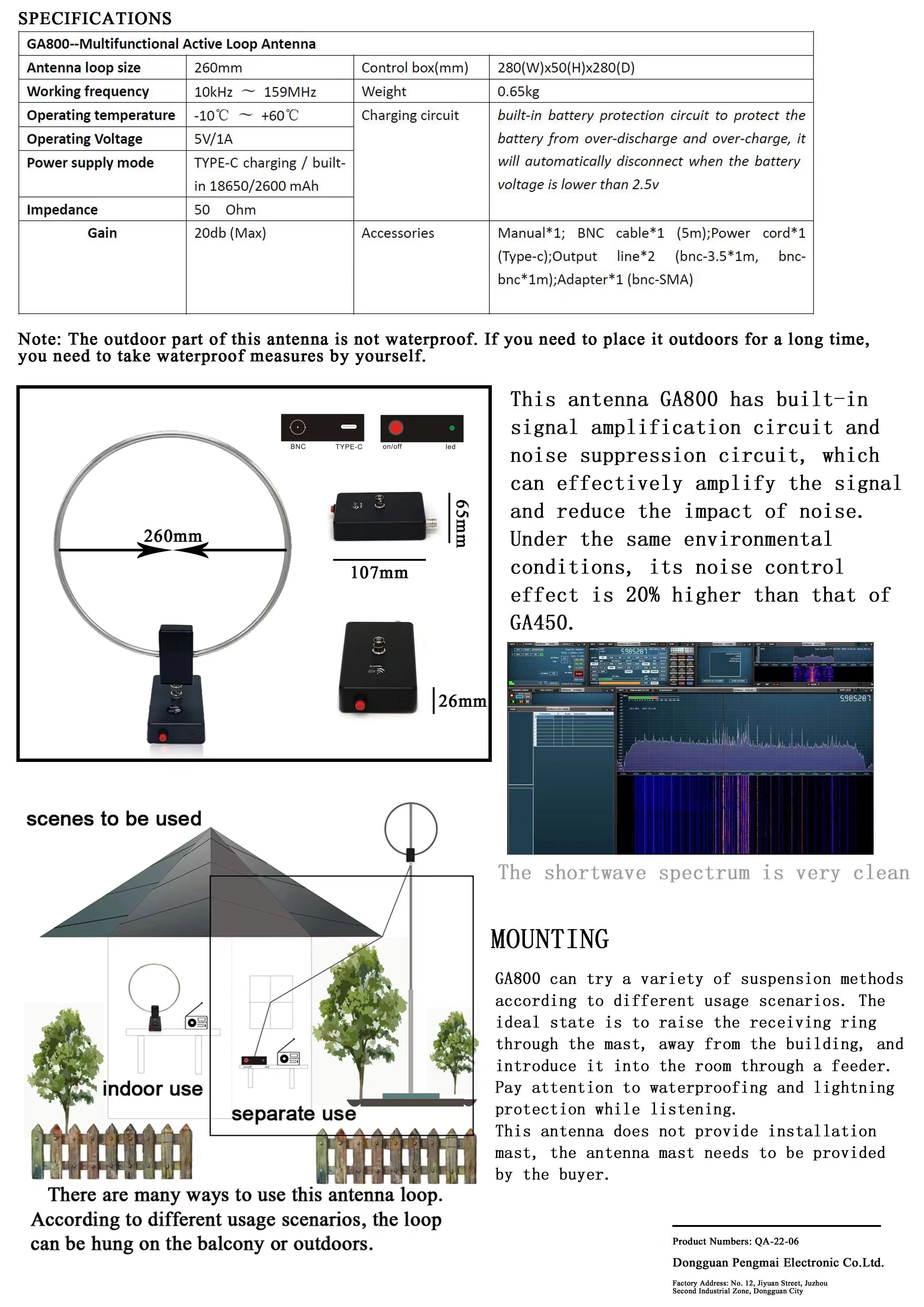

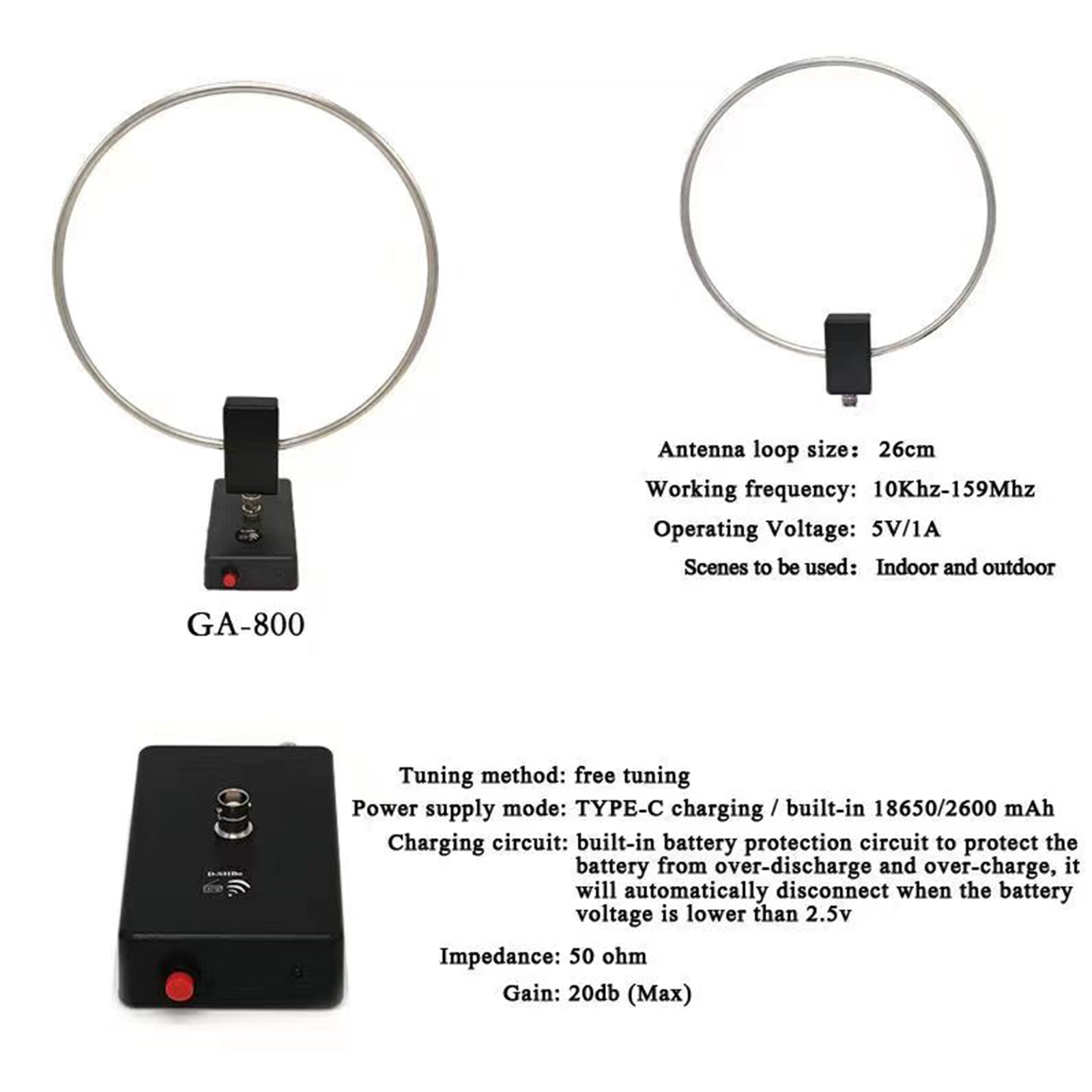

Specifications:
Material: high-grade plastic shell + stainless steel ring
Built-in 18650 lithium battery: 2600 mAh

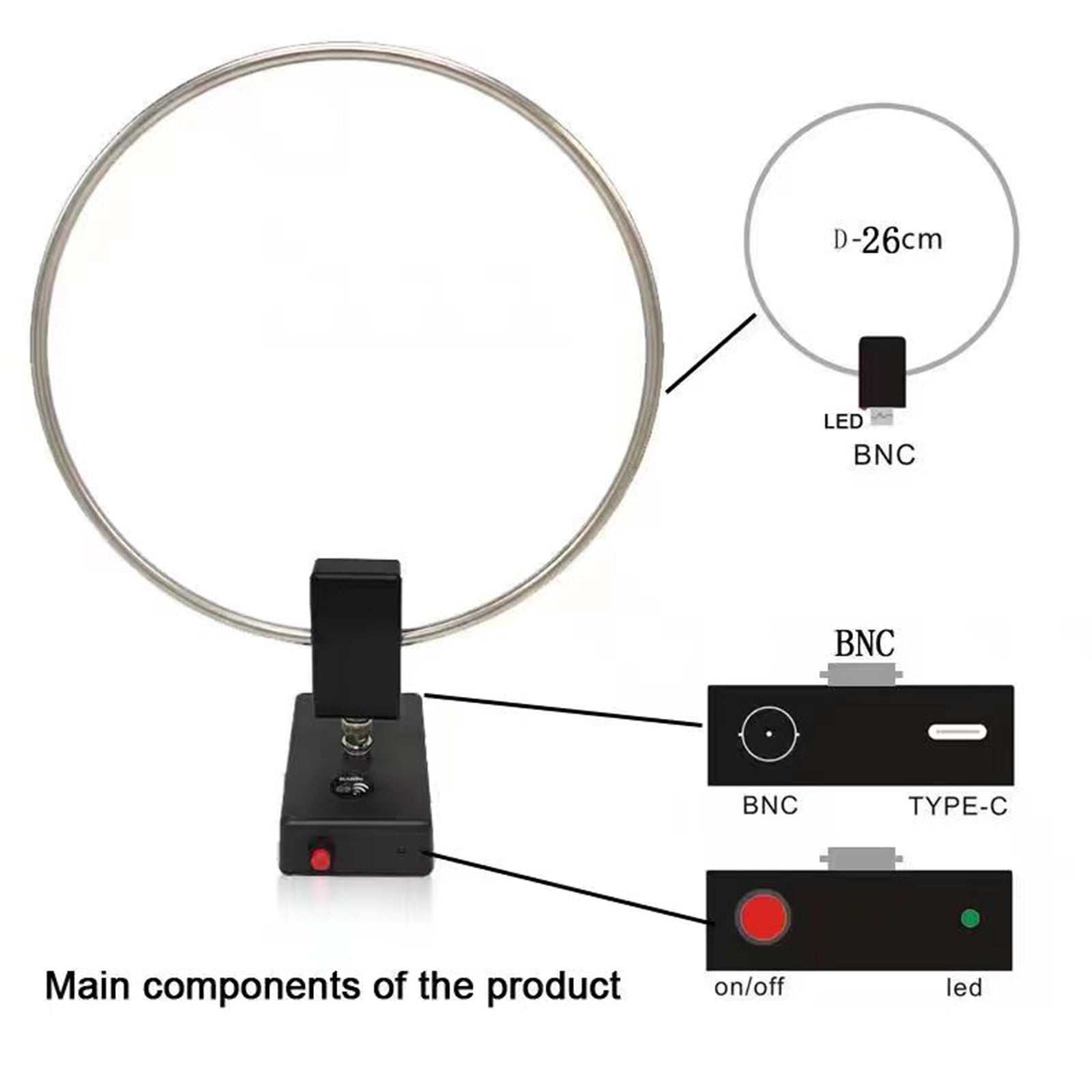

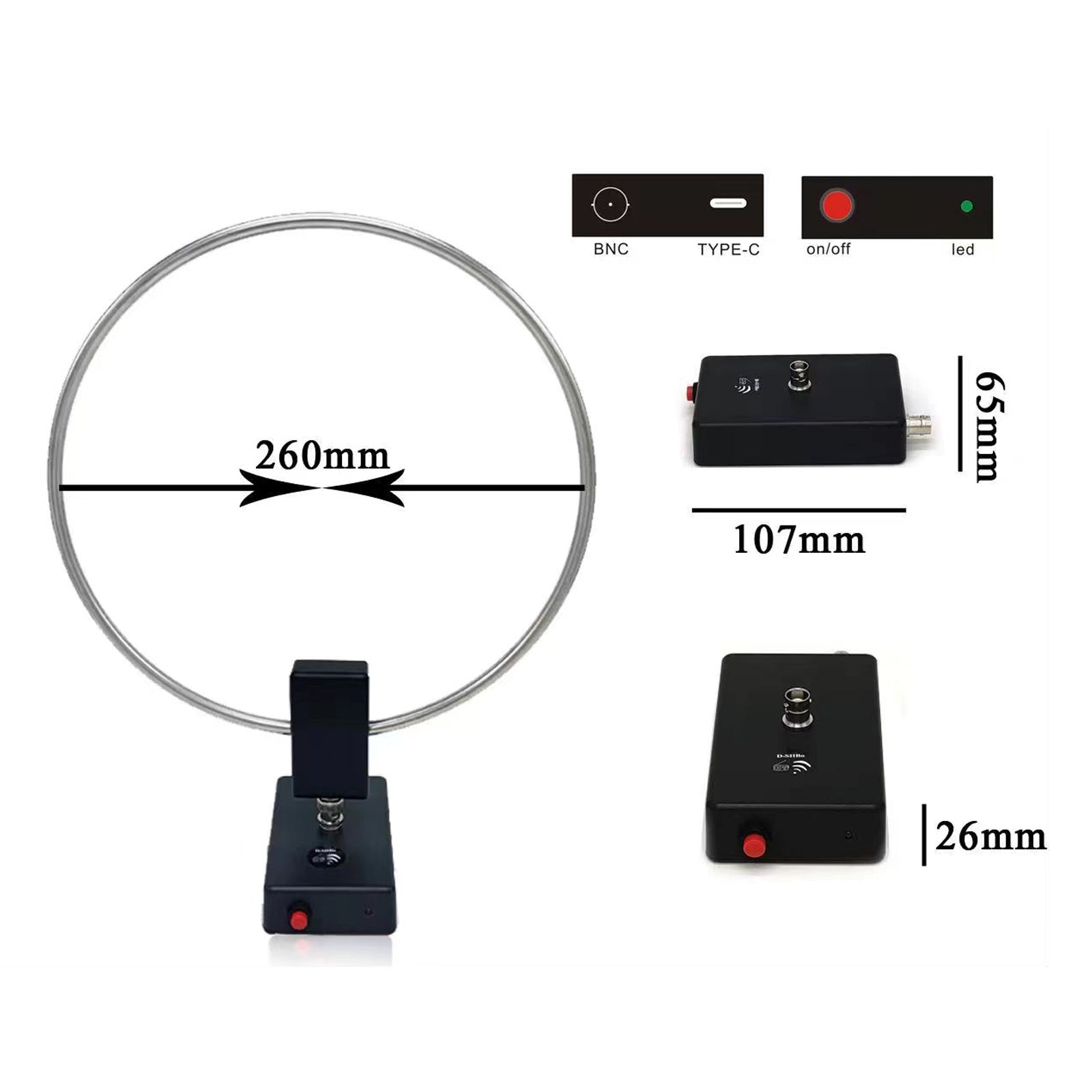

Antenna loop size: 260mm/10.2" (inner diameter)

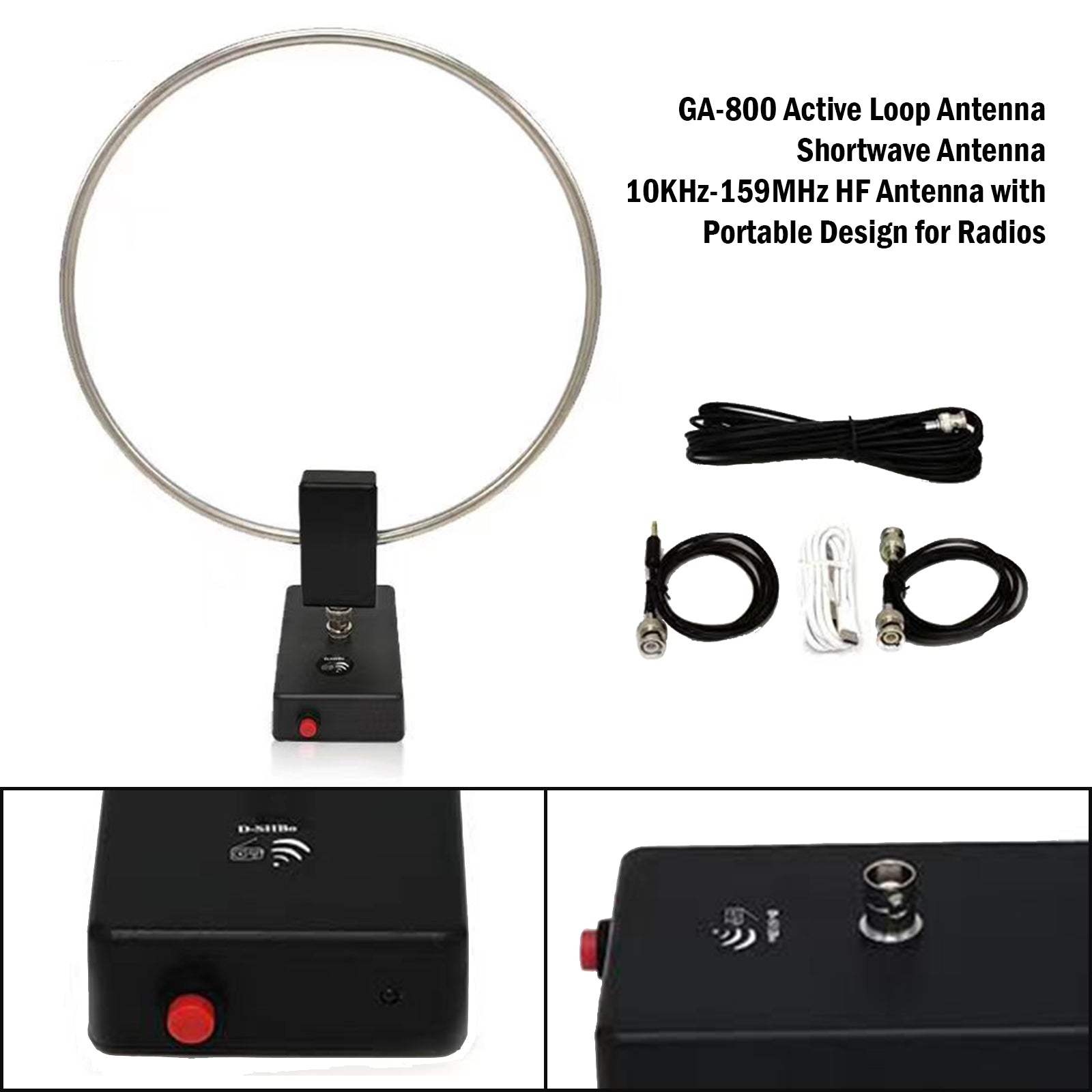

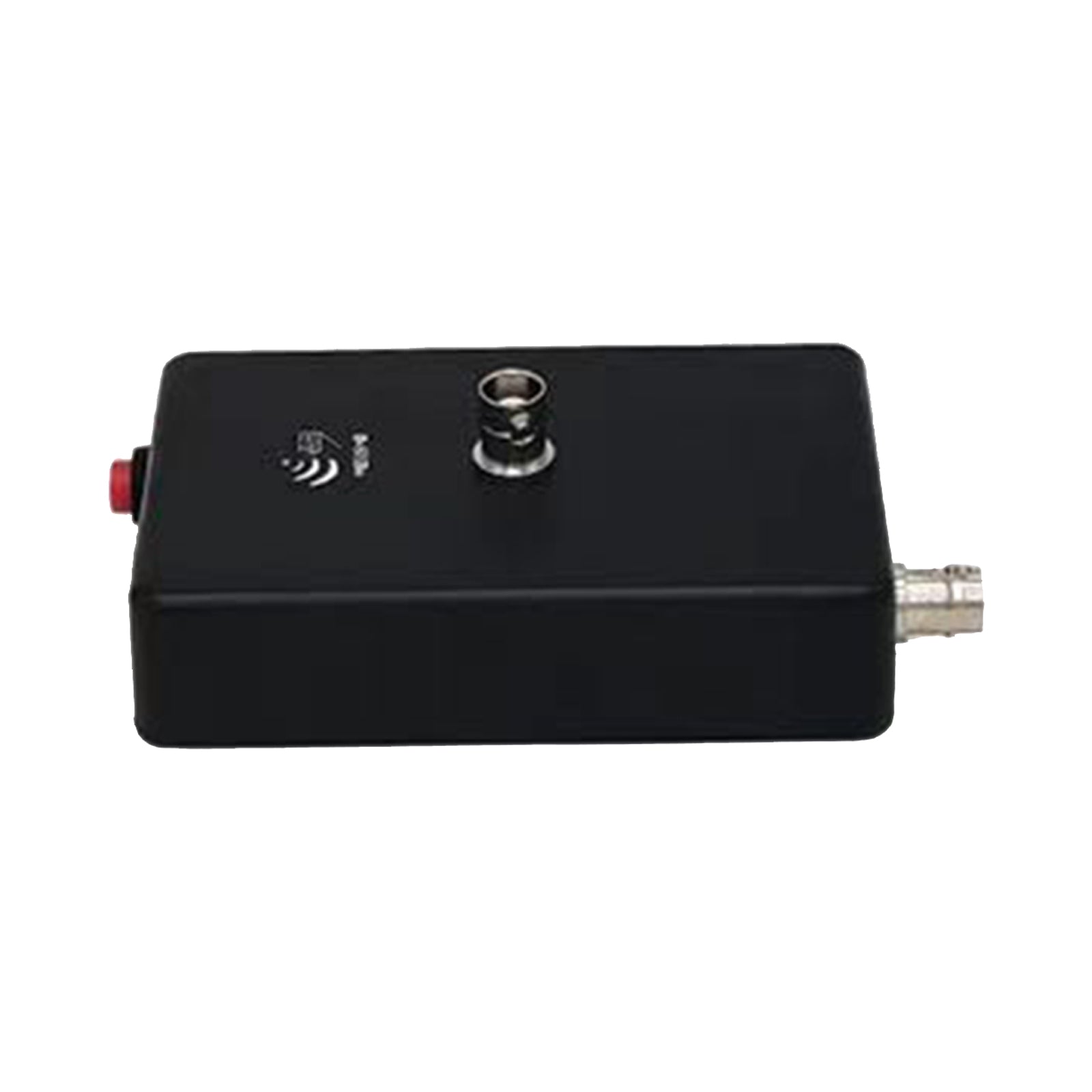

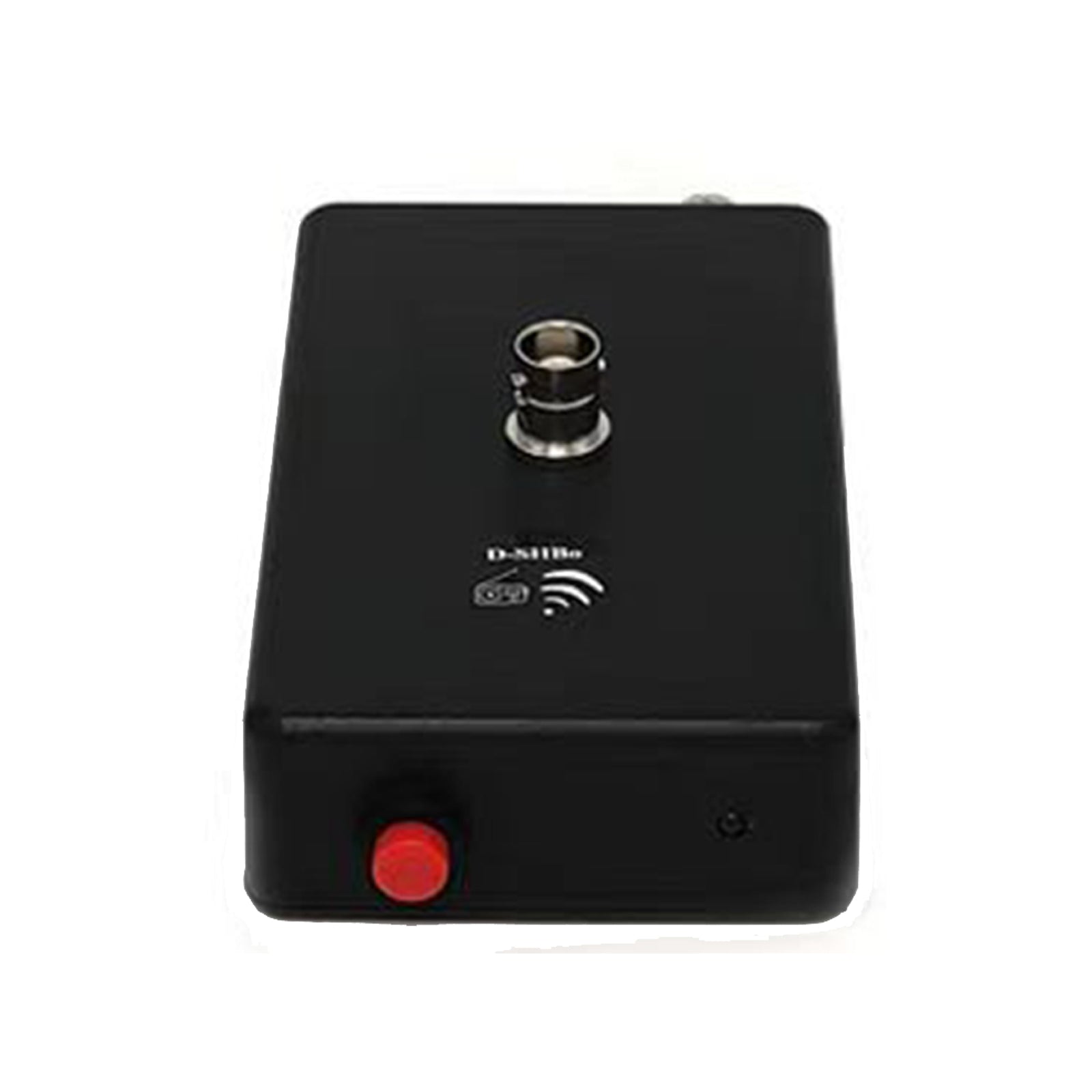

Control box: 107 x 65 x 26mm/4.2 x 2.6 x 1"
Working frequency: 10KHz-159MHz
Operating temperature: -10℃ to +60℃
Operating Voltage: 5V/1A
Power supply mode: TYPE-C charging/built-in 18650/2600mAh
Impedance: 50Ohm
Gain: 20db (Max)
Charging circuit: built-in battery protection circuit to protect the battery from over-discharging and over-charging. It will automatically disconnect when the battery voltage is lower than 2.5v

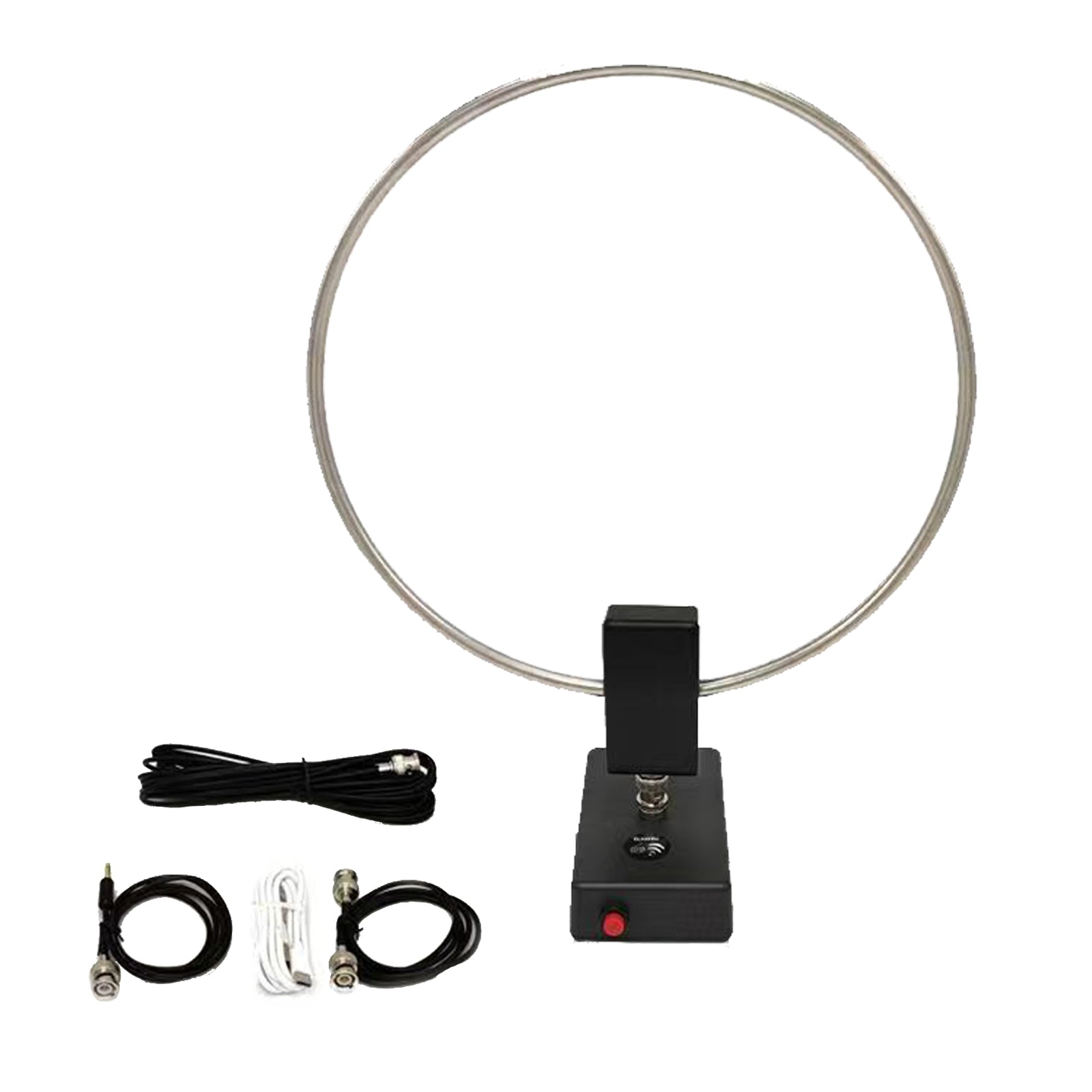

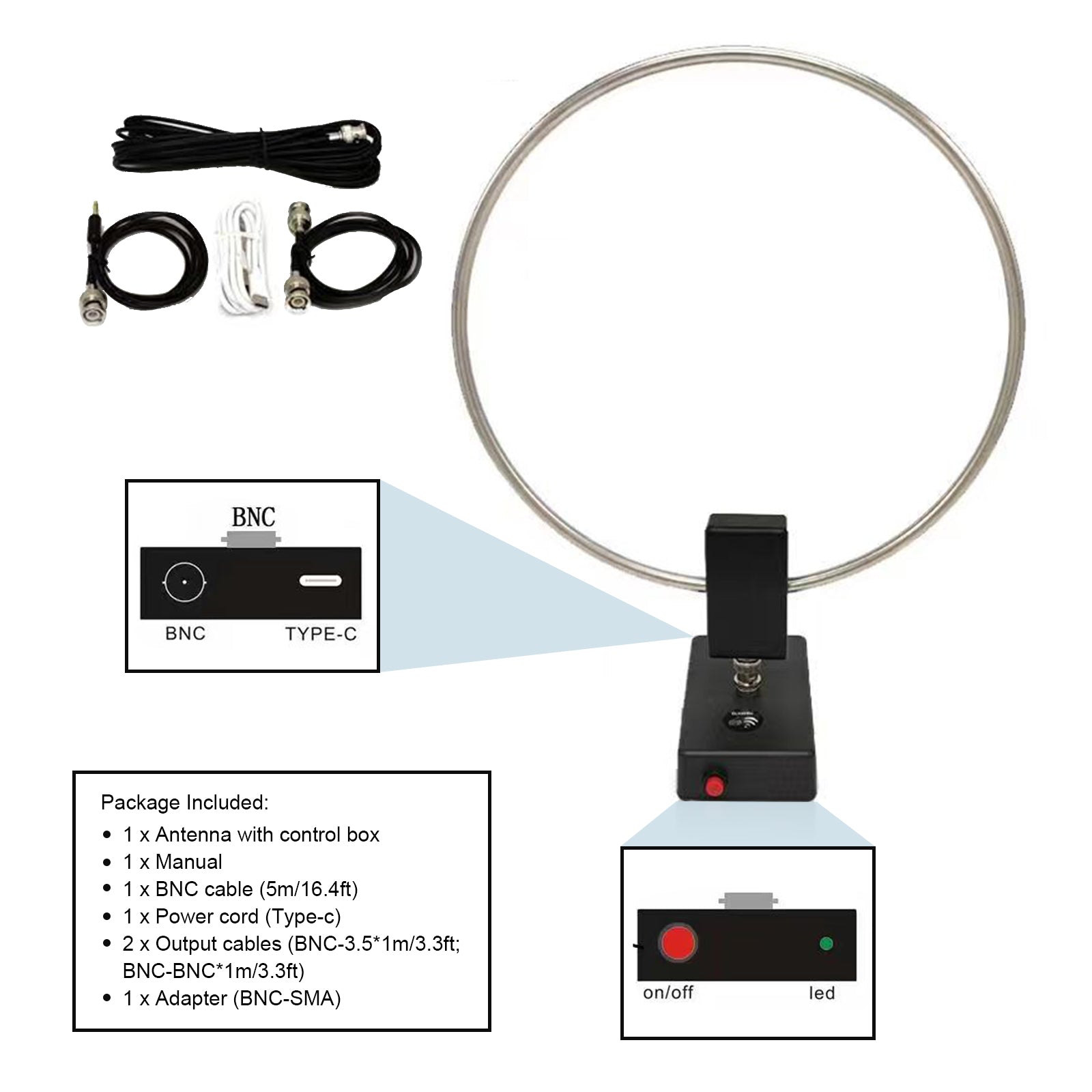

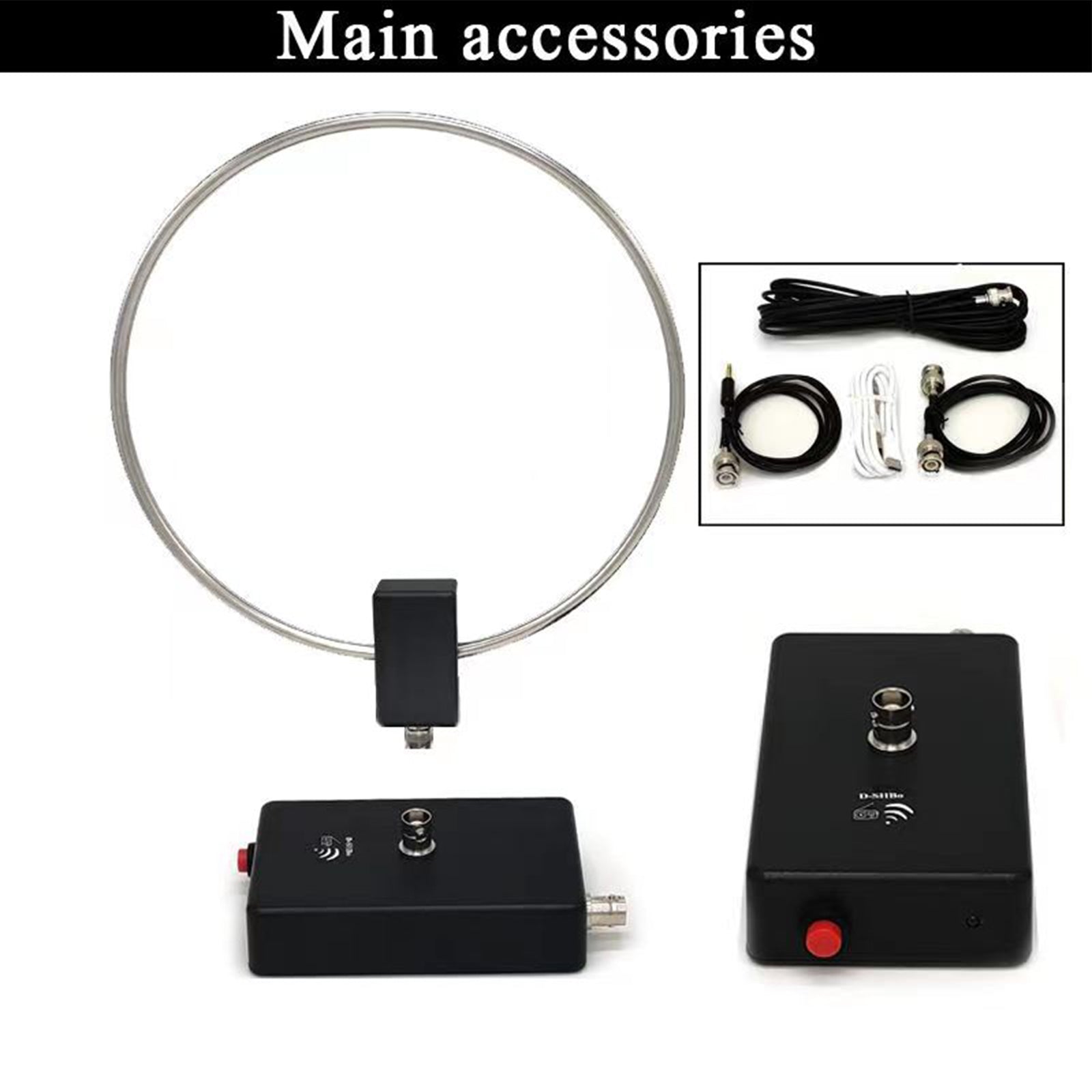

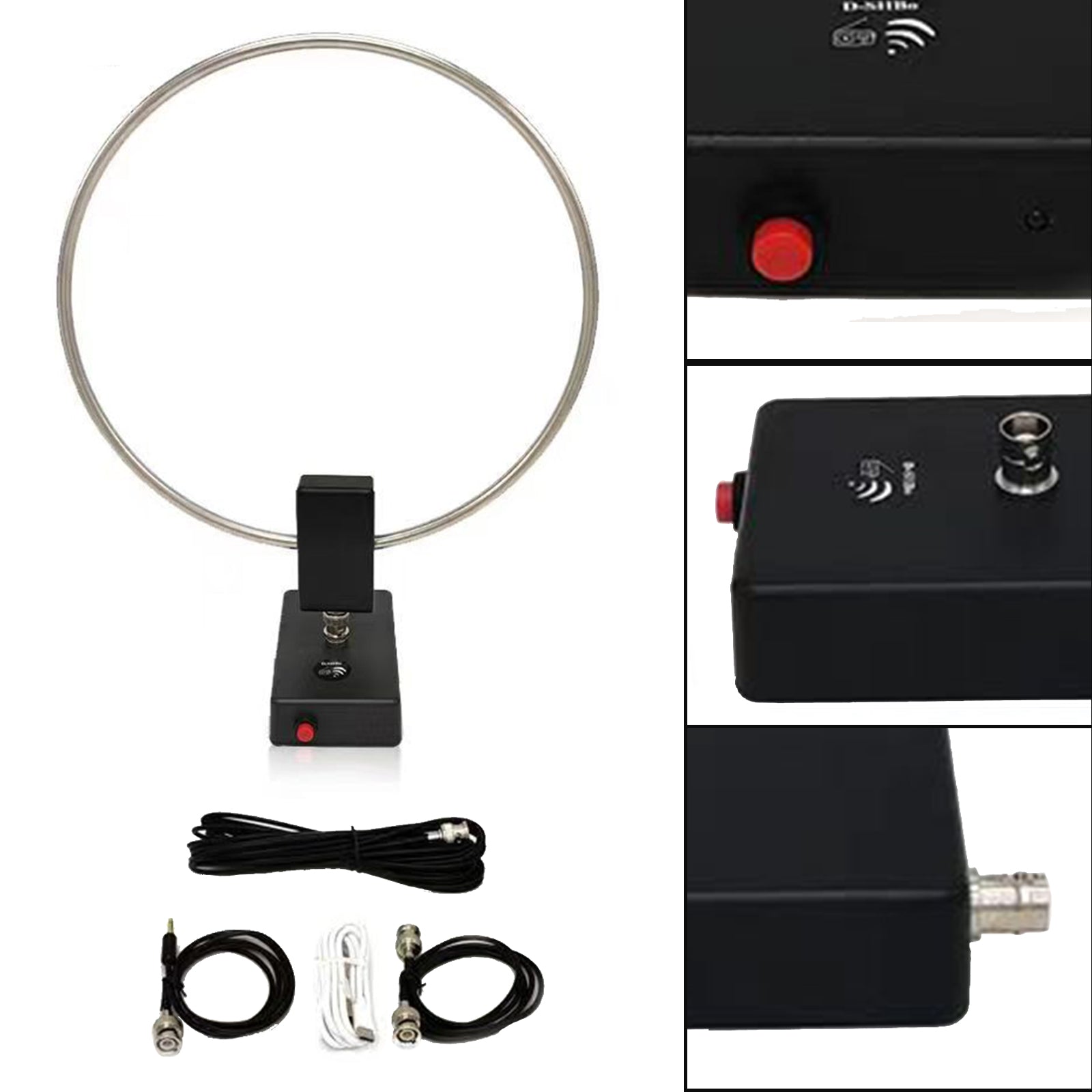

Package Included:
1 x Antenna with control box
1 x Manual

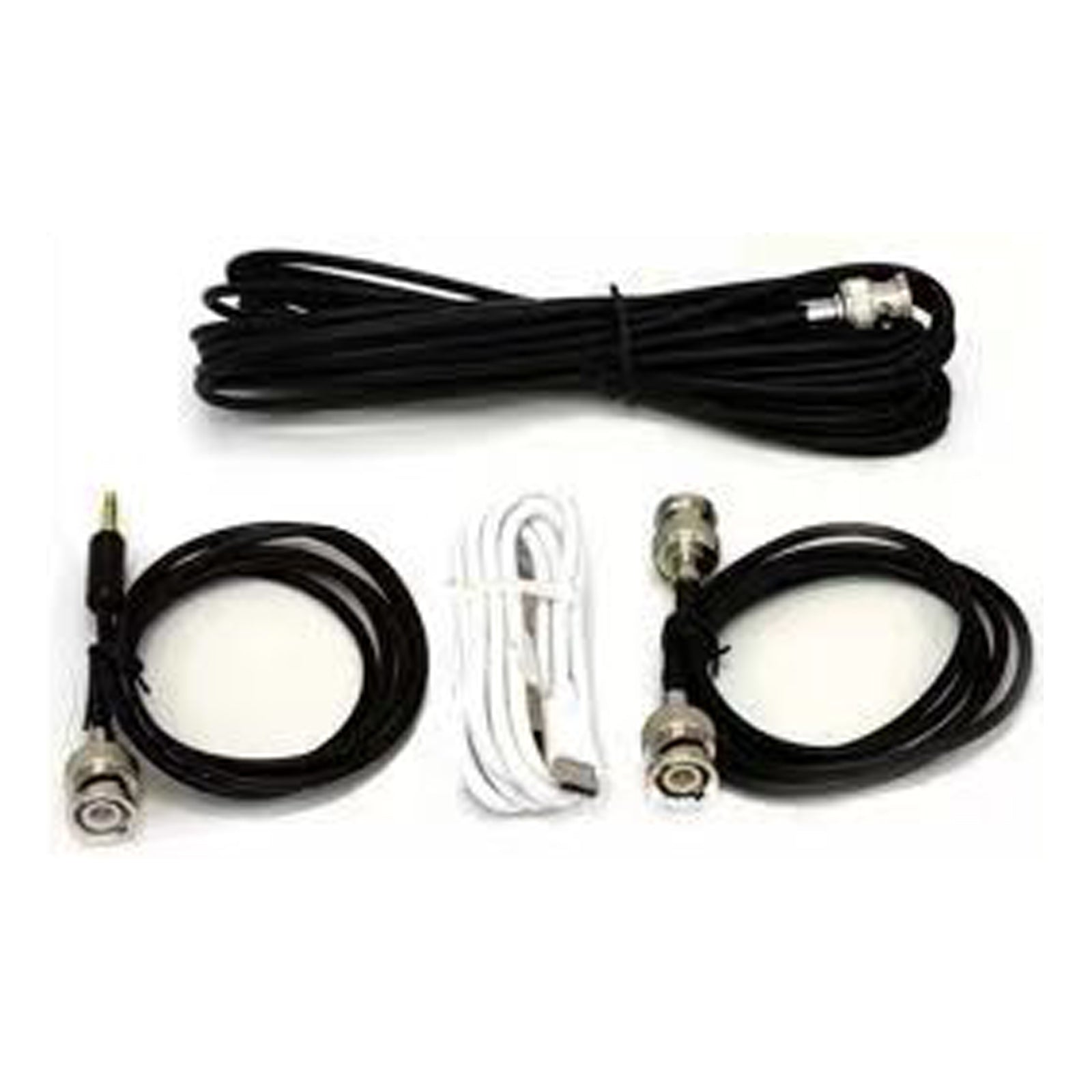

1 x BNC cable (5m/16.4ft)
1 x Power cord (Type-c)
2 x Output cables (BNC-3.5*1m/3.3ft; BNC-BNC*1m/3.3ft)
1 x Adapter (BNC-SMA)
