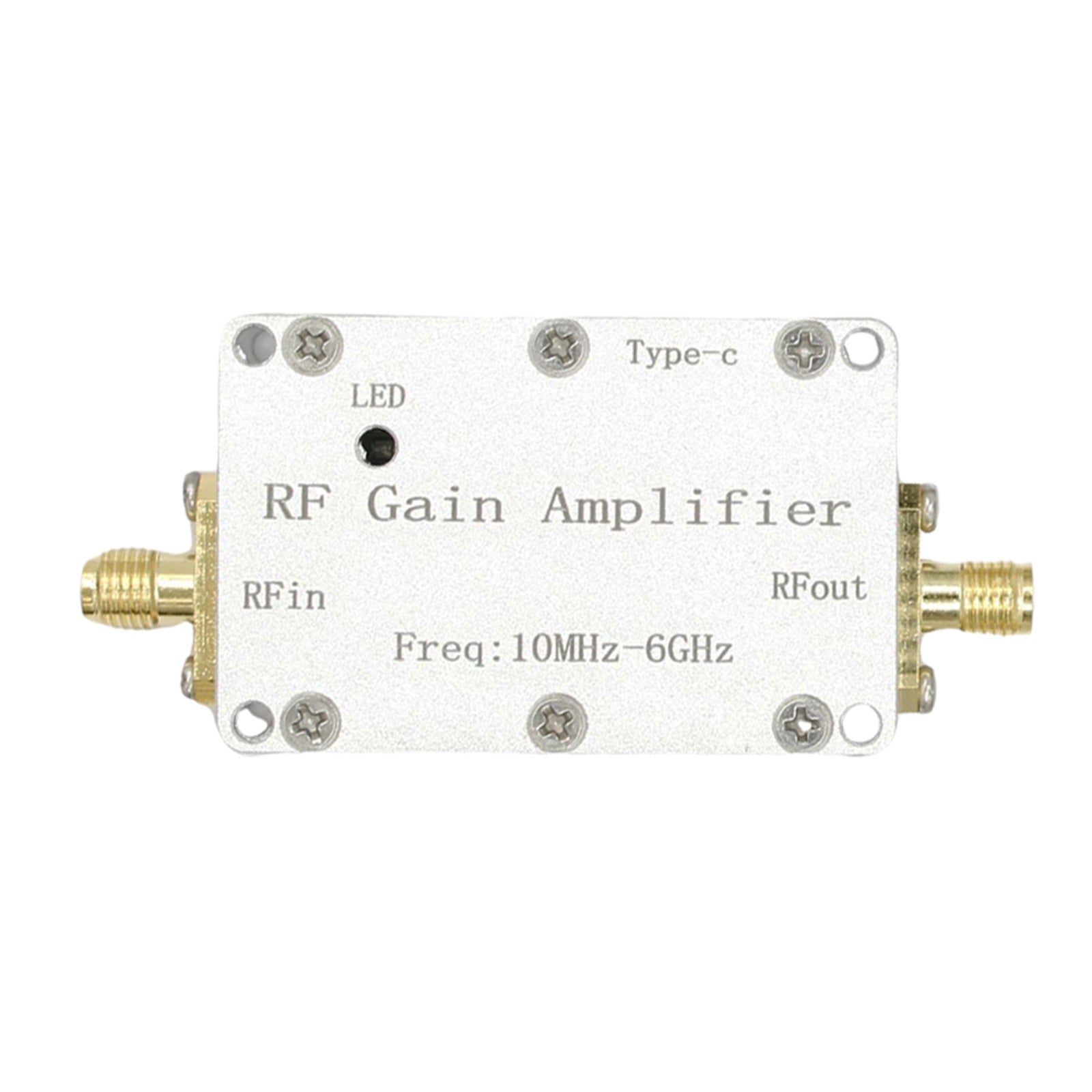

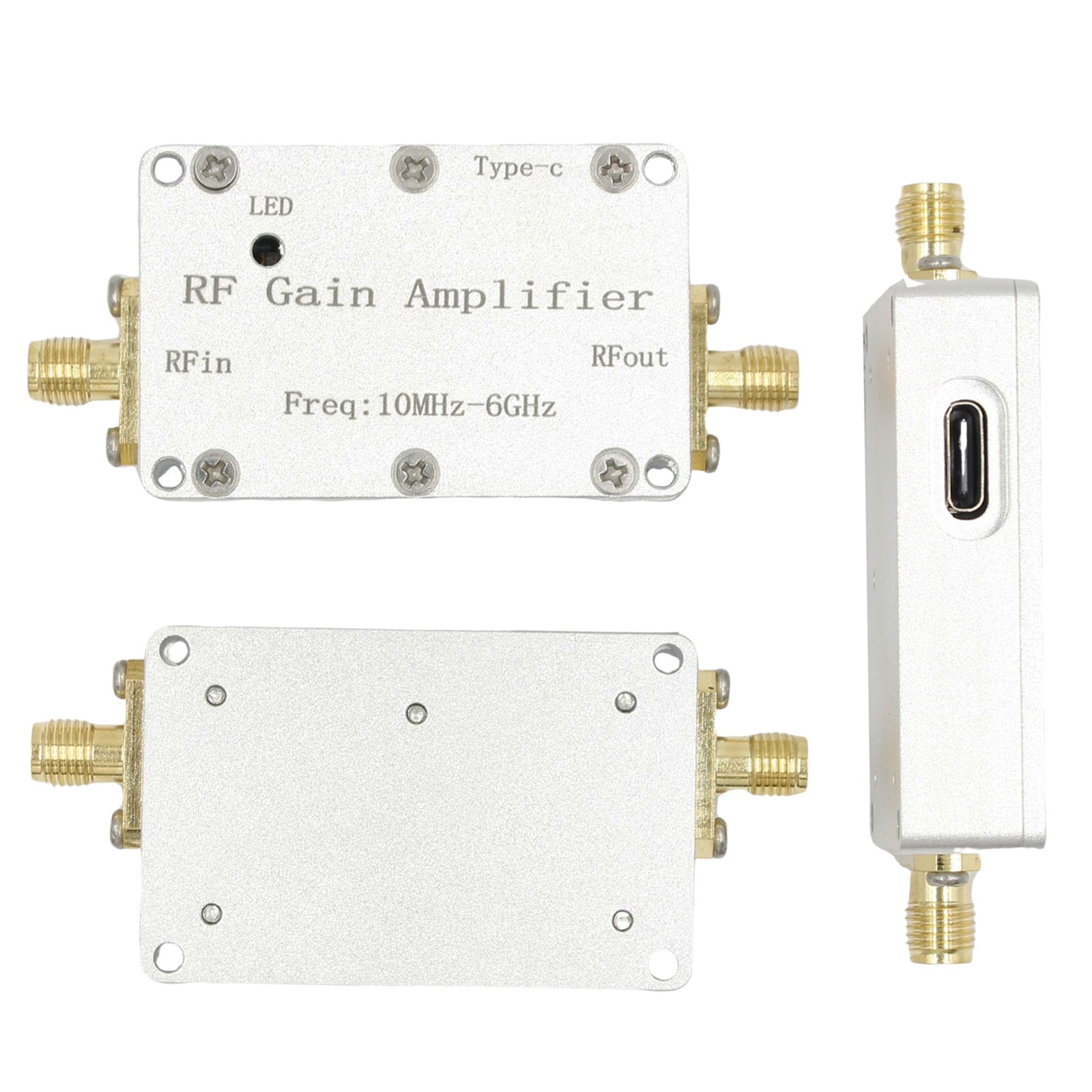

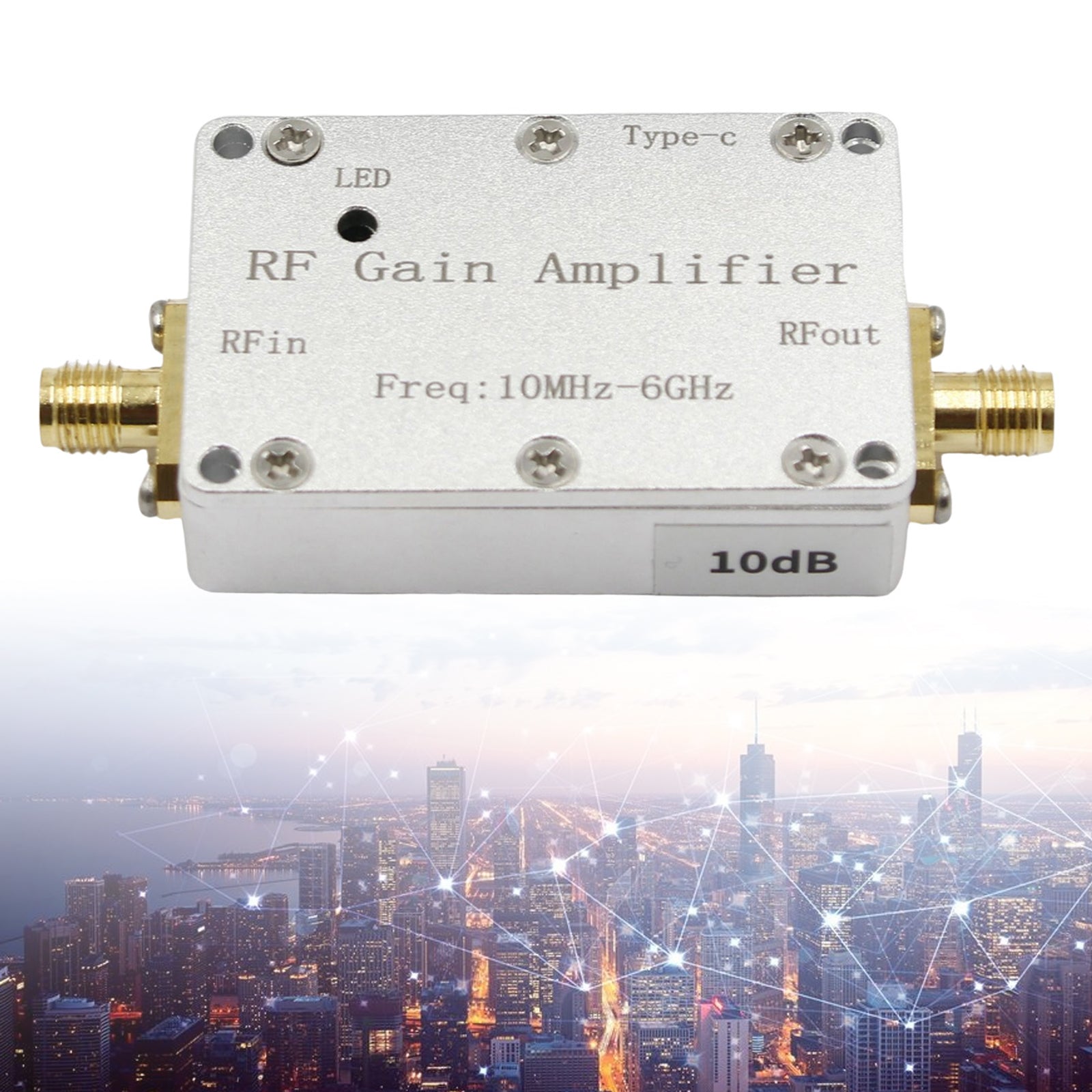

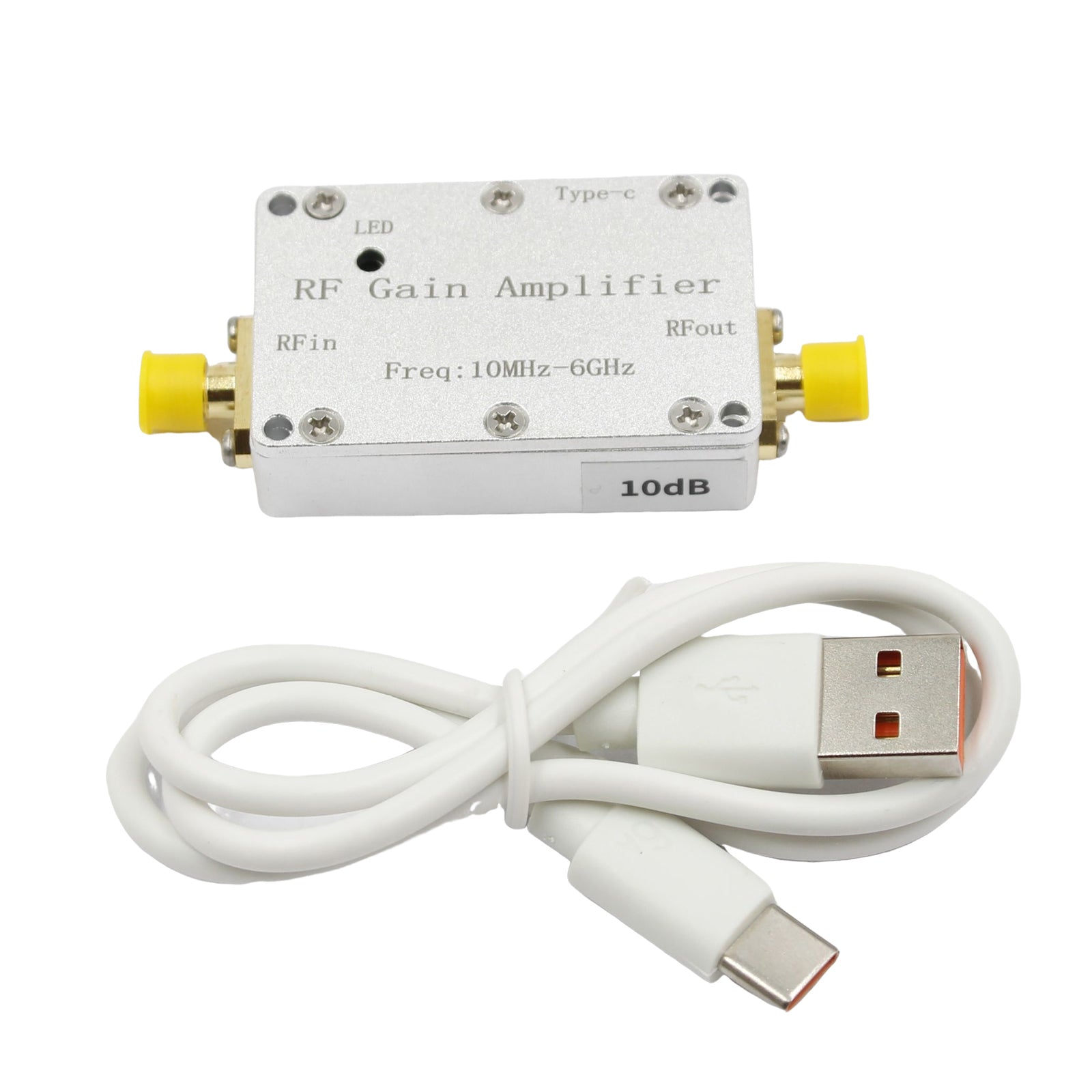

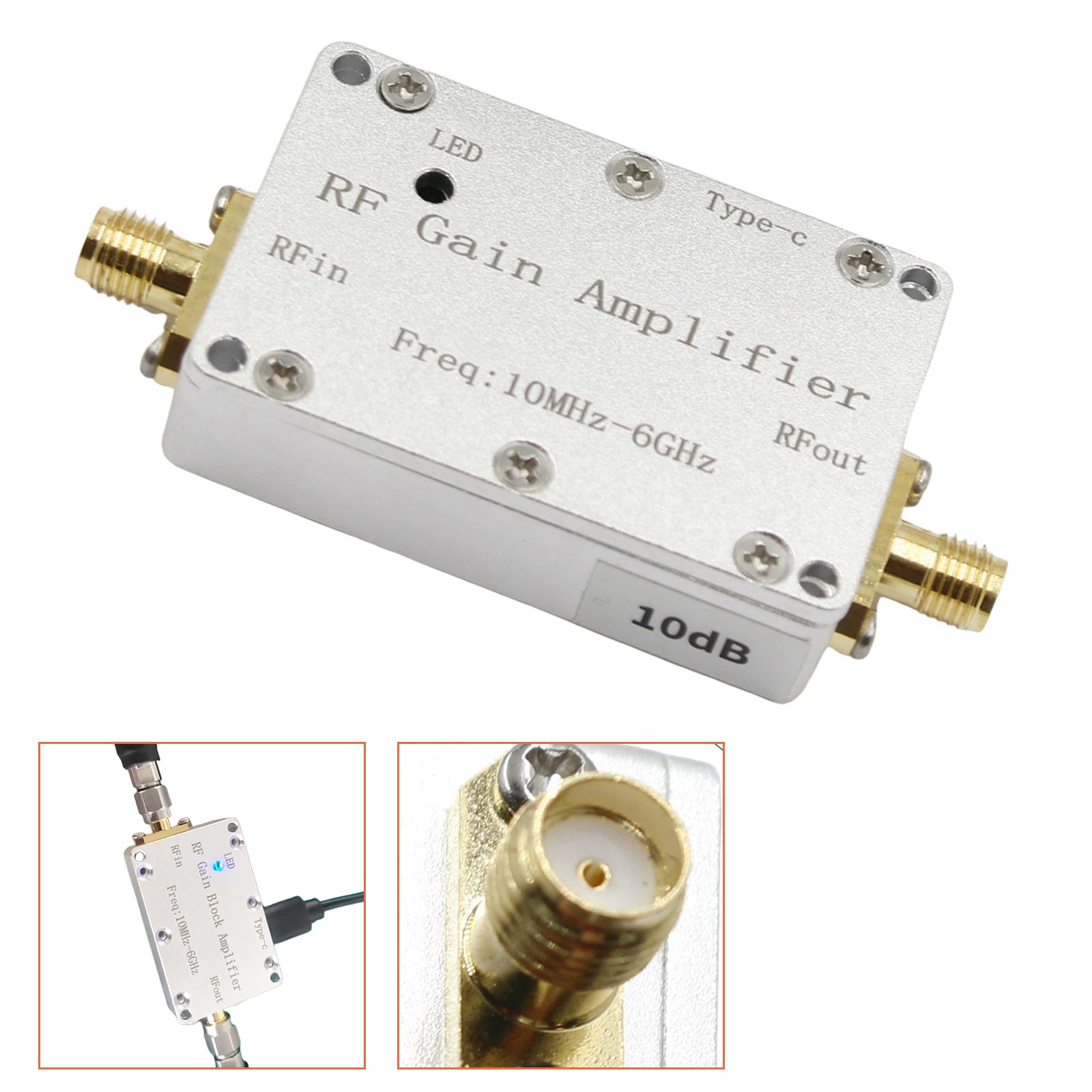

10M-6GHz RF amplifier 10dB high gain driver receiving amplifier

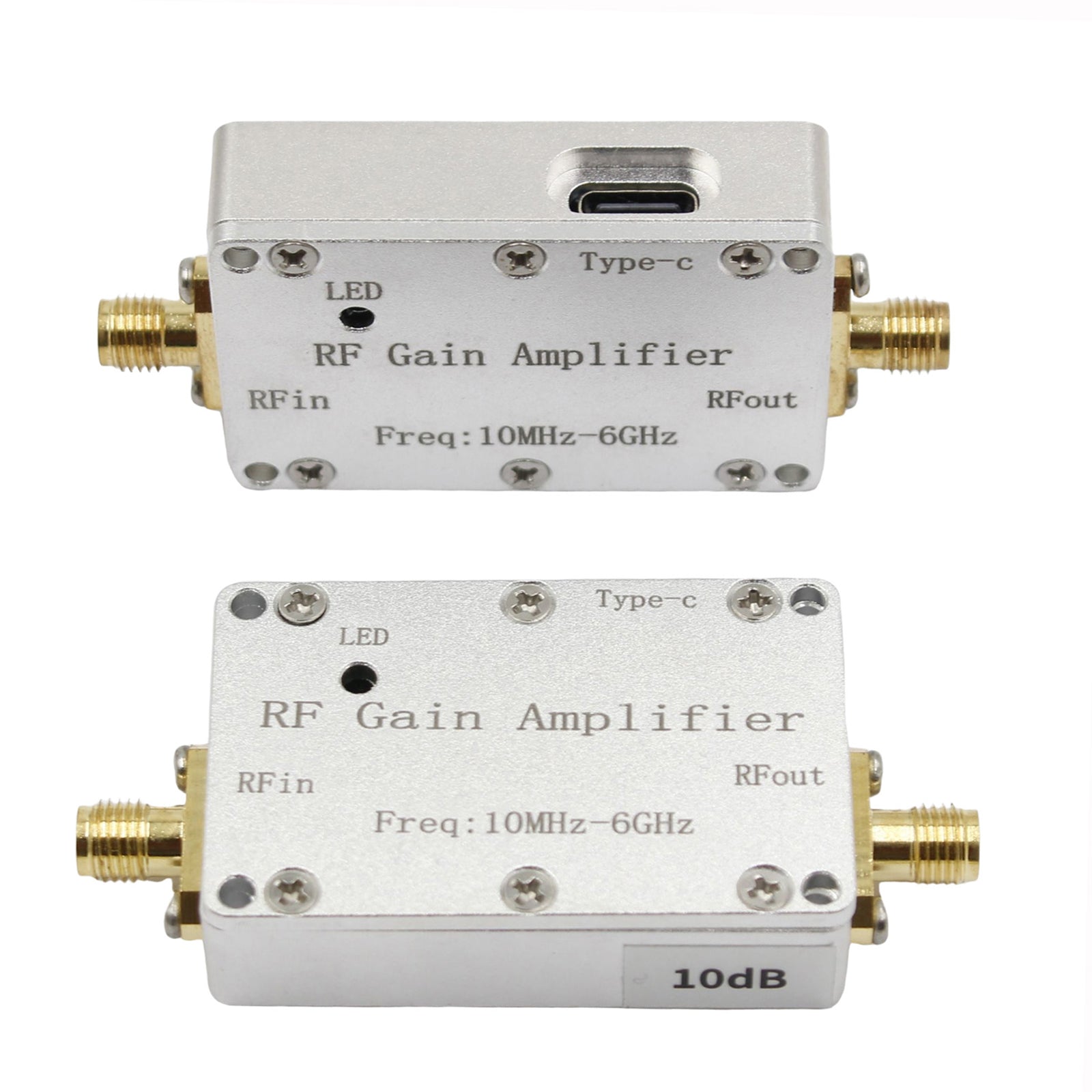

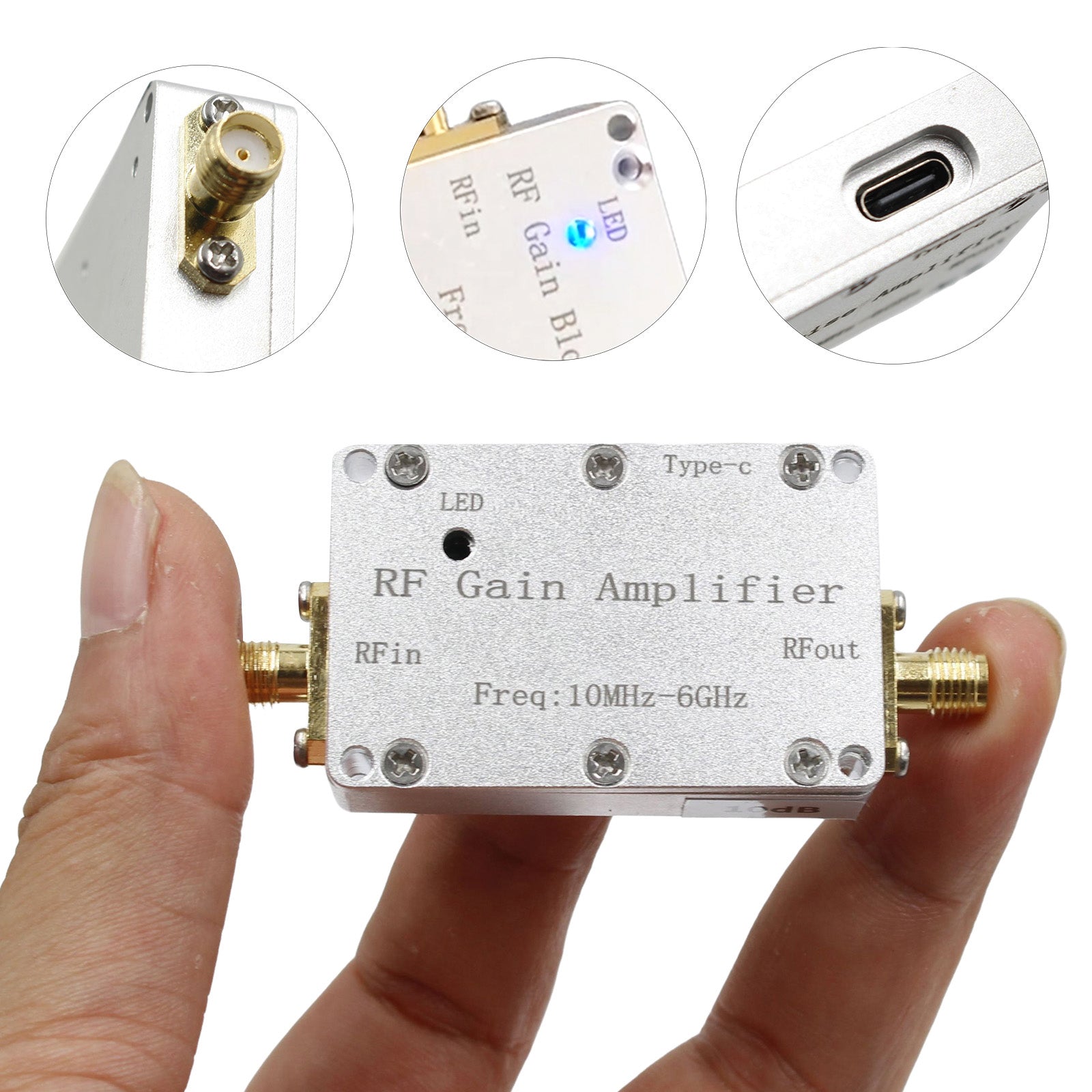

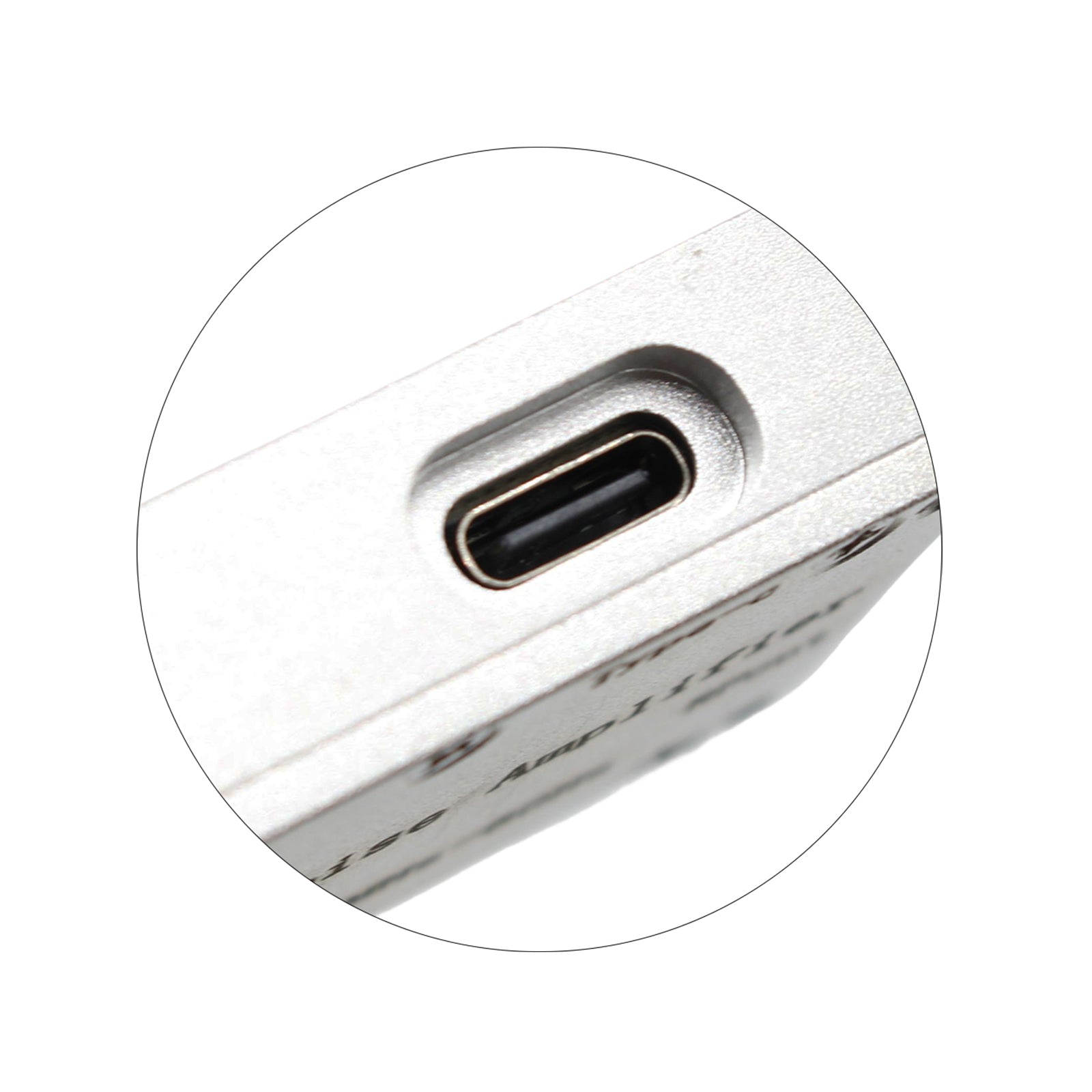

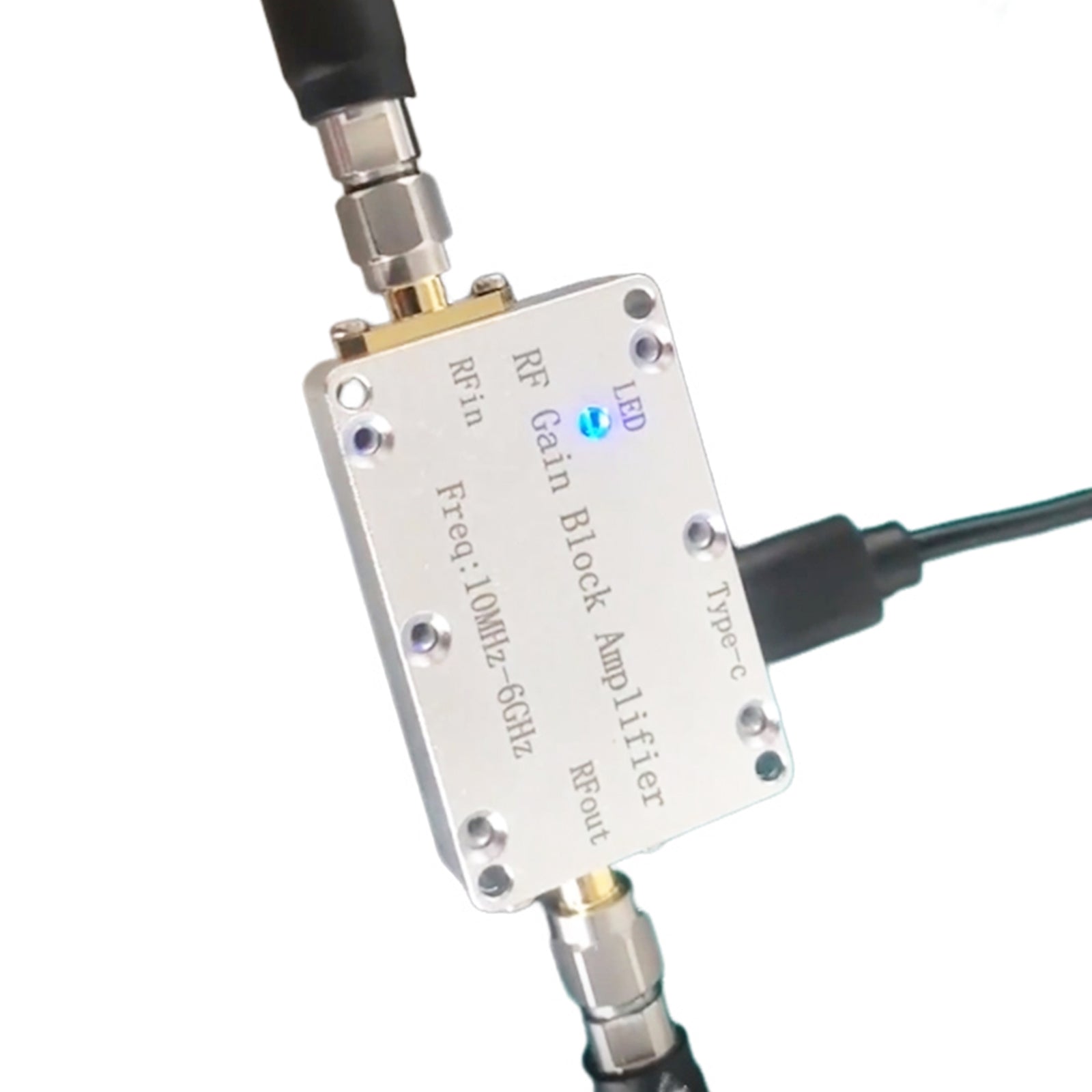

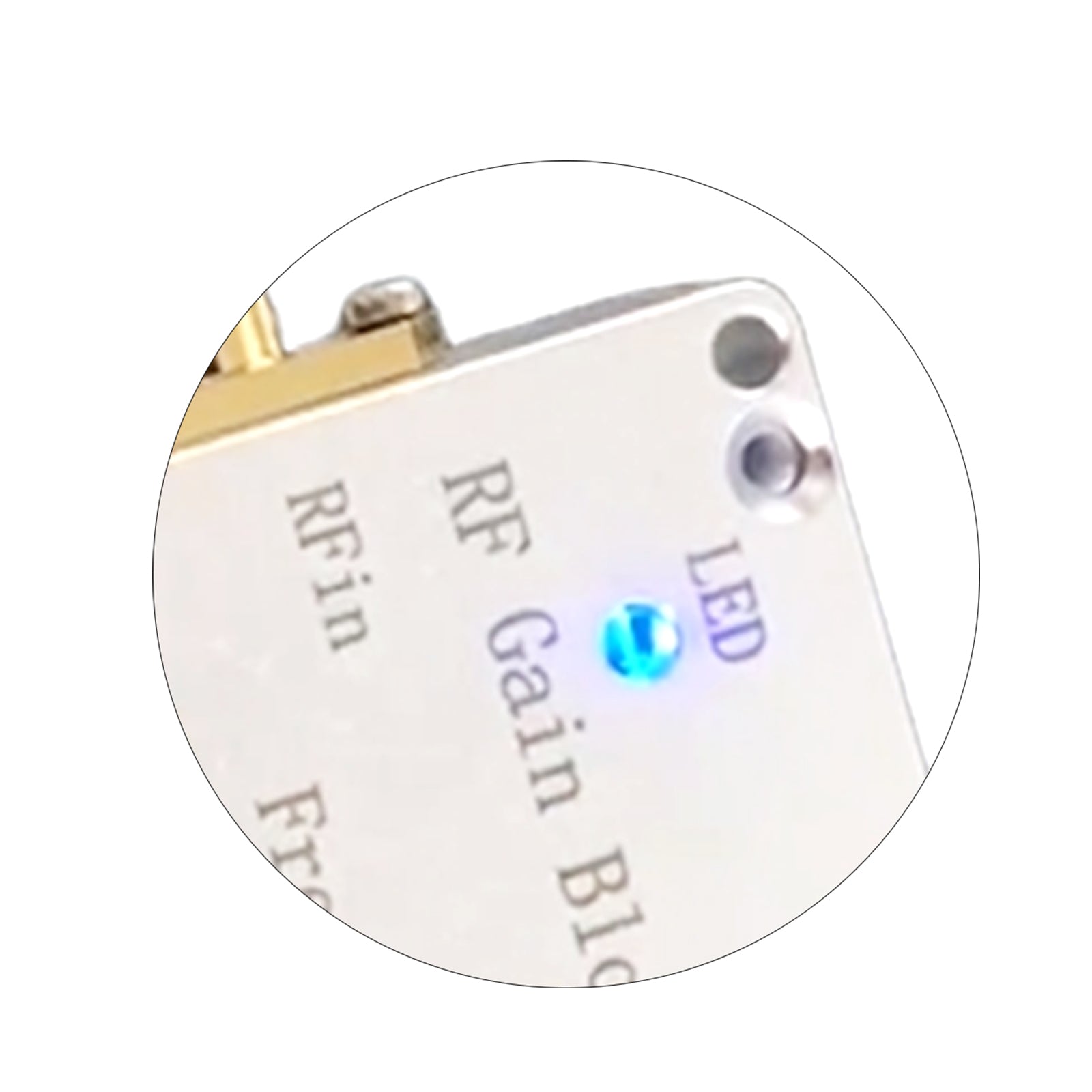

Description: This amplifier module is used for signal gain promotion and small signal amplification in various radio transmitters and receivers. The module covers the 10M-6GHz0M-6GHz broadband frequency range, covers 433M, 1.2G, 1.5G, 2.4G, 5.8G and other typical application frequencies, and has a high flatness gain characteristic of 10dB. It is used in transmitter signal gain promotion and receiver systems. The module uses a Type-c interface +5V power supply and has a power working indicator light.
Application scenario: 1. Beidou/GPS receiver 2. Receiver system (FM radio reception, radar reception, etc.) 3. Electromagnetic compatibility receiving system 4. Software Radio Receive 5. Intermediate frequency signal amplification

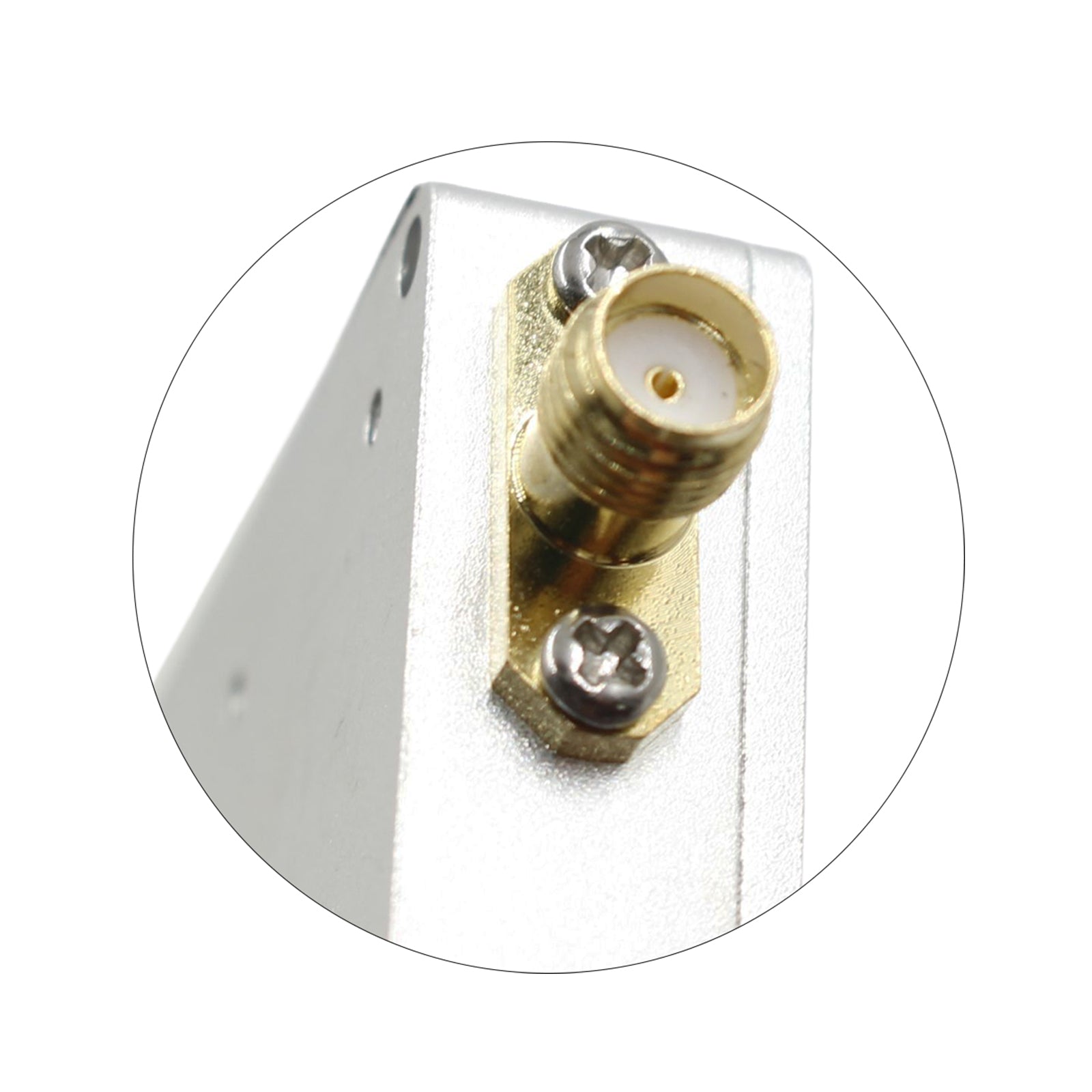

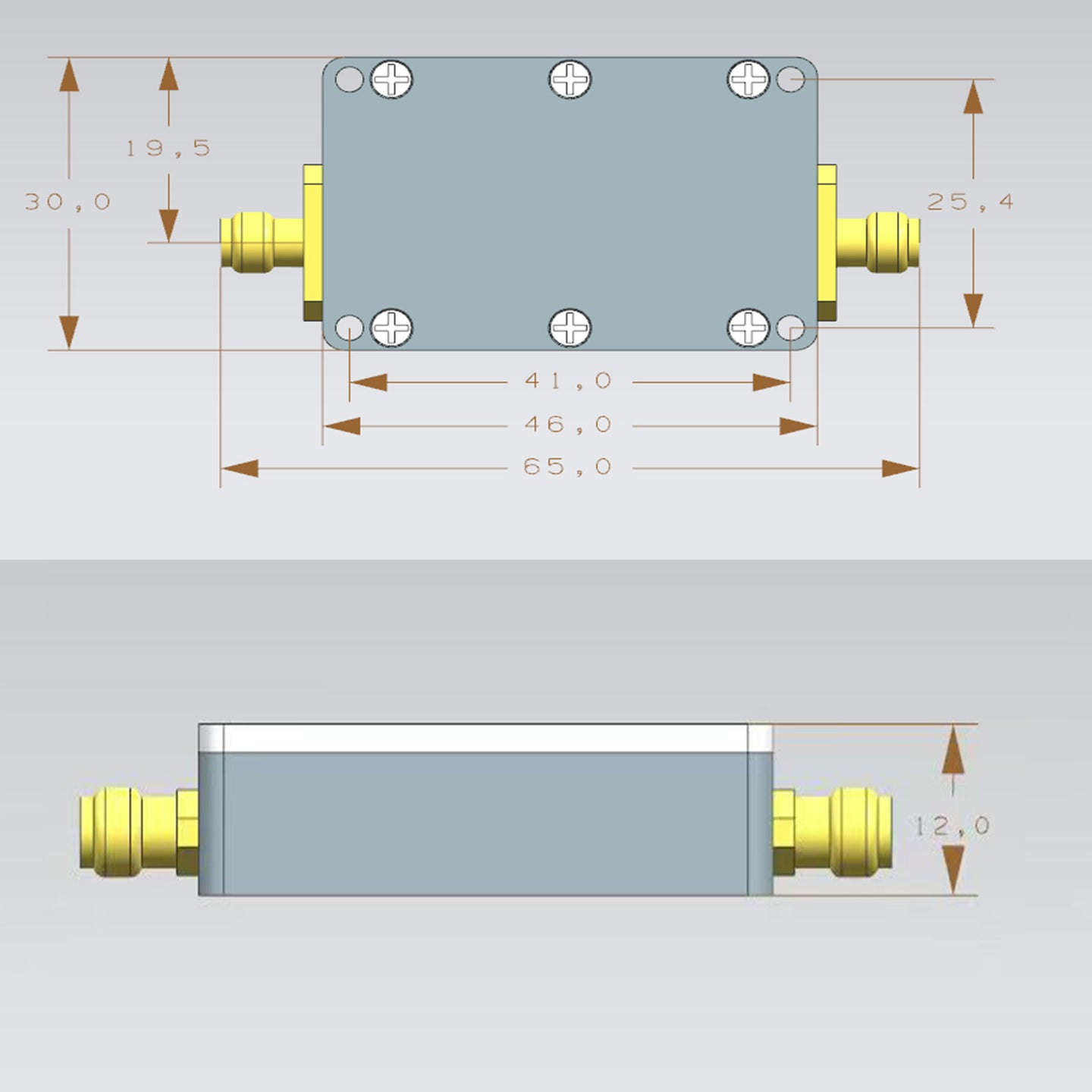

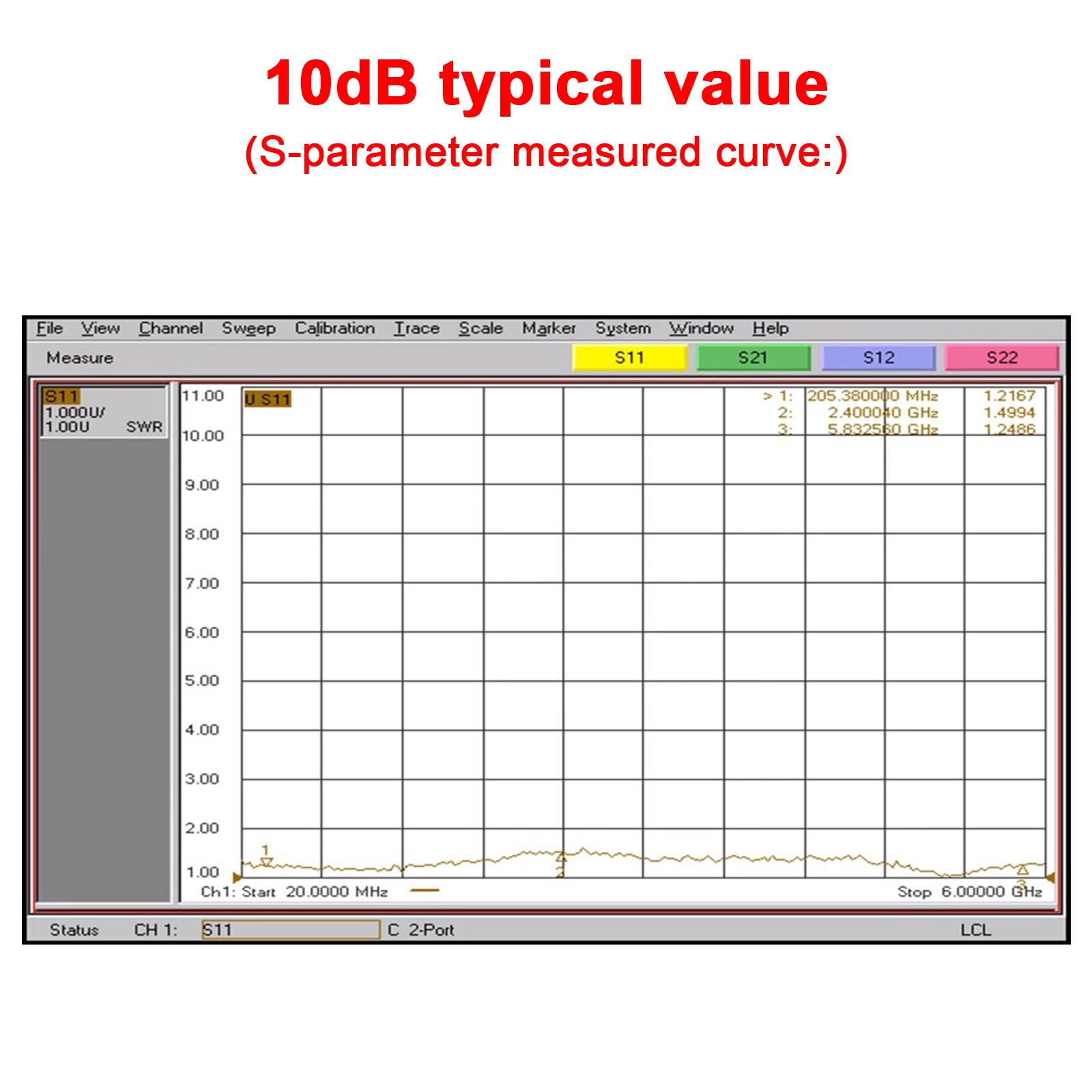

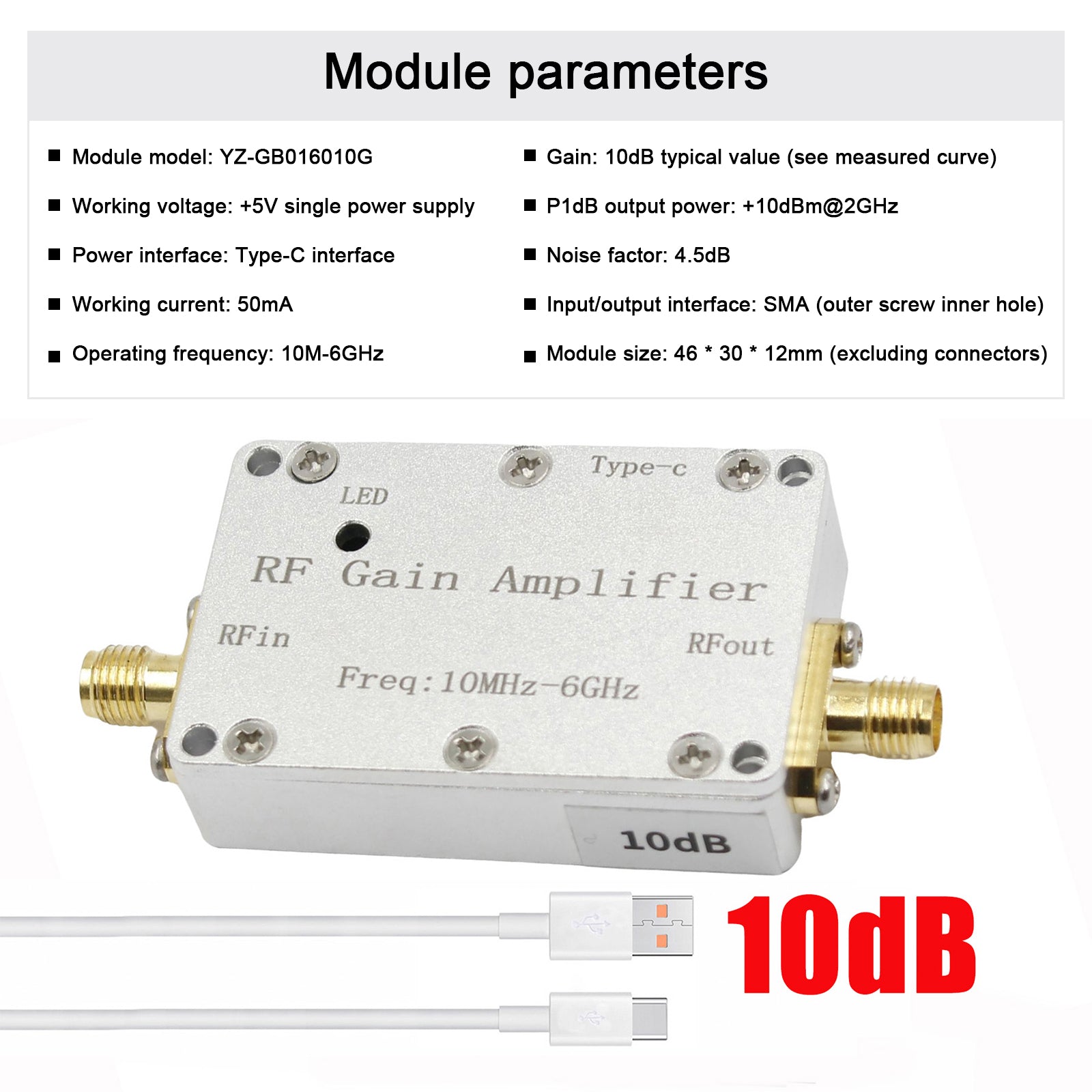

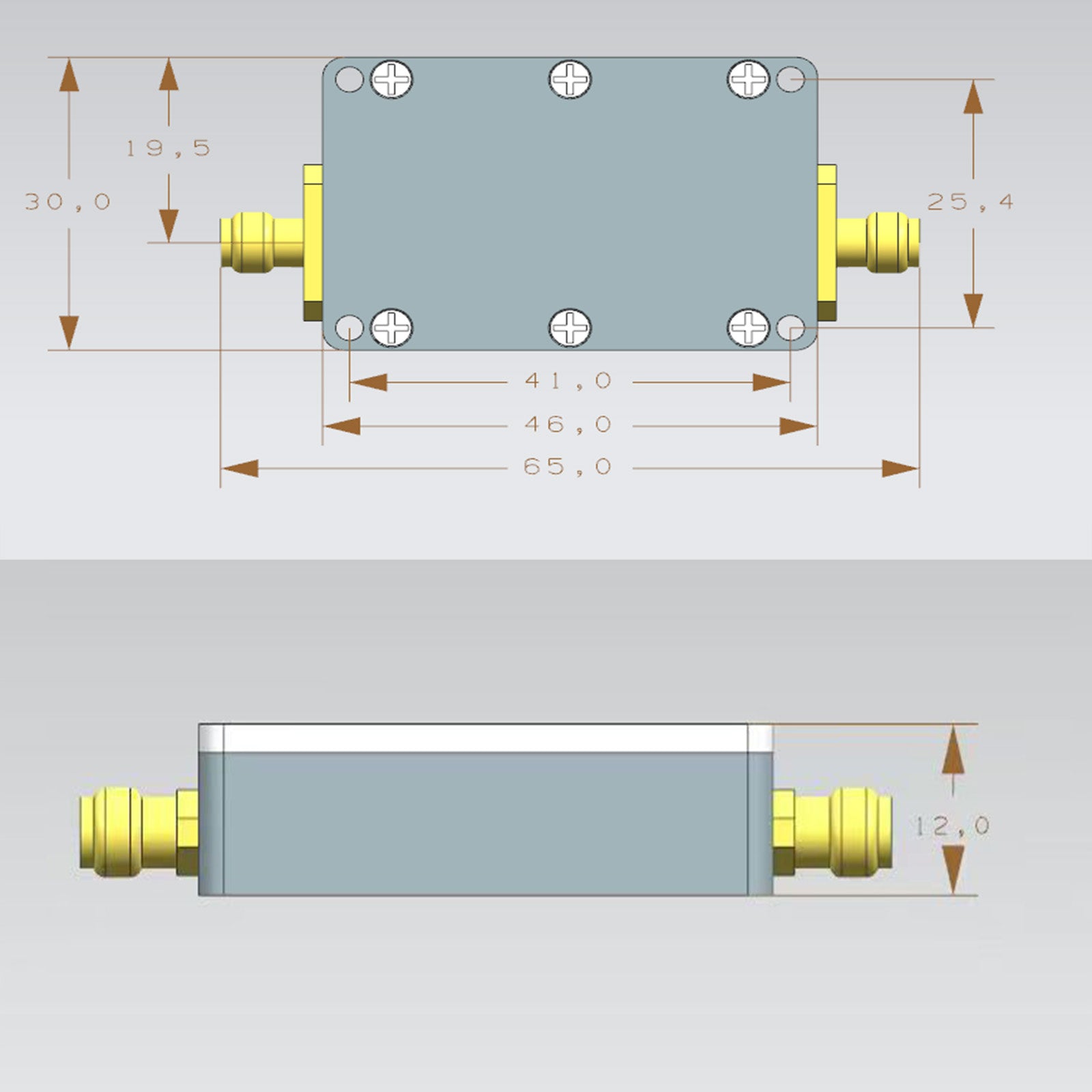

Specification: Working voltage: +5V single power supply; Power interface: Type-c interface; Working current: 10dB-50mA Working frequency: 10M-6GHz; Gain: 10DB (refer to the measured curve for different frequencies); P1dB output power: +10dBm@2GHz Noise coefficient: 4.5dB; Input and output interface: SMA (external screw inner hole); Module size: 46*30*12mm (excluding connector); Module weight: 35g; Weight: 60g (including host+TYPE-C cable); Current:<100mA; input-output impedance: 50 ohms

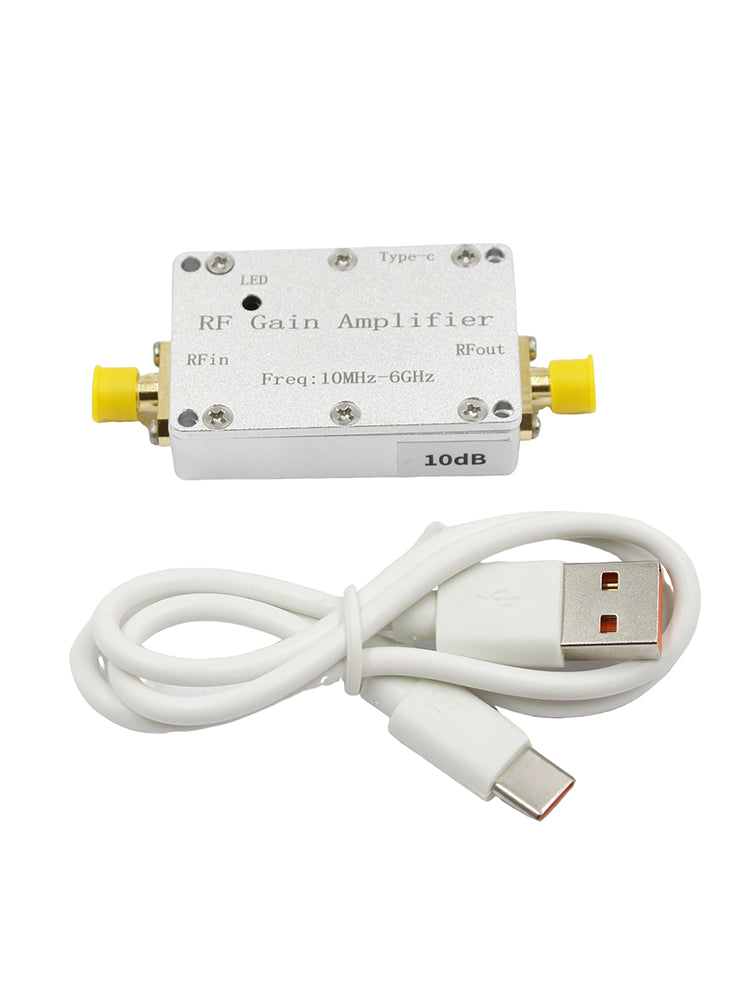

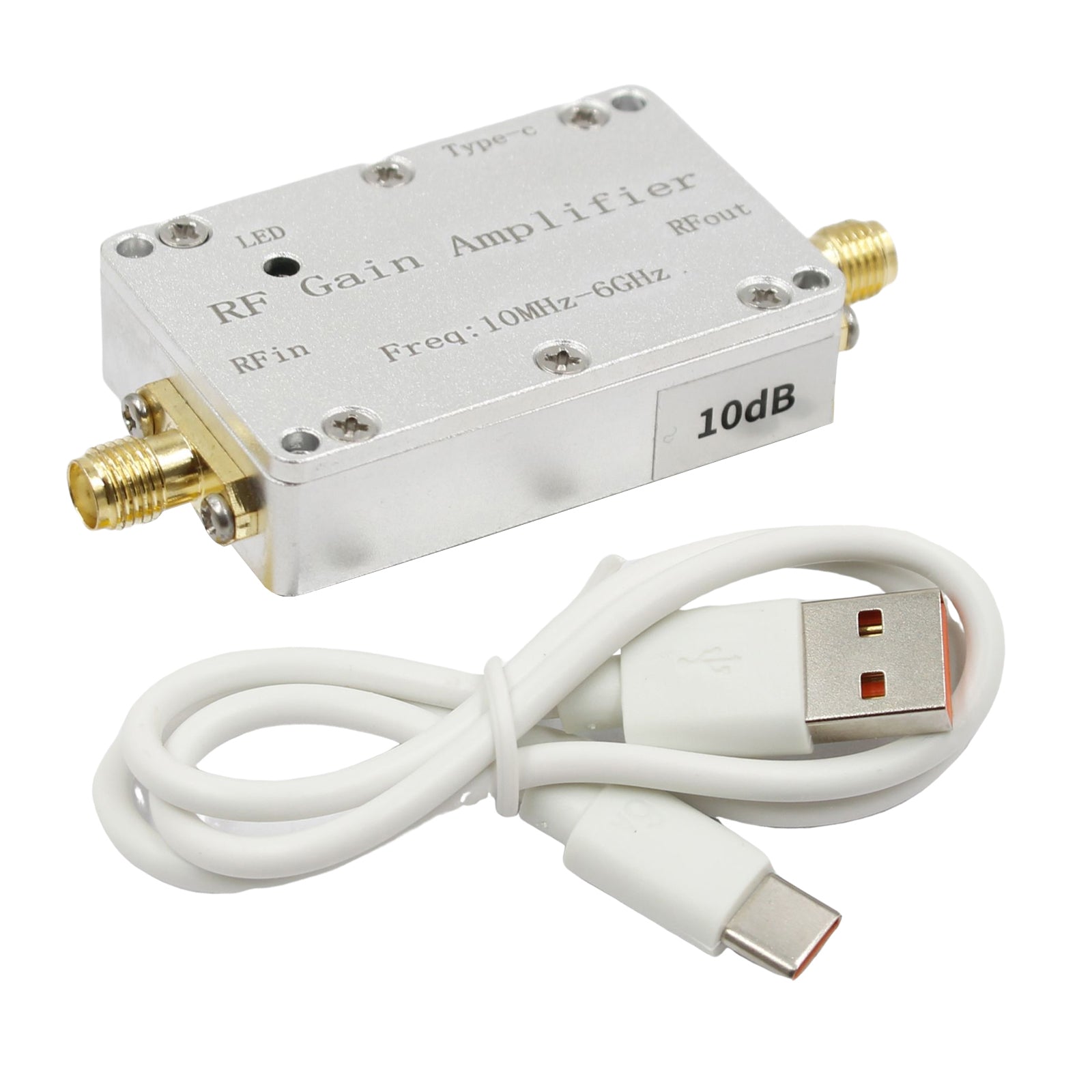

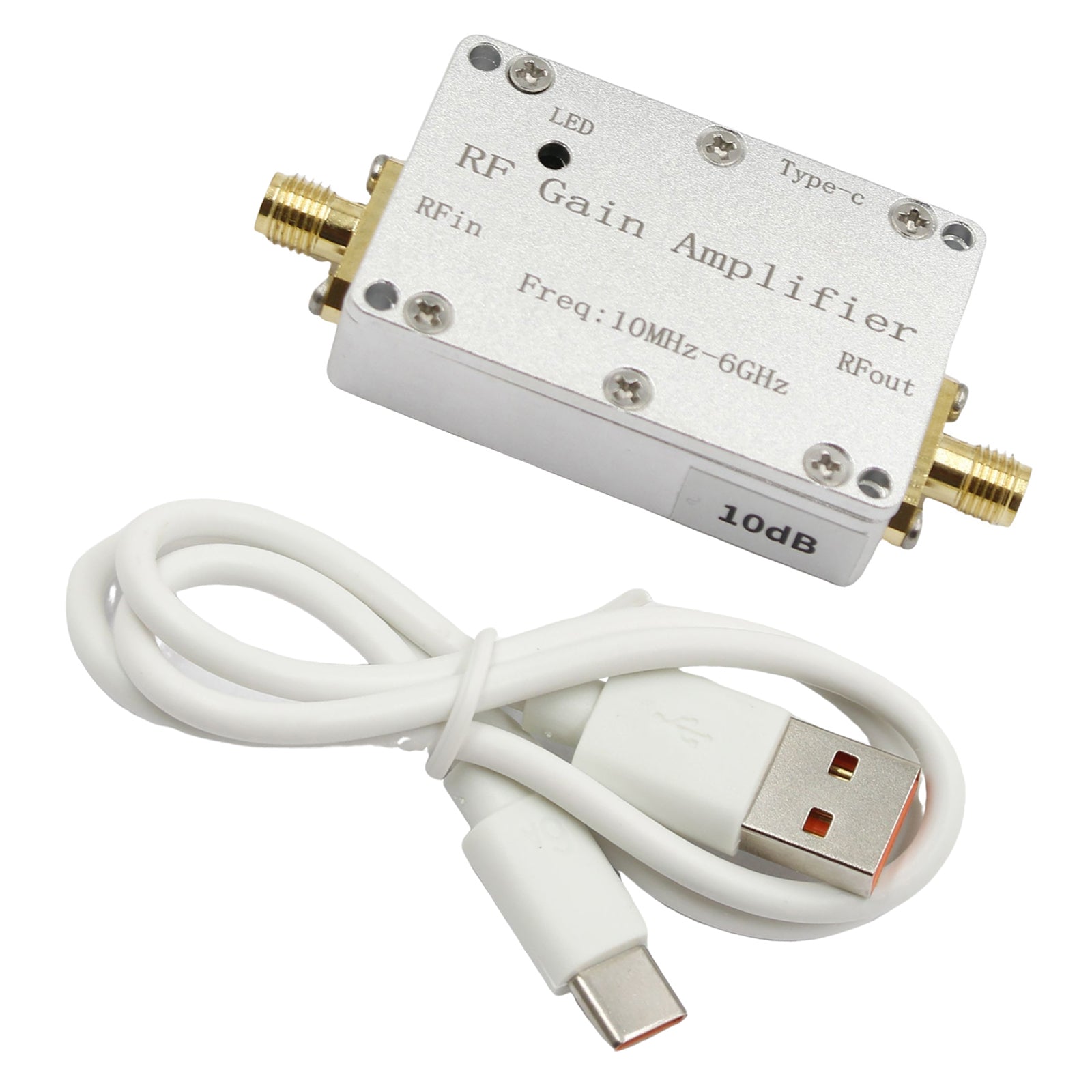

Package Included: 1 x 10dB Amplifier Module 1 x TYPE-C Cable
