10M-6GHz RF amplifier 40dB high gain driver receiving amplifier
Note:
This model needs to be used at about -20dBm or below. The gain of 40db does not mean that it will enter 0dBm. It will be amplified to 40dBm. The product gain of about 20dBm is already saturated.
Description:

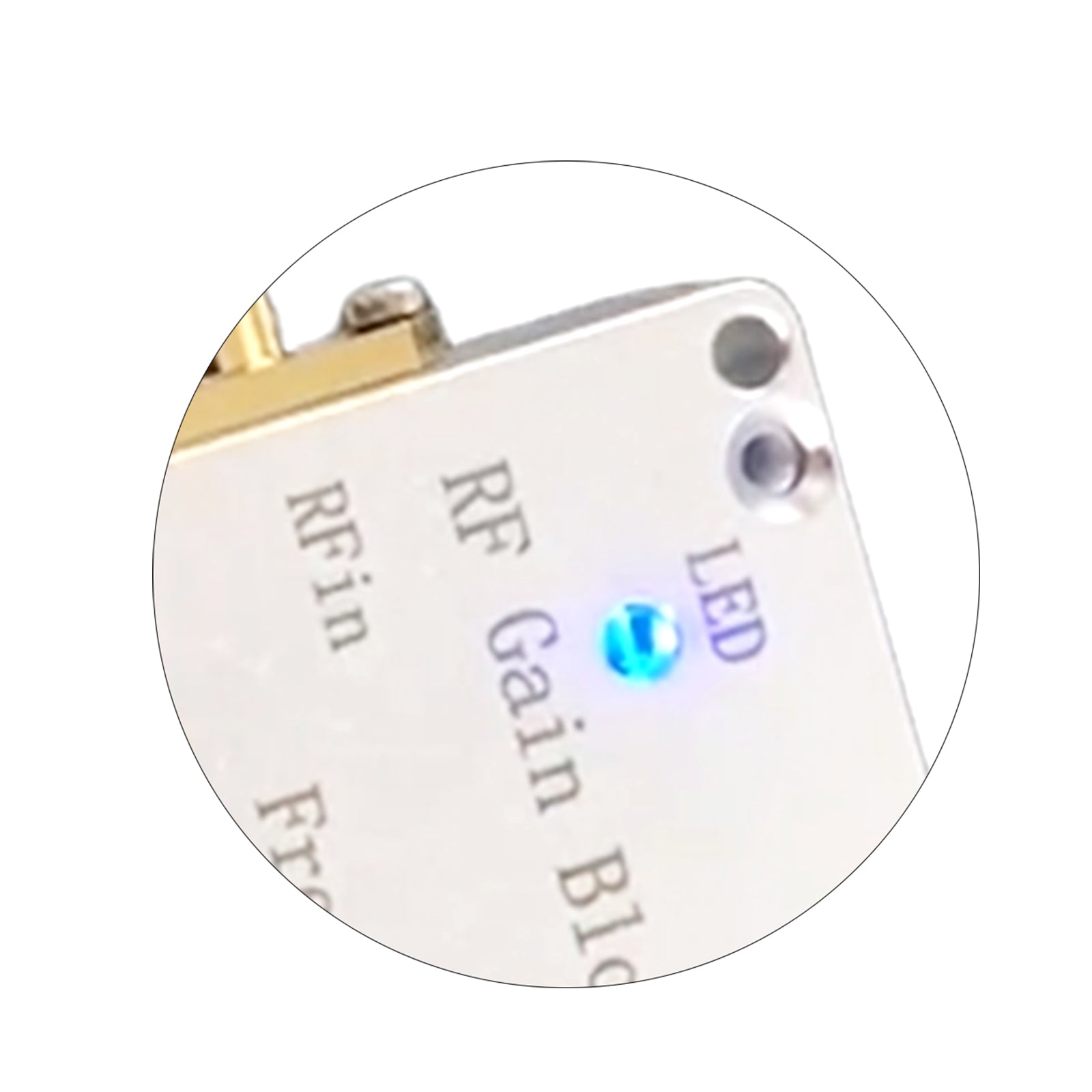

This amplifier module is used for signal gain promotion and small signal amplification in various radio transmitters and receivers. The module covers the 10M-6GHz0M-6GHz broadband frequency range, covers 433M, 1.2G, 1.5G, 2.4G, 5.8G and other typical application frequencies, and has a high flatness gain characteristic of 40dB. It is used in transmitter signal gain promotion and receiver systems. The module uses a Type-c interface +5V power supply and has a power working indicator light.
Application scenario:
1. Beidou/GPS receiver
2. Receiver system (FM radio reception, radar reception, etc.)
3. Electromagnetic compatibility receiving system
4. Software Radio Receive
5. Intermediate frequency signal amplification

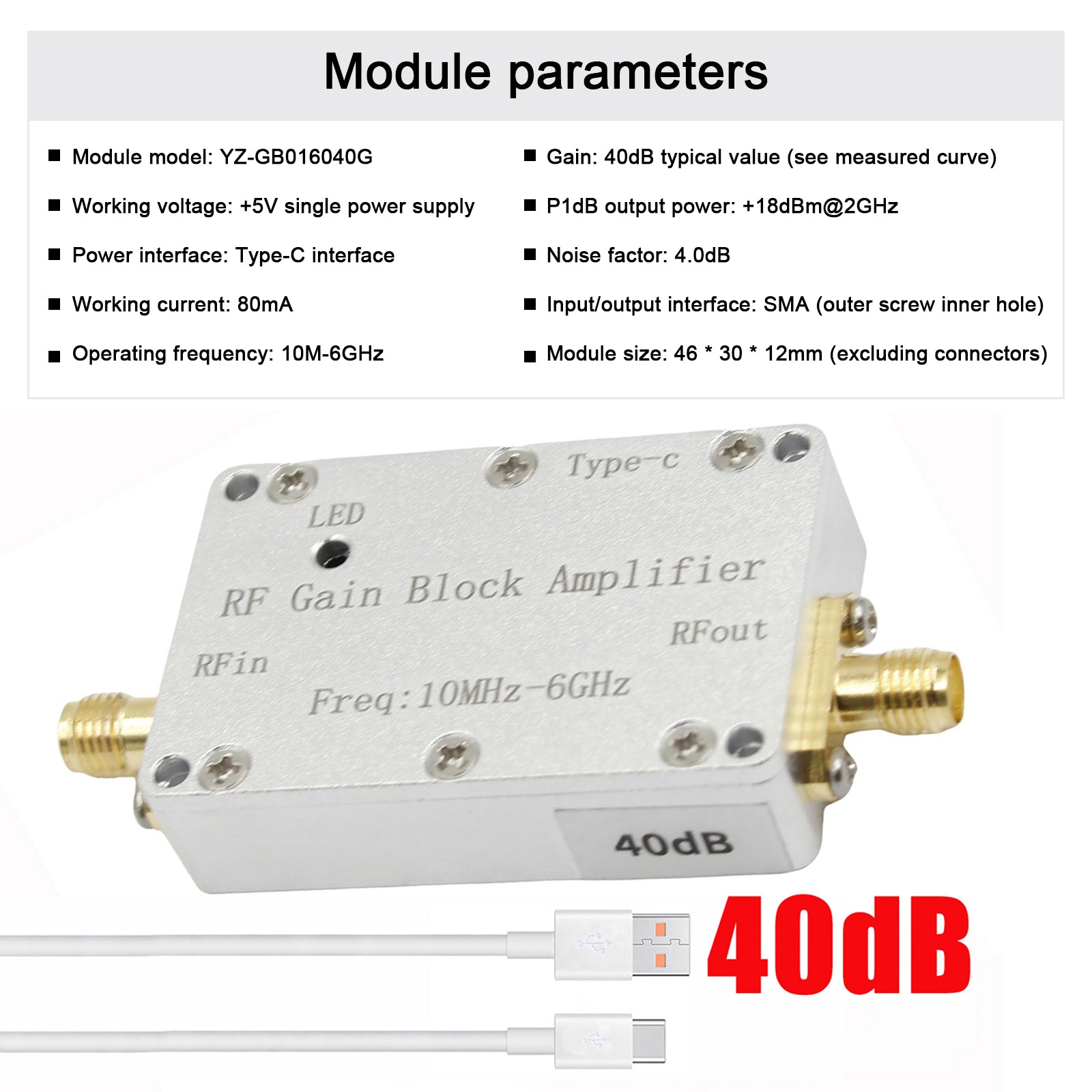

Specification:
Working voltage: +5V single power supply;

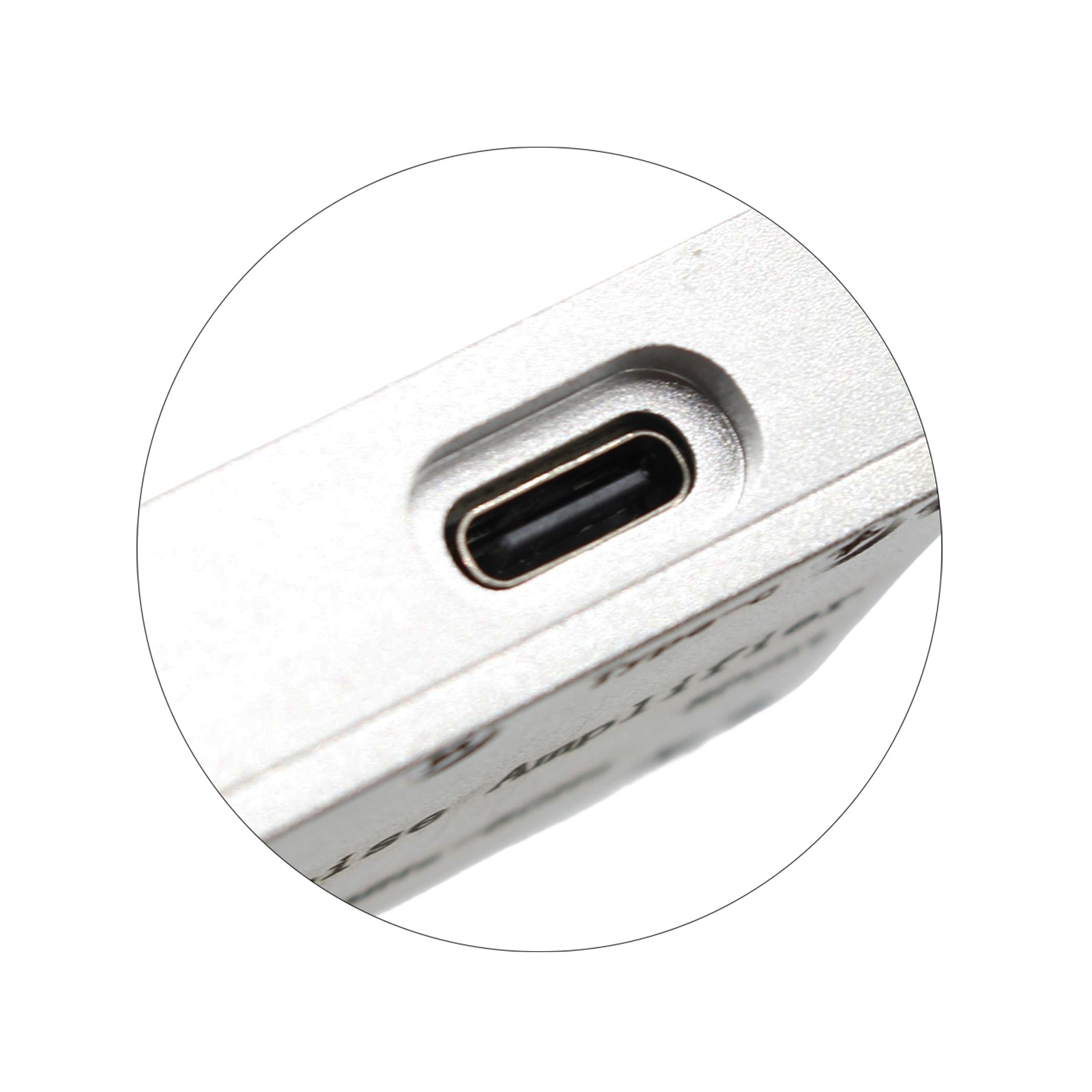

Power interface: Type-c interface;
Working current: 40dB-80mA
Working frequency: 10M-6GHz;

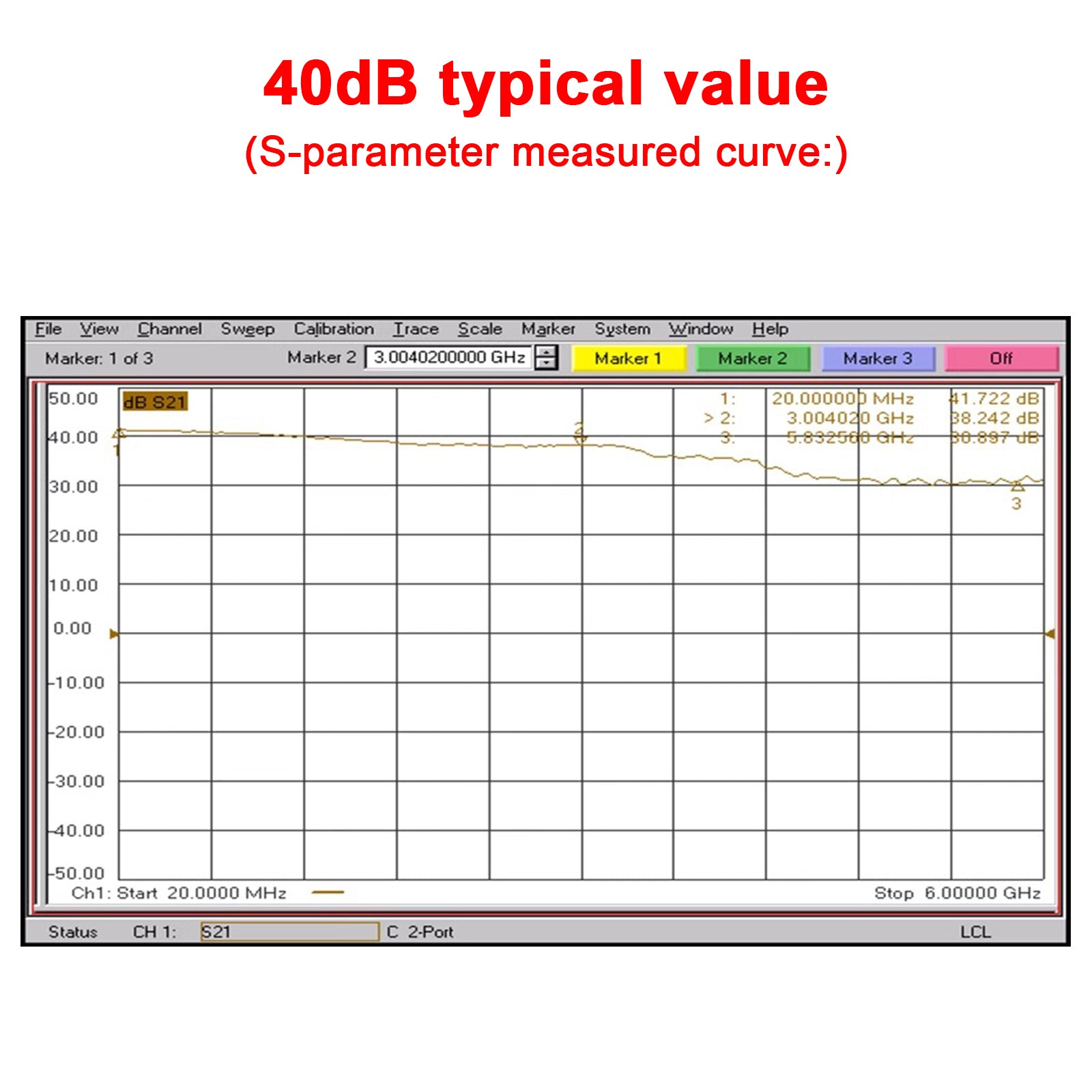

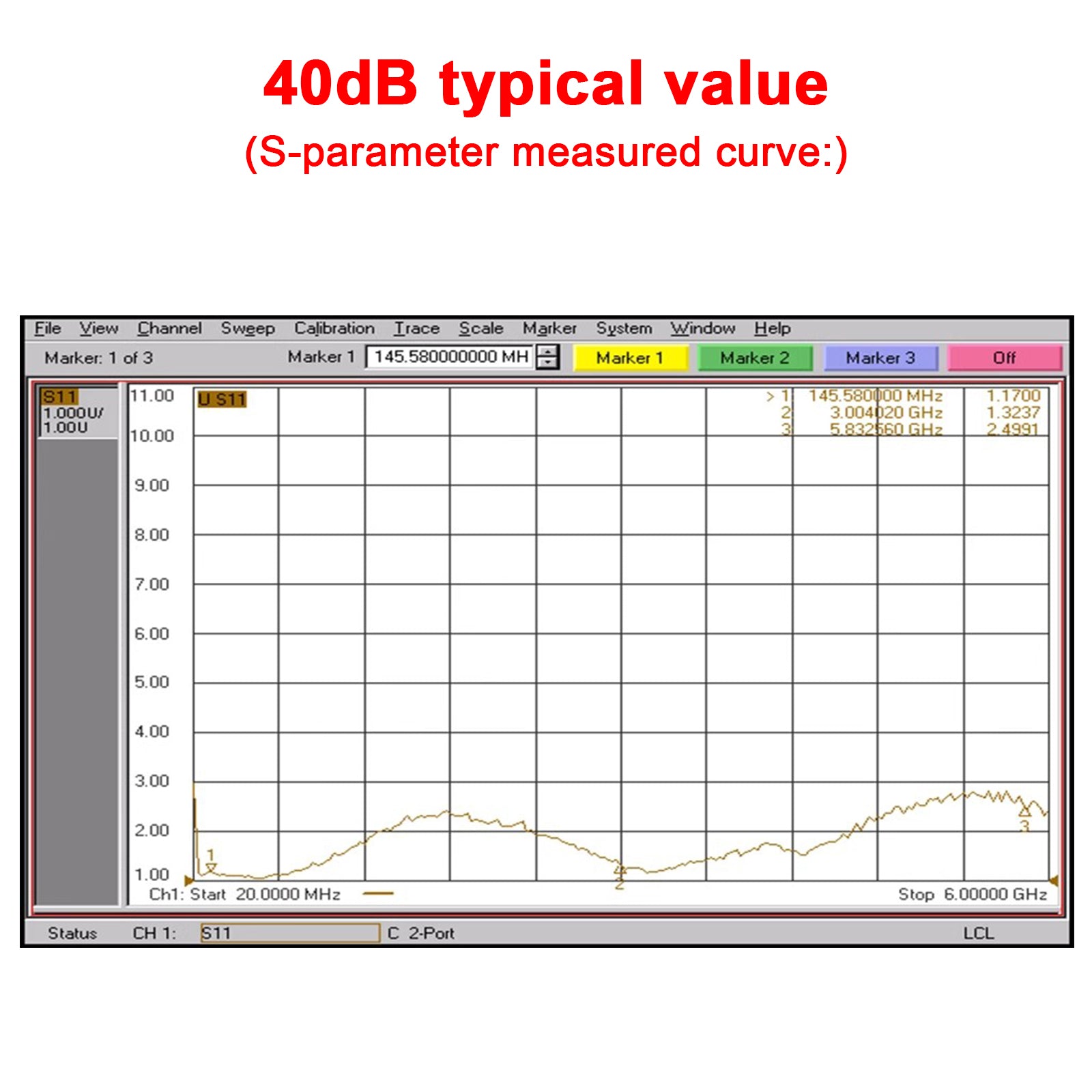

Gain: 40DB (refer to the measured curve for different frequencies);
P1dB output power: +18dBm@2GHz;
Noise coefficient: 4.5dB;

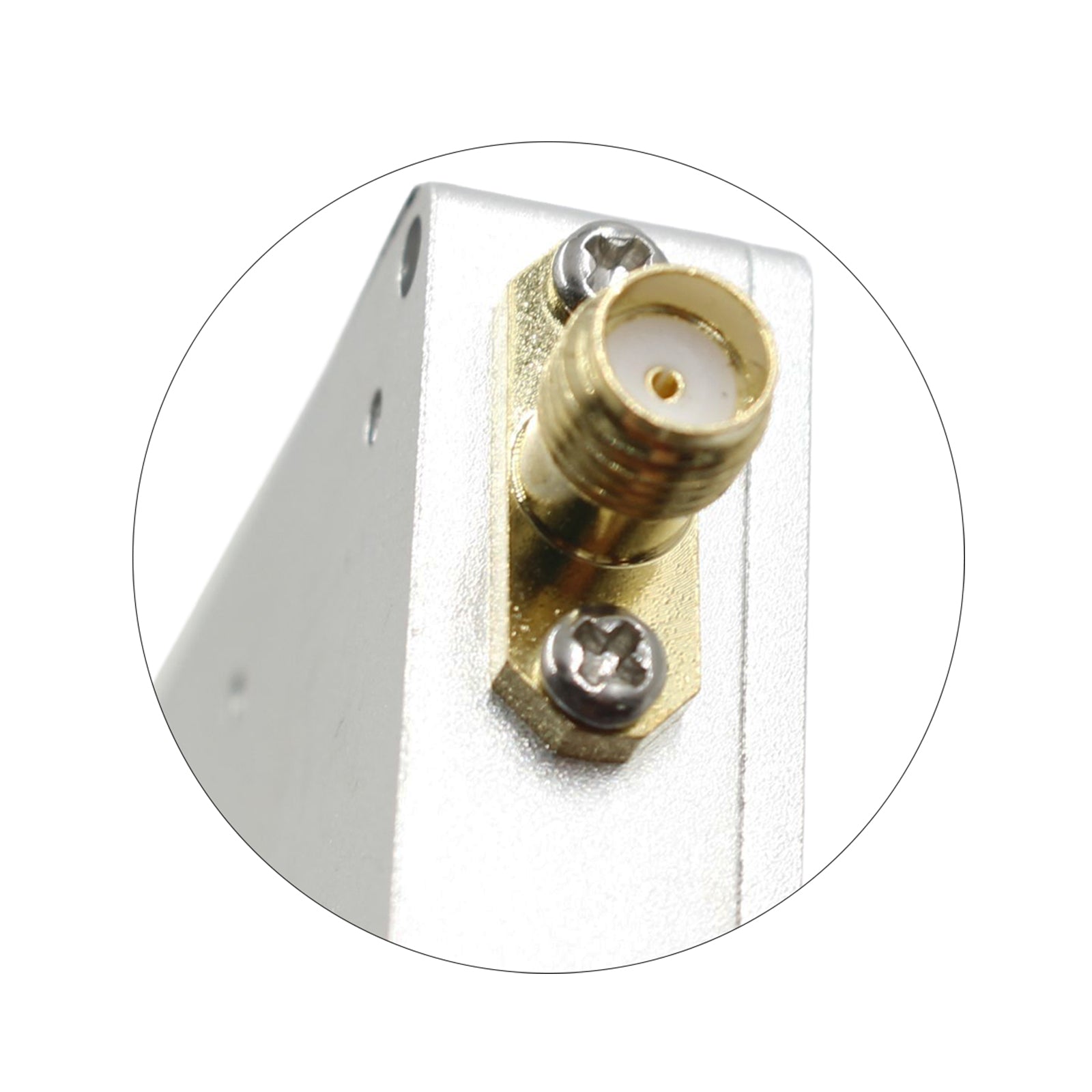

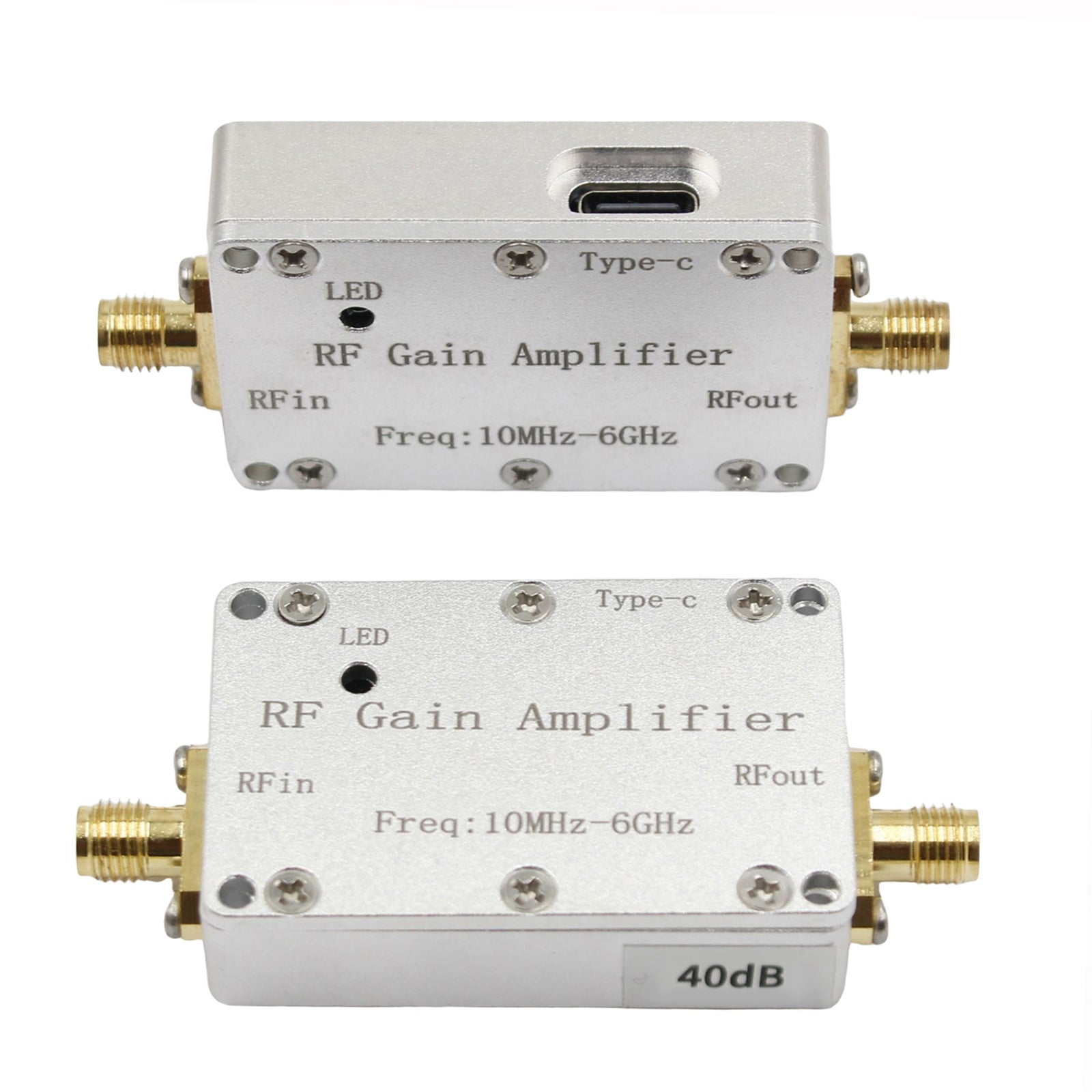

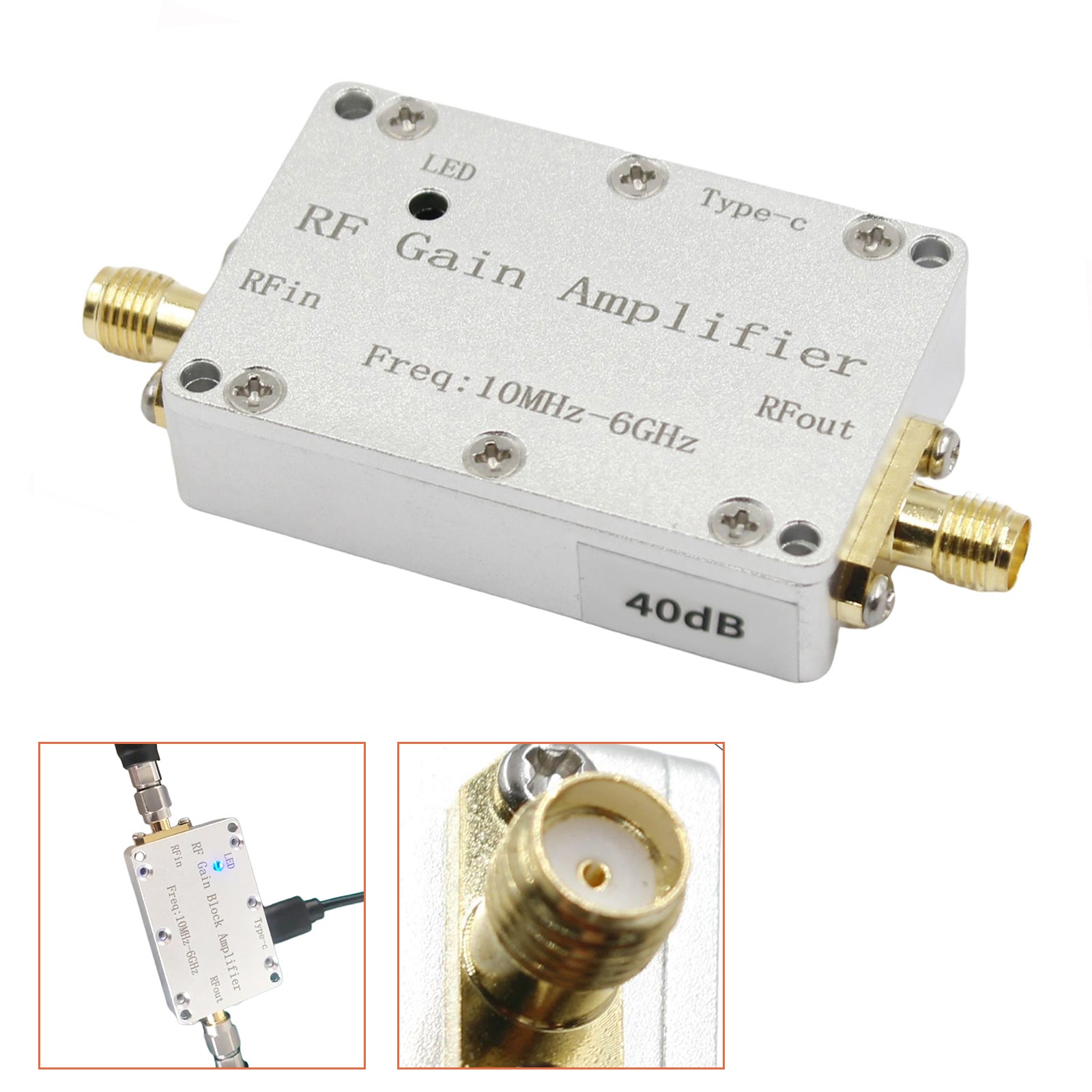

Input and output interface: SMA (external screw inner hole);

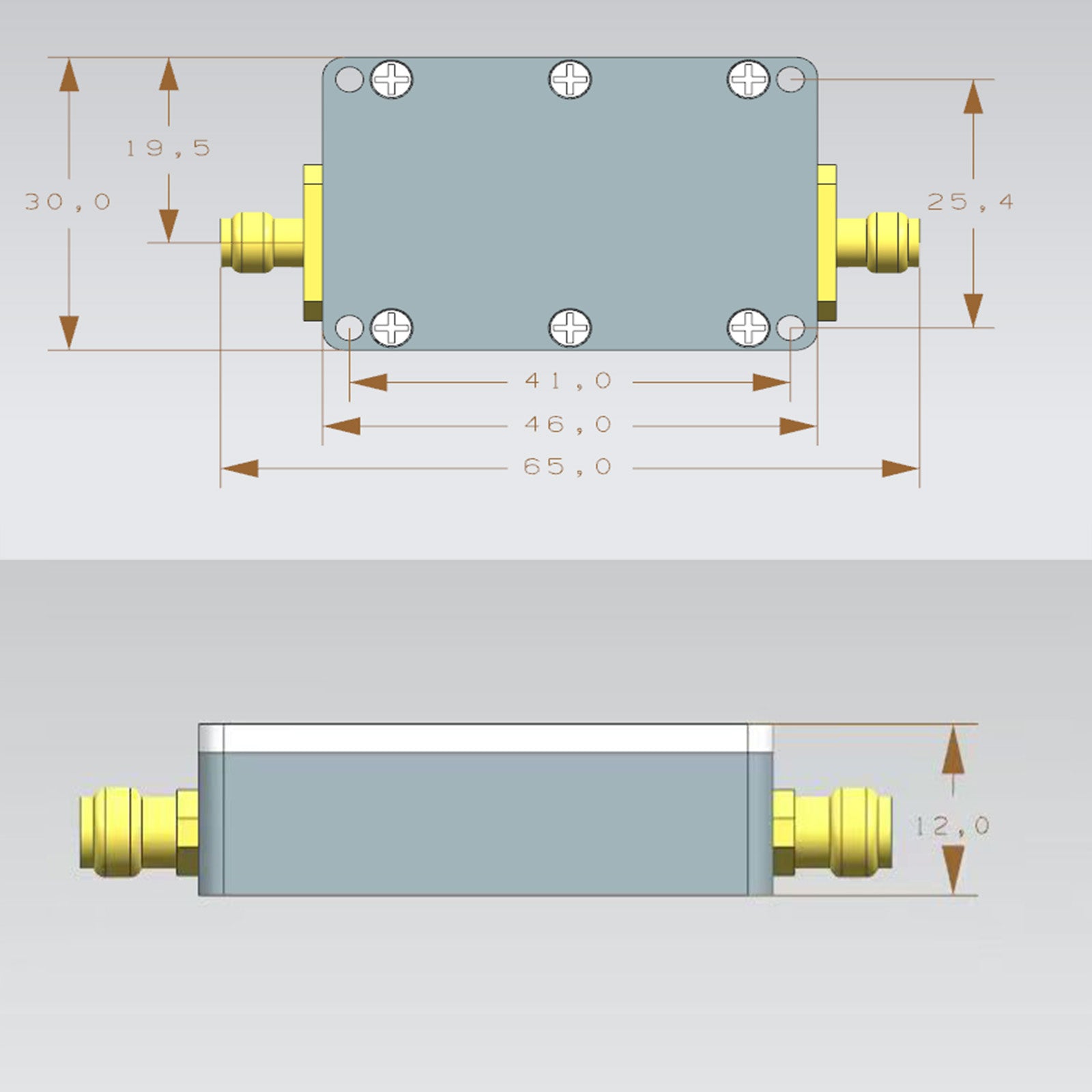

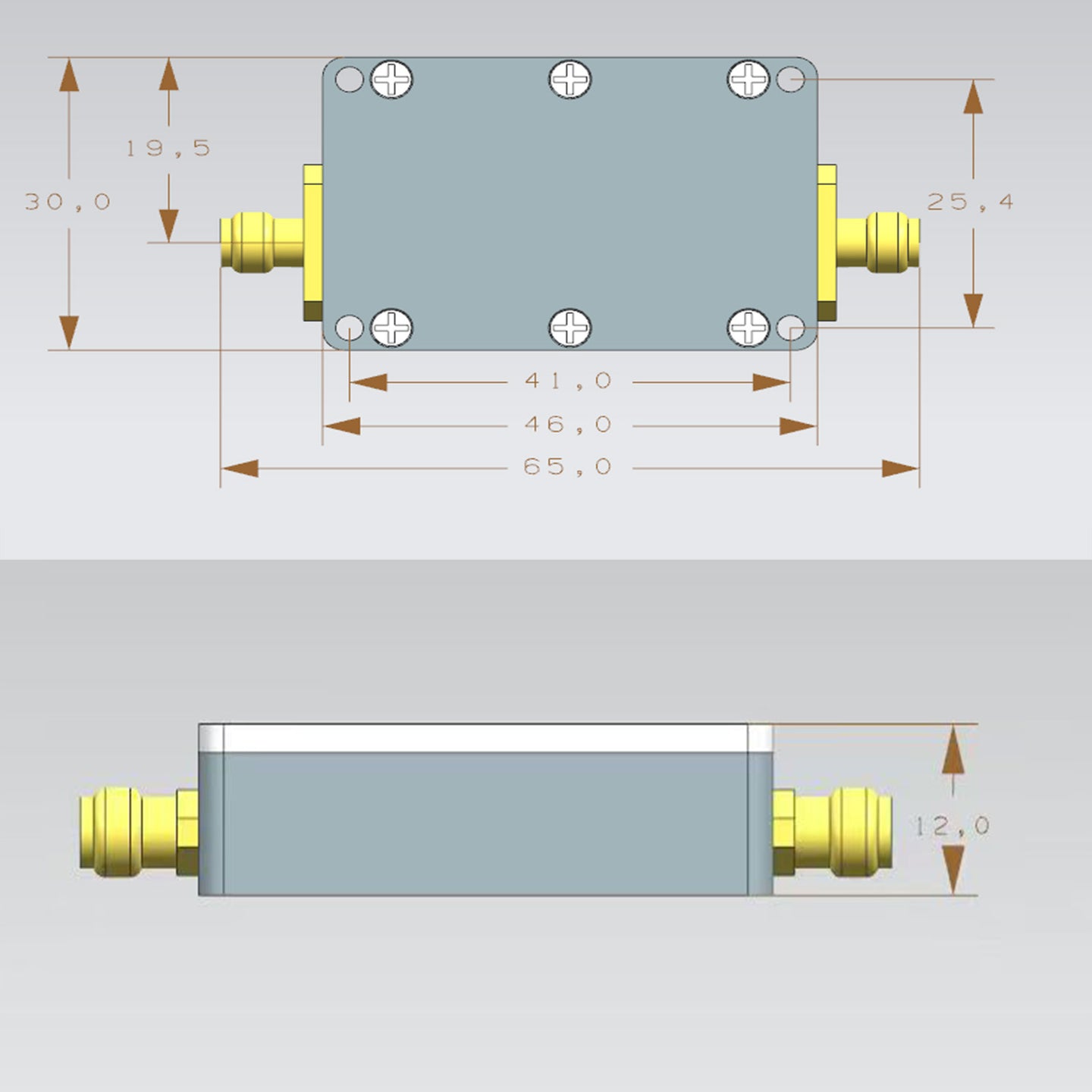

Module size: 46*30*12mm (excluding connector);
Module weight: 35g;
Weight: 60g (including host+TYPE-C cable);
Current:<100mA;
input-output impedance: 50 ohms
Package Included:

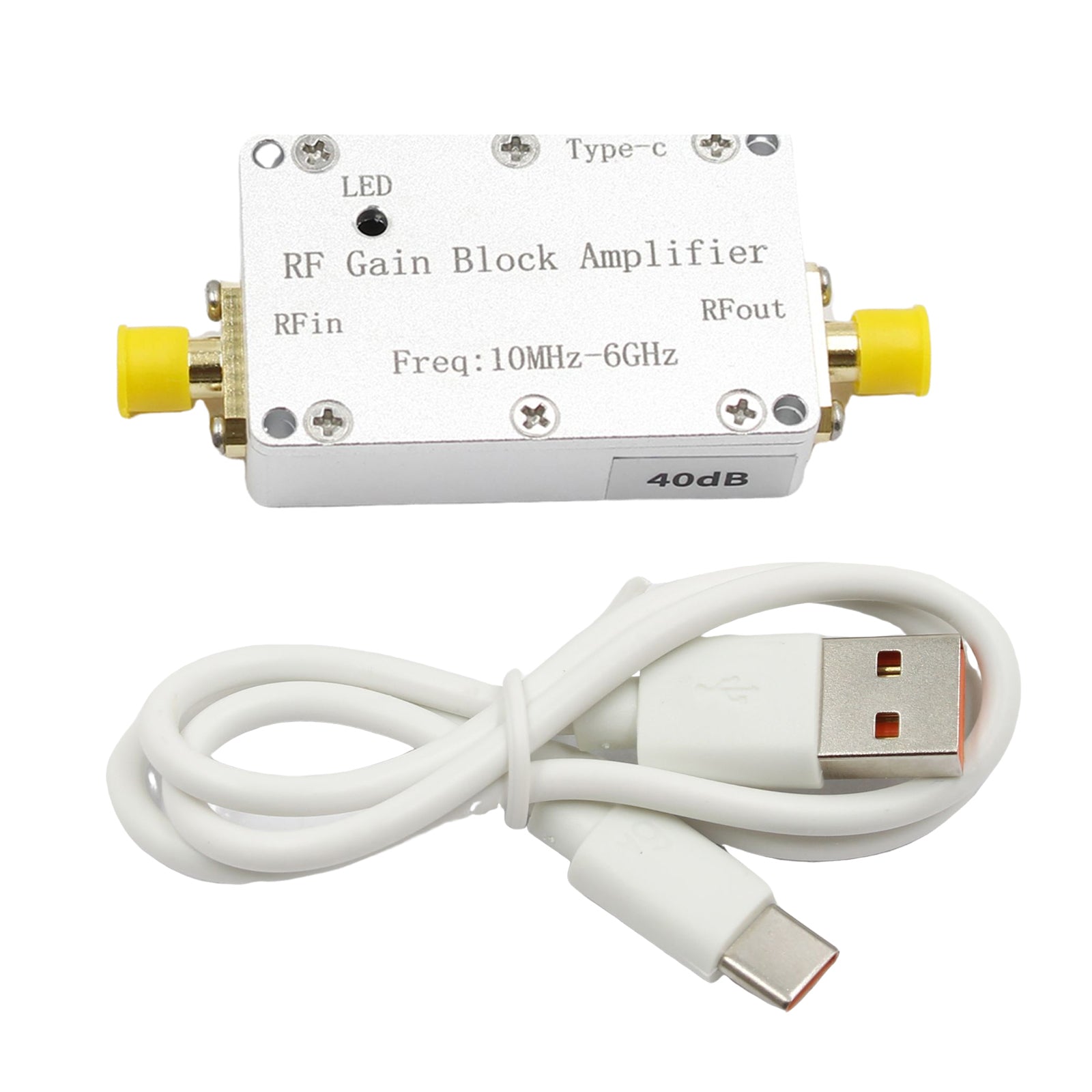

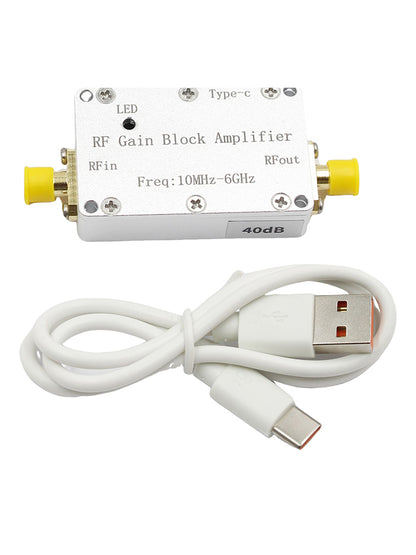

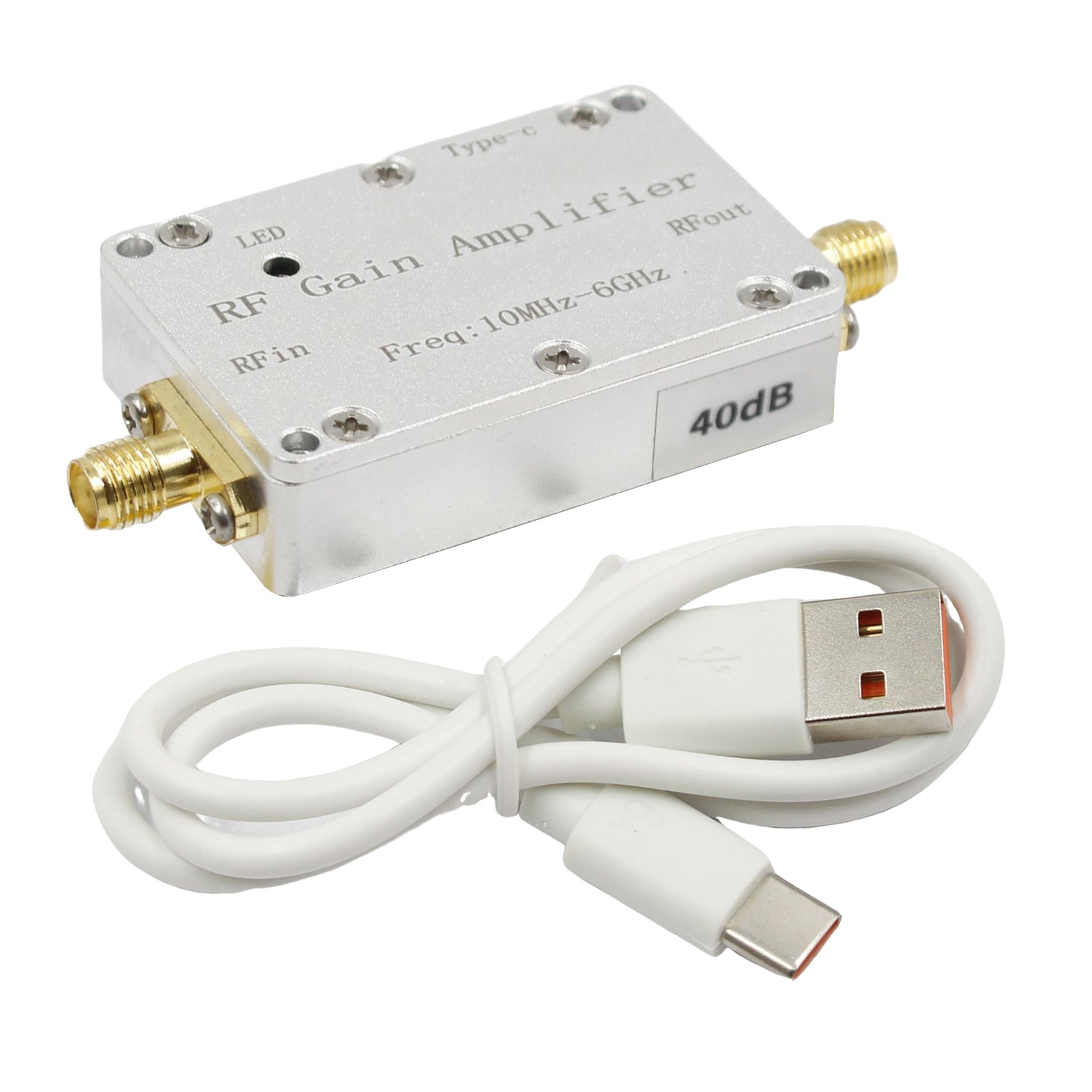

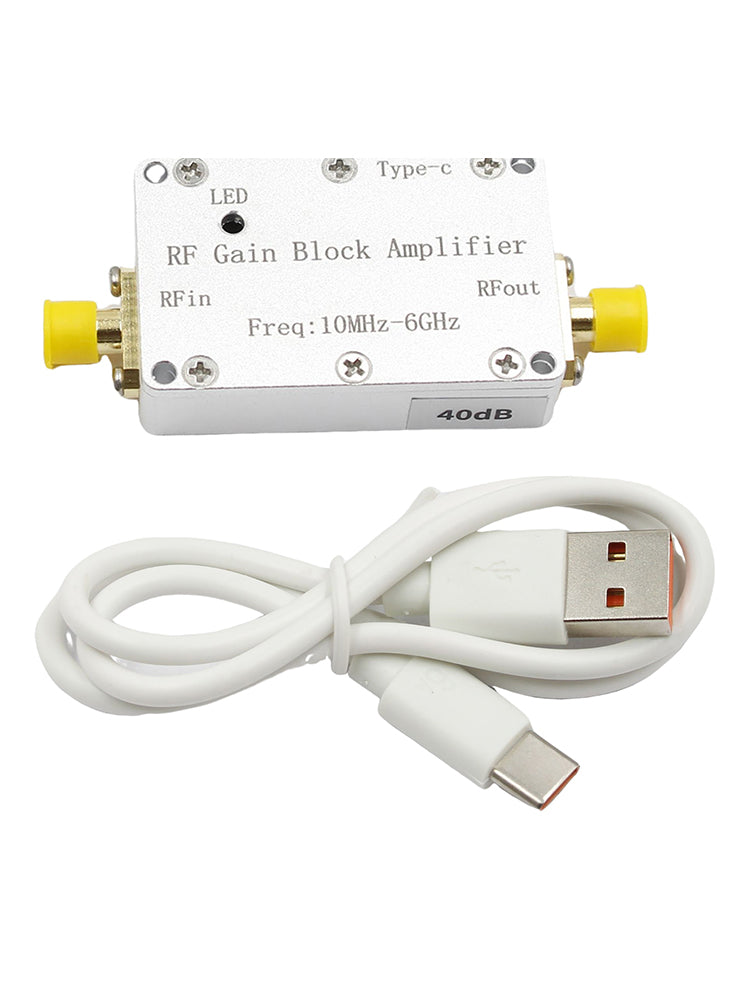

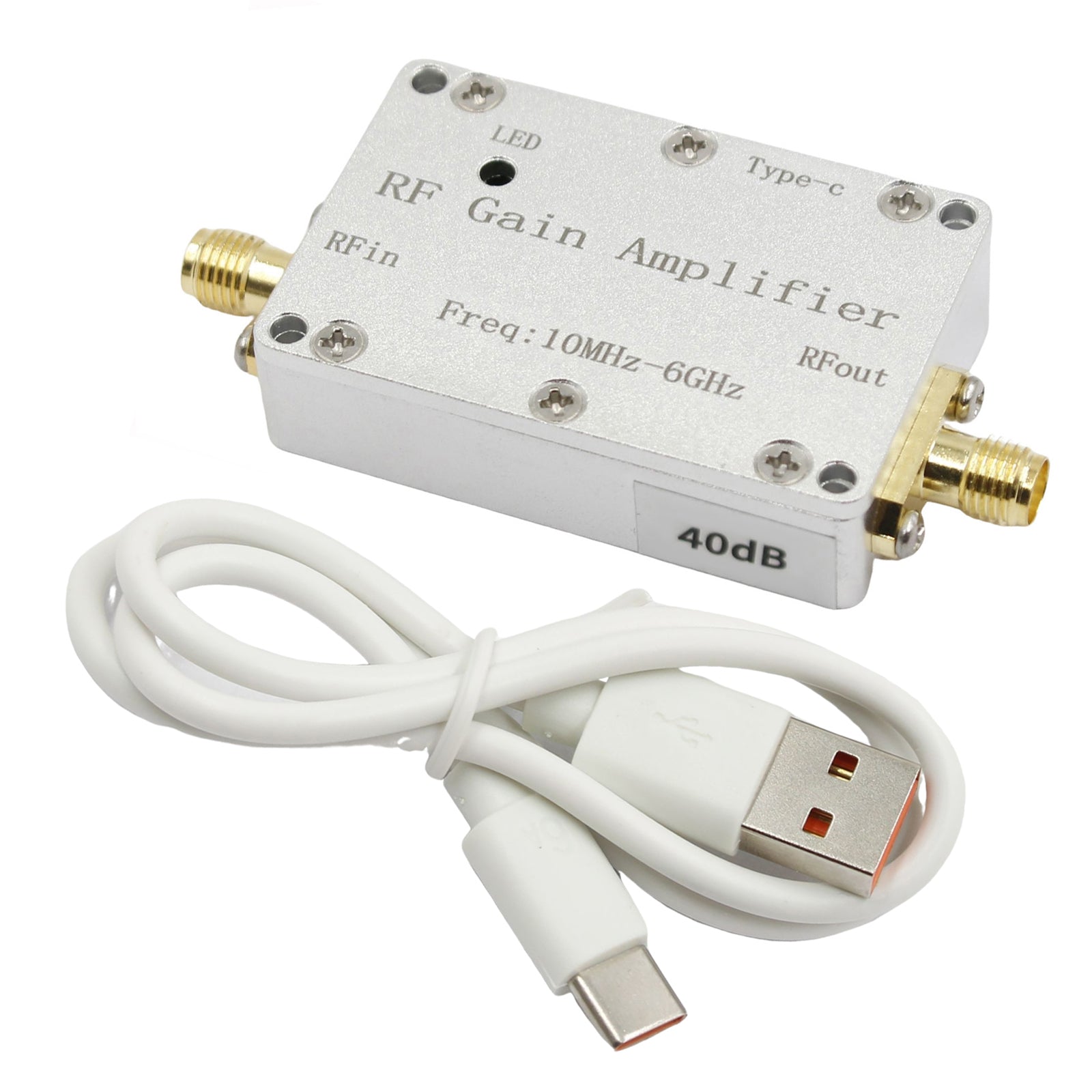

1 x 40dB Amplifier Module
1 x TYPE-C Cable
