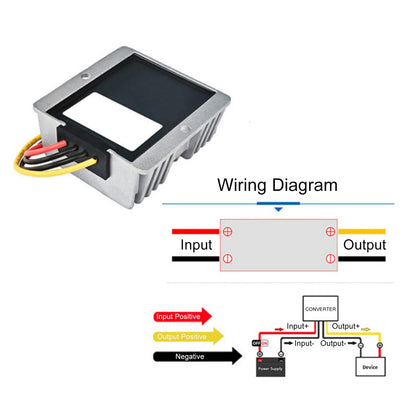

â?/span>Waterproof 30â€?20 V to 12 V 10 A 120 W DC/DC Converter
Feature:
Premium Build for Long-Term Use �Crafted from high-quality materials for extended durability and long-term reliability, even under demanding conditions.
Advanced Multi-Protection System �Built-in overcurrent, overvoltage, overtemperature, and short circuit protection ensures safe and stable performance.
Waterproof & Shockproof Design �Rugged, IP-rated housing with excellent heat dissipation and easy installation, ideal for outdoor or harsh environments.
Dedicated Voltage Conversion Only �This converter is not designed to charge batteries; it provides stable 12V output for powering devices only.
Versatile Applications �Perfect for LED lighting, digital displays, security monitoring, automation systems, and communication equipment.
Specifics:
Shell Material
Die-cast aluminum alloy
Input rated voltage
36V/48V/60V/72V/90V DC
Input voltage range
30 ~ 120V DC
Output voltage
12V DC
Output current
10A (max), 120W
Conversion efficiency
Over 90%
Static consumption
Less than 20MA
No-load adjustment rate
2%
Load regulation
3%
Operating temperature
-25°C ~ +65°C
Wire lengths
About 12~13cm
Size
74 x 74 x 32mm/2.91 x 2.91 x 1.26inch
Weight
approx.250g
Input wire color
(+)Red, (-)Black
Output wire color
(+)Yellow, (-)Black
⚠️Note: 1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power. 2.Please take with an average load, do not merge,if there are multiple output cables in the output port. 3.You need to pay attention to make the power module cool,if output is up to the maximum current value. 4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included: 1x DC/DC Converter Regulator
